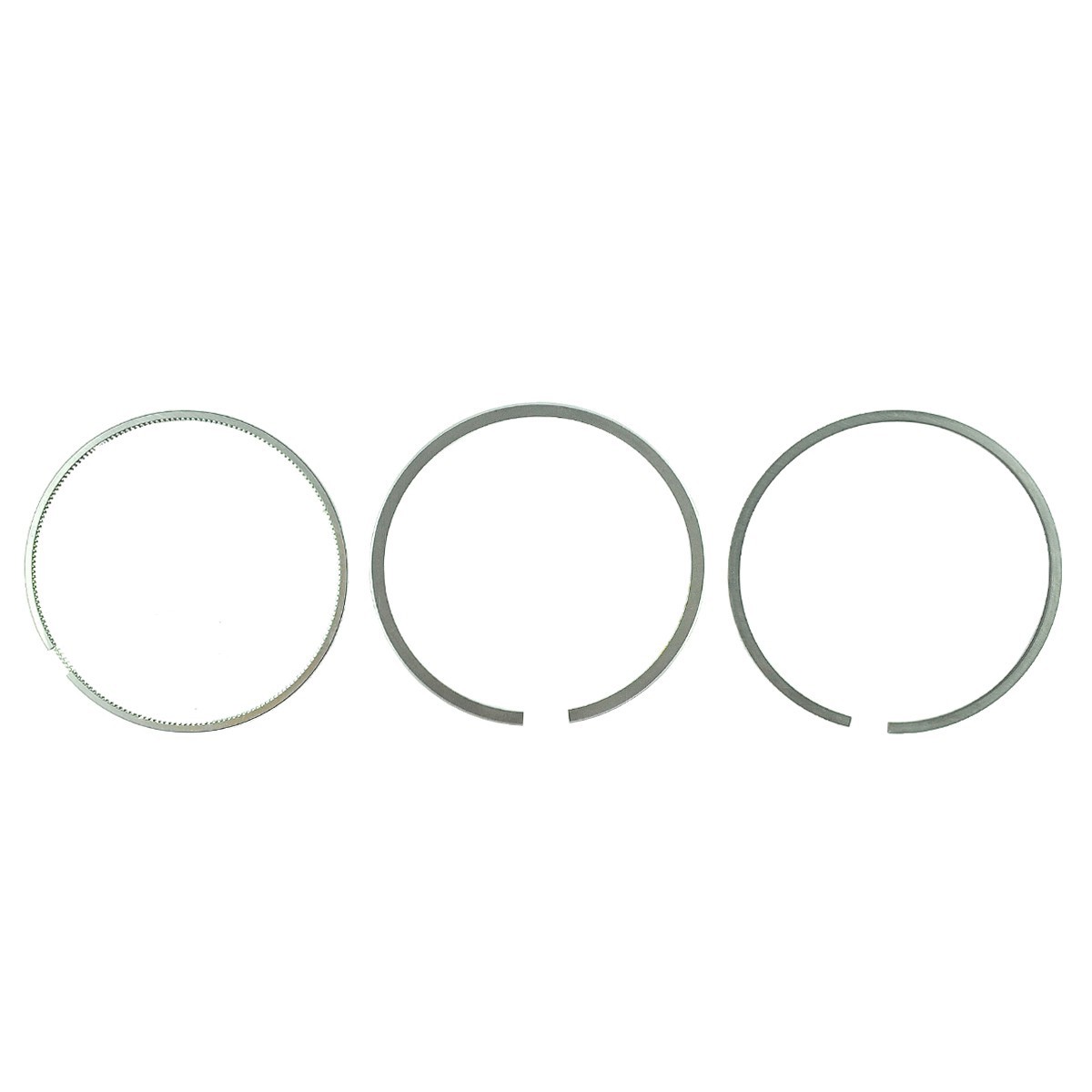

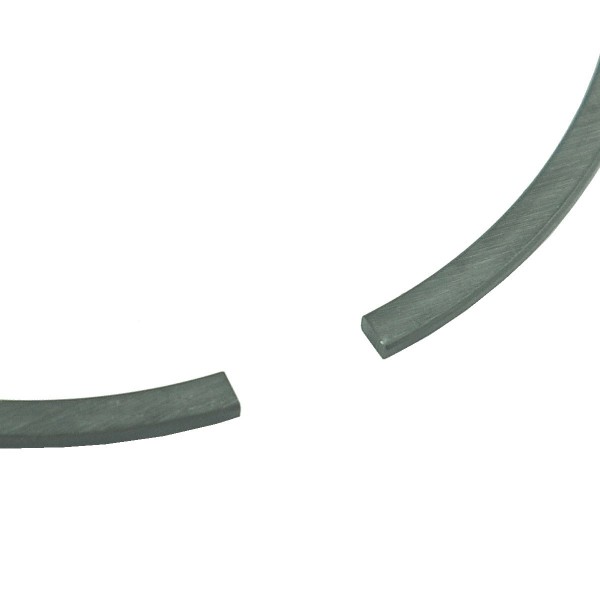

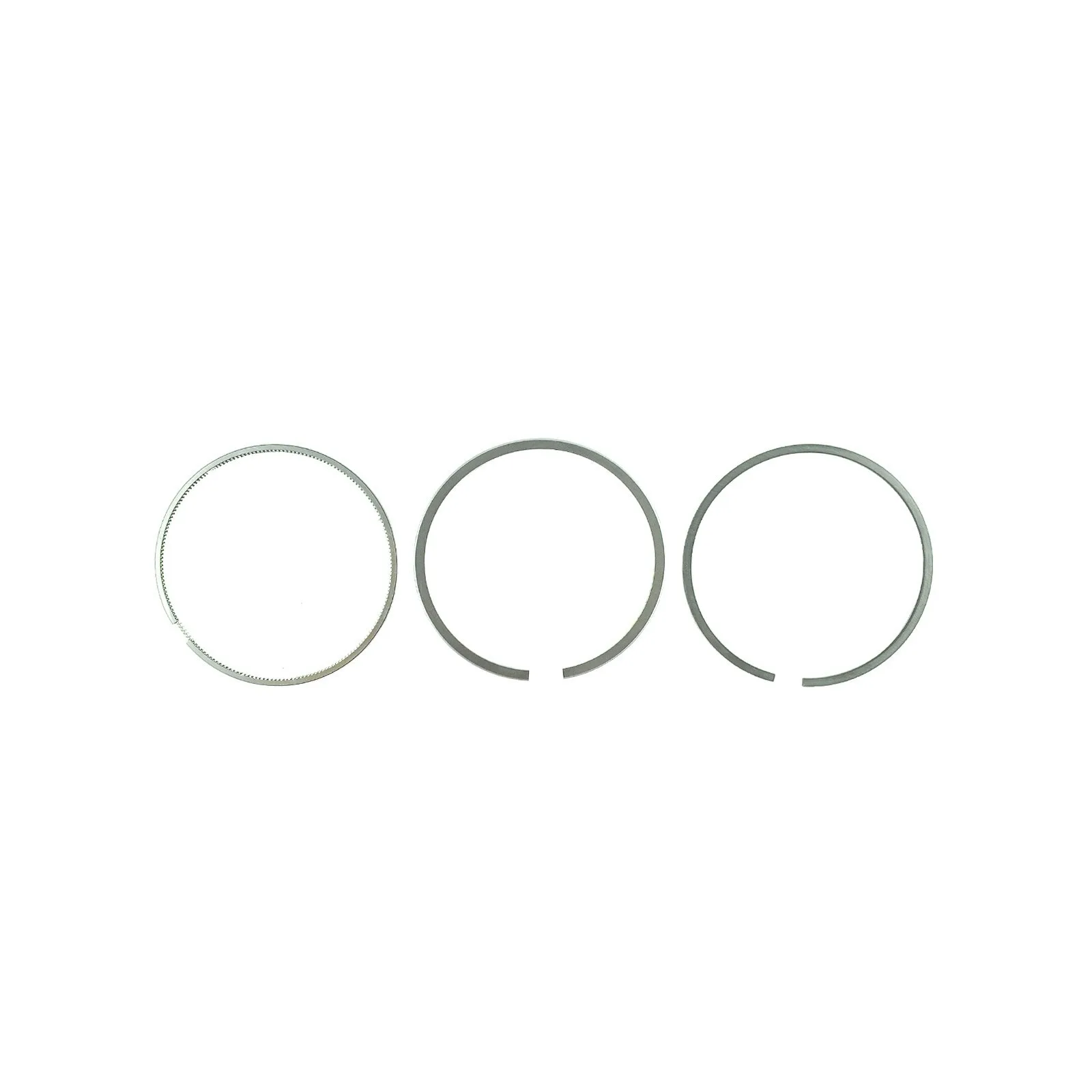

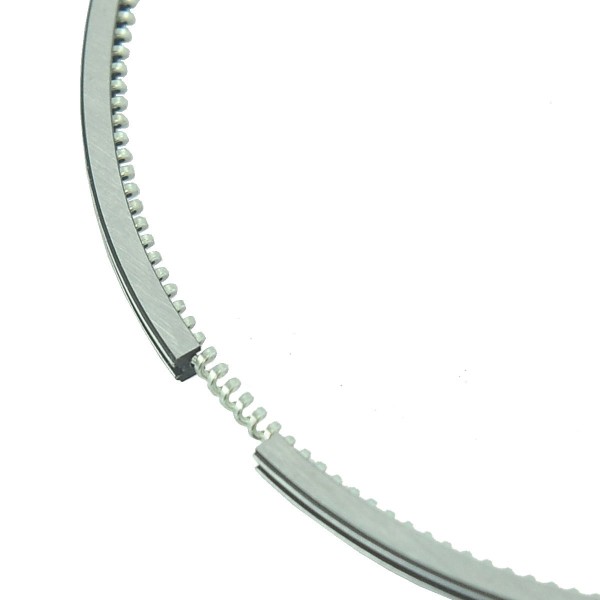

Piston ring set (piston 16427-21110, head gasket 16427-03310) with a diameter of 80 mm for Kubota tractors of the Kubota GT-19, Kubota GT-21 , Kubota GL19, Kubota GL21, Kubota GL200, Kubota GL201 , Kubota L2500 , Kubota L3600, Kubota L3710, Kubota L4200 series with Kubota D1403, Kubota V1903 engines .
Piston rings seal the space between the piston and cylinder walls. During combustion of the fuel mixture in the engine chamber, chemical energy is exchanged for mechanical energy, which is why the tightness of these two components is crucial. Another important role of piston rings in an engine is to wipe excess oil from the cylinder walls during piston movement, ensuring proper lubrication. There are three basic types of rings in combustion engines:
- sealing rings,
- scraper rings,
- compression-scraper rings.
When replacing the rings, pay particular attention to the order in which they are positioned on the piston. Install the rings in the correct order: the oil control ring first, the compression ring second, and the oil seal ring third.
Dimensions :
- diameter: 80 mm,
- thickness: 2.50 / 2.00 / 5.00 mm.
- nominal size / standard,
- the set includes 3 rings, a set for one piston,
- original part numbers: 16427-2105,
- comparison numbers: 16108001-00.
Engine models :
Kubota :
- Kubota D1403,
- Kubota V1903.
Engine models :
Kubota :
- Kubota GL19,
- Kubota GL21,
- Kubota GL200,
- Kubota GL201,
- Kubota GT-19,
- Kubota GT-21,
- Kubota L2500,
- Kubota L3600,
- Kubota L3710,
- Kubota L4200.
The first signs of piston ring wear include increased fuel consumption, loss of engine oil, loss of power, black smoke from the exhaust pipe when the engine is hot, rough idling, an unusual, easily audible noise from the engine area, loss of power, and difficulty starting the engine. All symptoms should be discussed with a professional service center for proper diagnosis and inspection of the engine to determine whether ring replacement or engine overhaul is necessary.
Magazine : K18:F36:S01
*The photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
