Rubber cover for joint / Iseki SFH220 / SFH240 / TXG23 / TXG237 / 1725-436-002-00

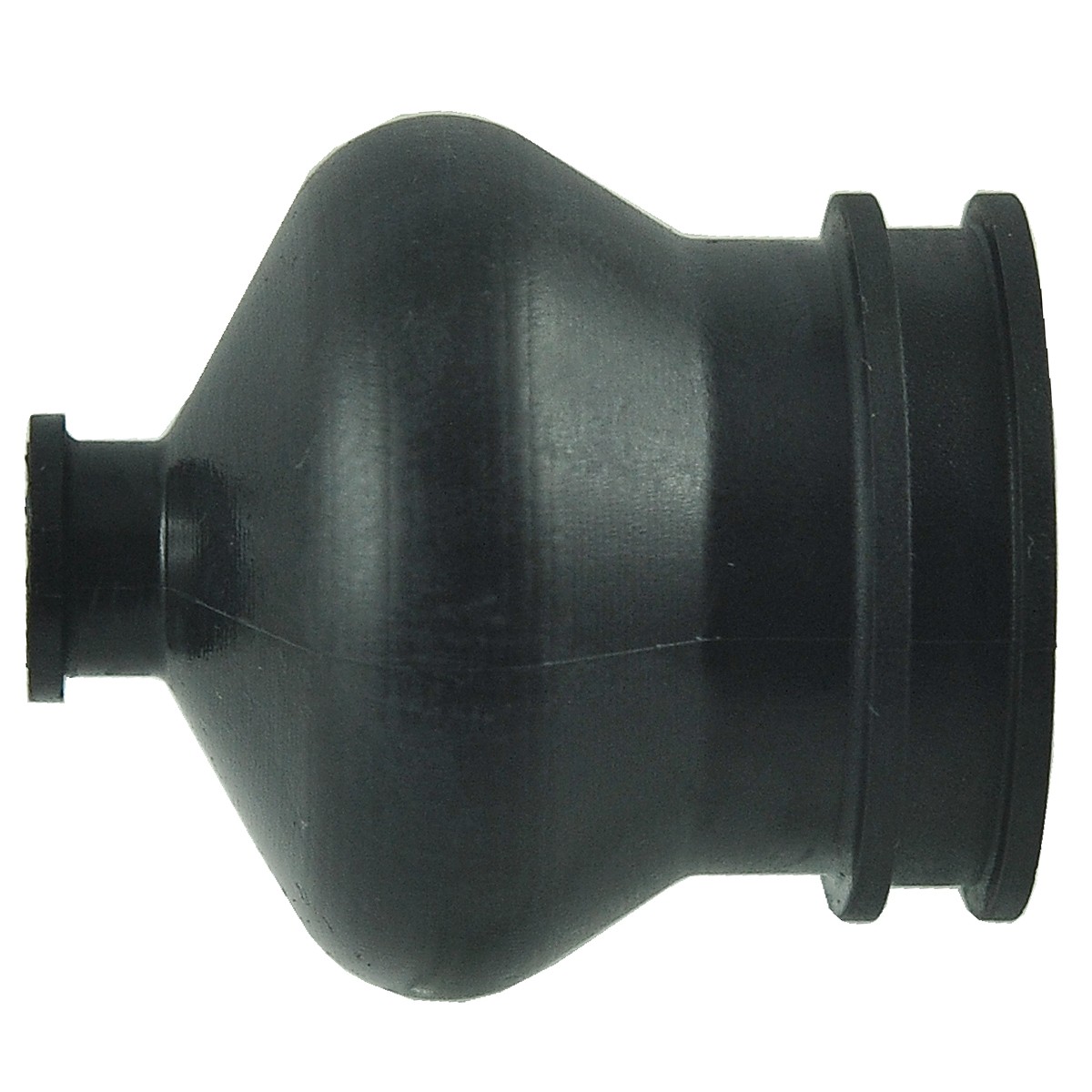

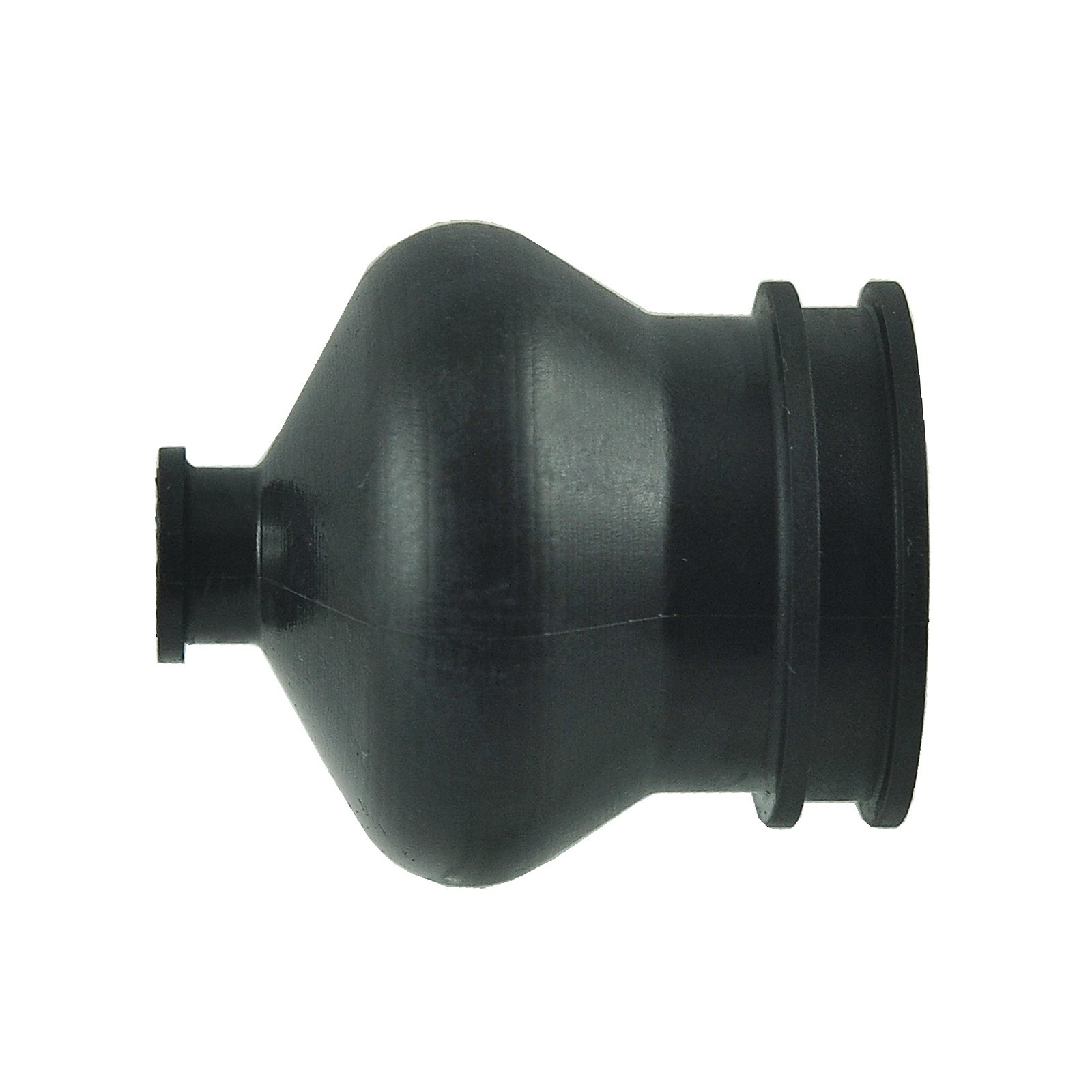

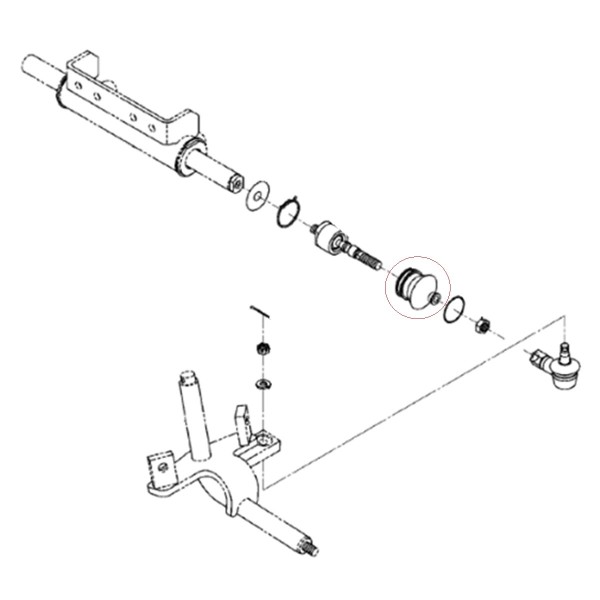

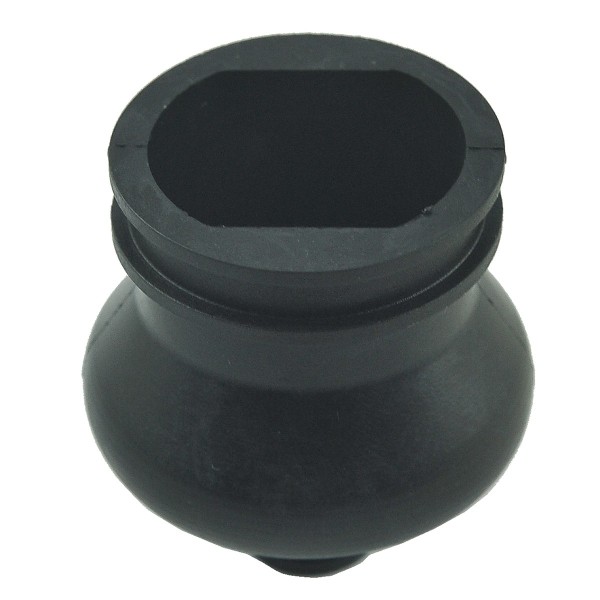

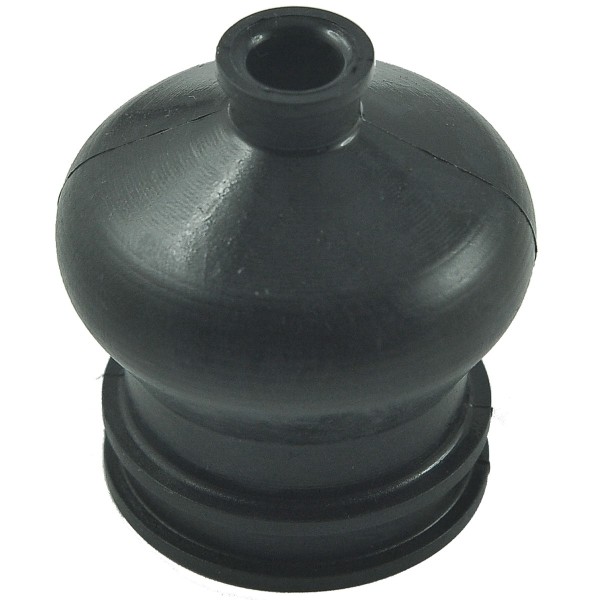

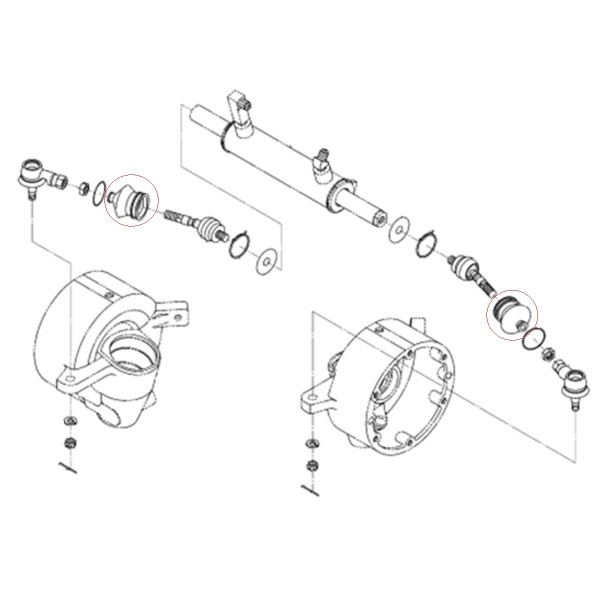

Rubber seal for steering rod joint (joint 1725-436-310-00) with an outer diameter at the widest point of 49 mm and a height of 55 mm with holes of 9 and 32 mm in diameter for Iseki tractors of the Iseki SFH220, Iseki SFH240, Iseki TXG23, Iseki TXG237 series and others.

A rubber cover , commonly known as a "powder cap ," is most often a rubber cone (or tube), tapered on one or both ends with a groove for easier installation, such as a tourniquet. This type of cover is used not only for gear shifts and rod ends, but is also used internally within machine systems, sealing components such as axle shafts or various shafts that are not subjected to high rotational speeds during operation. The main purpose of the "powder cap" is to protect the mechanical assembly from contaminants and prevent the washout of the lubricant found in many moving parts of the tractor.

Dimensions :

• outer diameter: 49 mm,
• inner diameter: 9 / 32 mm,
• height: 55 mm,
• part numbers: 1725-436-002-00.

Tractor models:

• Iseki TXG23,
• Iseki TXG237.

Lawnmower models :

• Iseki SFH220,
• Iseki SFH240,

Magazine : K18:F14:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
