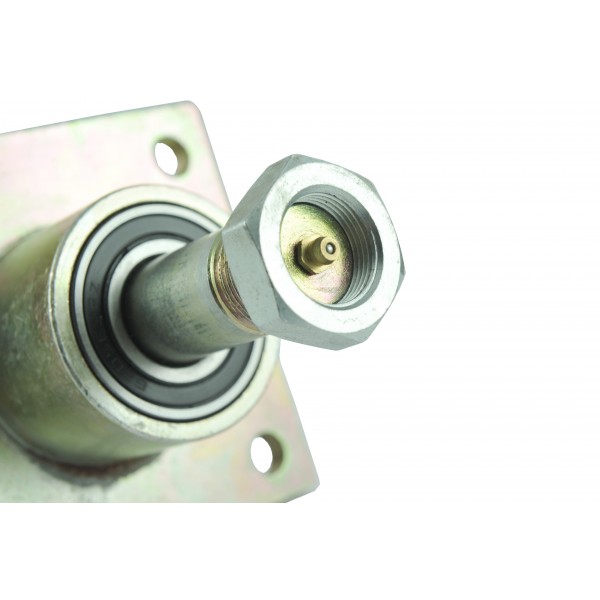

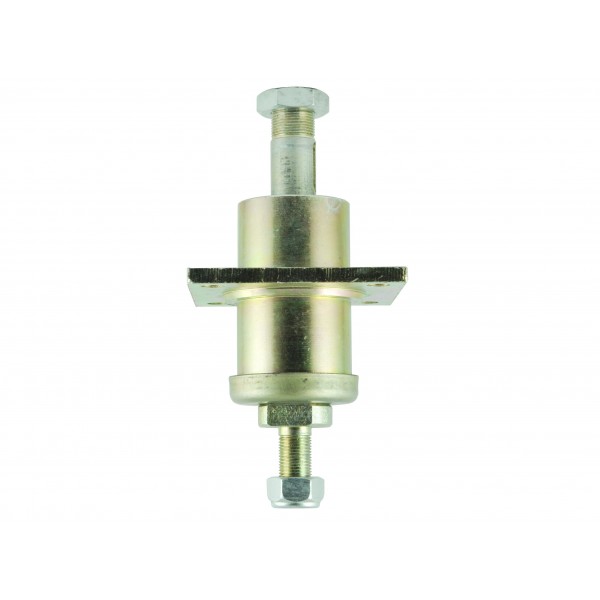

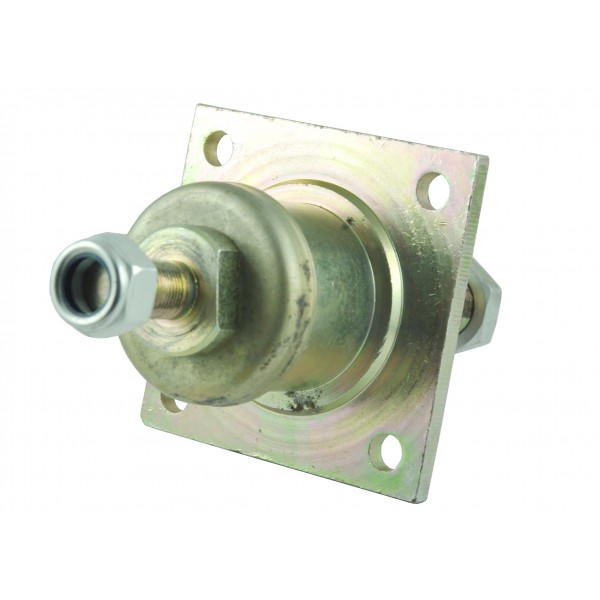

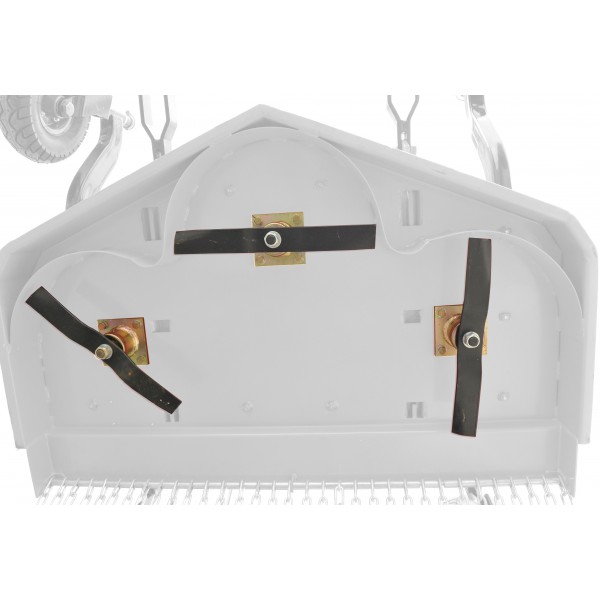

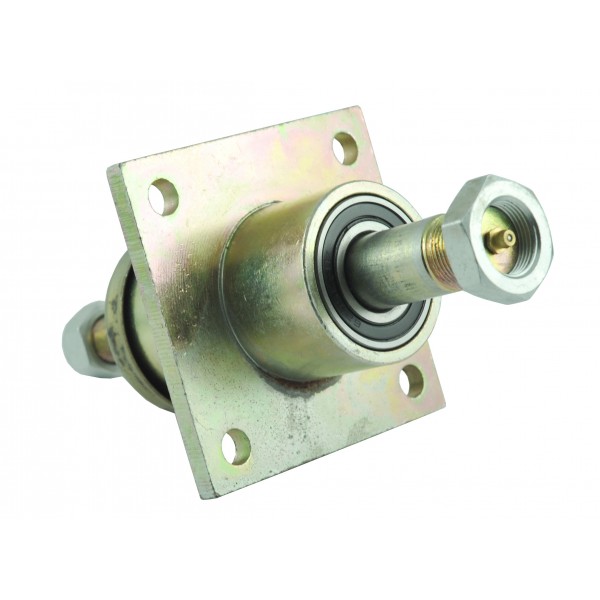

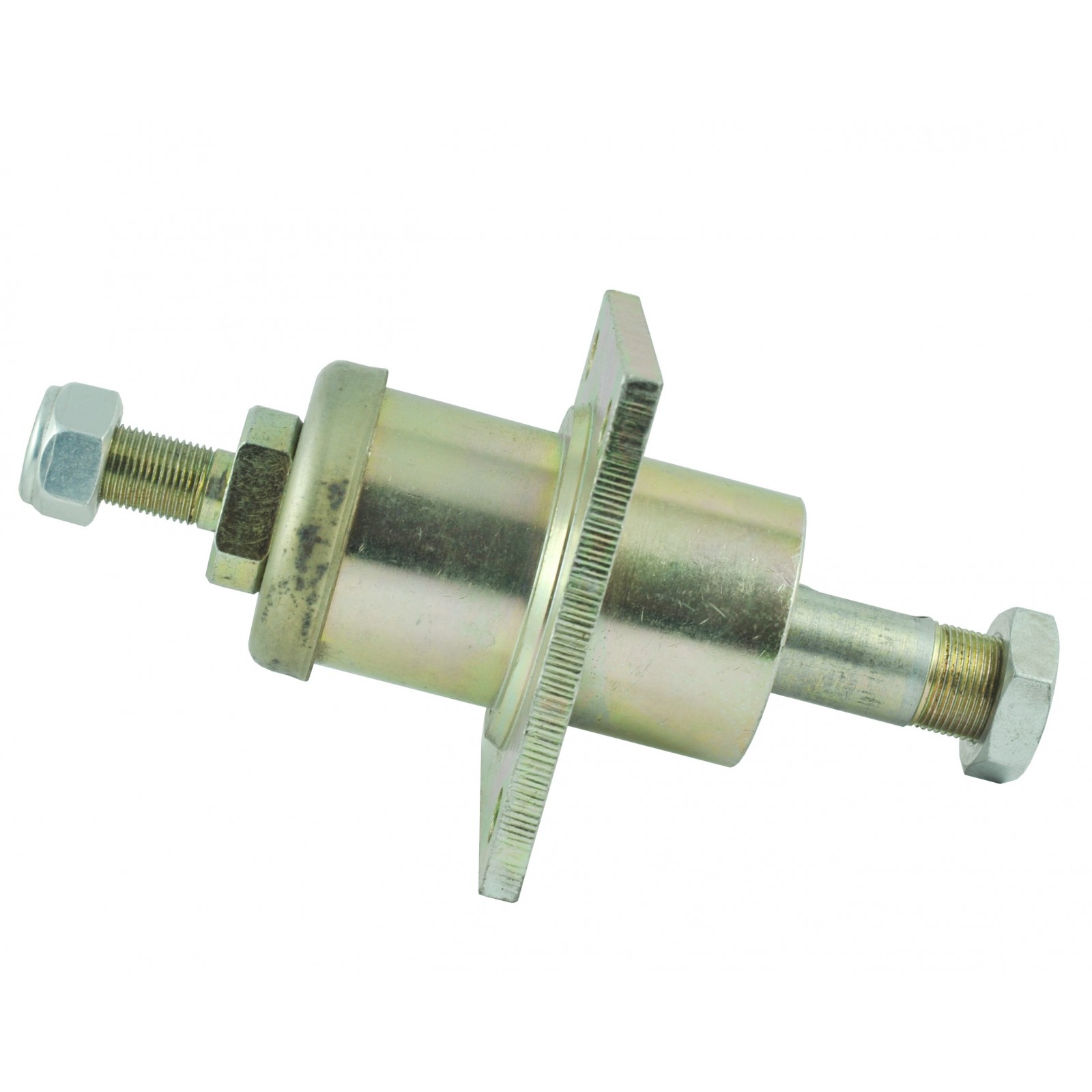

Hub, blade mounting of the FM maintenance mower
p_n001
Do you have any questions?
Hub, blade mounting of the FM maintenance mower
Hub, blade mounting of the FM lawn mower .
Dimensions:
- Total length: 210 mm.
- Pin length: 33 / 54 mm.
- Dimensions of the mounting plate: 113 x 113 mm.
- Thickness of mounting plate: 8 mm.
- Threads: 18.50 / 24 mm.
- Thread length: 30 / 17 mm.
- Diameter of holes for mounting screws: 12 mm.
The hub is sold without nuts .
Warehouse:
M01: M15
