High-pressure hydraulic hose 1SN 3/8" EN 853 DN10 single wire NF EXTREME

Product code: WH 1SN 10 NF SNX1 EXT
Brand 4FARMER
View other model
zł6.34 netto
zł7.80
Includes VAT 23%

Lowest price from 30 days: zł7.80

Delivery options

Loading delivery options...

No delivery options available for this product.

Error loading delivery options. Please try again.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

*Transport Traktor.com.pl costs are calculated based on the postal code.

Available
50 pieces
Delivery See details Leasing & financing for businesses See details

Product description

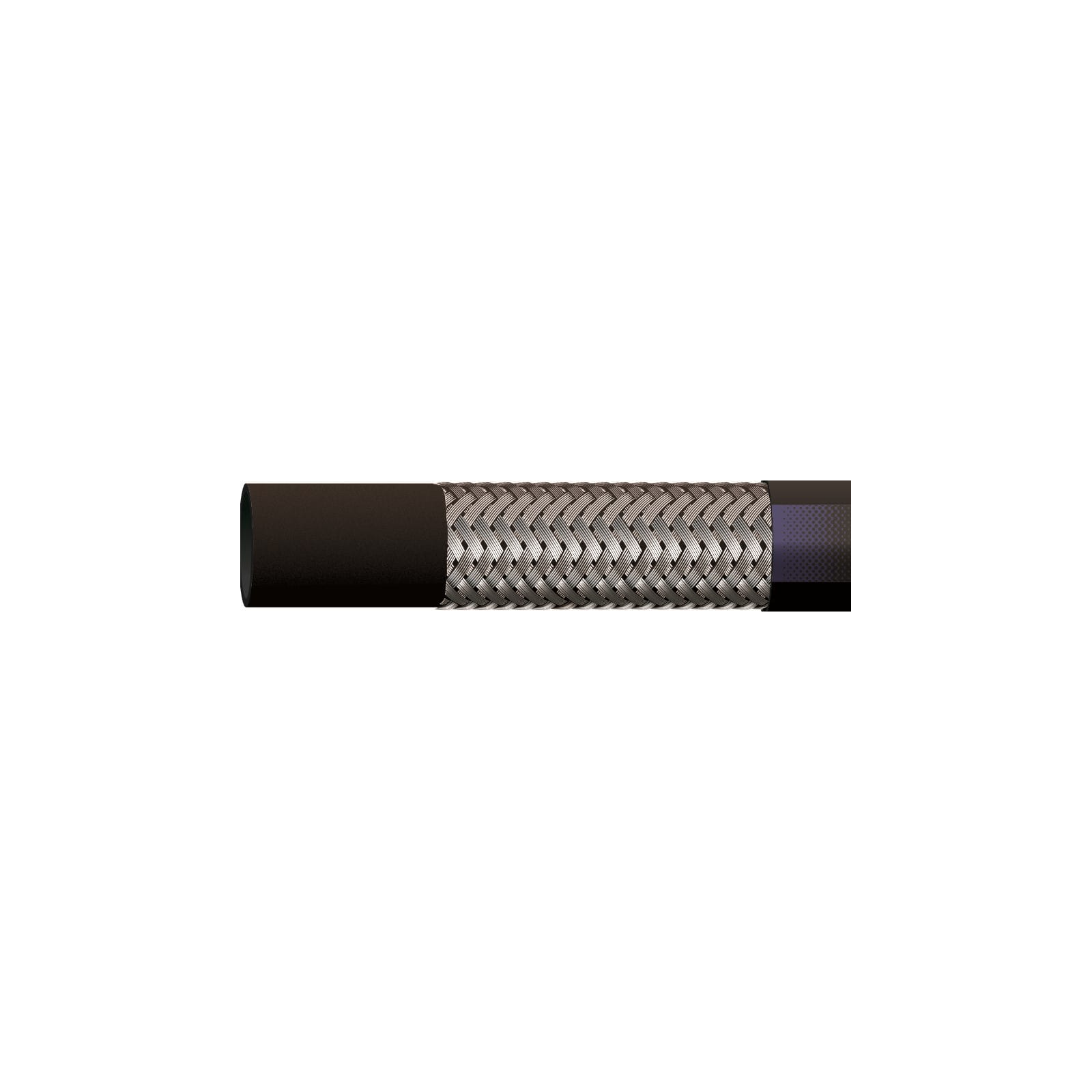

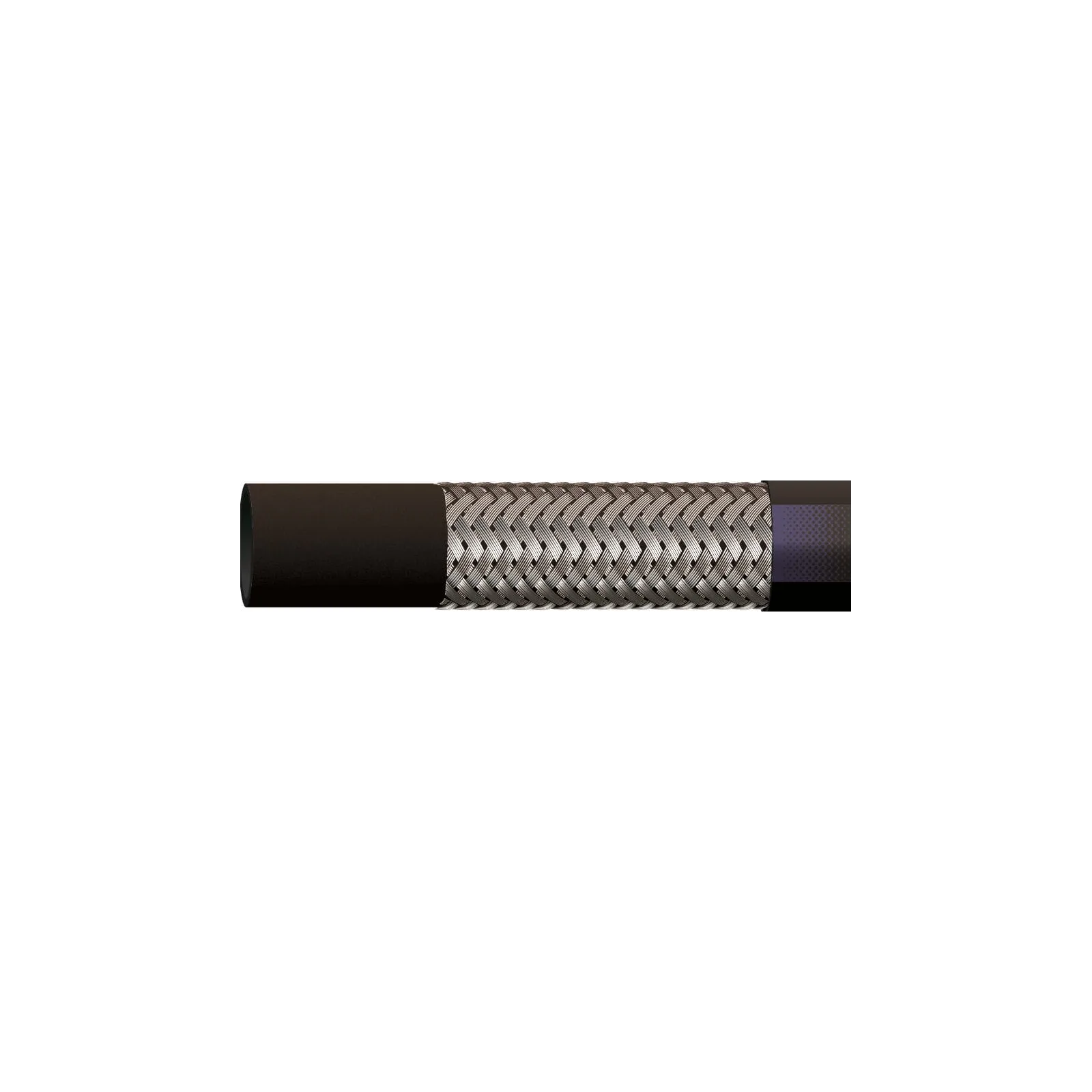

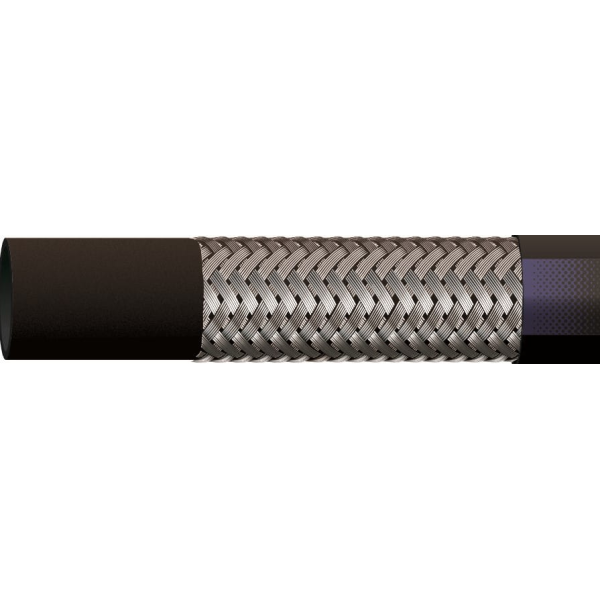

The premium hydraulic hose North Fighter (NF) 1SN DN10 (3/8") Extreme is a high-quality single-braid hose with a smooth outer cover, which distinguishes it from standard hoses with a "cloth" texture. It is a "Premium" type hose, designed to work in harsh conditions and exceeding the requirements of the EN 853 1SN standard.

Technical specification of the Extreme model:

Nominal diameter (DN): 10 mm.

Inch size: 3/8".

Working pressure: 180 bar (18 MPa).

Burst pressure: 720 bar.

Reinforcement: One braid of high-tensile steel wire.

Temperature range: from -40°C to +100°C (short-term up to +125°C).

Outer diameter: approx. 17.1 - 17.4 mm (depending on batch/standard).

Bending radius: approx. 125 - 130 mm.

Key features of the "Extreme" version:

Smooth surface: Makes it easier to keep clean and reduces friction when working in bundles.

Increased resistance: The outer layer is highly resistant to abrasion, ozone, oils and changing weather conditions.

Versatility: Designed for mineral oils, glycols, fuels, water and compressed air.

Warehouse: (M01:M03)

DIN EN 853 1SN-3/8 RED

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.

Specifications

Condition
New
Inner Diameter (mm)
9.8 - 10.1
Production
Substitute

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
