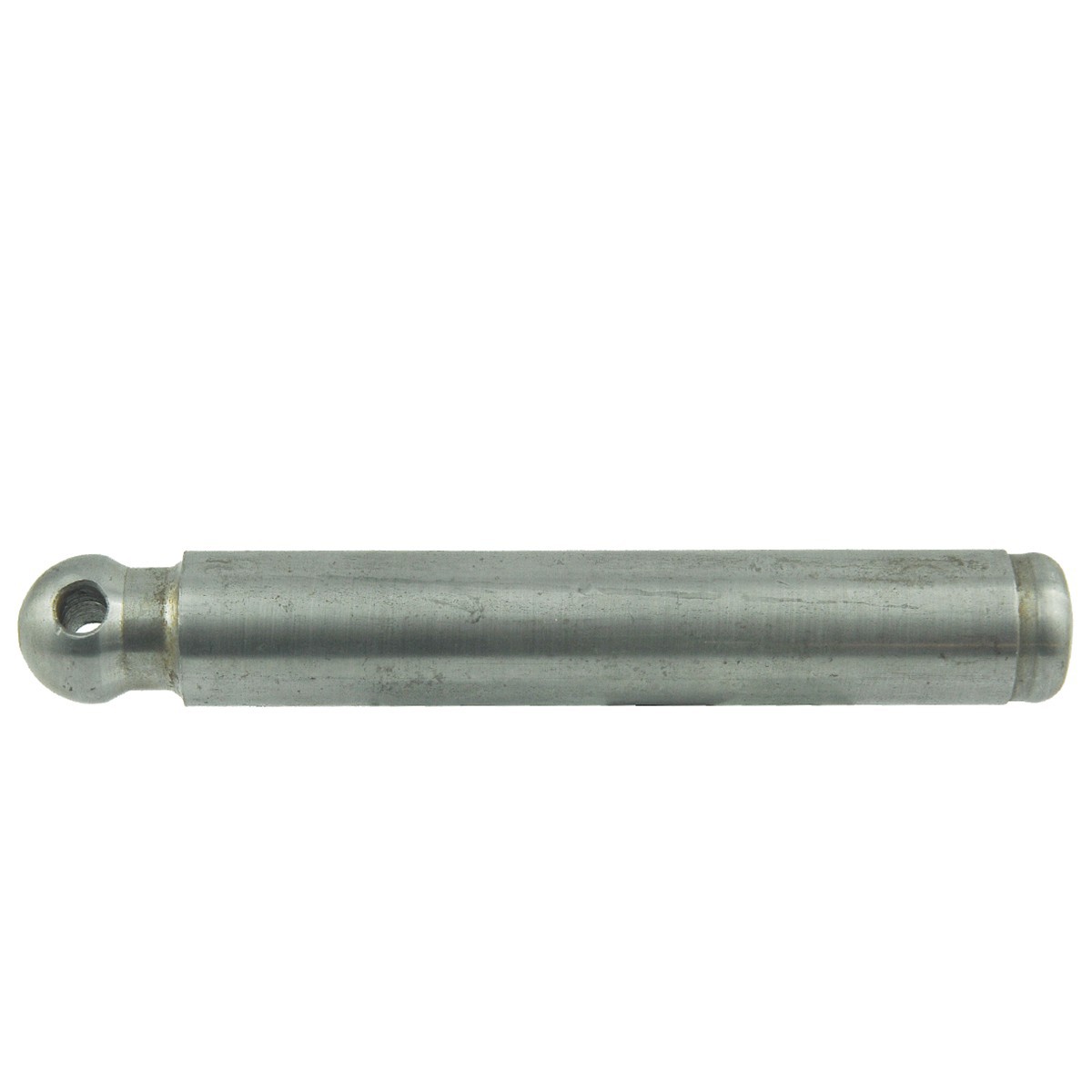

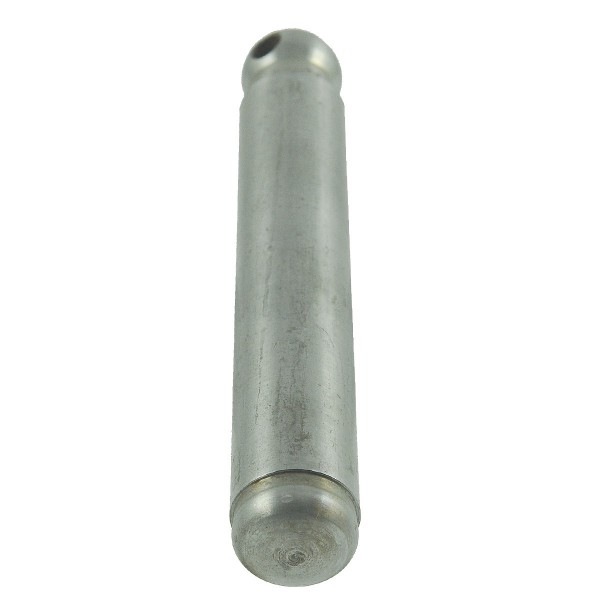

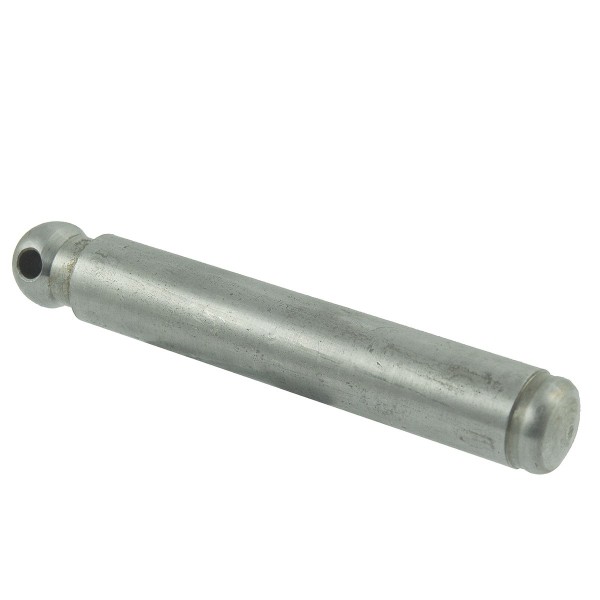

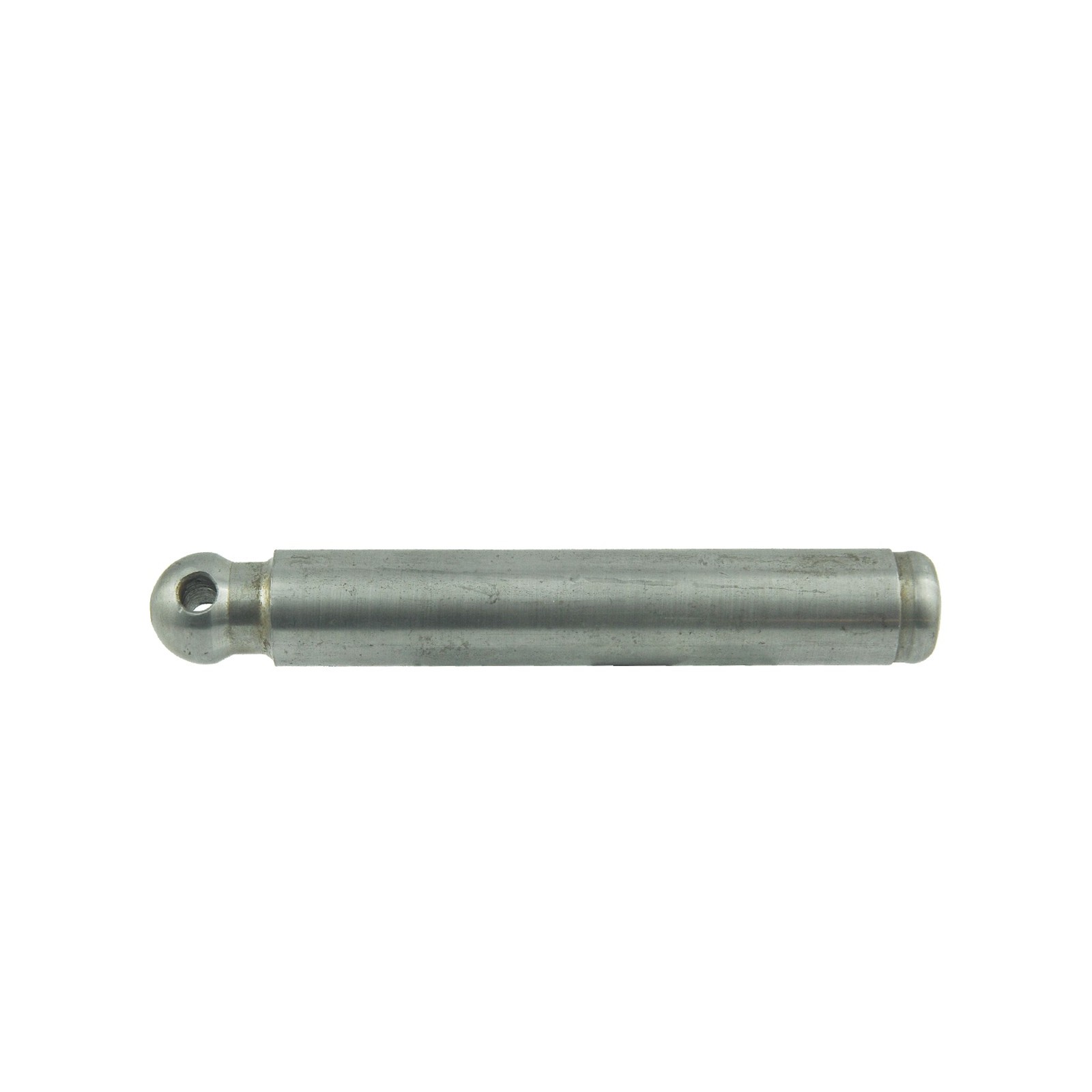

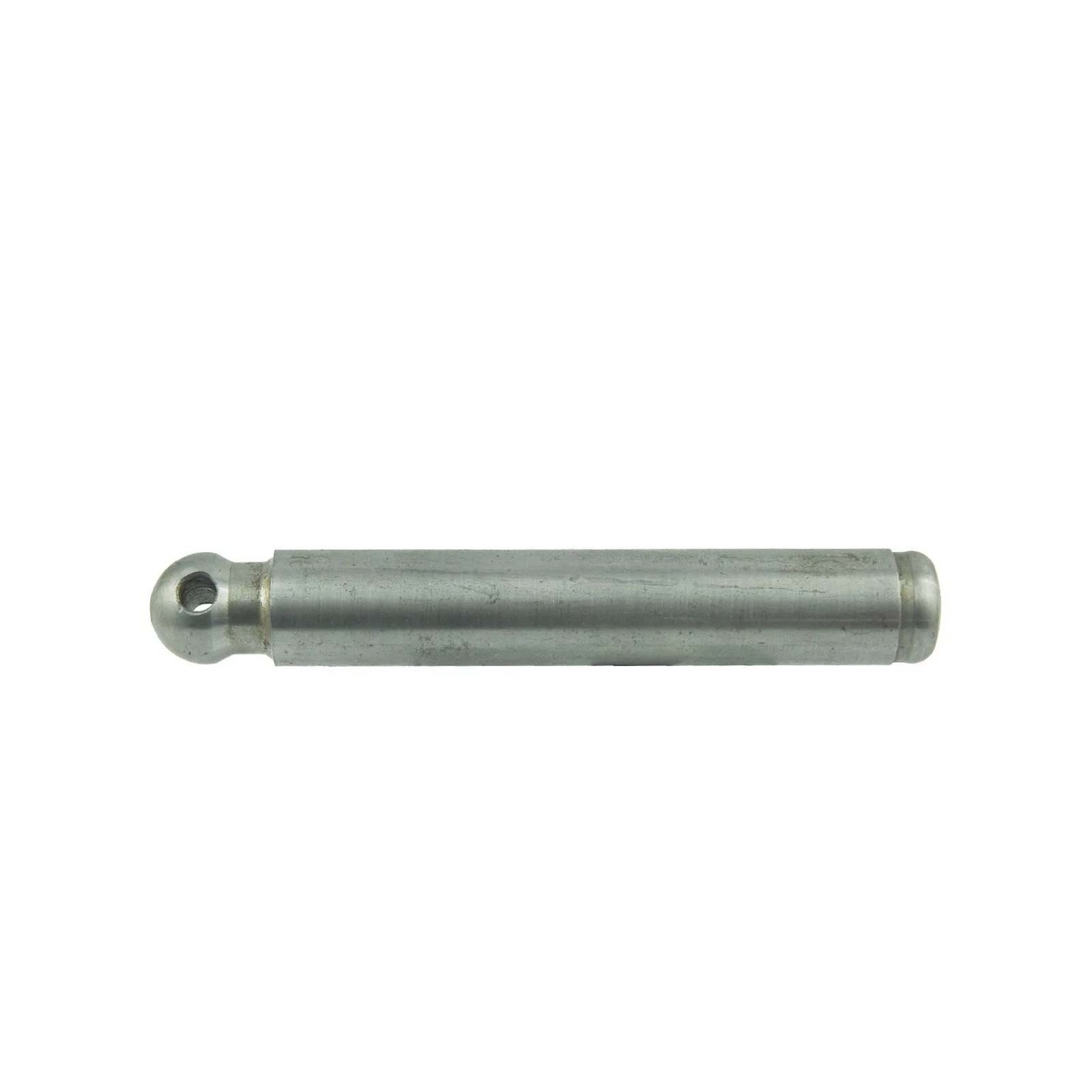

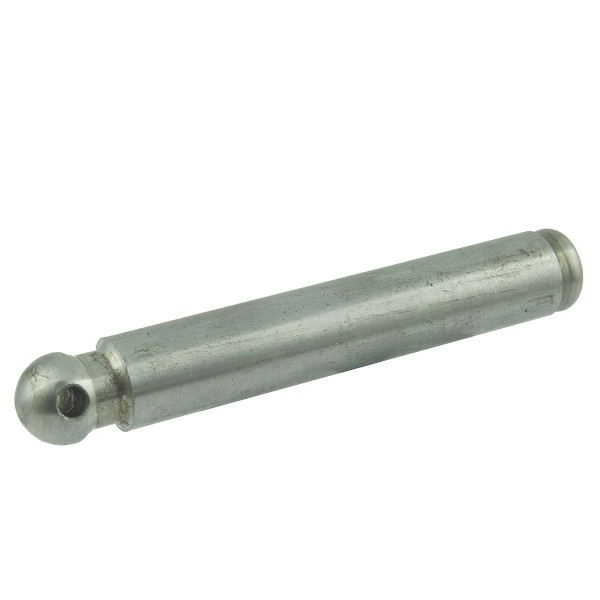

Hydraulic piston pusher / Ø 25 x 170 mm / Kubota L3408 / 31351-37320 / 5-25-117-04

Hydraulic piston pin (piston %C5% 9Bnika-hydraulicznego-75x52-mm.html">5-23-200-24 , 31351-37320, pusher ring %C5% 84-24-x-32-x-7-mm-kubota-l3408-31351-37330-5-27-101-88.html">5-27-101-88 , 31351-37330), piston rod of the middle arm of the hydraulic lifter ( %C5% 9Bnika-hyd-16t.html">5-01-107-05 ) with a length of 170 mm , a diameter of 25 mm and a diameter of 21.85 mm mounting pin for Kubota tractors and mini tractors of the Kubota L3408 series and others.

The push rod , or the push rod of the tractor's hydraulic piston, is a component whose main function is to transfer the longitudinal load to the movement of the central arm, which rotates the arms of the three-point linkage. The push rod is mounted on a pin on one side, while the other rounded part freely fits into the socket of the lift piston, which, when activated by the movement of the lever, performs a sliding movement, generating the appropriate fluid pressure and thus lifting the lift.

Dimensions :

• length: 170 mm,
• diameter: 25 mm,
• pin hole diameter: 8 mm,
• original part numbers: 31351-37320,
• part numbers: 5-25-117-04.

Tractor models :

• Kubota L3408.

The jack piston returns to its original or set position (after previously moving the jack lever) under the force of its own weight or under the weight of the machine mounted on the jack, and in simple designs under the influence of the previously generated hydraulic fluid pressure (in some hydraulic jacks return springs are used).

Magazine: K18:F13:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
