Product description

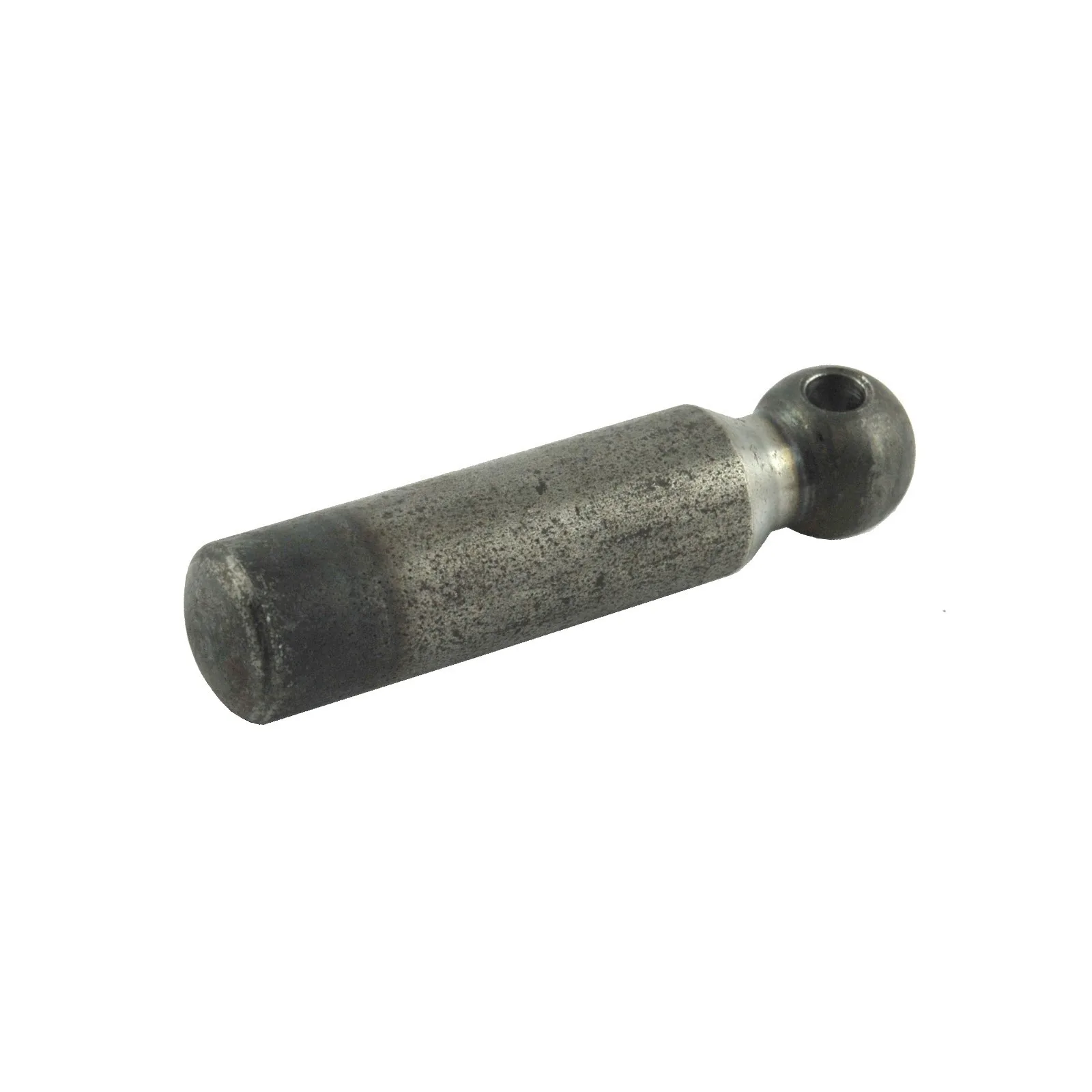

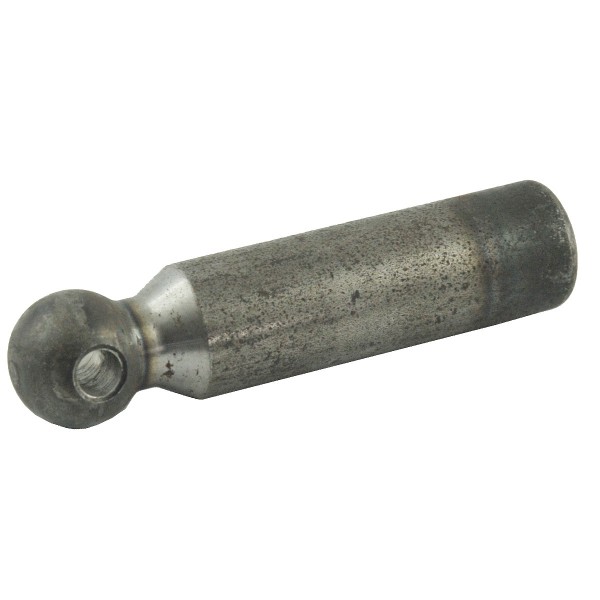

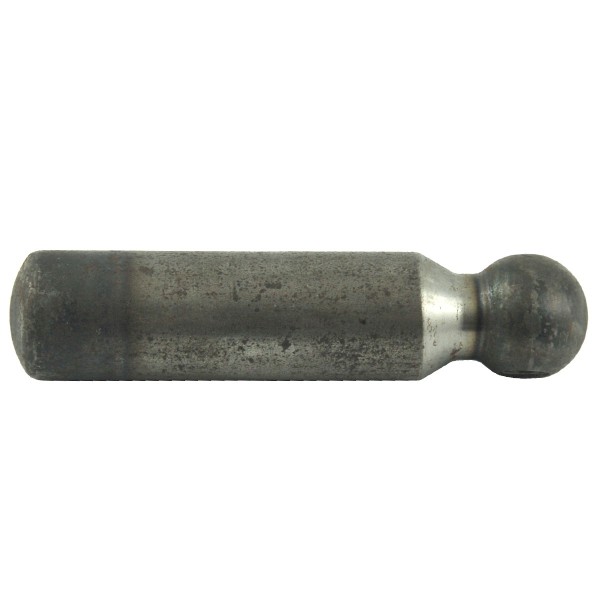

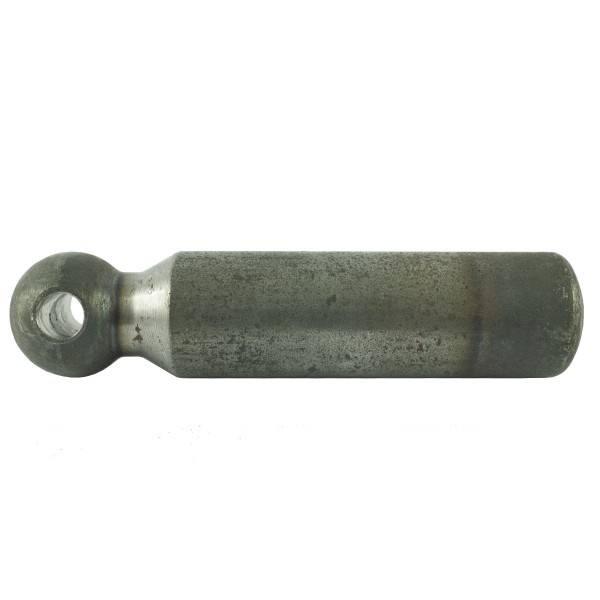

Hydraulic piston pin , hydraulic lift piston rod, 107 mm long, 24 mm diameter and 8 mm mounting pin diameter for LS Tractor tractors of the LS MT1.25, LS XJ25 series and others.

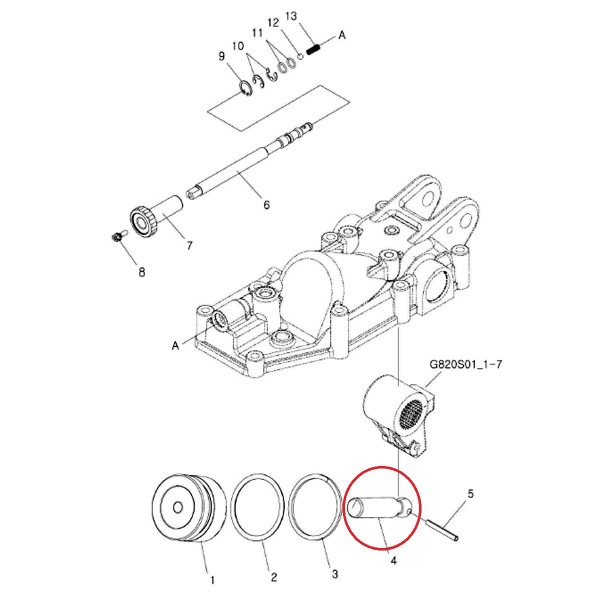

The push rod , or the push rod of a tractor's hydraulic piston, is a component whose primary function is to transfer longitudinal load, pushing out a piston housed in a cylindrical body. The push rod is mounted on a pin on one side, while the other, rounded part, freely engages the jack's piston socket. This piston, when activated by a lever movement, performs a sliding motion, generating the appropriate fluid pressure and thus lifting the jack. The jack piston returns to its original or preset position (after previously moving the jack lever) under its own weight or the weight of the machine mounted on the jack, and in simpler designs under the influence of previously generated hydraulic fluid pressure (some hydraulic jacks use return springs).
Dimensions :
- length: 107 mm,
- diameter: 24 mm,
- pin hole diameter: 8 mm,
- part numbers: 40194606.
Warehouse : L01:J-1-4
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
