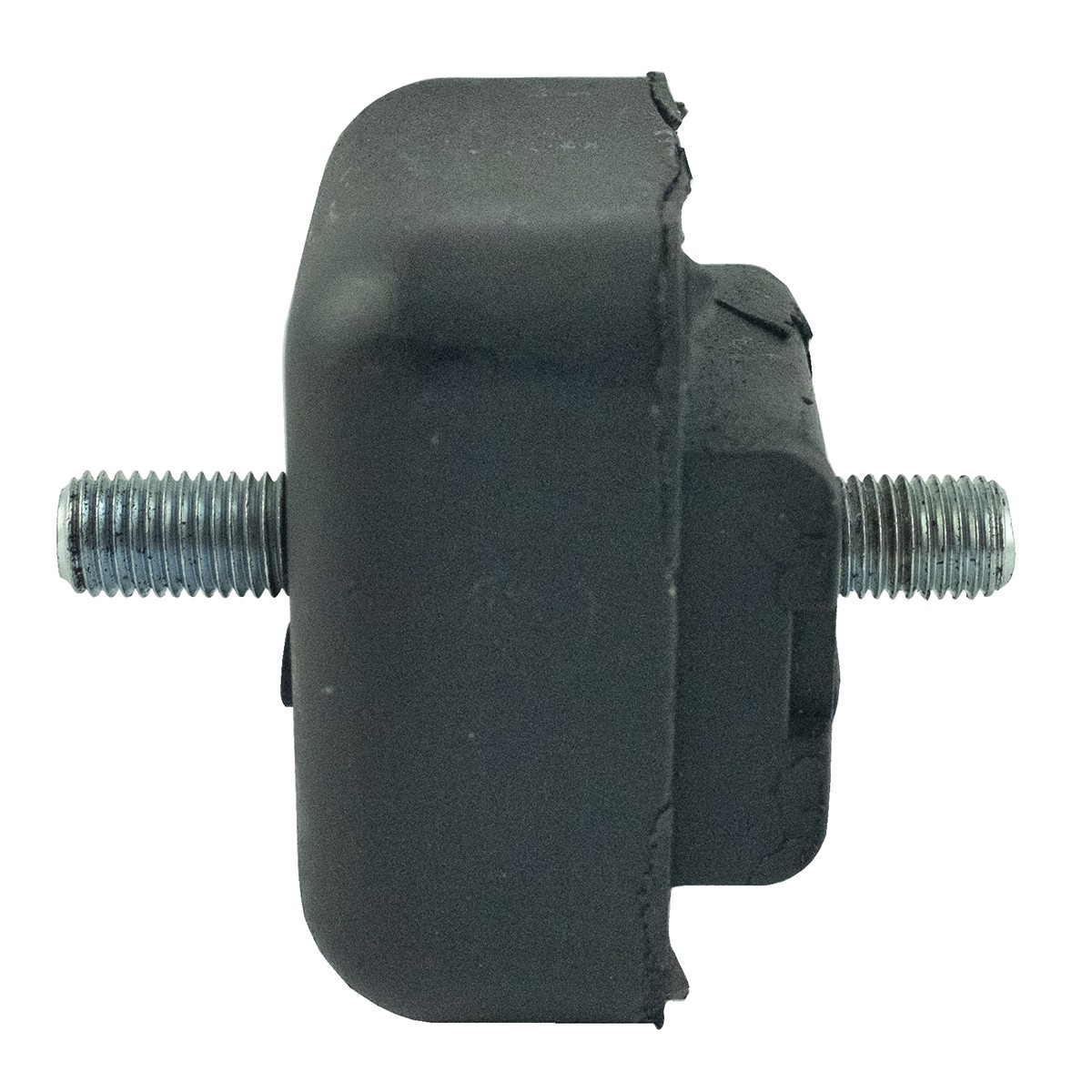

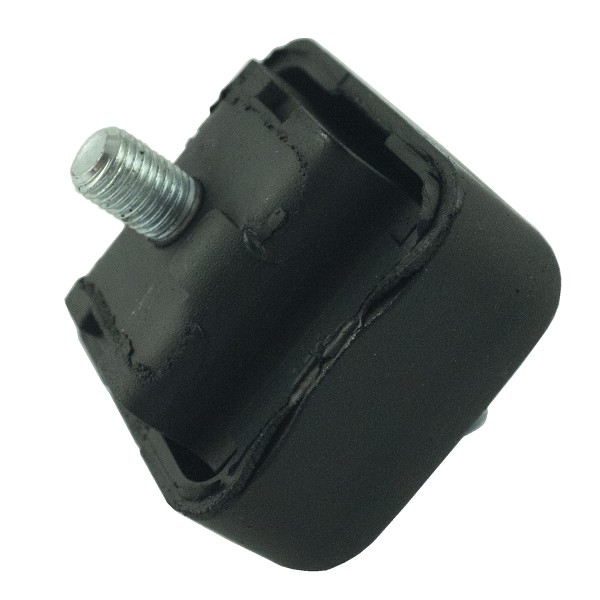

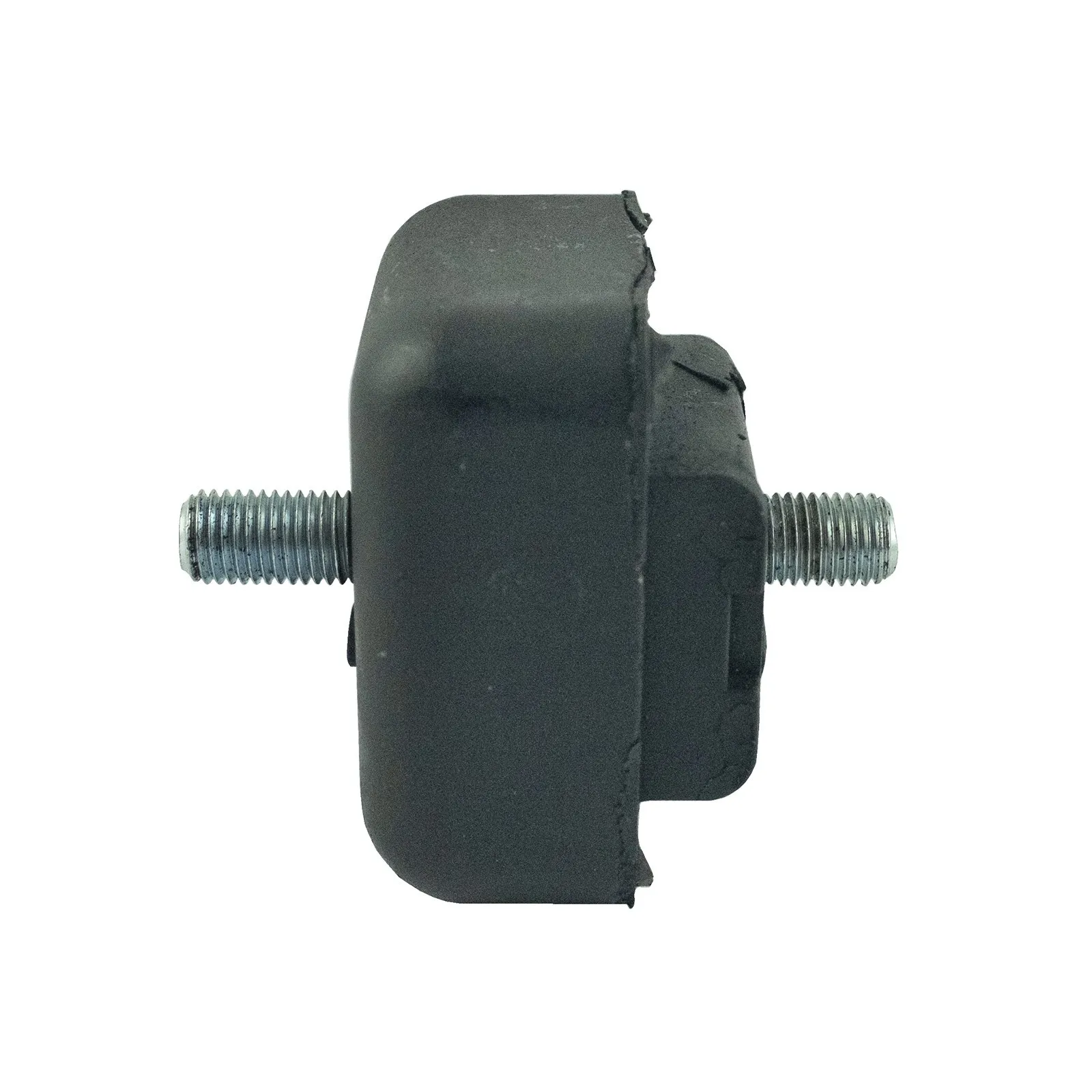

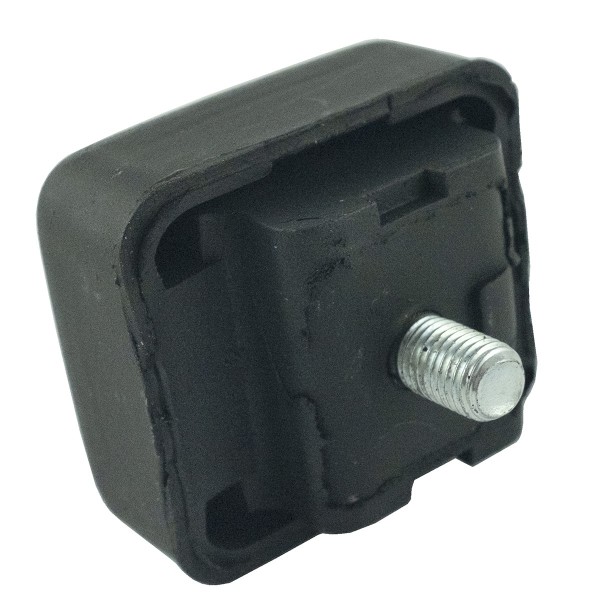

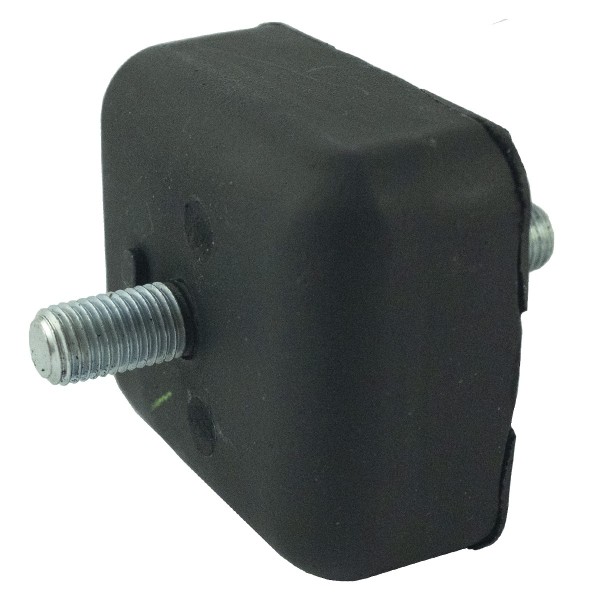

Engine mount / Kubota GT8

Engine mount , rubber pad, dimensions 55 x 63 x 40 mm, for Kubota GT-8 series tractors and others.

What is an engine mount and what is it for?

The engine mount is an element whose main task is to eliminate vibrations and oscillations and reduce noise during engine operation. The engine mount is a part that connects the engine to the tractor frame. The engine seal is most often an element made of very hard and resistant rubber or other material capable of transferring and damping large vibrations and oscillations.

Dimensions :

• length: 63 mm,
• width: 55mm
• height: 40 mm (without threads),
• thread: M10 x 1.25 / M10 x 1.25,
• thread length: 14 / 18 mm,
• part numbers: 37410-51215.

Tractor models:

Kubota :

• Kubota GT8,

The first symptoms of engine mount wear are clearly perceptible increased vibrations of the machine when starting the engine or turning it off. In extreme cases, when the rubber pads are very worn, the sounds of the engine knocking on the tractor frame will be very loud and clear.

Magazine : K18:B18:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
