Clean clothes / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / TRG281 / 3A1281020 / 40009946

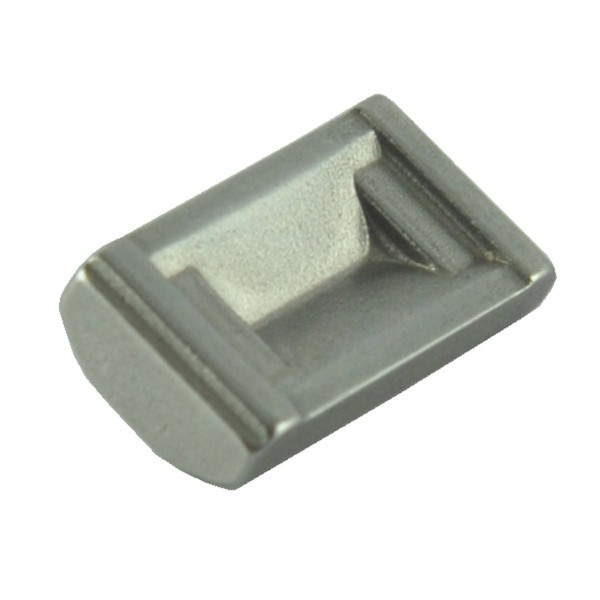

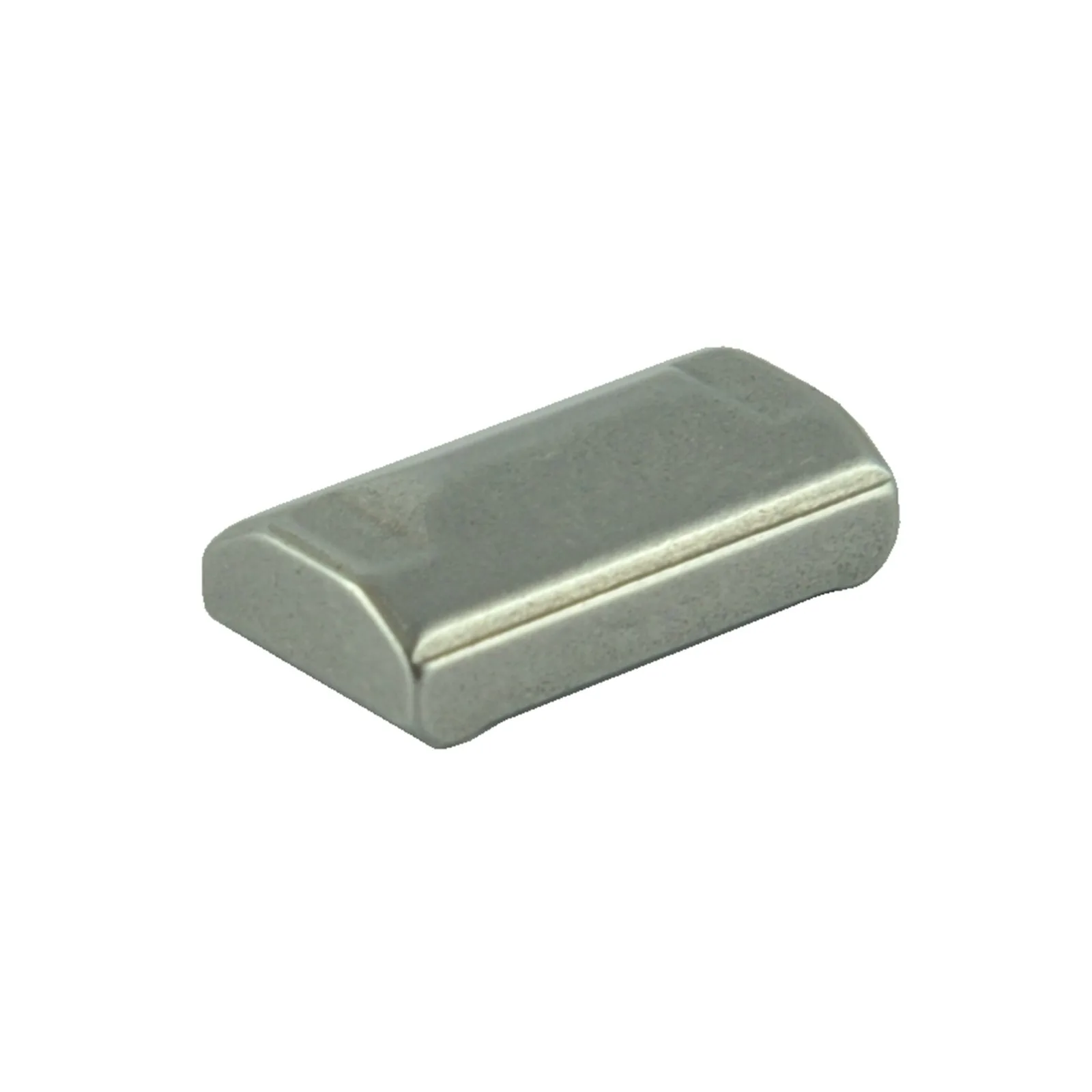

Wedge for gearbox shaft sprocket with dimensions 15.80 x 8.50 x 5 mm for LS Tractor series LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others.

The wedge, the gear lock, is an element whose main task is to establish the appropriate position on the shaft. We distinguish two types of wedge connections in which wedges are used:

• longitudinal wedge connection ( wedge for mounting gears , toothed wheels, hubs on shafts and the like),
• transverse wedge connection (wedge for connecting shafts, rods, sleeves and the like),

A wedge for mounting a rack or gear wheel is a longitudinal wedge that is mounted in a special groove on the shaft or hub or rack. In addition to positioning and blocking the elements, the wedges also take over part of the load of the contact surface pressure.

Dimensions :

• width: 8.50 mm,
• length: 15.80 mm,
• height: 5 mm,
• reference numbers: 3A1281020, 40009946.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Magazine : L01:C142

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
