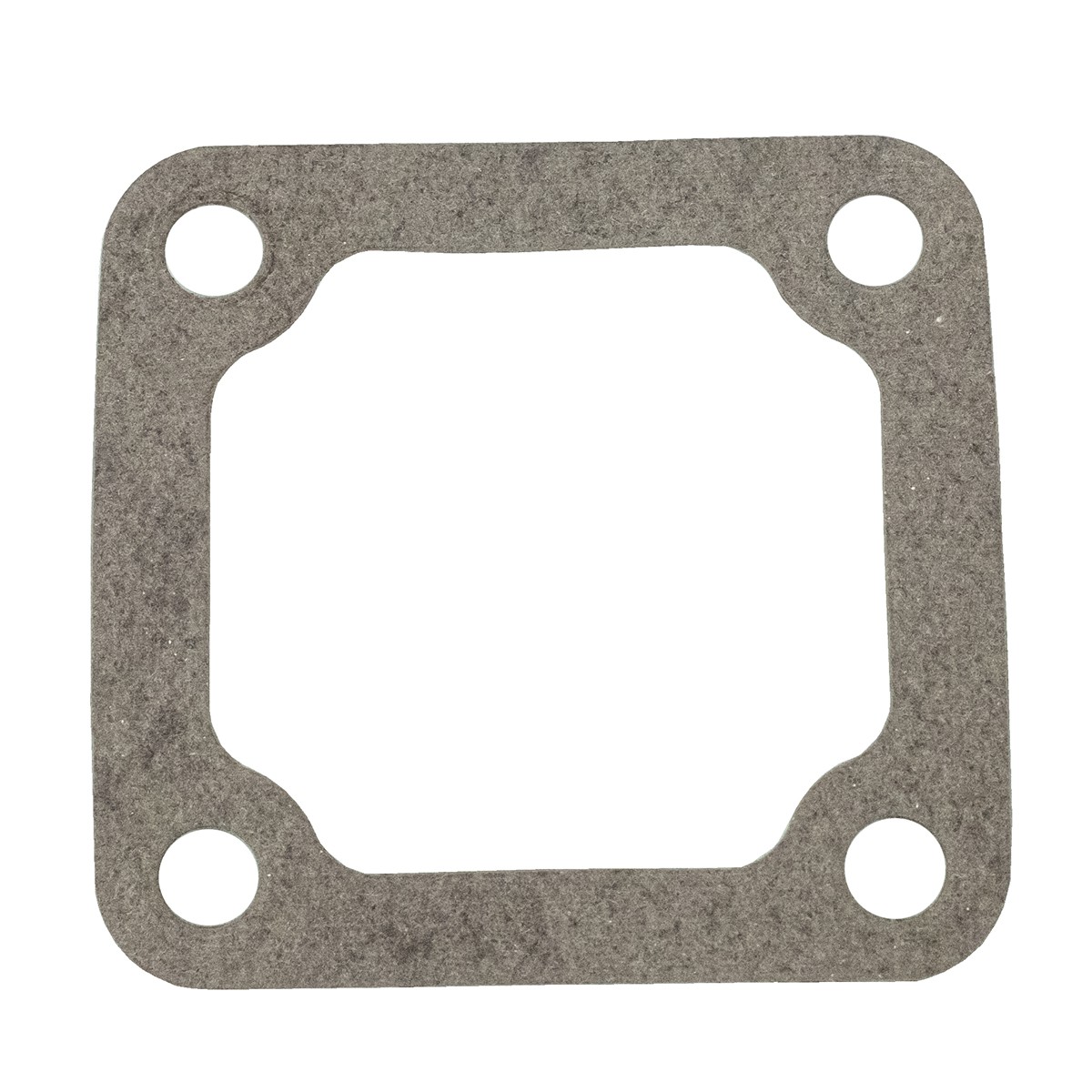

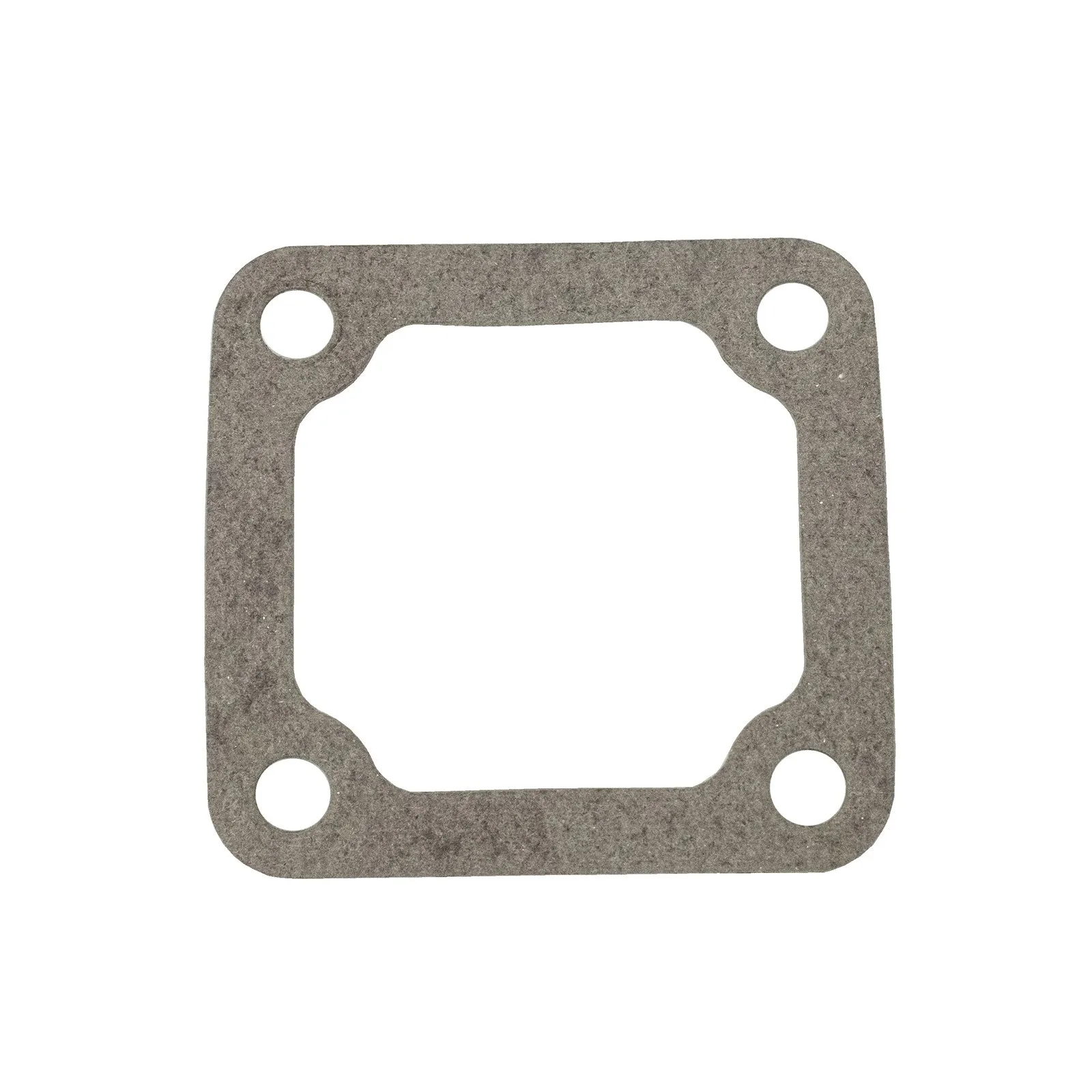

Regulator gasket / 65 x 61 mm / LS XJ25 / 30A6300101 / no. 40224927

Regulator seal with external dimensions of 65 x 61 mm and thickness of 0.60 mm for LS Tractor brand tractors LS XJ25 series. The regulator seal is designed to seal the space between the engine head and the regulator on the engine block. Engine seals are elements ensuring the tightness of the unit by connecting individual engine components and hydraulic box elements, which seemingly have perfectly flat contact surfaces. Damaged seals are one of the most common failures related to the operation of the tractor. Seals and their loss cause leaks of operating fluids and cause the structure to leak, which in the long run may lead to damage to the vehicle or a decrease in operating parameters.

Dimensions :

• width: 65mm,
• length: 61 mm,
• thickness: 0.60 mm,
• diameter of mounting screw holes: 7 mm,
• mounting screw hole spacing: 26/29 mm (measured from each other), 46/48 mm (measured diagonally),
• part number: 30A6300101, 40224927.

Tractor models :

LS Tractor :

• LSXJ25.

Magazine : L01:B214

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
