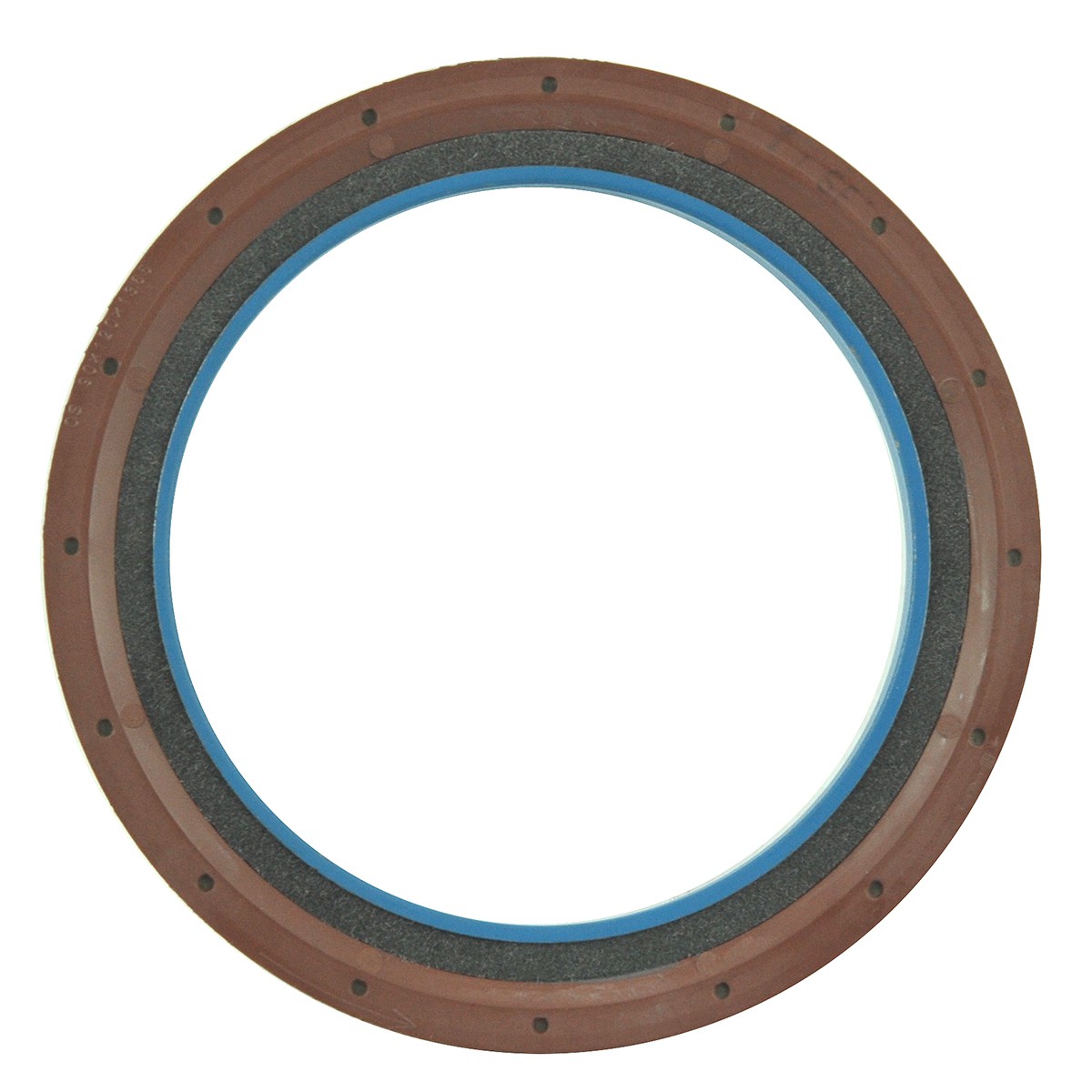

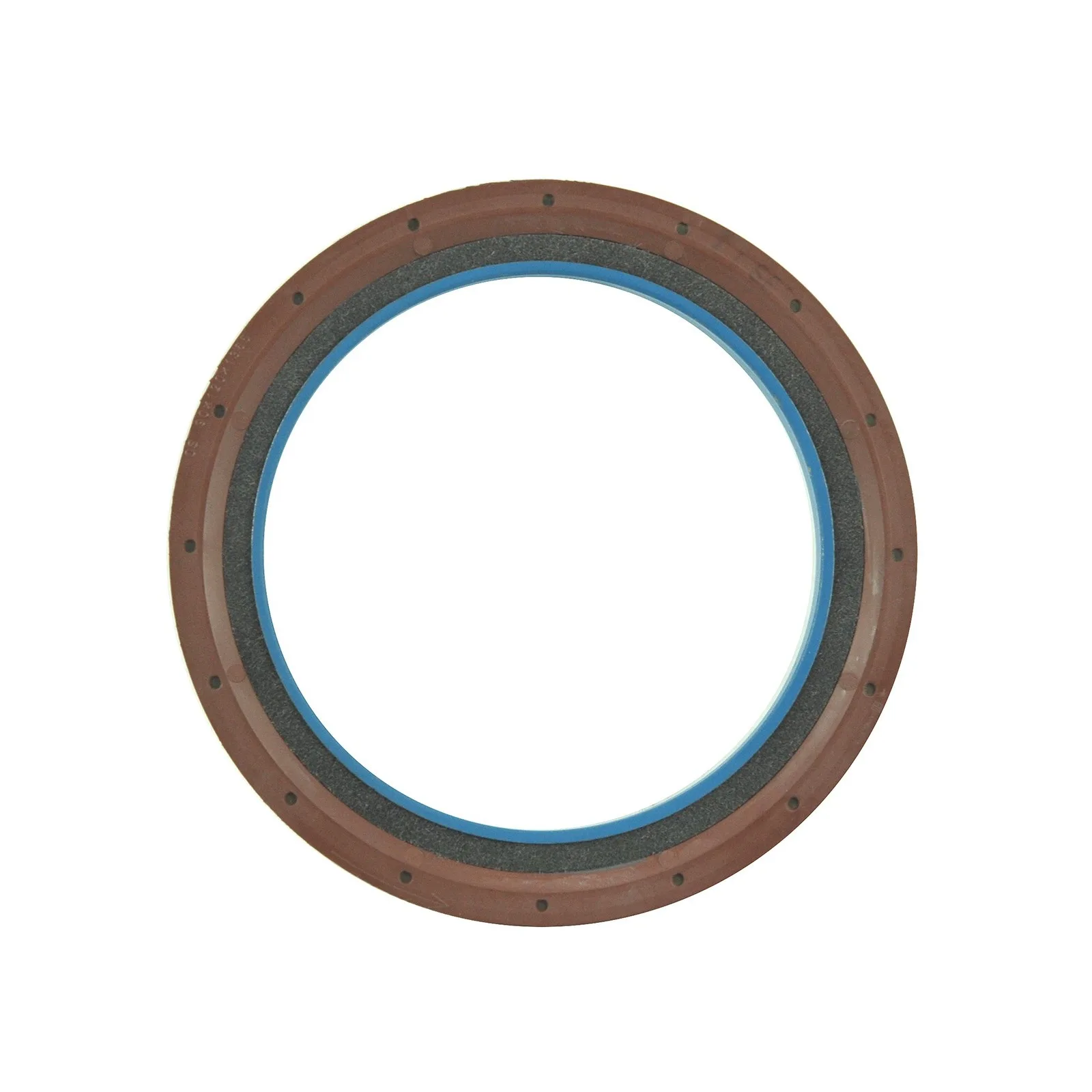

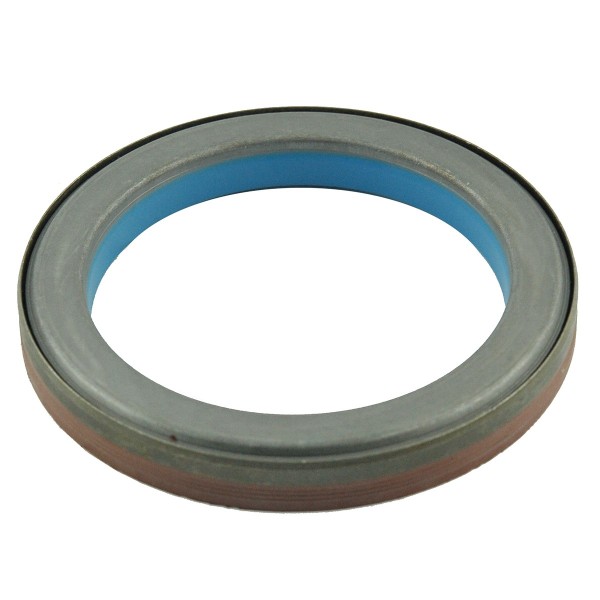

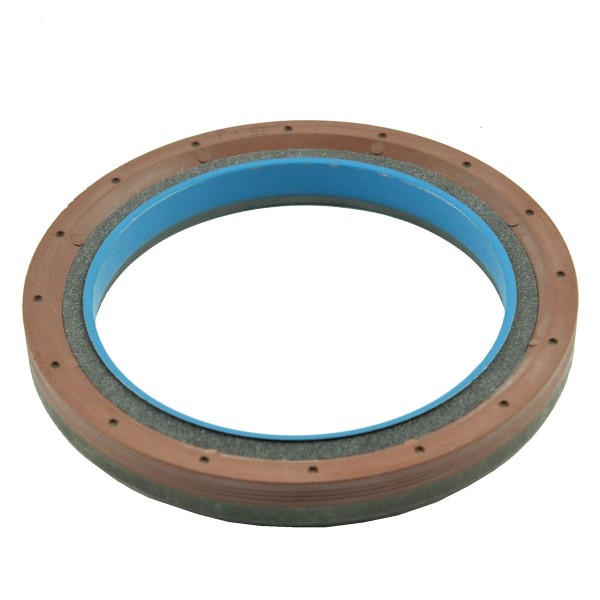

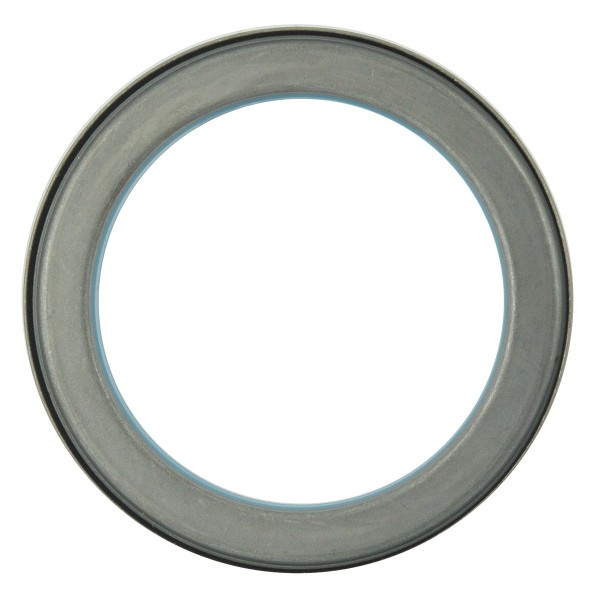

Crankshaft seal / LS PLUS 70 / LS PLUS 80 / LS PLUS 90 / 504180969 / 504014232 / 40199025 / no. 40235981

Crankshaft seal , simerring with dimensions 90 x 120 x 13.65 mm for LS Tractor series LS PLUS 70, LS PLUS 80, LS PLUS 90 and others. The seal is a rubber ring (also called simmering, Simmer ring, after the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. The simmer is used to seal rotating elements of the system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover). Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Dimensions :

• outer diameter. 120 mm,
• inner diameter: 90 mm,
• height: 13.65 mm,
• part numbers: 40235981, 504180969, 504014232, 40199025.

Tractor models: :

LS Tractor :

• LS PLUS70,
• LS PLUS80,
• LS PLUS90.

Warehouse : L01:B131

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
