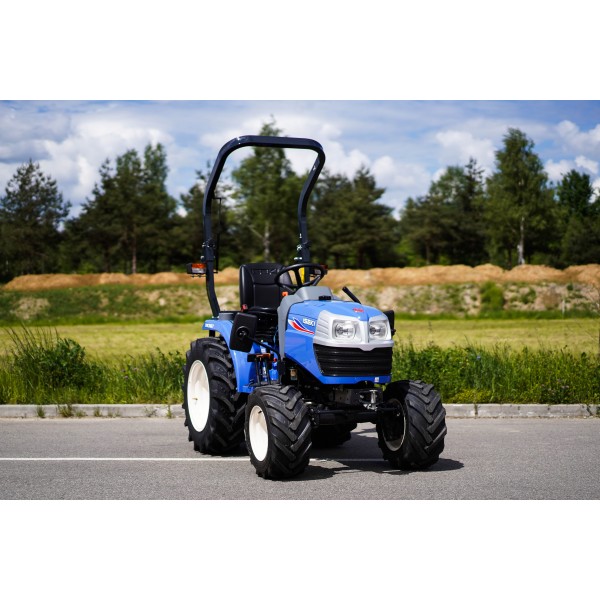

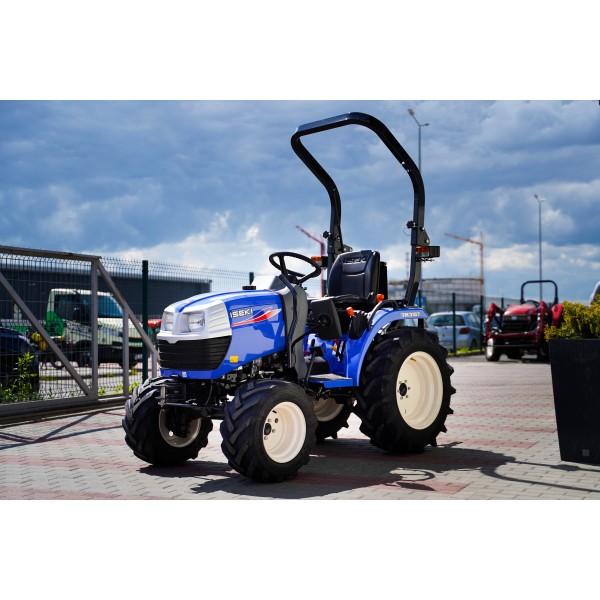

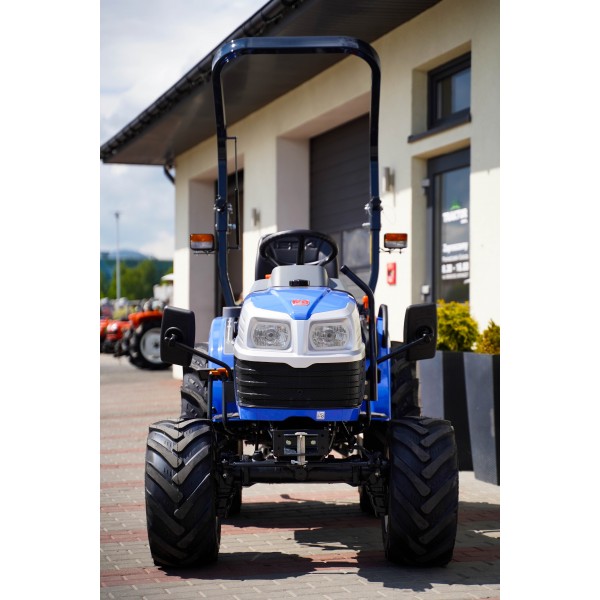

Iseki TM 3187 A MEC 4x4 - 17 HP + HYDR snow plow

Iseki TM31 - professional technique for municipal companies, agriculture and construction

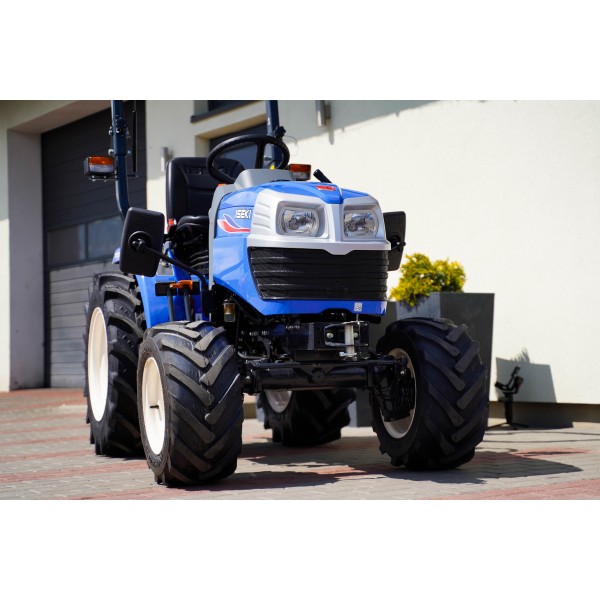

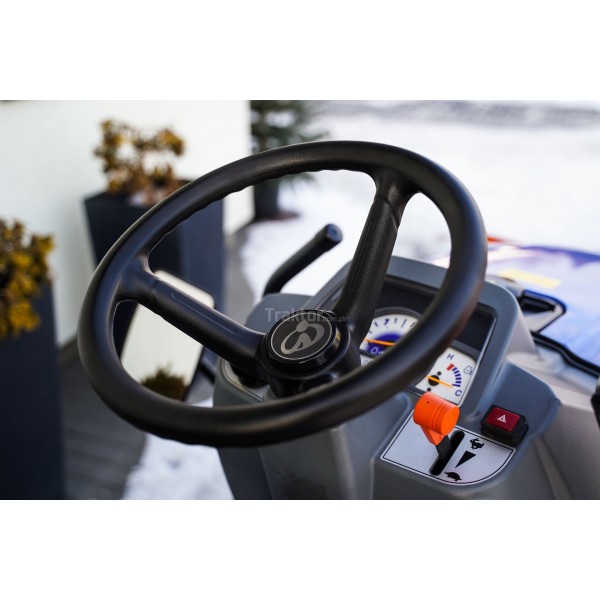

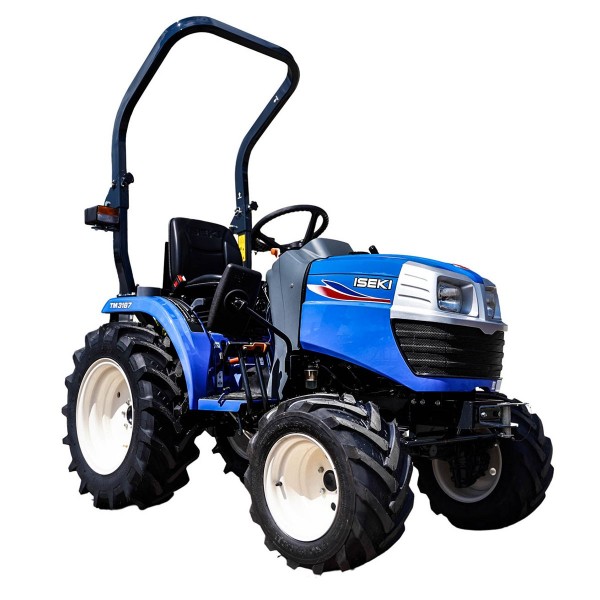

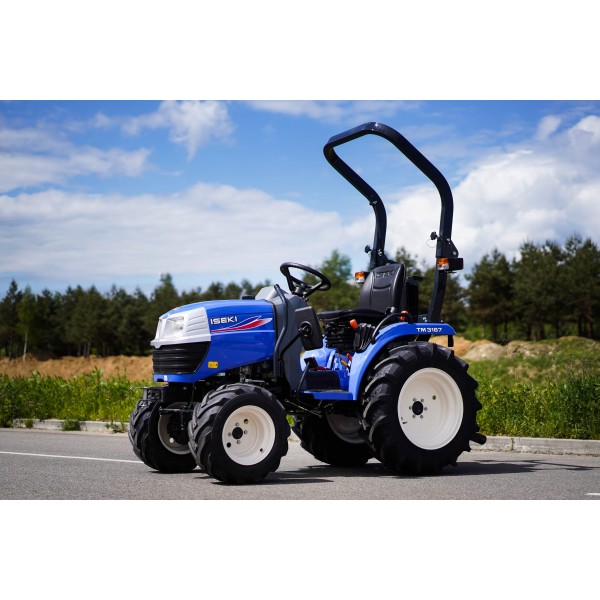

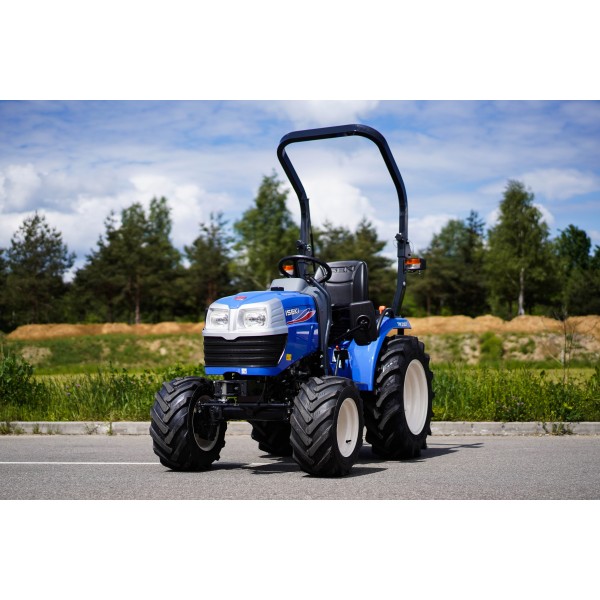

TM31 series tractors are very compact, multi-purpose and all-season machines, equipped with powerful 3-cylinder DIESEL engines with a power of 17 HP , with disconnectable drive on both axles. The standard Iseki TM31 comes with agricultural tires, 3-point linkage, manual gearbox and 1 standard PTO/PTO speed of 540 rpm . The Iseki TM31 series is two models Iseki TM3187 A and Iseki TM3187 AL with ROPS roll bar. The difference between the TM3187A and TM3187AL models is that the TM3187 A model is a non-power steering model and the TM3187 AL model is equipped with a hydraulic steering system . Additional options for basic versions of Iseki TM3187A and Iseki TM3187AL models:

• cabin,
• agricultural wheels standard: 5-12 / 9.5-16,
• standard grass wheels: 20x8.00.10 / 212/80D15,

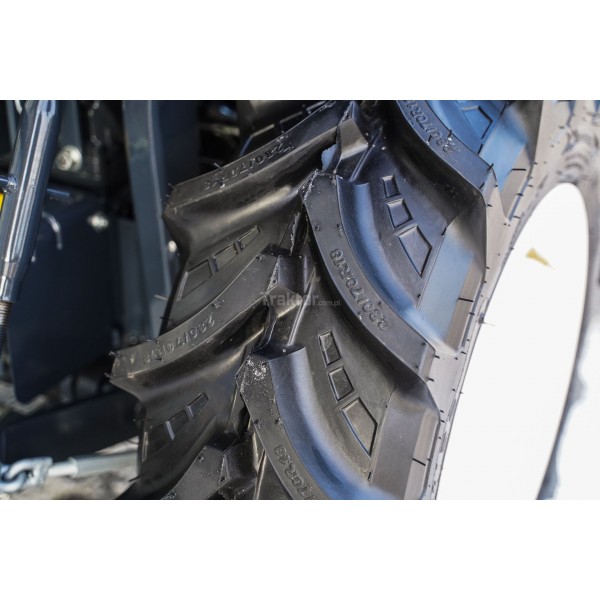

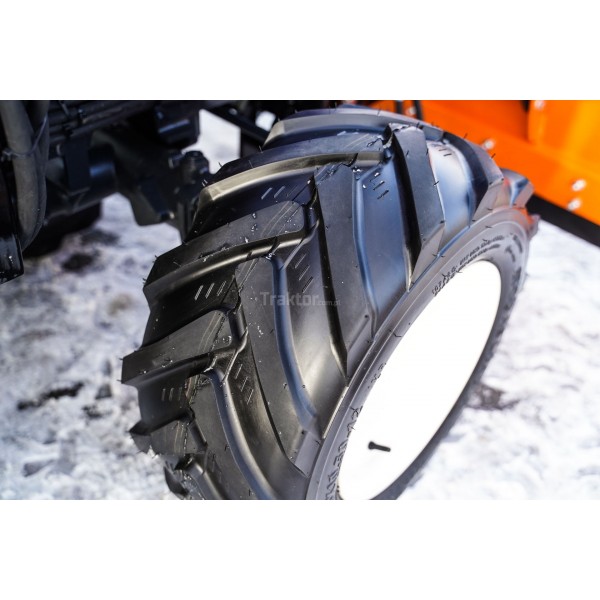

• special agricultural wheels: 23x10x50-12 / 280.70 R18 ,
• special grass wheels: 20x10.00-10 / 29x12.50-15,
• additional hydraulic outputs (6 pcs / 3 sections),
• front linkage ,
• front PTO/PTO power take-off shaft,
• Front-end loader,

Key Features and Benefits of Iseki TM3187 A

• 3-cylinder diesel engine based on YANMAR technology with a power of 17 HP,

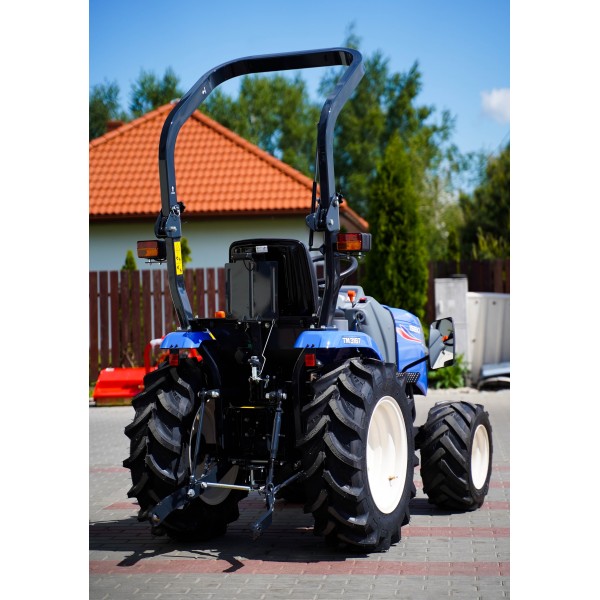

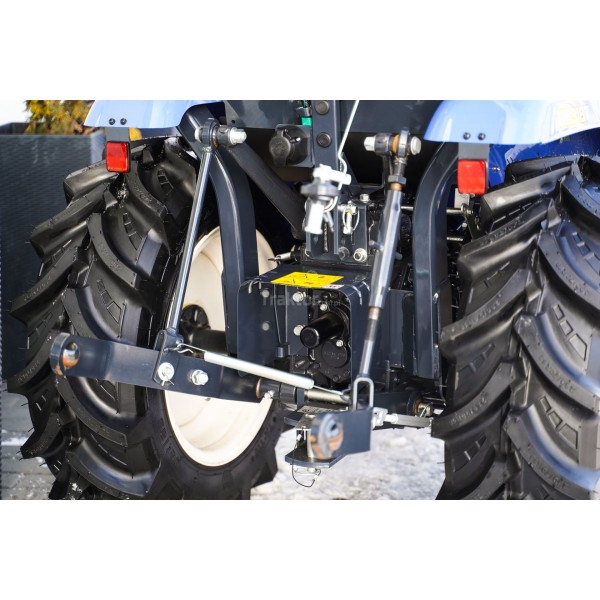

• 3-point linkage ,
• lifting capacity of the three-point hitch on ball ends: 540 kg ,

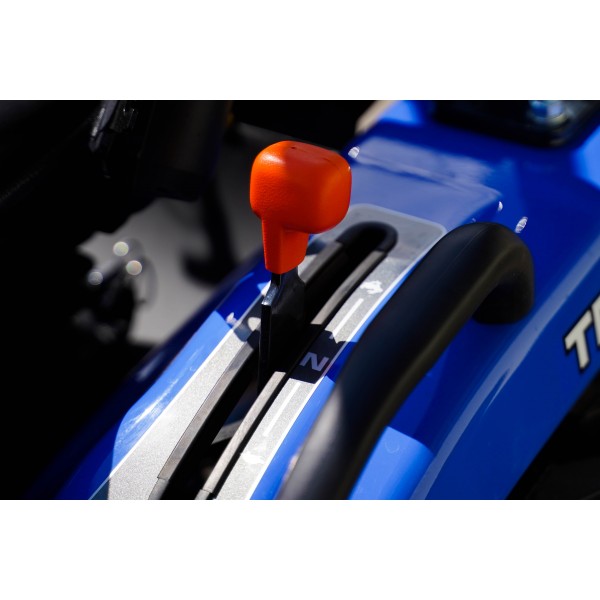

• 4x4 drive with the possibility of disconnection,

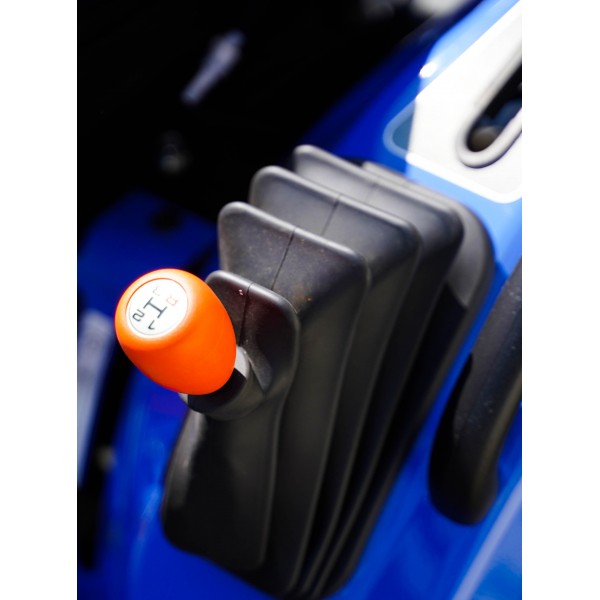

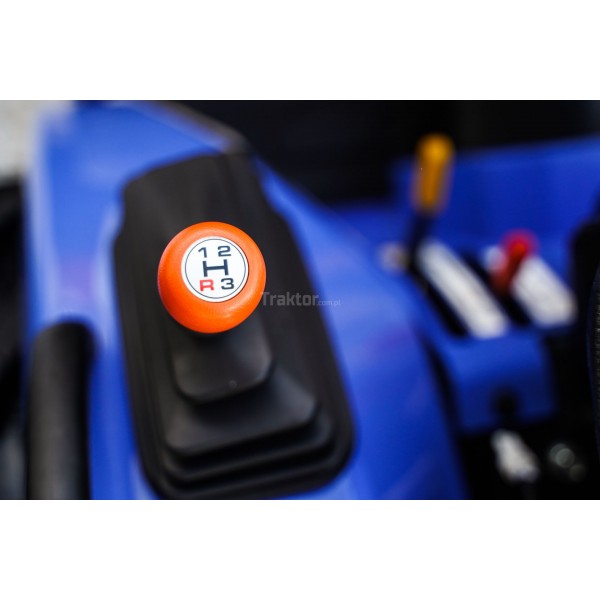

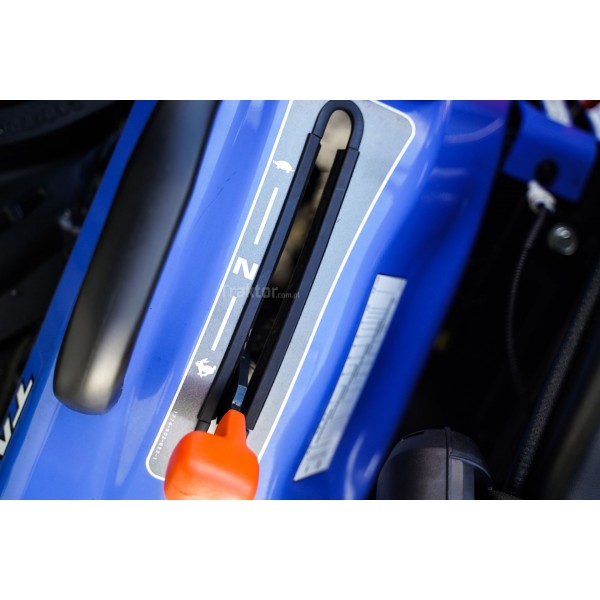

• manual gearbox 6 forward gears, 2 reverse gears,
• maximum forward speed: 21 km/h,
• total length: 2350 m,
• width: 1110 mm with standard agricultural tires,
• weight: 570 kg ,

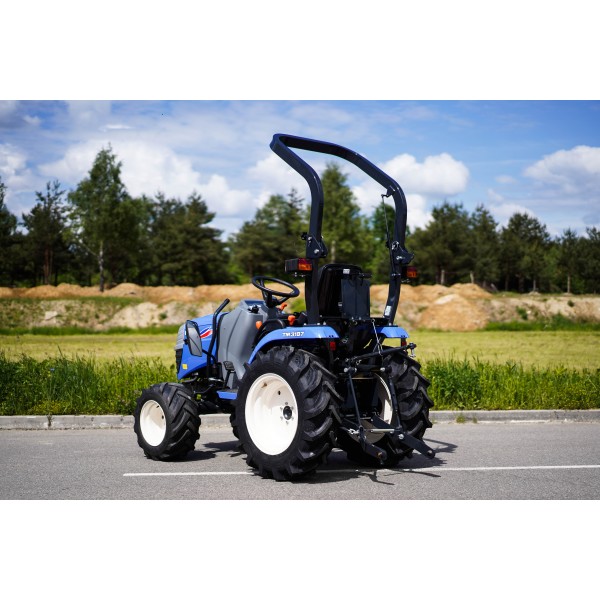

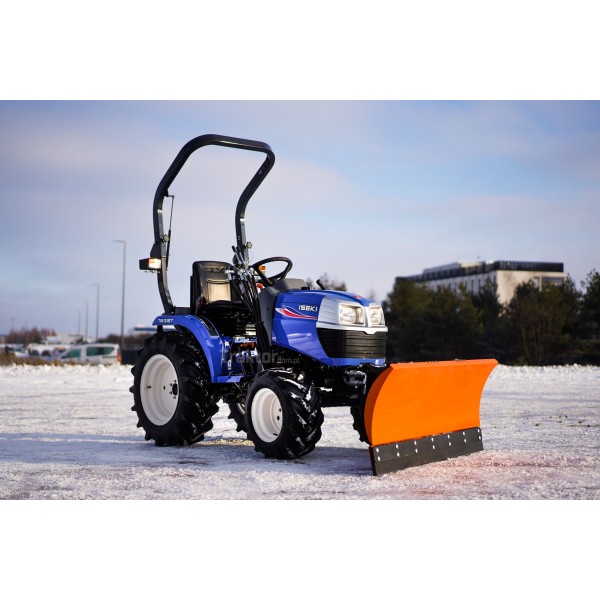

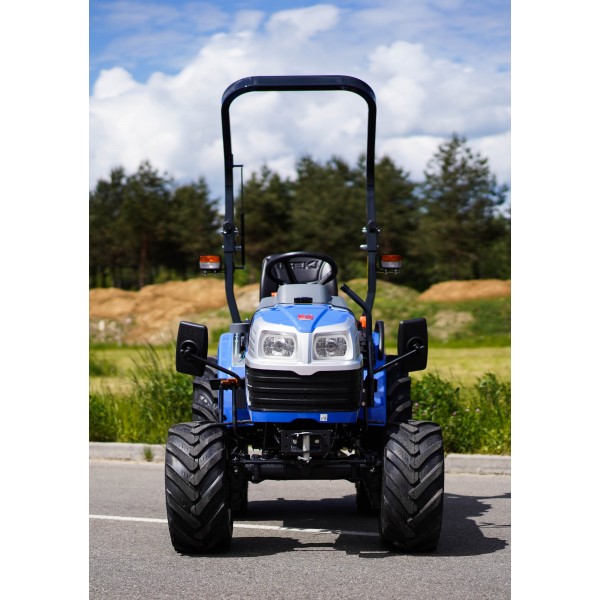

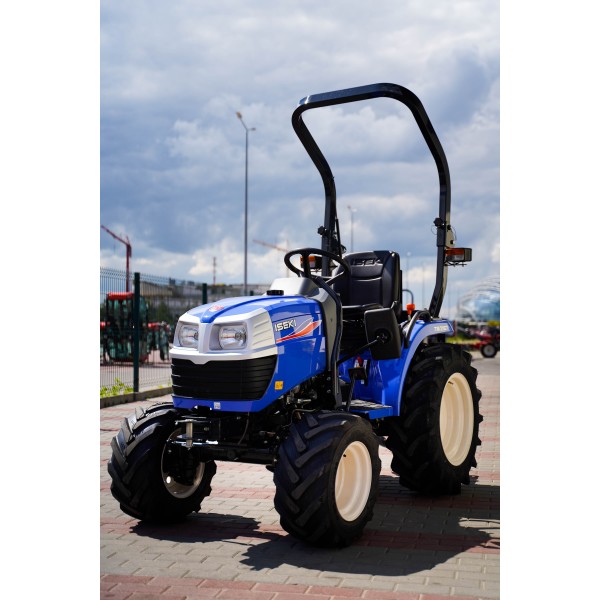

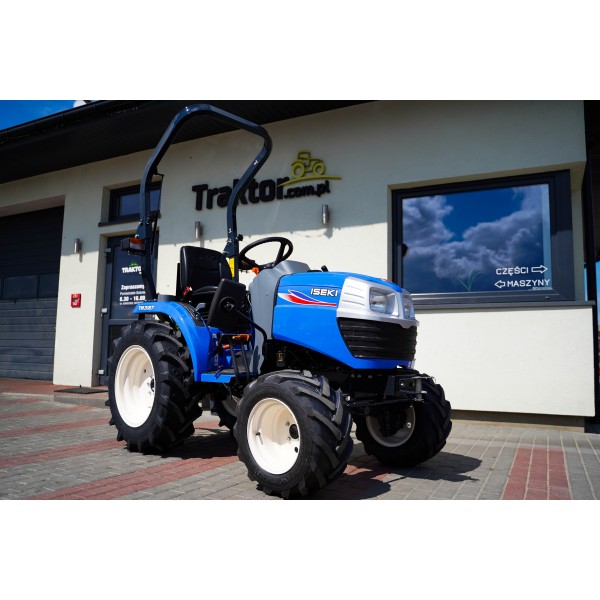

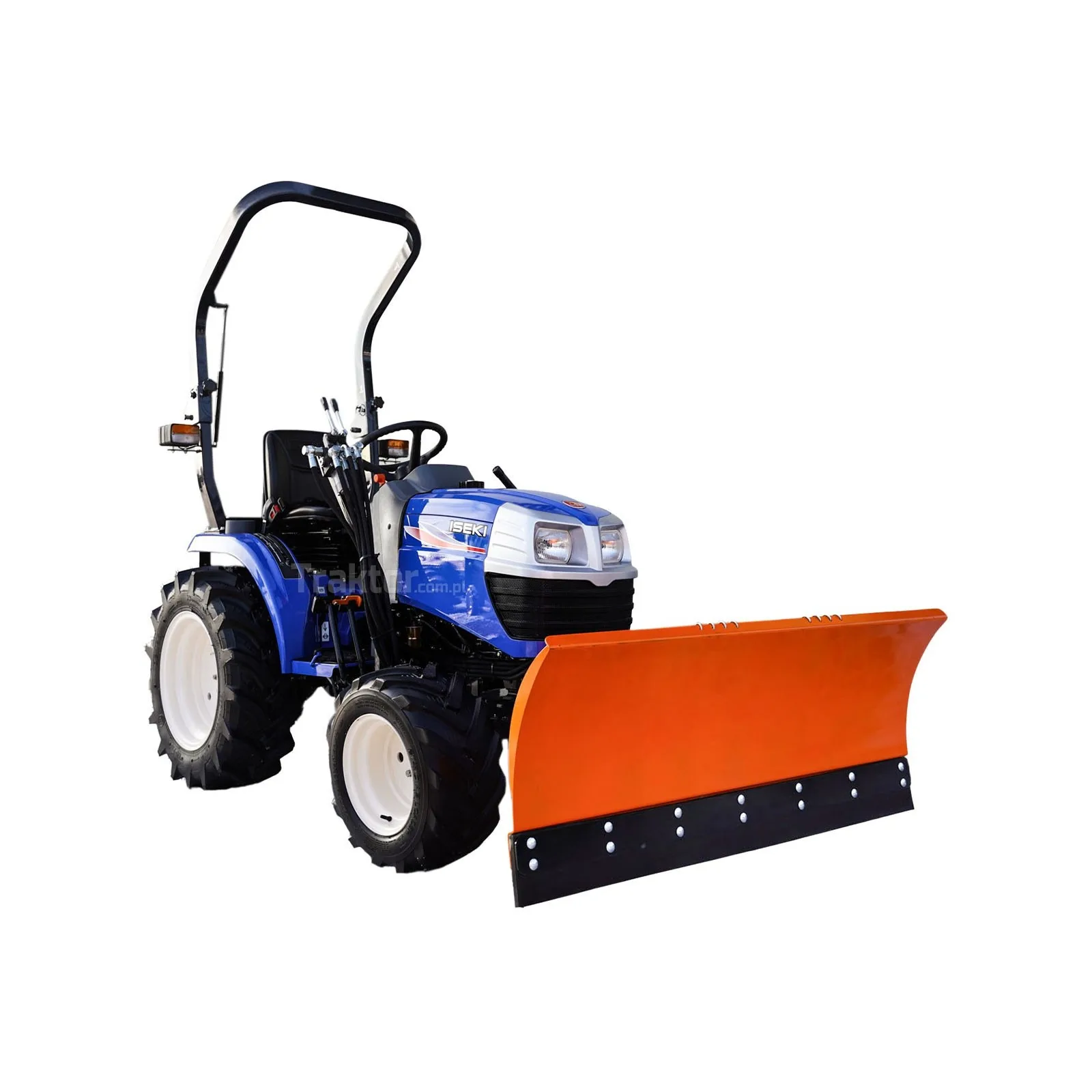

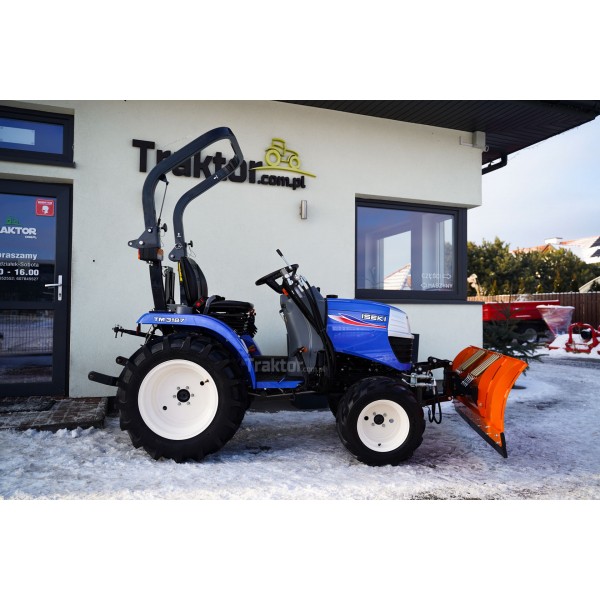

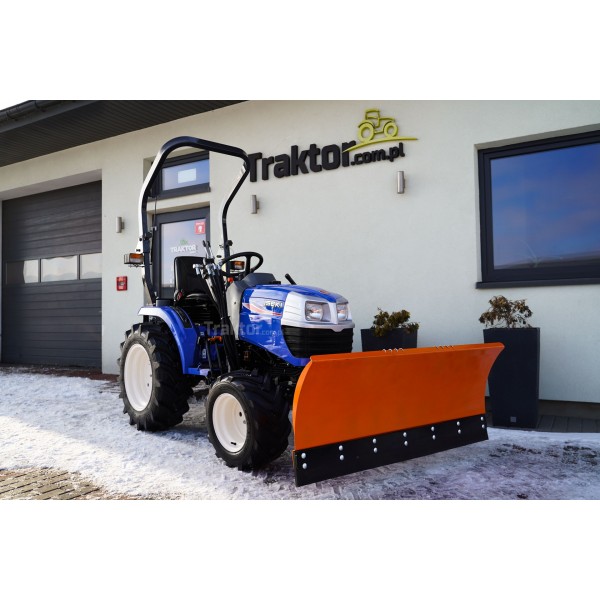

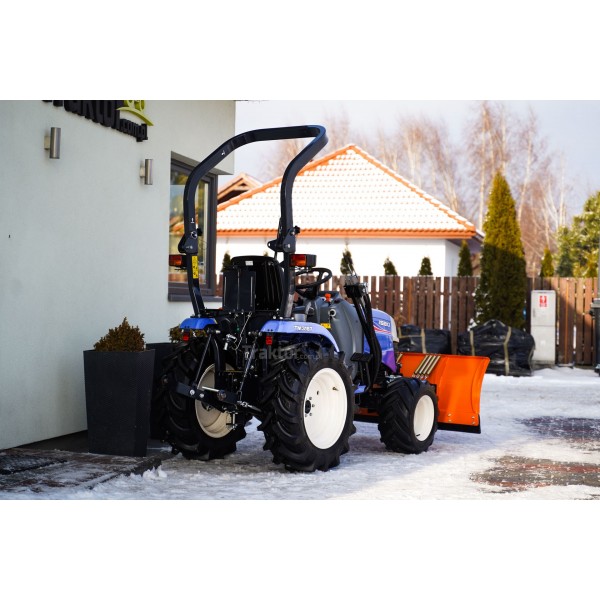

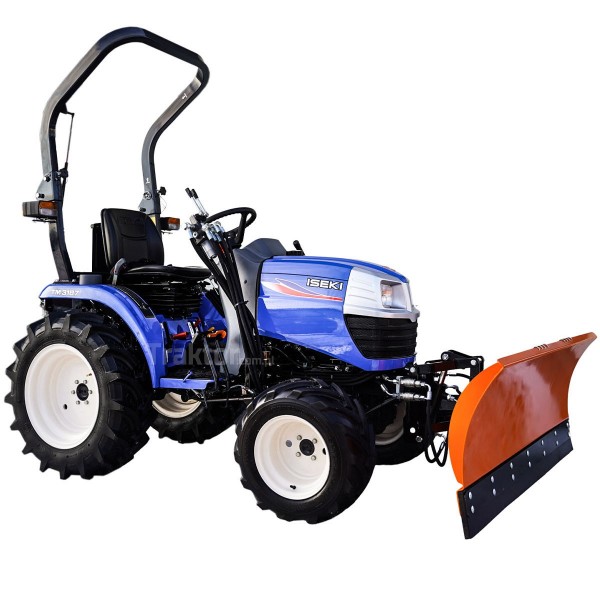

The presented Iseki TM3187A model is a non-power steering version with special agricultural tires and a hydraulically operated snow plow

The Iseki TM3187 A tractor is dedicated mainly to municipal companies, connecting a flail mower or a rotary tiller, the tractor is ideal for maintaining green areas, parks, recreational areas and gardens, but thanks to specialized tires and equipment it will be perfect on the farm when working with a front loader . The flail mower with the TM3187 tractor will allow the tractor to be used to maintain roadsides or orchards or large areas of wasteland. After connecting the sprayer, the tractor becomes the basic tool in the field in the orchard and garden. Thanks to the possibility of mounting a cabin, a snow plow and a sand spreader, the tractor becomes a multi-task all-year-round machine for work around the clock for clearing snow from properties, parking lots, streets and sidewalks.

Additional hardware and equipment

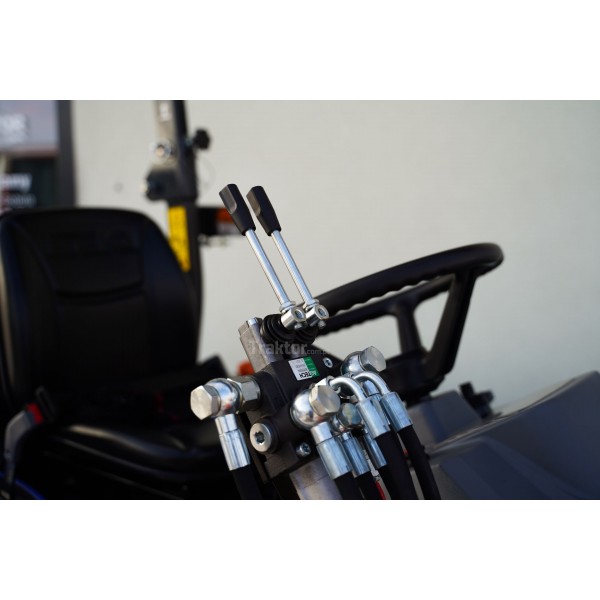

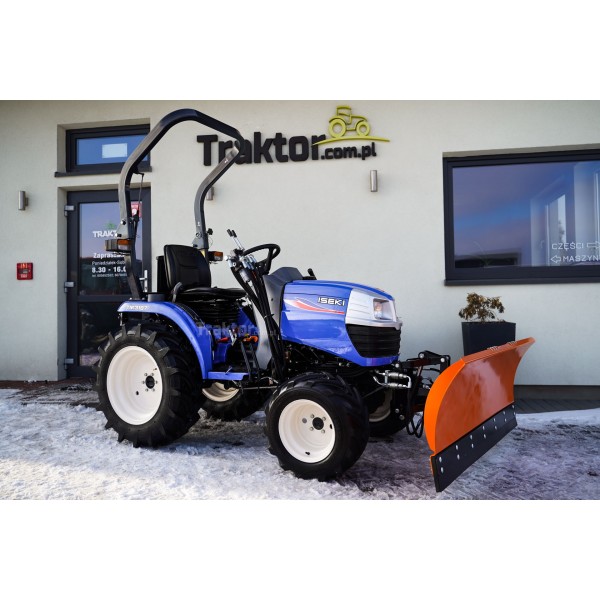

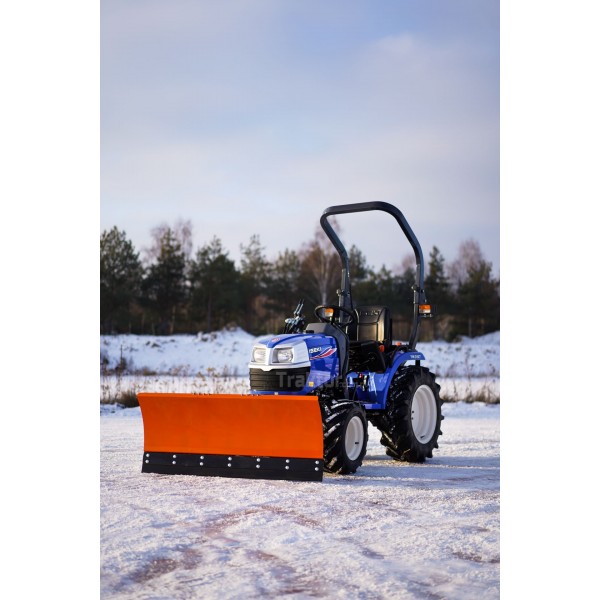

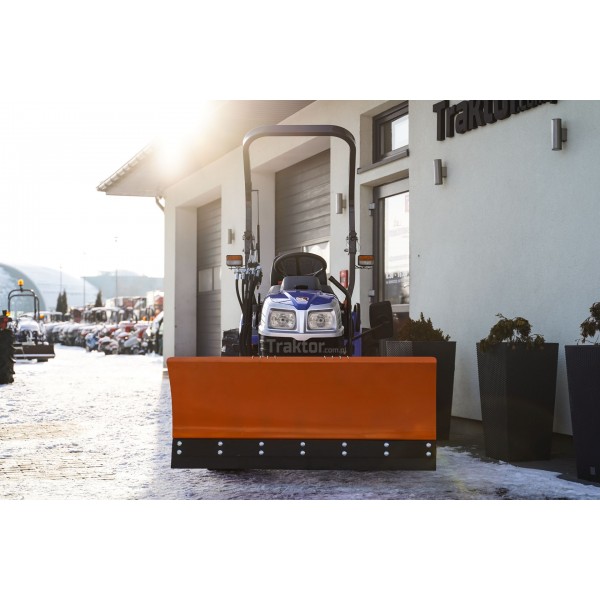

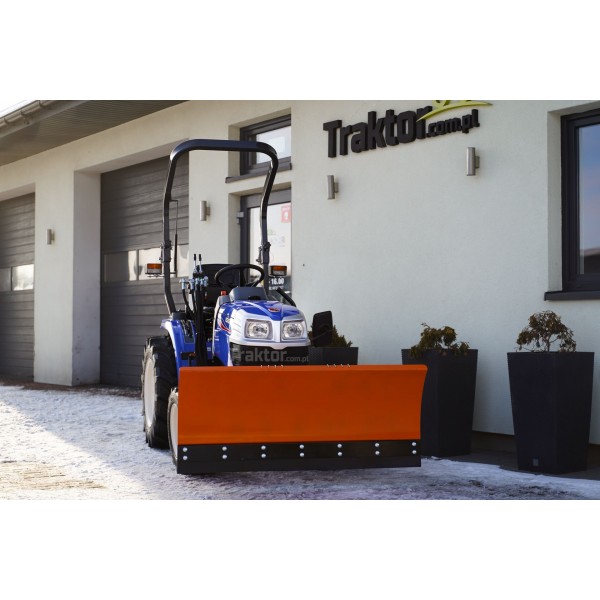

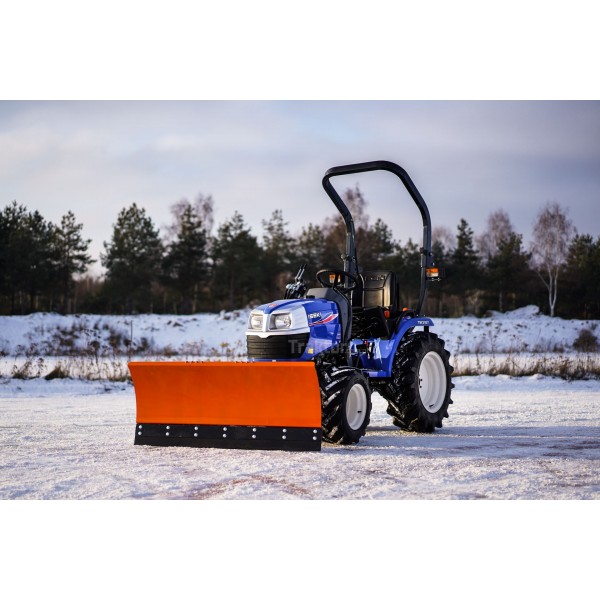

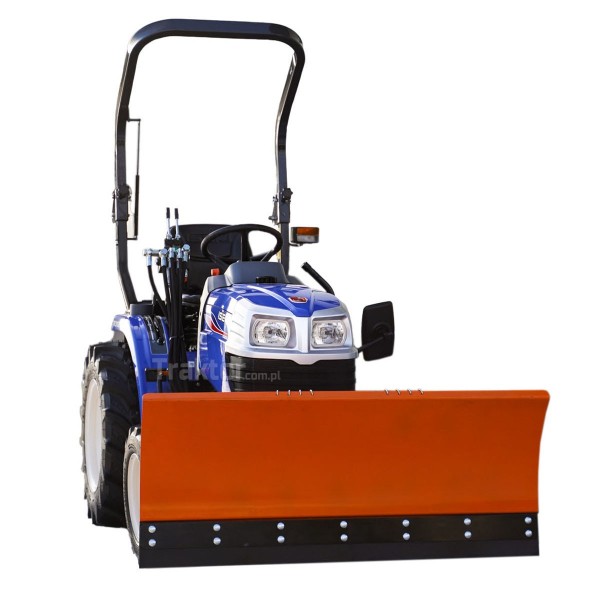

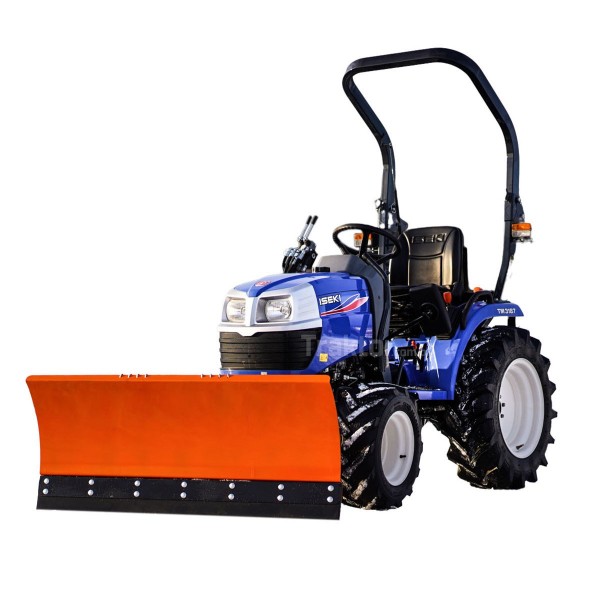

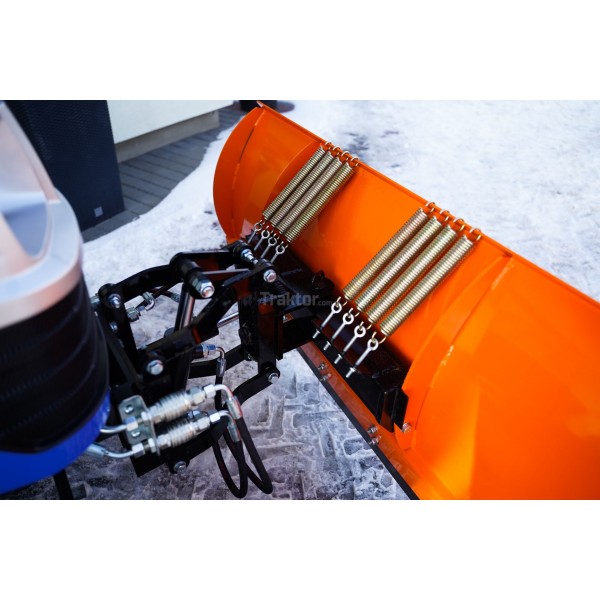

The SB1300 hydraulic snow plow is a universal plow that fits all Japanese mini tractors of all brands with a minimum power of 9 HP and is mounted on the front bumper to a special front linkage . Lifting and lowering as well as side-to-side control is done hydraulically with two levers and requires additional hydraulics if not equipped. The total height of the plow blade is 600 mm and the width is 1300 mm, these dimensions are universal dimensions , and the plow is ideal for clearing snow from sidewalks, alleys in parks or small parking lots.

• Blade width: 1300 mm.
• Height: 600mm.
• Weight: 80 kg.
• Minimum required tractor power: 9HP.

GUARANTEE

• 2 years for companies
• 3 years for individuals
