Product description
Powerful engine - maximum work efficiency

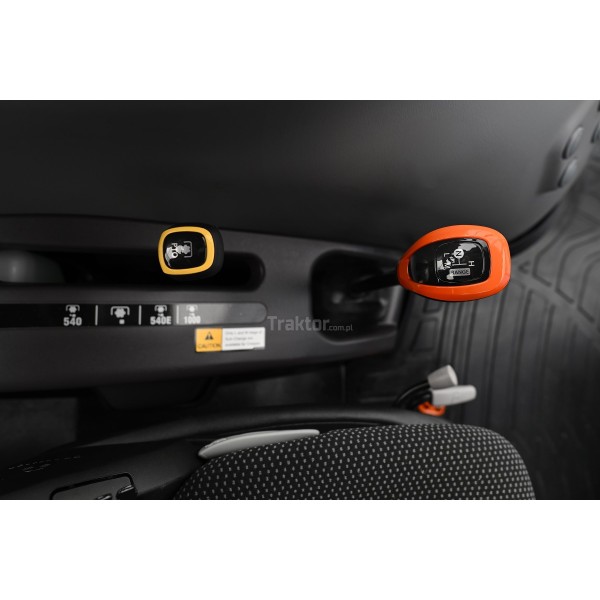

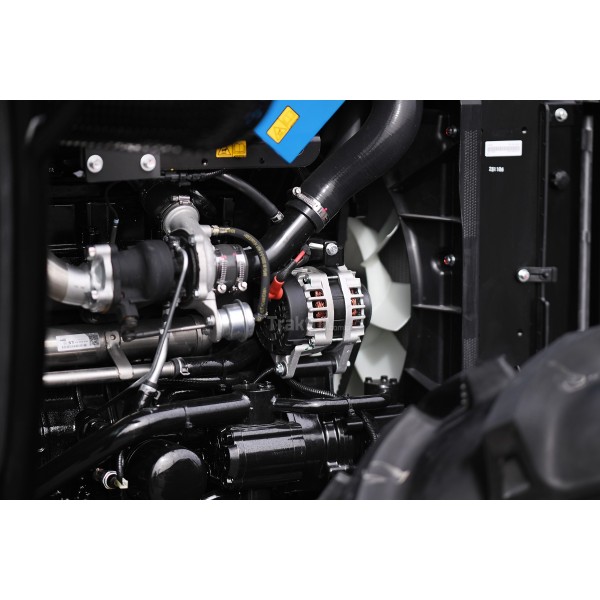

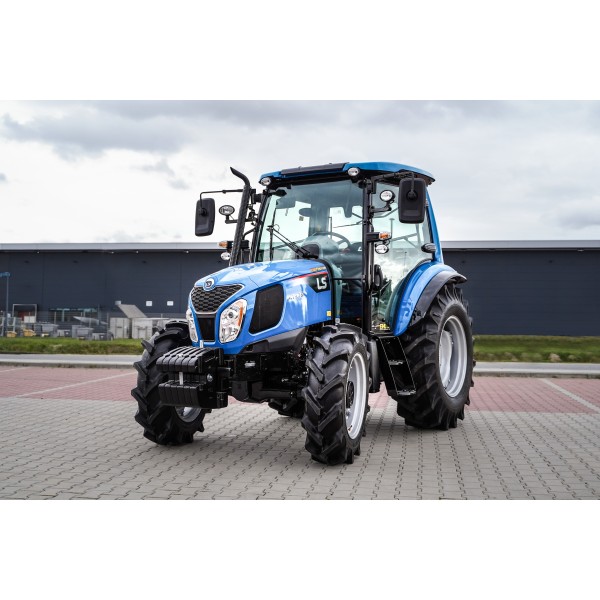

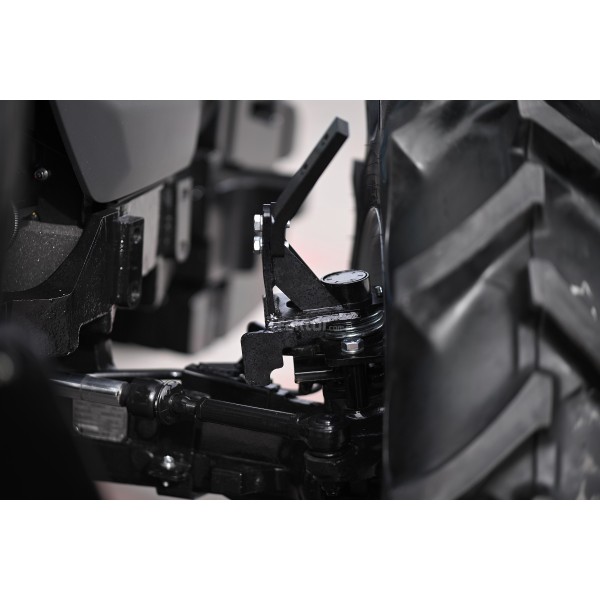

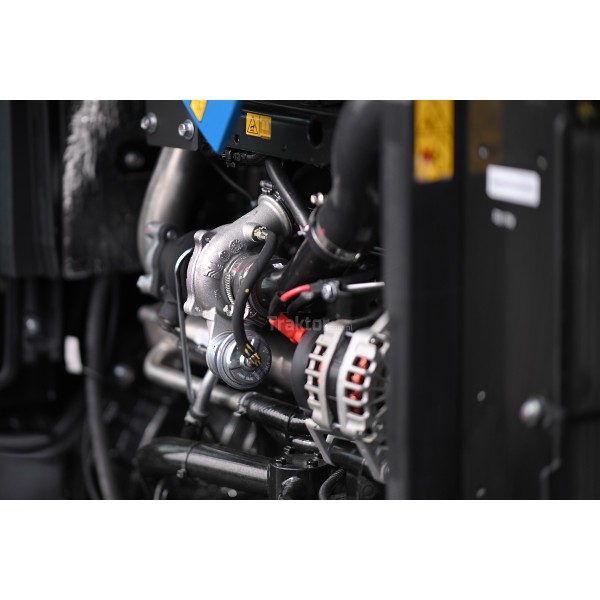

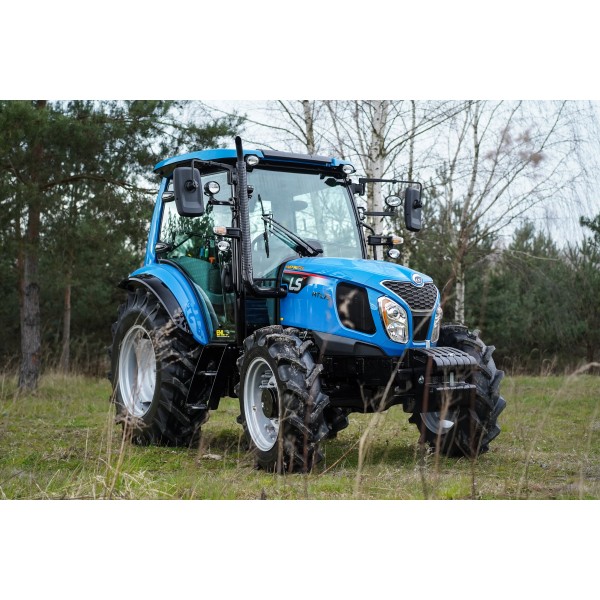

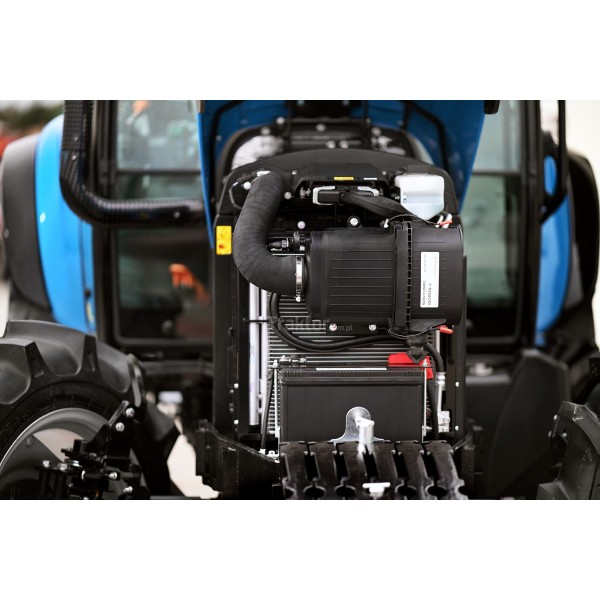

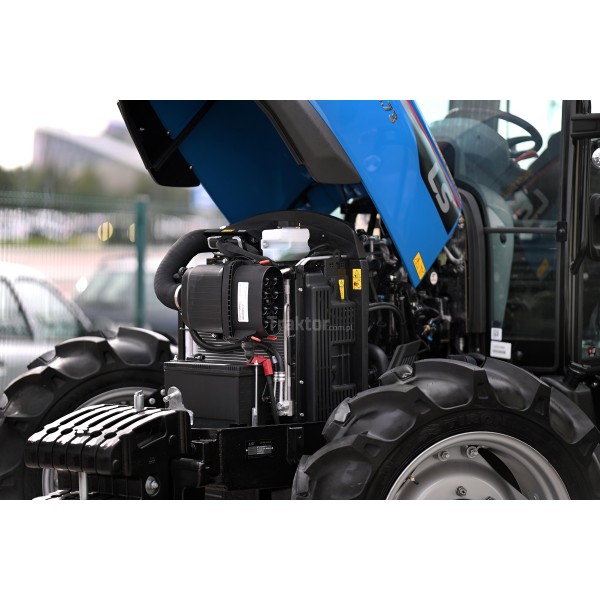

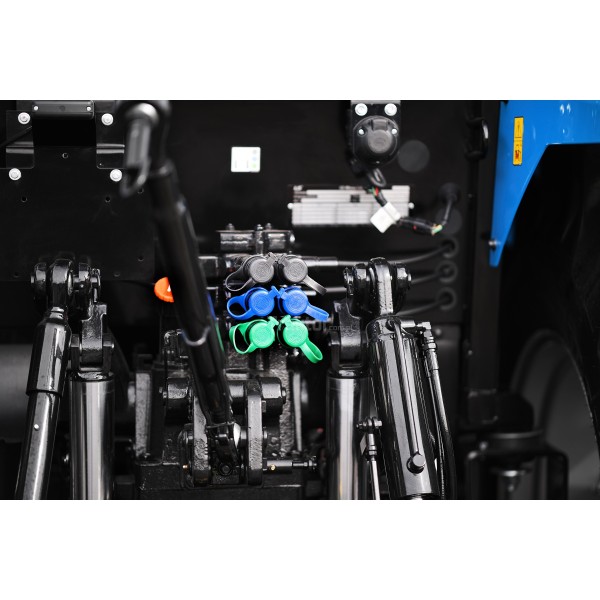

Under the hood of this machine is a powerful, 4-cylinder, liquid-cooled LS Mtron L4CRV-T1A diesel engine with 73 hp. It guarantees excellent operating parameters and high efficiency. Additionally, six hydraulic outlets at the rear allow for the connection of a wide range of implements. The MT5 model is equipped with a 3-point Cat II three-point linkage with a lifting capacity of 3,000 kg and an independent PTO shaft, allowing for versatile use of the tractor. Three PTO speeds are available.

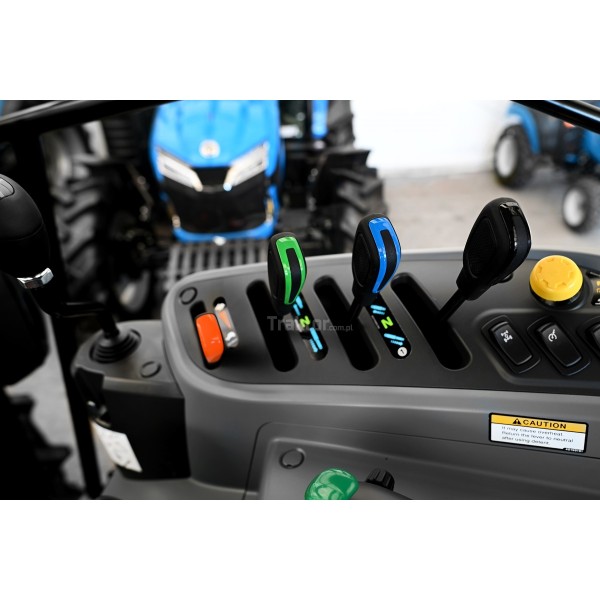

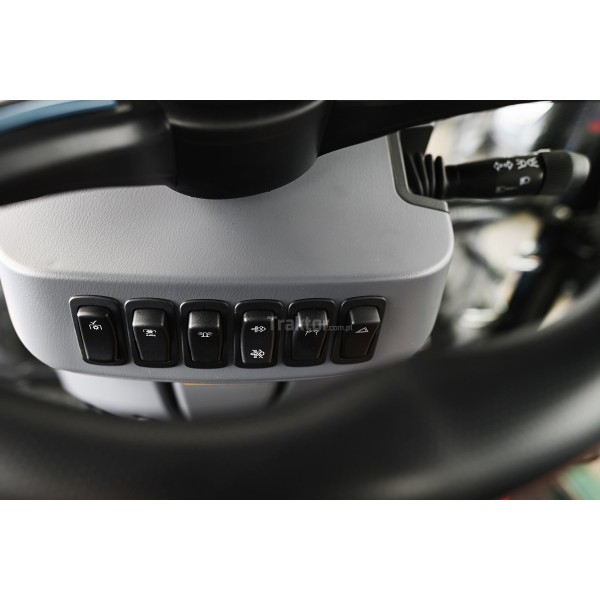

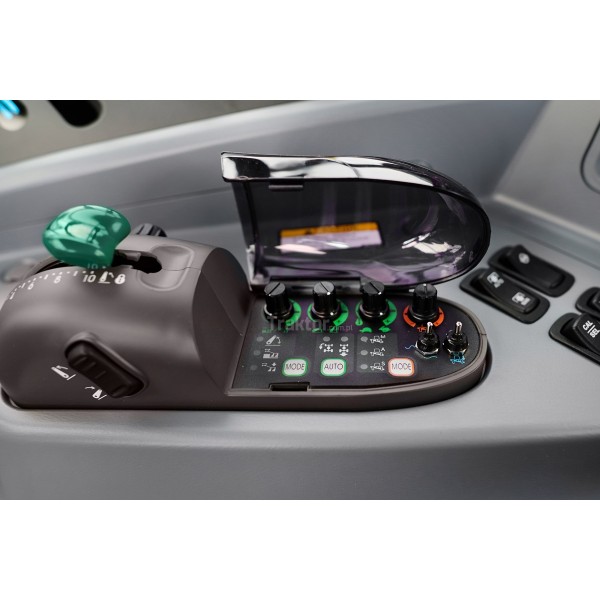

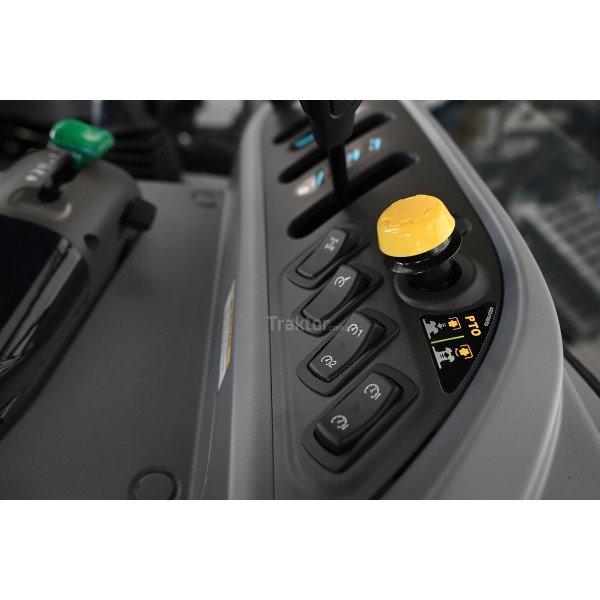

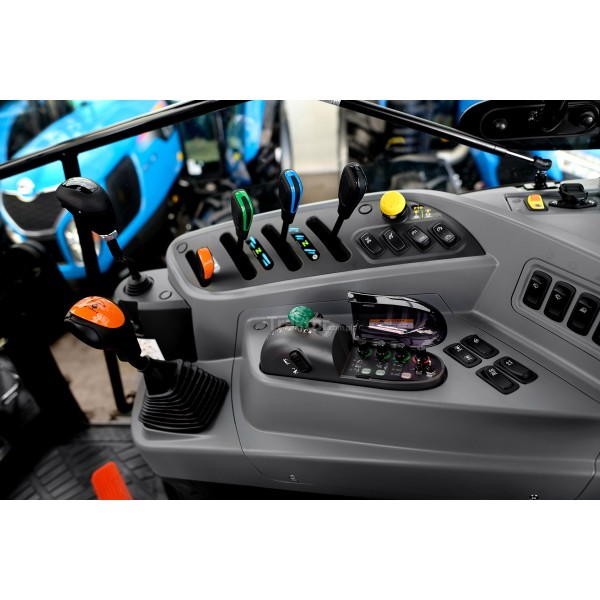

The three-point hitch assistant also offers a host of conveniences – an electrohydraulic control panel with automatic leveling allows for a high level of comfort during operation. The electrohydraulic controls are ergonomically designed for ease of use. Additionally, the tractor features cruise control and a quick-spin function, which reduces the turning radius and ensures even better performance.
Comfortable manual gearbox - traditional, yet modern

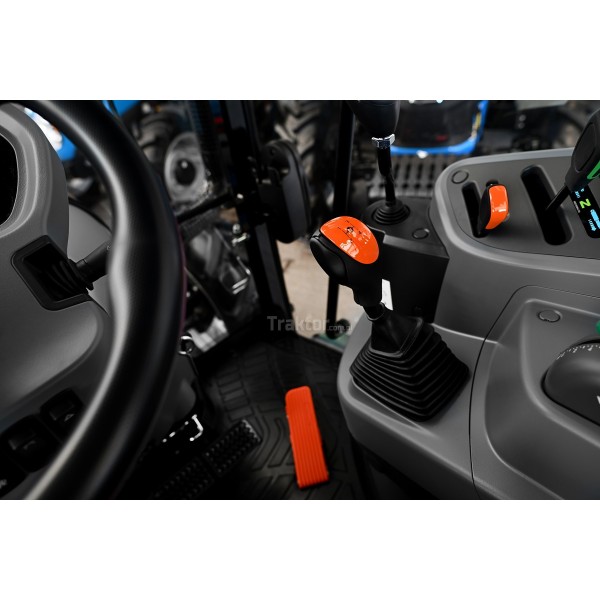

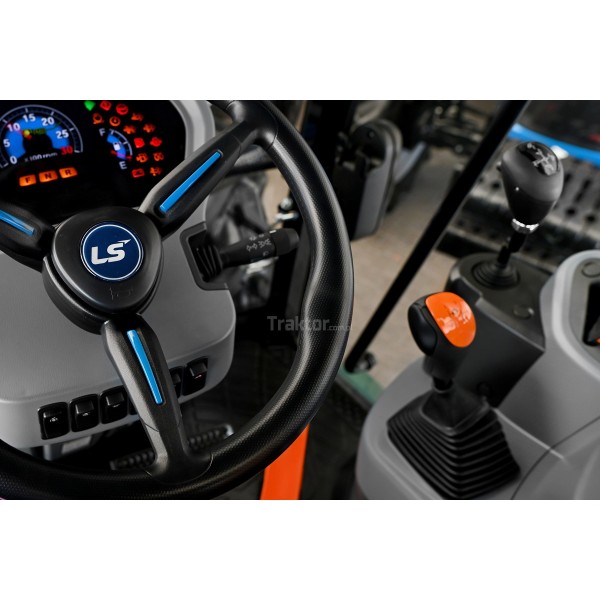

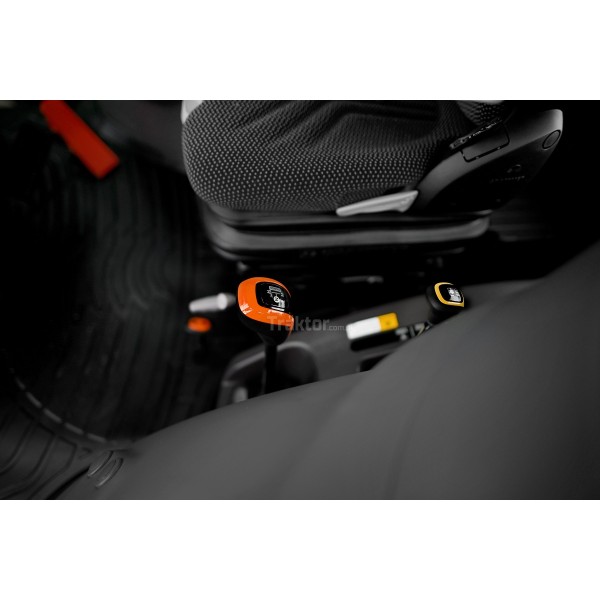

Two key features that improve operating comfort: Manual clutch – the clutch button is located on the main gear shift. Therefore, a clutch pedal is no longer required. Operation is achieved with a single additional button.

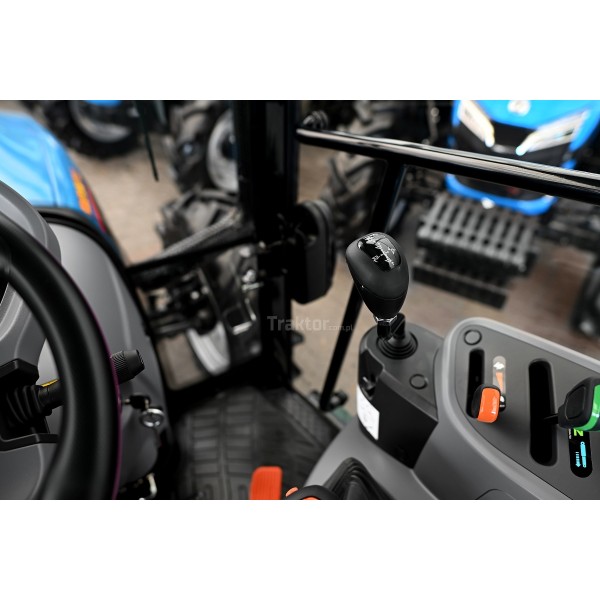

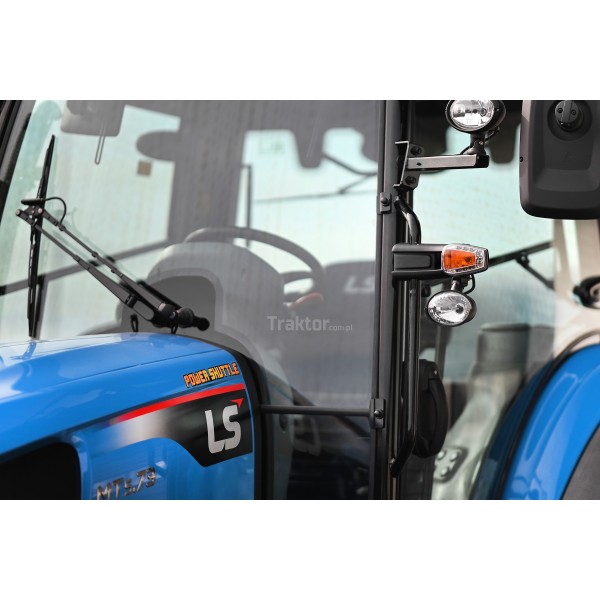

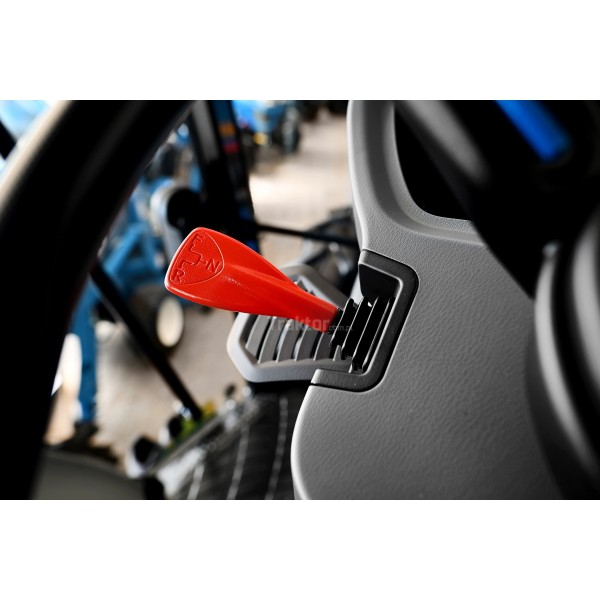

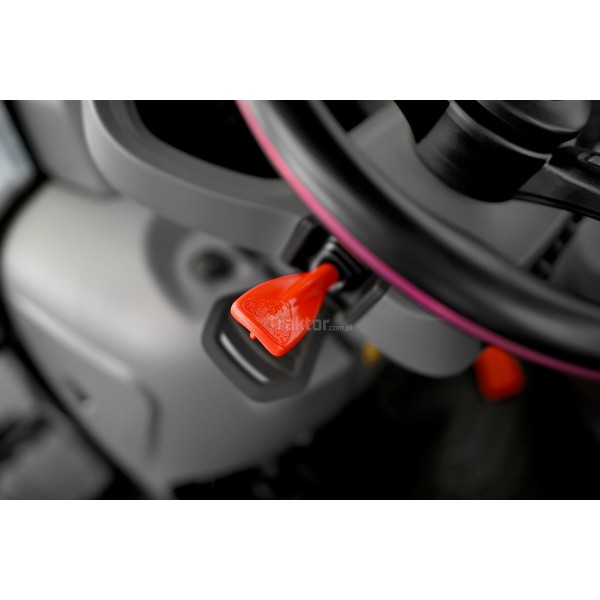

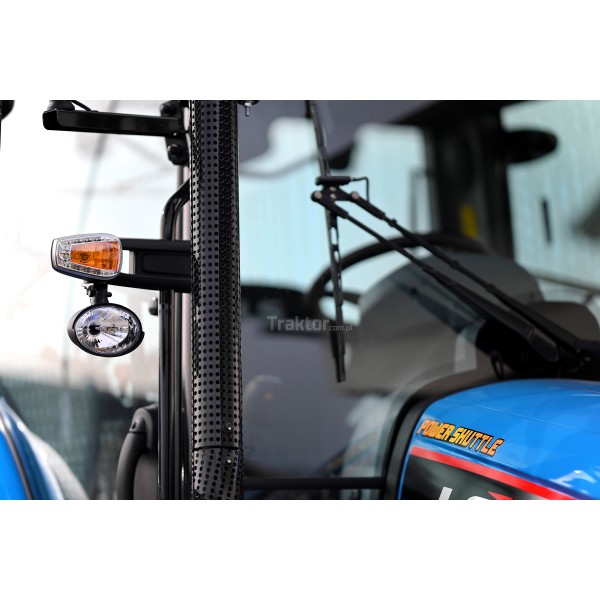

This equipment option features the electrohydraulic Power Shuttle reverse shuttle. Changing forward or reverse is accomplished with a simple lever movement, without the need to shift gears or depress the clutch pedal. The reverse lever is very light and smooth to operate.

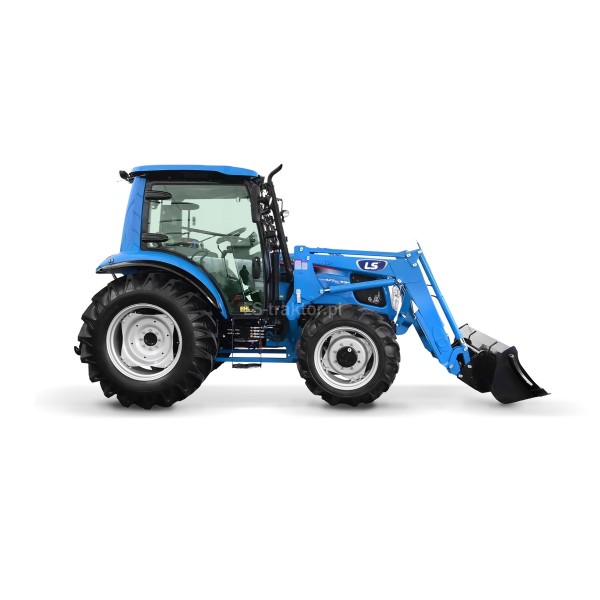

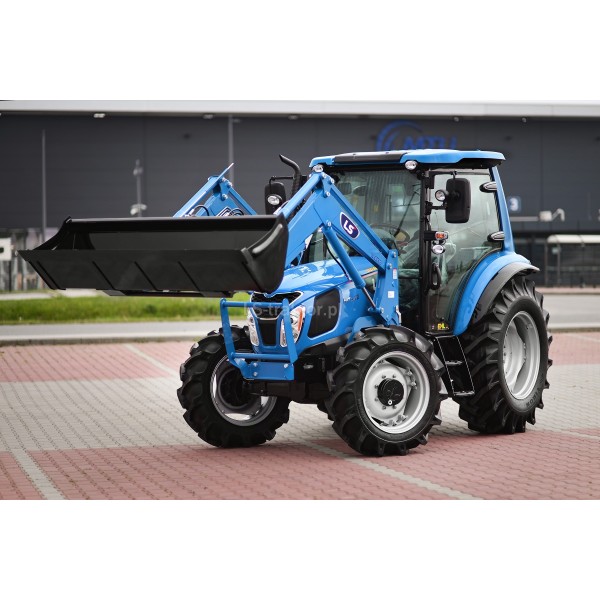

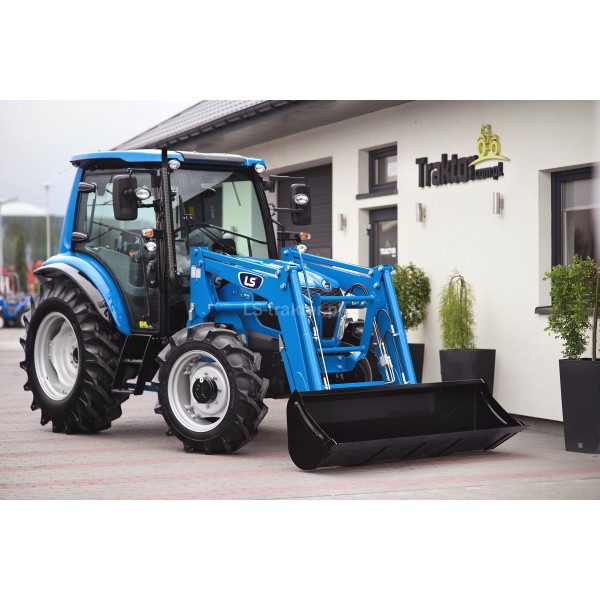

High lifting capacity - 1648 kg

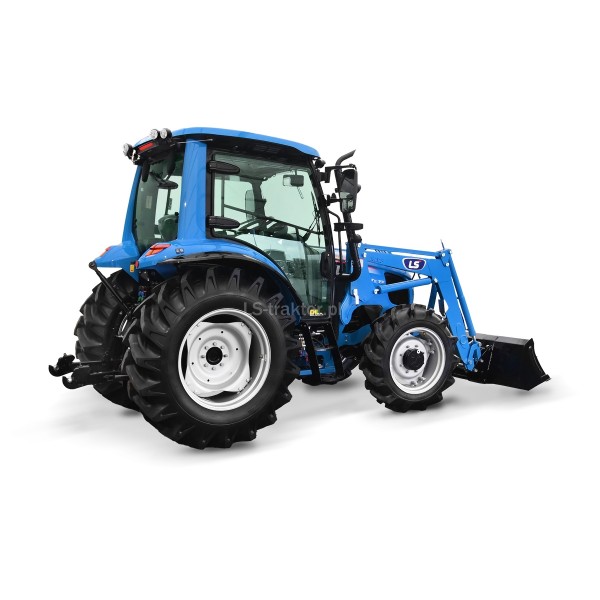

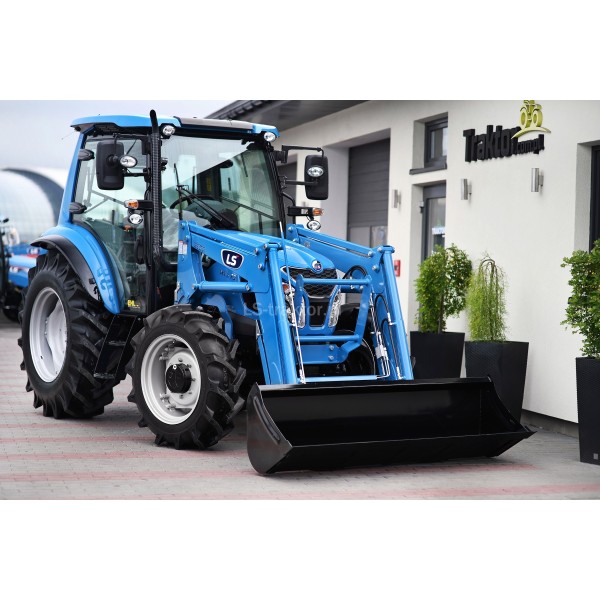

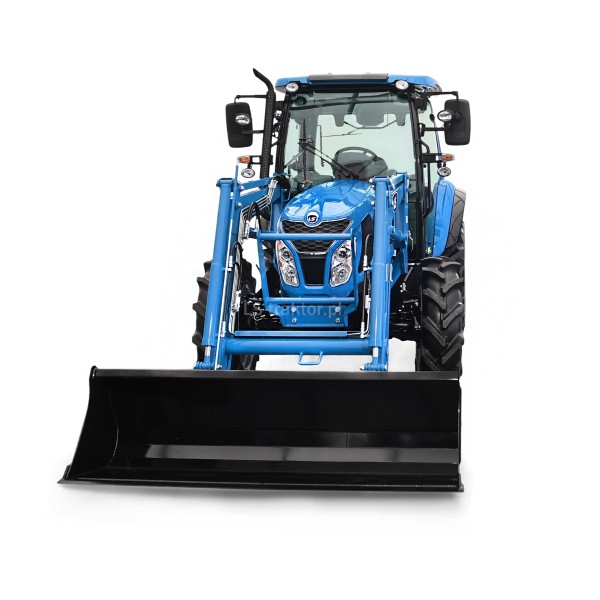

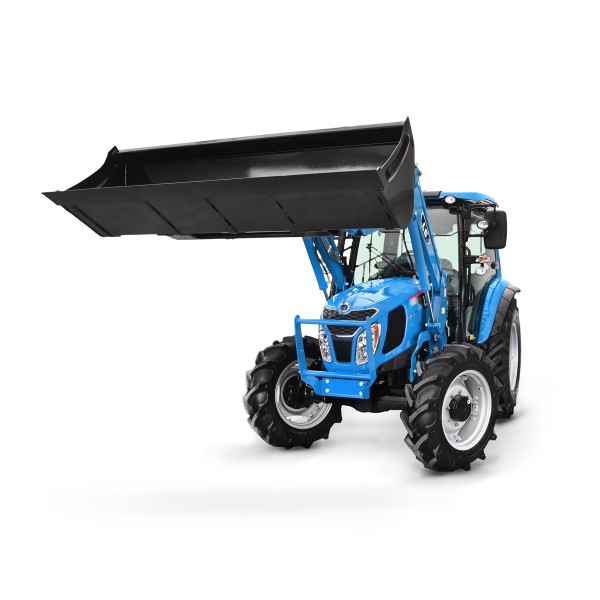

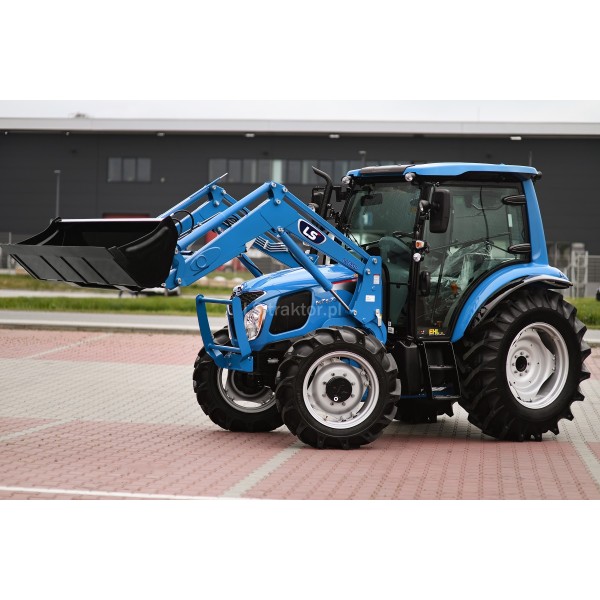

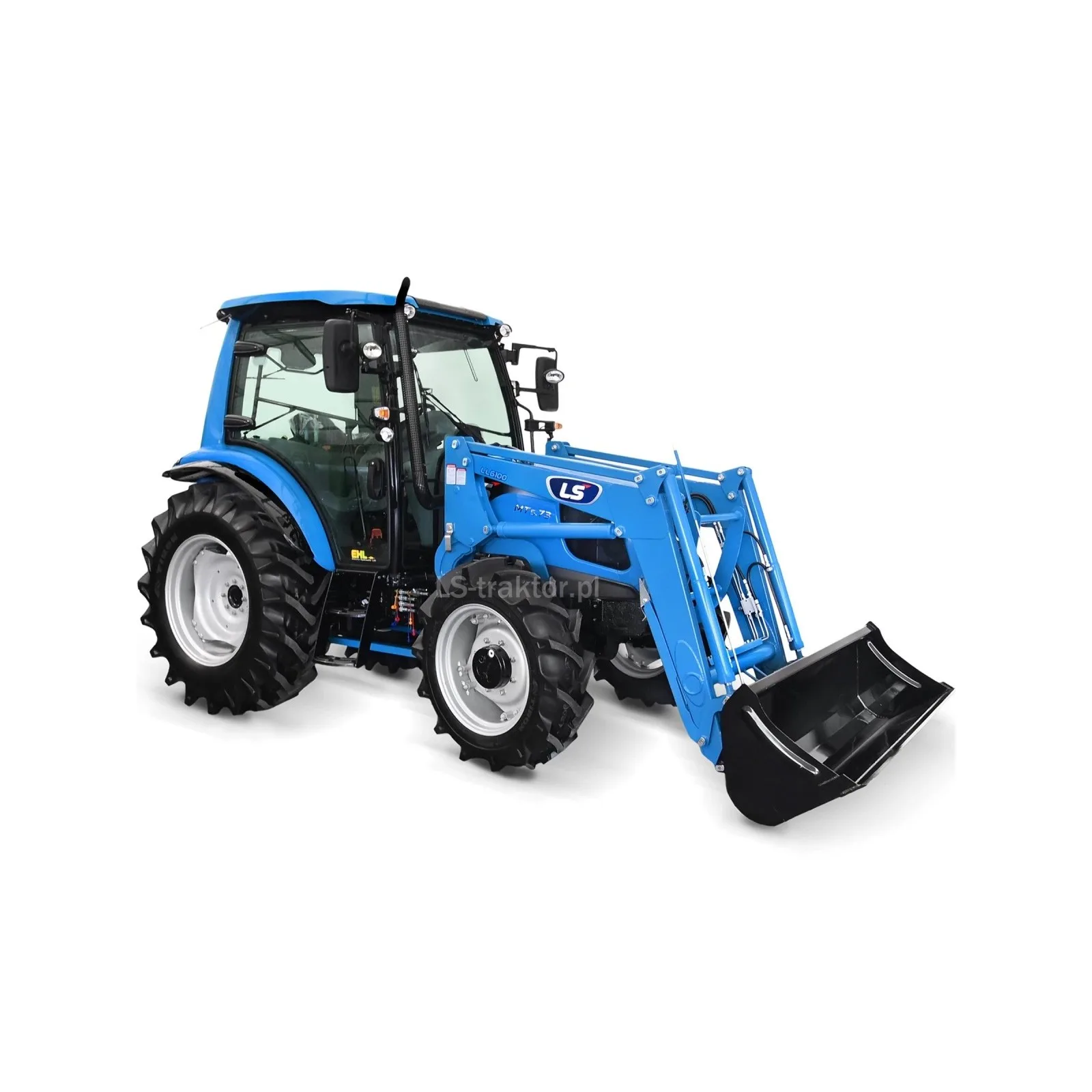

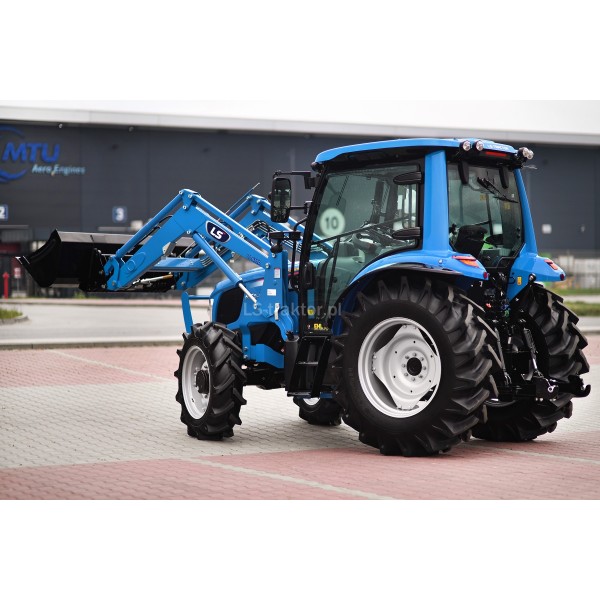

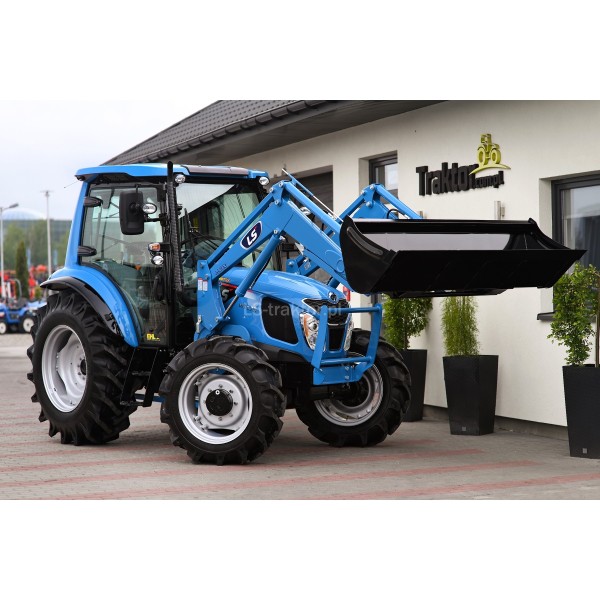

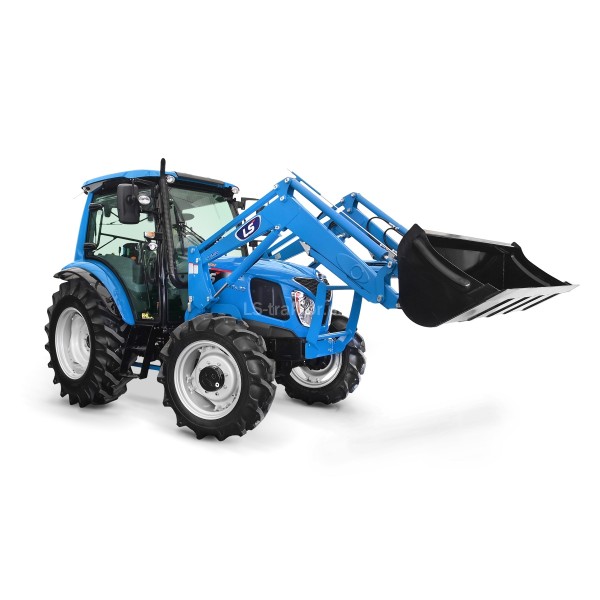

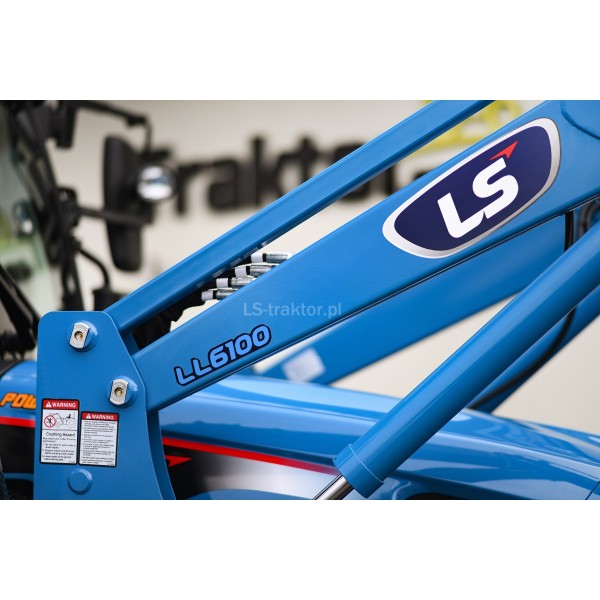

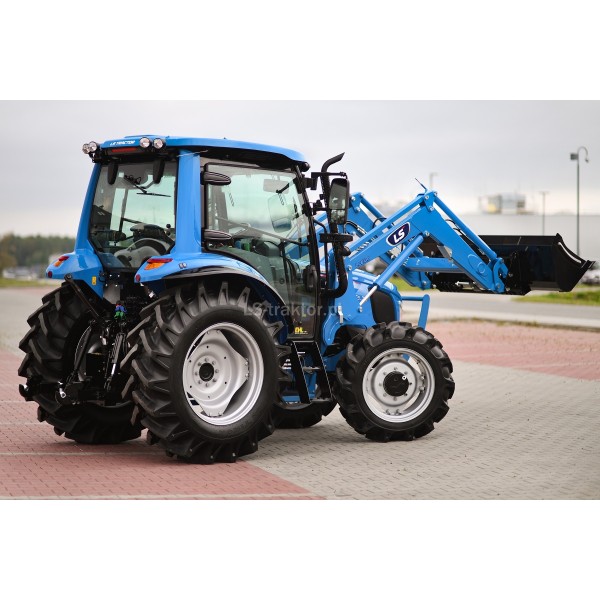

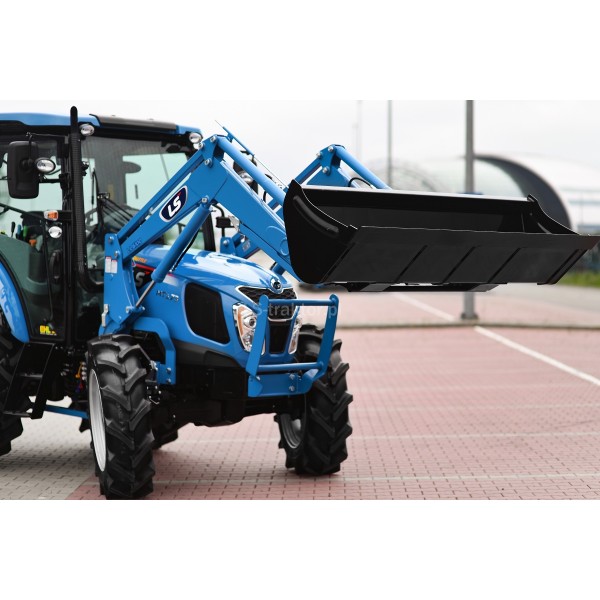

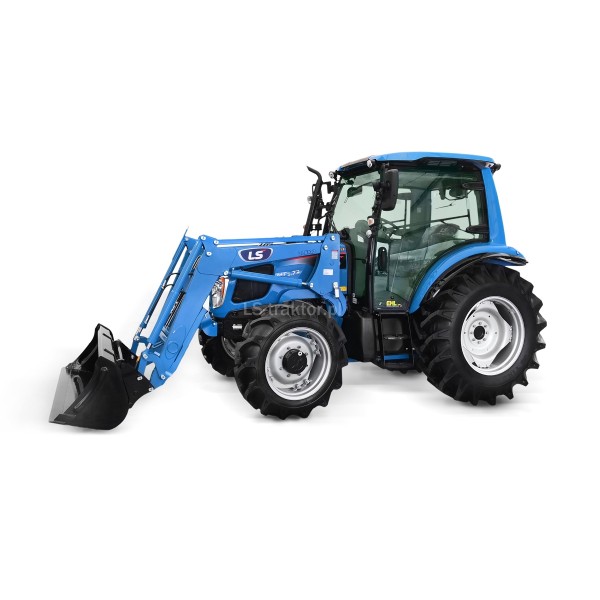

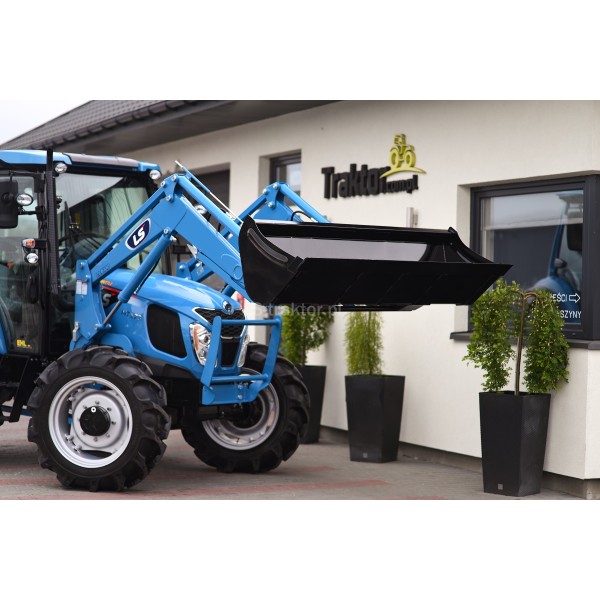

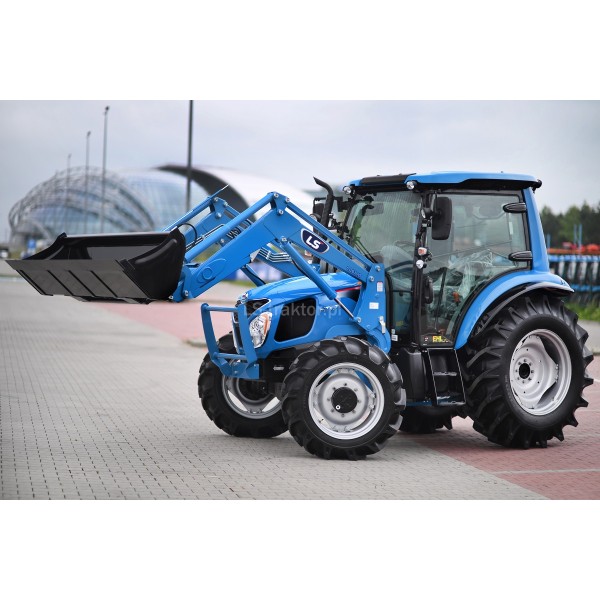

The LL6100 front loader is the original, standard front loader designed for LS Tractor MT5 series tractors. Thanks to its highly durable construction and well-thought-out design , the TUR front loader can handle significantly more weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, facilitated by features such as quick hydraulic connections, a Euro frame, and special storage supports. Quick assembly and disassembly also applies to the bucket itself; the loader is removed by pulling two pins, and the operation itself requires no tools.
Safety and comfort of work

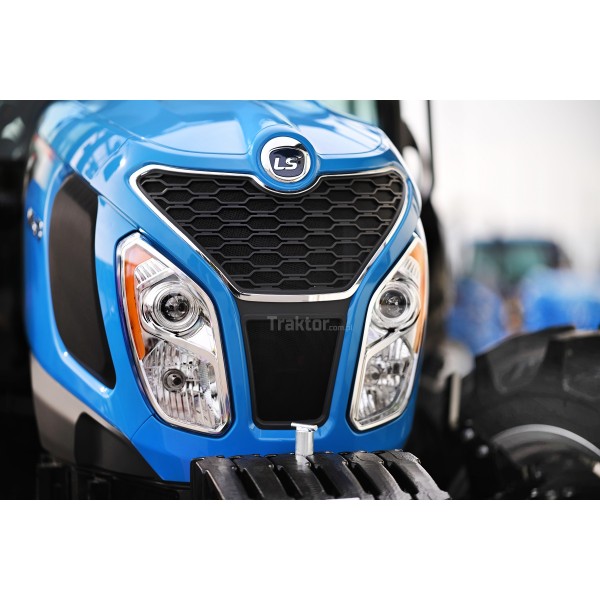

The LS front loader has a safety valve that prevents the load from lifting higher in the event of an overload. Automatic bucket adjustment is another convenience and improves work quality; the automatic adjustment regulates the bucket position during loader arm movement. Tractors equipped with a hydraulic distributor with a floating section have a bucket protection function that automatically retracts the bucket when it encounters an obstacle that is too large. The loader is equipped with a grill guard as standard.
Key features of the LL6100 loader
- Load capacity: 1648 kg,
- Mounting type: EURO,
- Bucket width: 1981 mm,
- Maximum lifting height: 3214 mm, and: 2925 mm (bucket in horizontal position), 2420 mm (bucket fully lowered),
- Bucket capacity: 0.49 m3,
- Lifting time to maximum height without load: 5.1 s,
- Lowering time from maximum height: 3.8 s,
- Maximum bucket tipping time: 2 s,
- Maximum unscrewing time of the bucket to the horizontal position: 2.9 s.
