Product description
Powerful engine - maximum work efficiency

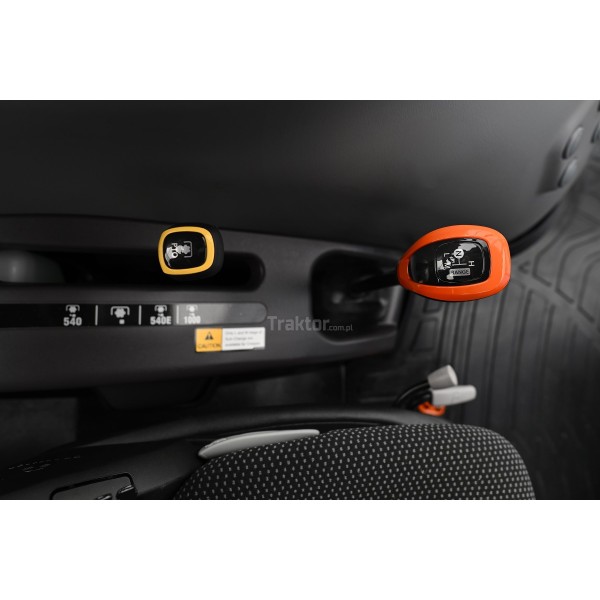

Under the hood of this machine there is a powerful, 4-cylinder liquid-cooled LS Mtron L4CRV-T1A diesel engine with a power of 73 HP. It guarantees very good operating parameters and high efficiency. Additionally, 6 hydraulic outlets at the rear allow you to connect a wide range of equipment to the tractor. The MT5 model is equipped with a 3-point TUZ Cat II with a lifting capacity of 3000 kg and an independent PTO shaft allow for versatile use of the tractor. There are three PTO shaft speeds available.

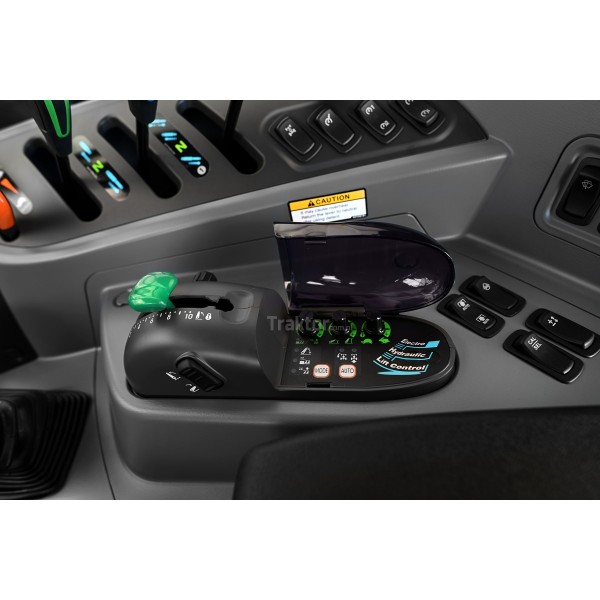

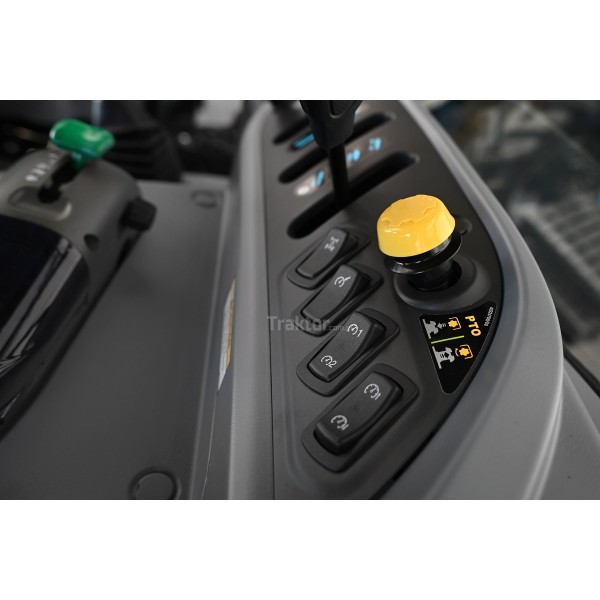

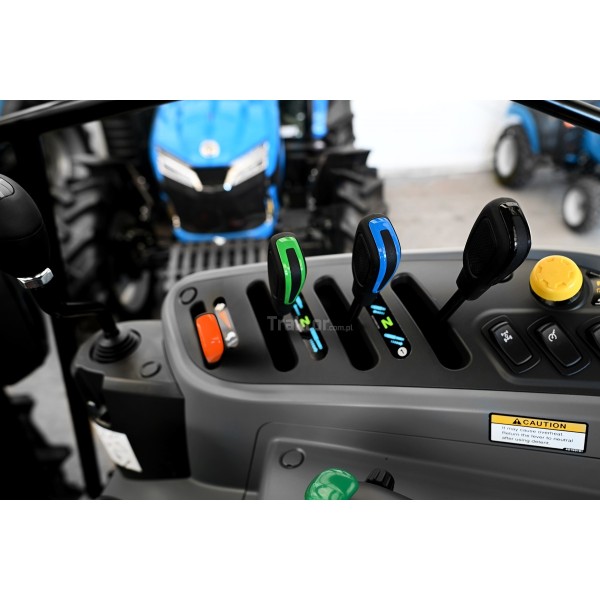

The conveniences associated with the TUZ assistant cannot be omitted - the electrohydraulic control panel allows for high comfort during work. The electrohydraulic controls are ergonomically designed and provide convenient operation. Additionally, the tractor has cruise control, as well as a quick wheel rotation function, which reduces the turning radius and provides even better efficiency.

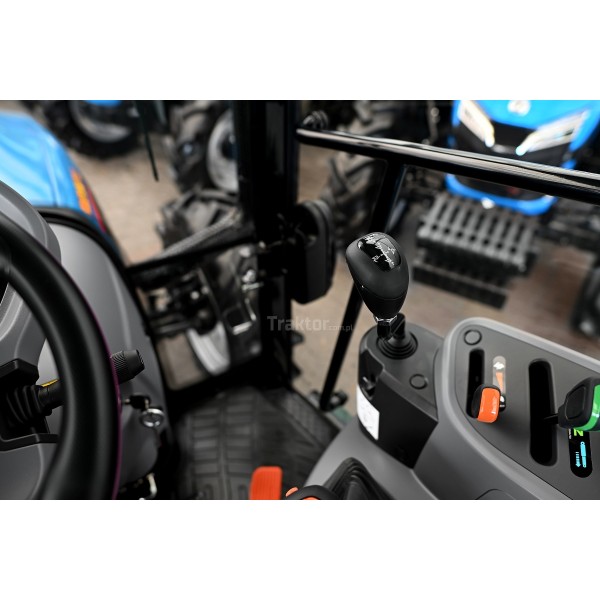

Comfortable manual gearbox - traditional, yet modern

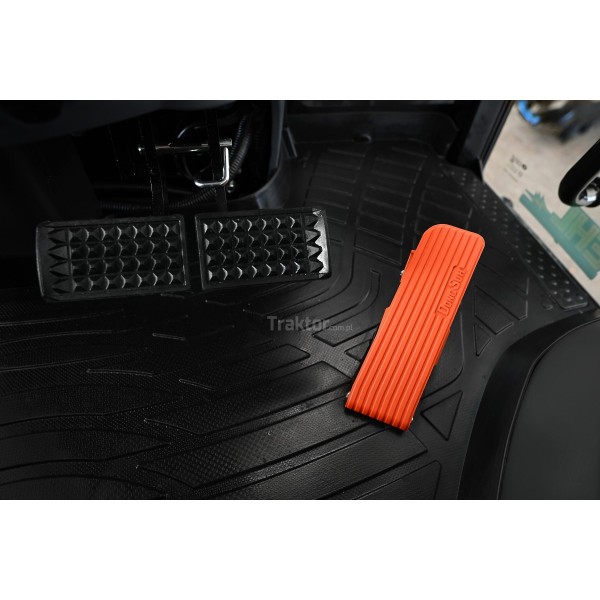

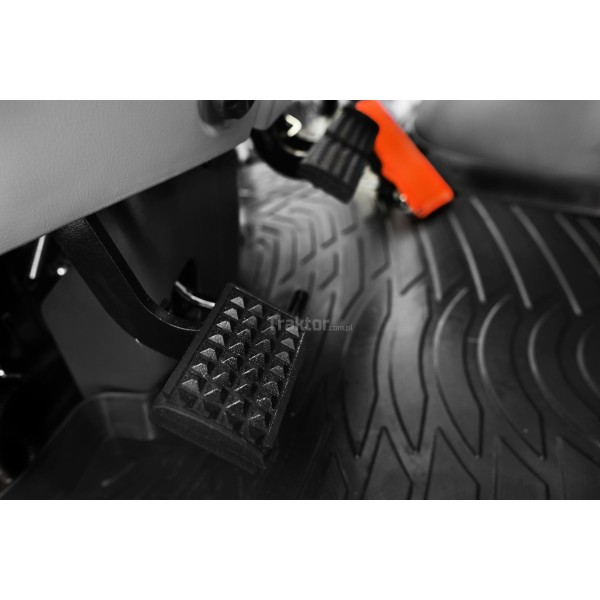

Two basic functions that improve work comfort? Manual clutch - the clutch button is located on the main gear shift. So the clutch pedal is no longer needed. Operation is carried out with the help of one additional button.

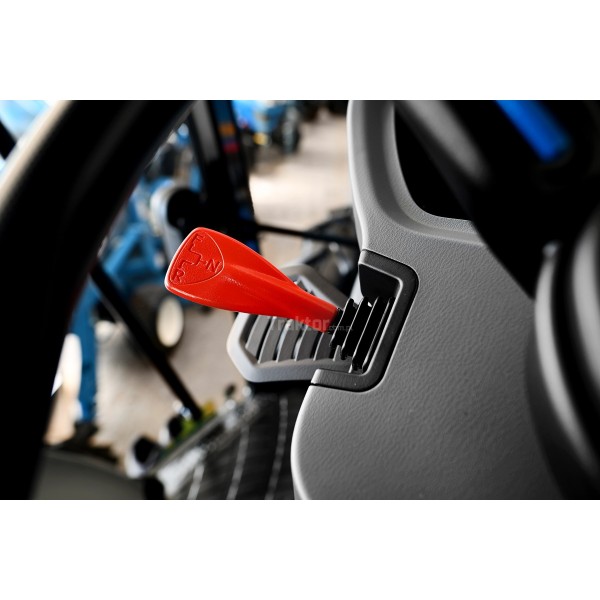

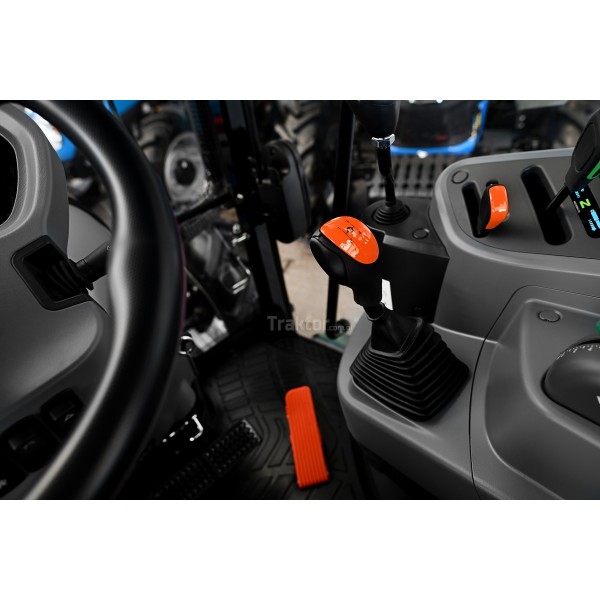

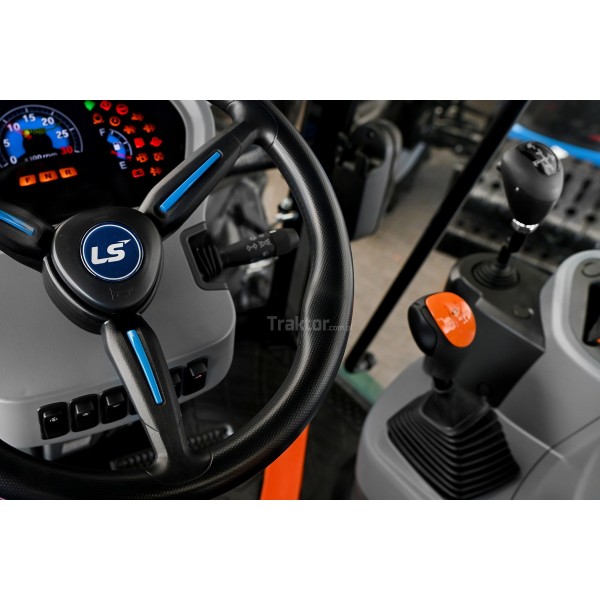

This equipment option includes an electrohydraulic Power Shuttle reverser. Changing the direction of travel forward or backward is done with a simple movement of the lever, without the need to change gears or additionally press the clutch pedal. The reverse lever is operated very lightly and smoothly.

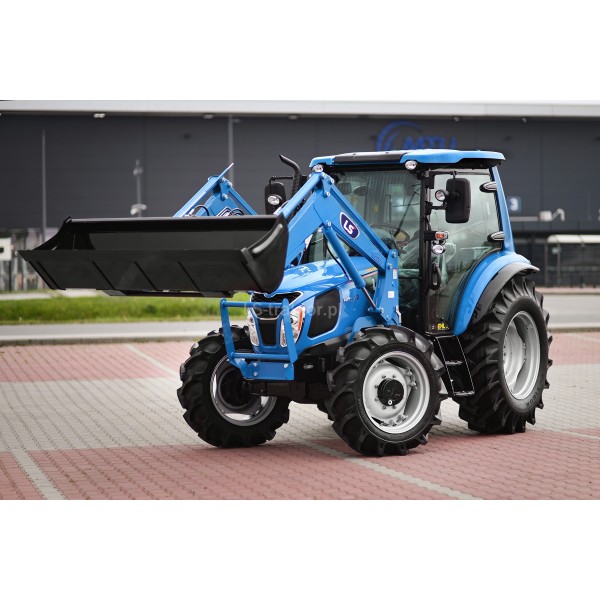

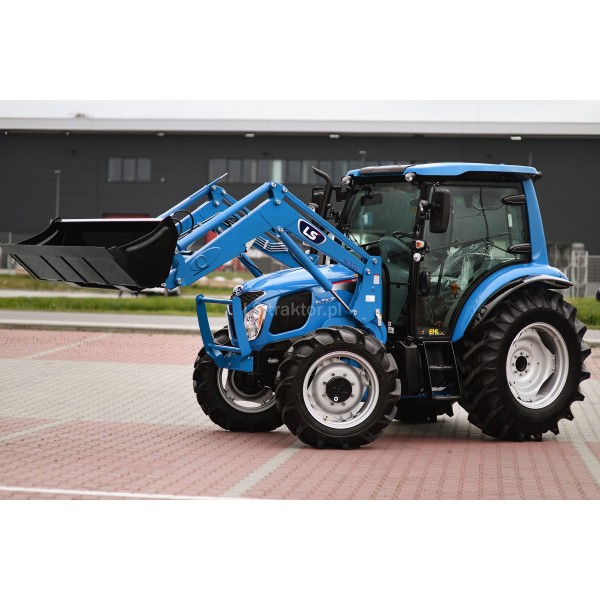

High load capacity - 1648 kg

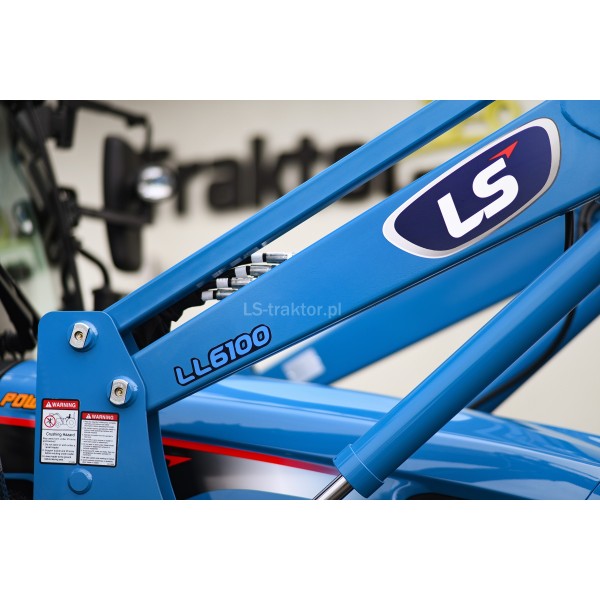

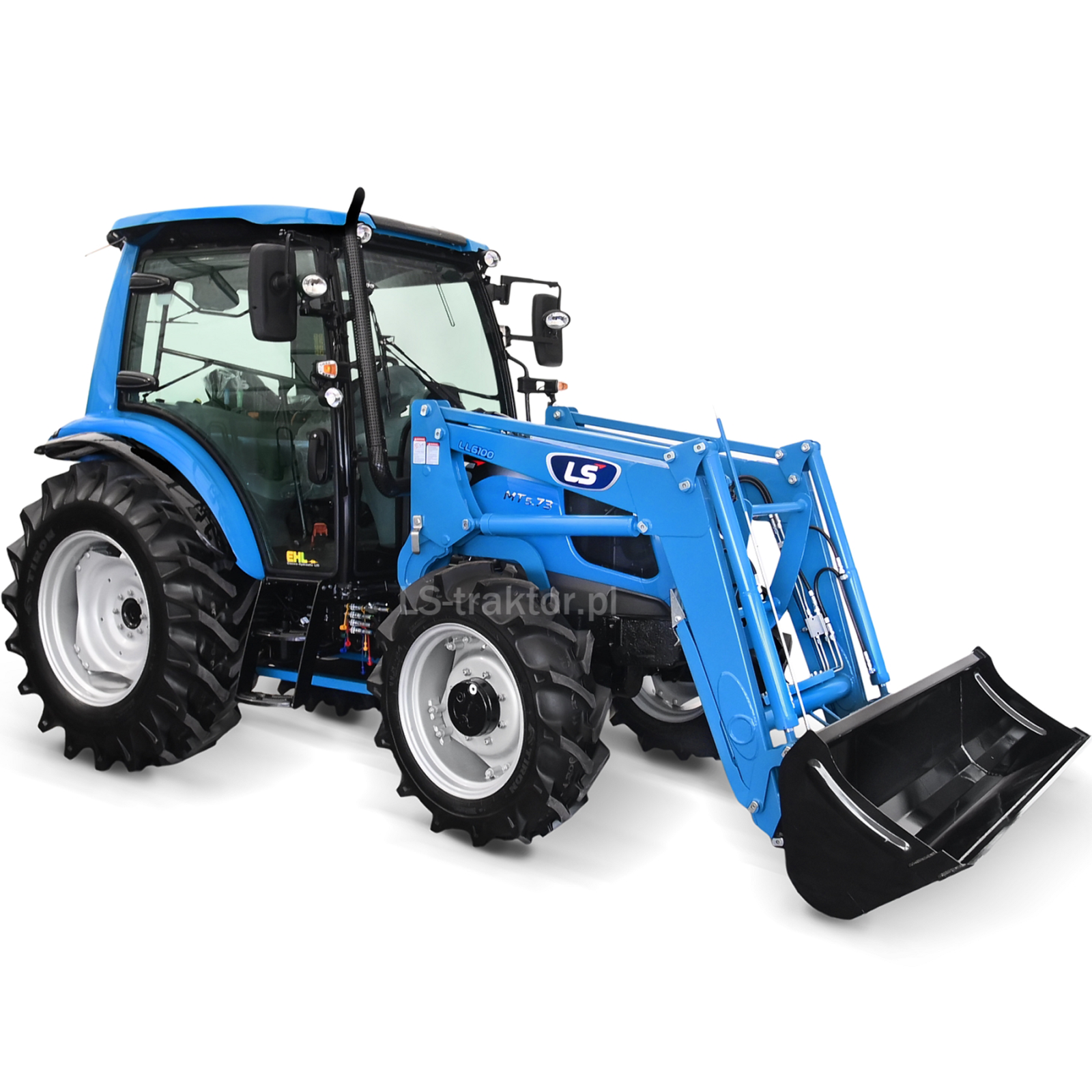

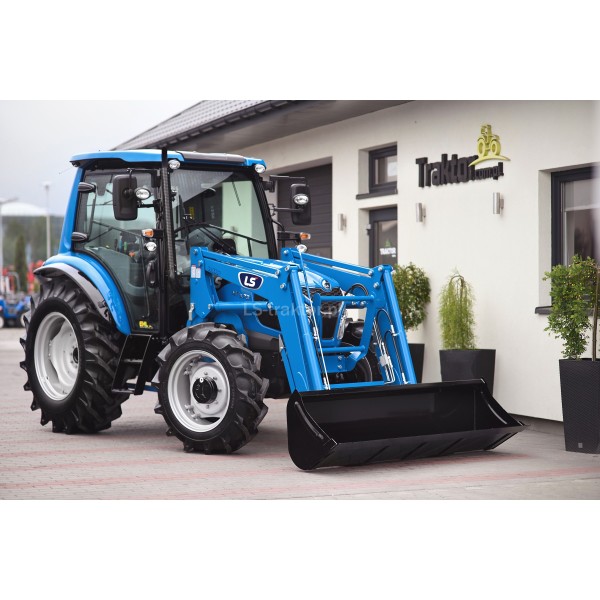

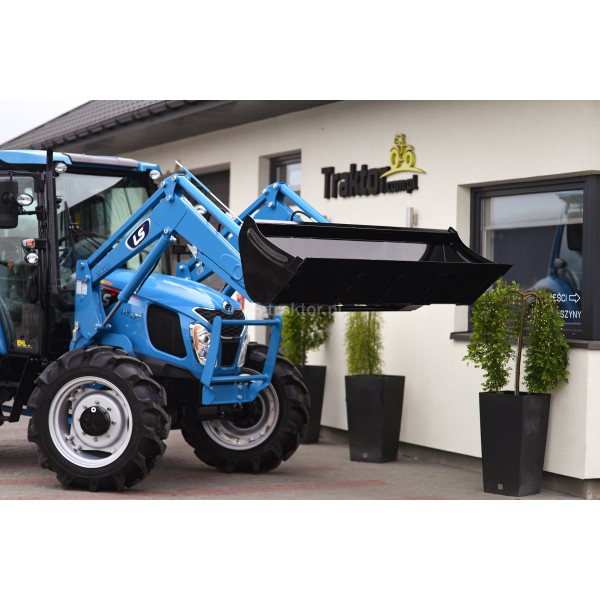

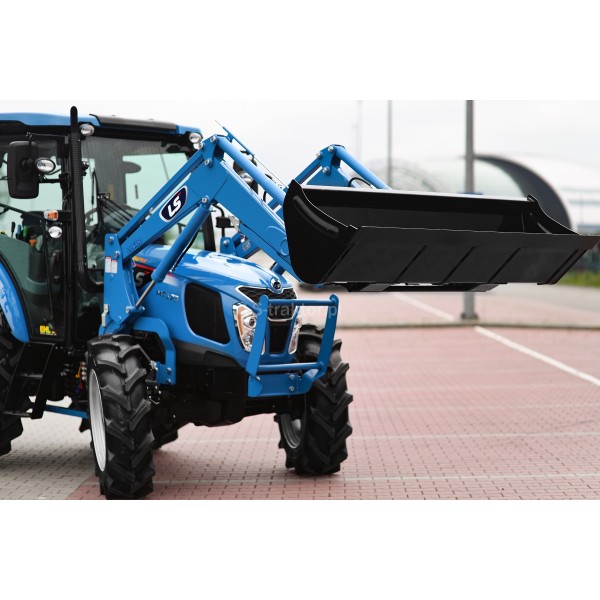

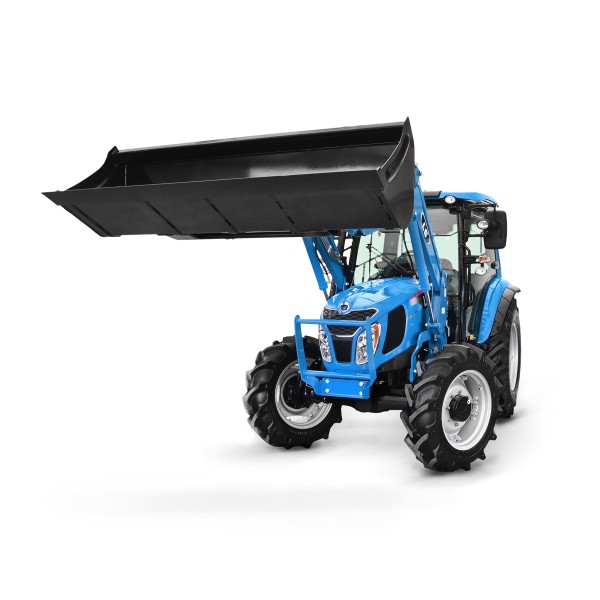

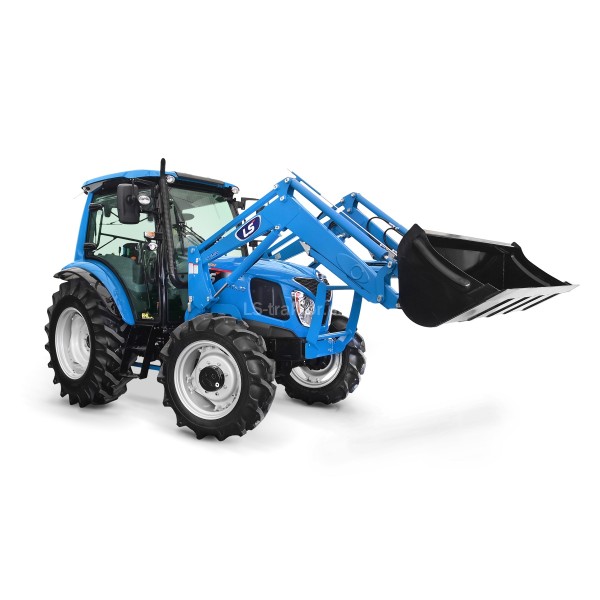

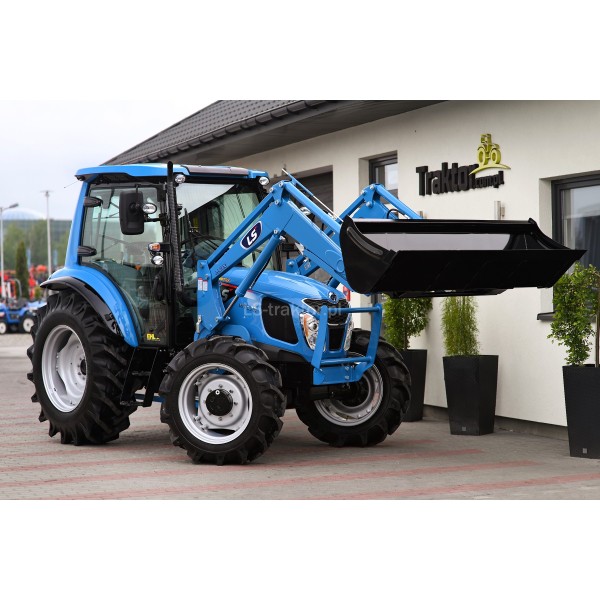

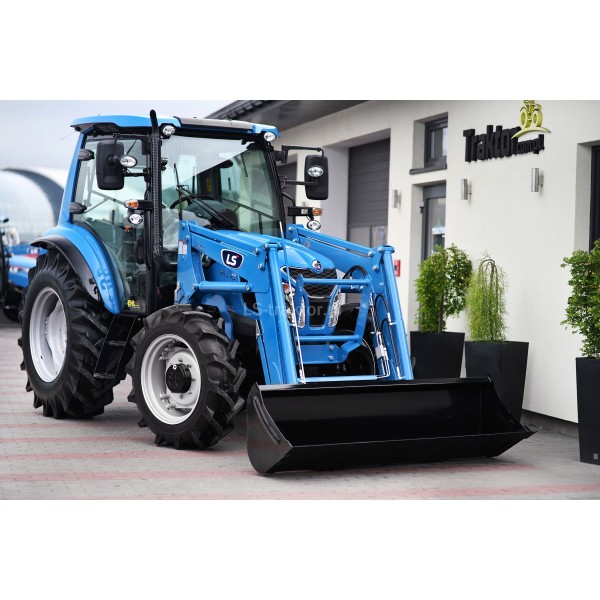

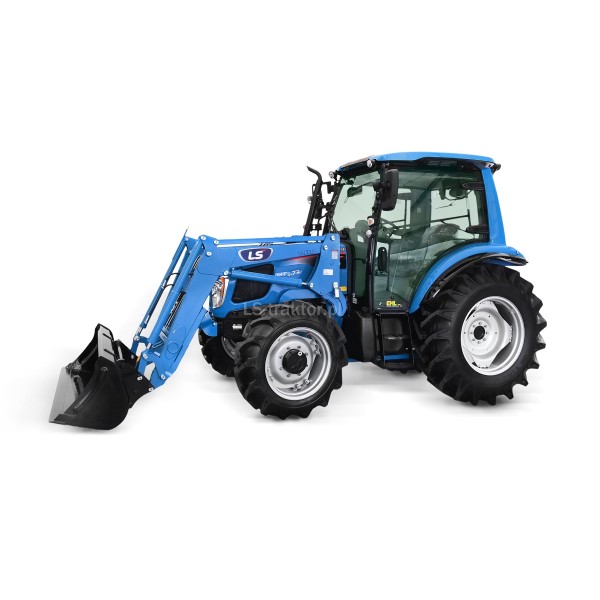

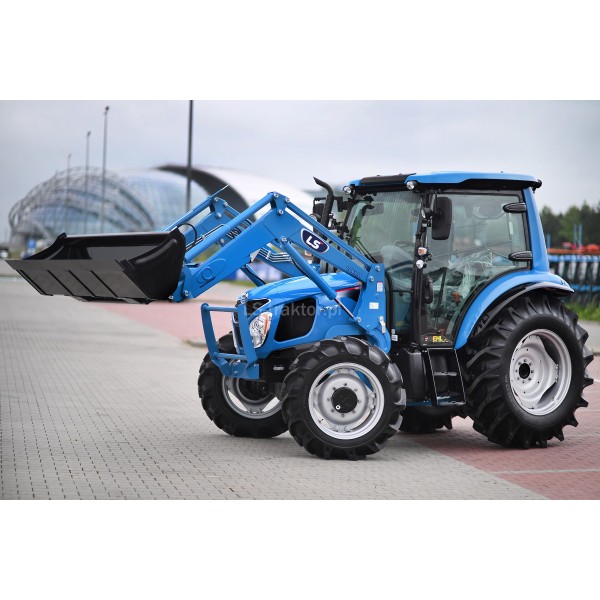

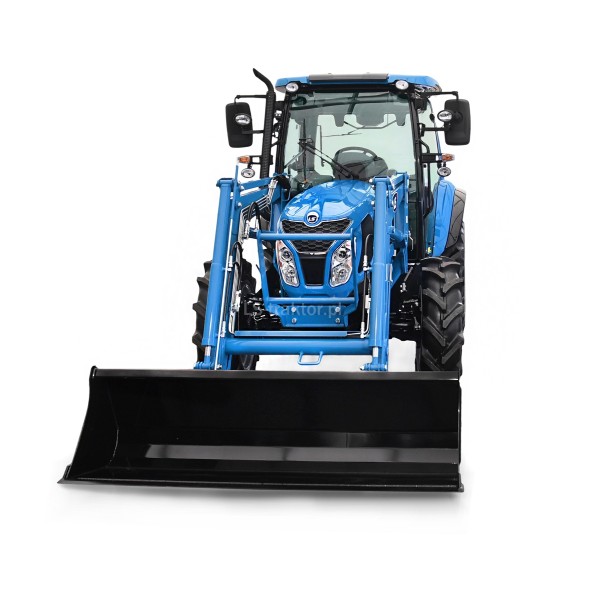

The front loader with the symbol LL6100 is the original, standard front loader dedicated to LS Tractor MT5 series tractors. The front loader, the so-called TUR, thanks to its very durable construction and well-thought-out design, is able to lift much more weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is possible thanks to, among others, quick hydraulic connectors, a Euro frame and special supports for storage. Quick assembly and disassembly also applies to the bucket itself, the loader is removed by pulling out two pins, and the operation itself does not require the use of tools.
Safety and comfort of work
The LS front loader has a safety valve , which prevents the load from being lifted higher in the event of the loader being overloaded. Automatic bucket adjustment is another convenience and improvement in the quality of work, the automation is designed to regulate the position of the bucket during the movement of the loader arm. Tractors equipped with a hydraulic distributor with a floating section have bucket protection functions at their disposal, the function automatically folds the bucket when it encounters an obstacle that is too large. The loader is equipped with a cover protecting the grille from damage as standard.
Key Features of the LL6100 Loader
- Load capacity: 1648 kg,
- Mounting type: EURO,
- Bucket width: 1981 mm,
- Maximum lifting height: 3214 mm, and: 2925 mm (bucket in horizontal position), 2420 mm (bucket fully lowered),
- Bucket capacity: 0.49 m3,
- Lifting time to maximum height without load: 5.1 s,
- Lowering time from maximum height: 3.8 s,
- Maximum bucket tipping time: 2 s,
- Maximum bucket unscrewing time to horizontal position: 2.9 s.
