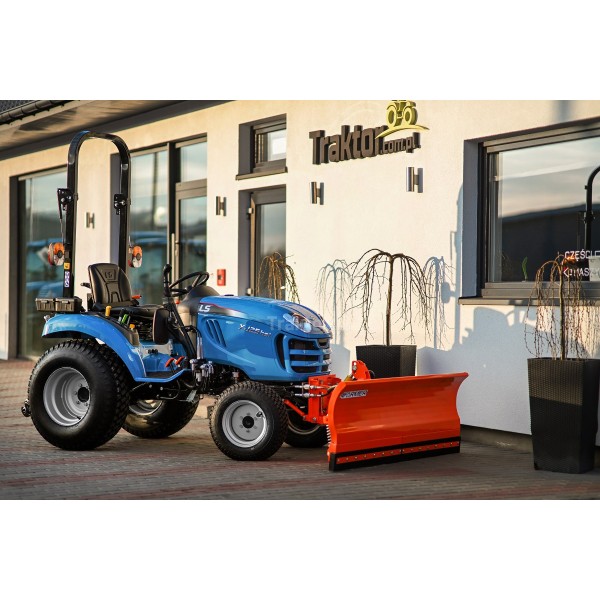

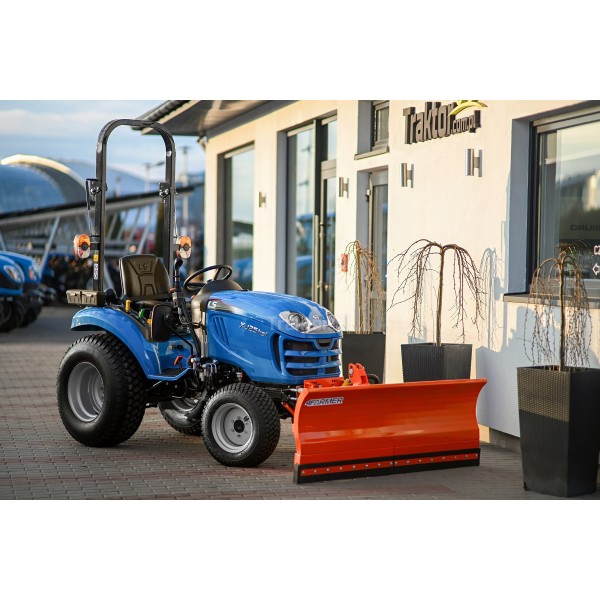

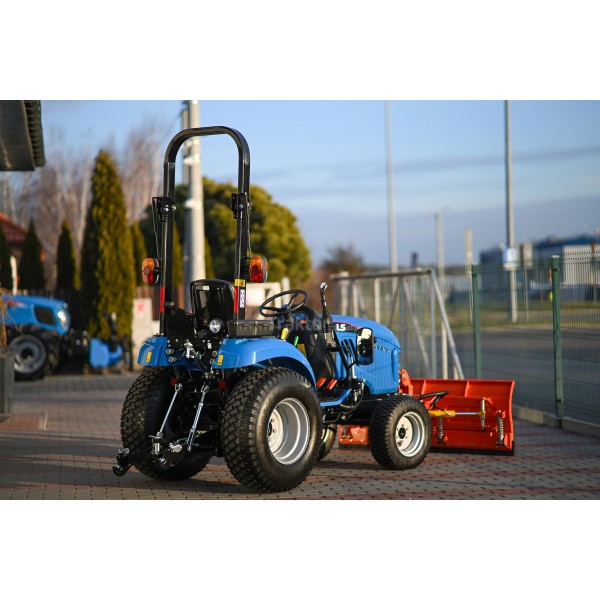

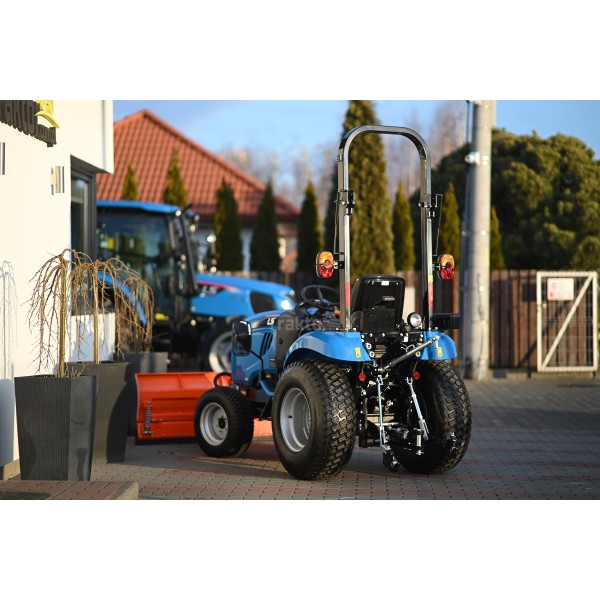

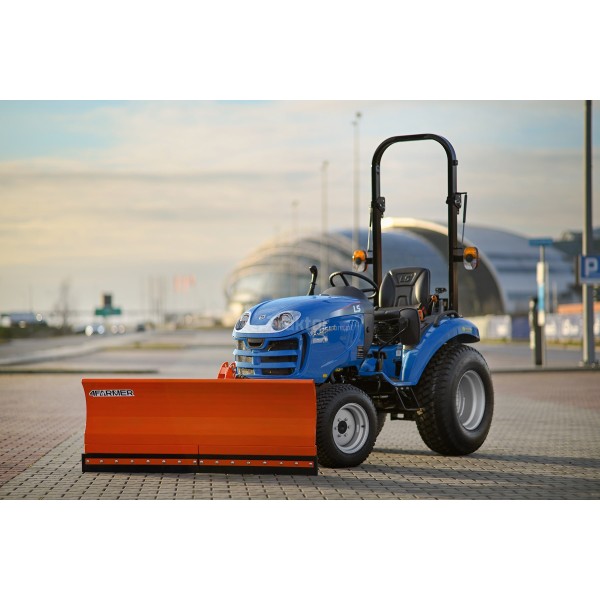

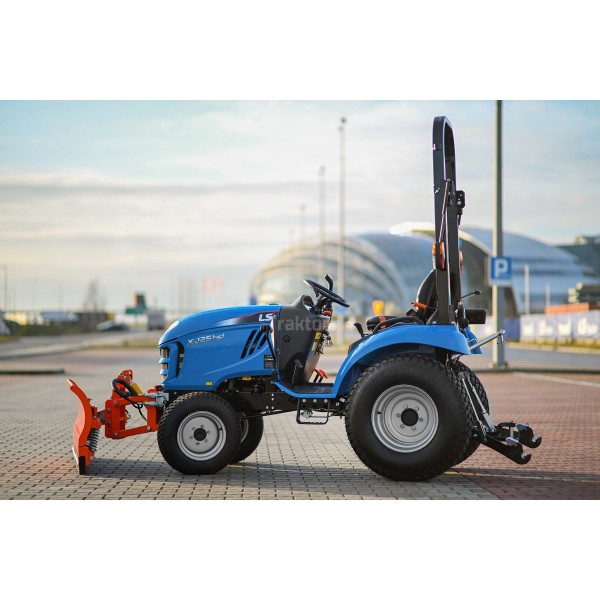

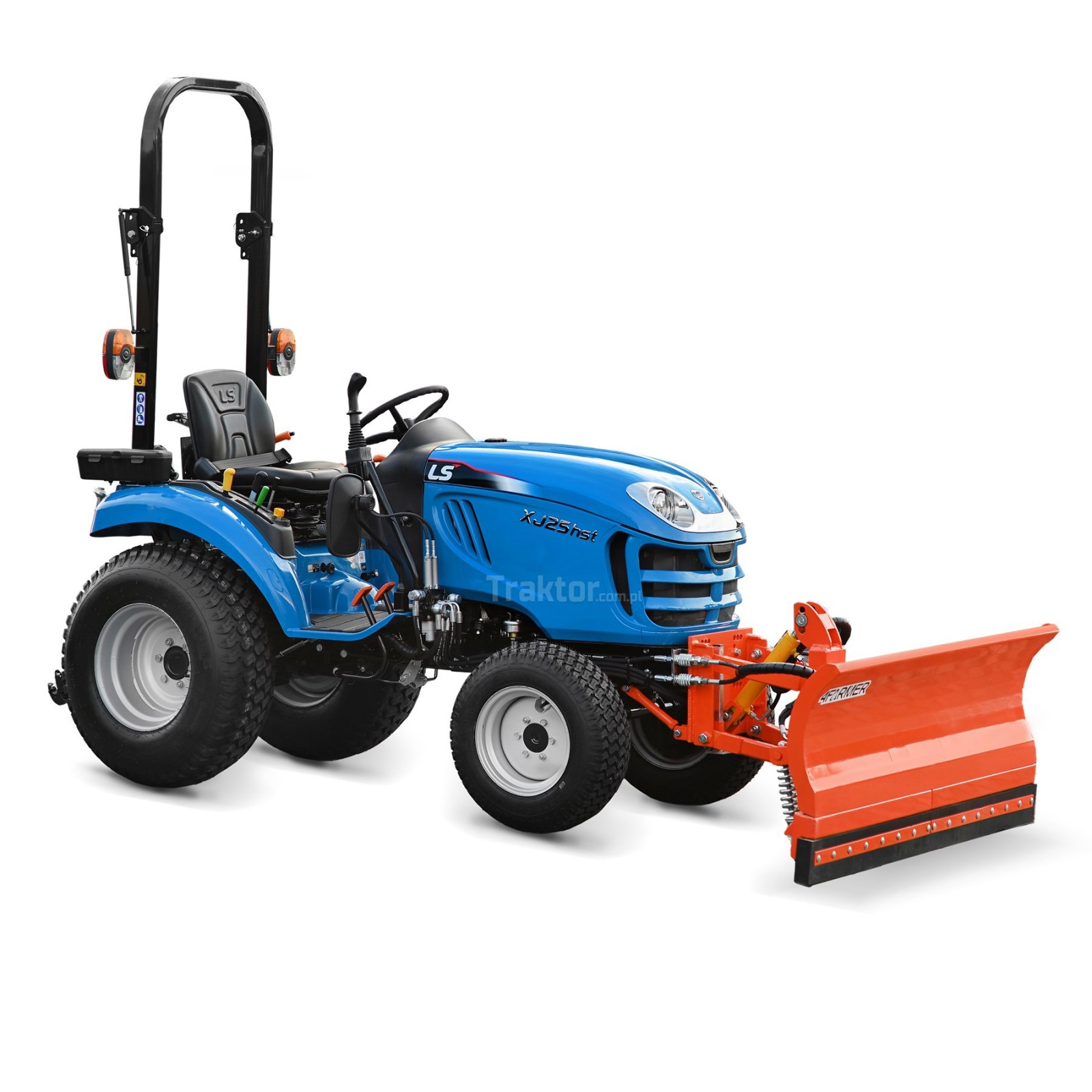

LS Tractor XJ25 HST 4x4 - 24.4 KM / TURF + snow plow straight 150 cm, hydraulic, with mounting plate 4FARMER
Ergonomic design
The LS Tractor XJ series is, above all, a perfect fit for your needs. You choose how the tractor will be equipped to meet all your expectations.
The design of the LS Tractor tractors has been designed with versatile use in mind. These machines will work well in the field, garden, orchard, plantation, transport and municipal work. Thanks to the tractor configuration options and the availability of equipment dedicated to LS tractors , this machine will be an ideal partner for work.
Freedom of configuration
When choosing an XJ series tractor, you can fit additional LS equipment to it:
The combination of the XJ25 tractor with a front loader gives us even more possibilities, making our tractor multi-functional.
Strong and Comfortable
The XJ25 model is a compact tractor classified as Premium. Under the hood of this machine there is a powerful, 3-cylinder Mitsubishi S3L2-Z561GT Diesel engine with 24.4 HP. It guarantees very good operating parameters and high efficiency. Additionally, 2 hydraulic outlets allow you to connect a wide range of equipment to the tractor.
The XJ25 model is equipped with a 3-point three-point linkage Cat I with a lifting capacity of 650 kg and a rear PTO shaft, which allows for versatile use of the tractor. Four-wheel drive, power steering, convenient PTO engagement and intuitively placed control levers make the XJ25 model an ideal machine, created according to your preferences.
The XJ25 model has a hydrostatic gearbox. This is an exceptionally comfortable option, which does not require additional manual gear changes. It is operated by two pedals F3 and R3, pressing the appropriate one changes the direction of travel - forward or backward. This allows for a very comfortable drive, similar to driving a car with an automatic gearbox.
LS Tractor has equipped this unique machine with a comfortable, adjustable seat with a high backrest and suspension, which, together with the ergonomically positioned levers, ensures pleasant operation.
LS Tractors represent modernity, high operator comfort and the highest quality of workmanship.

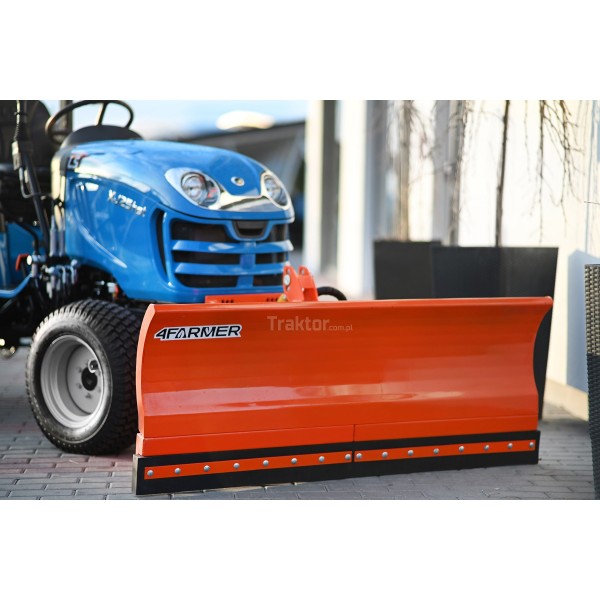

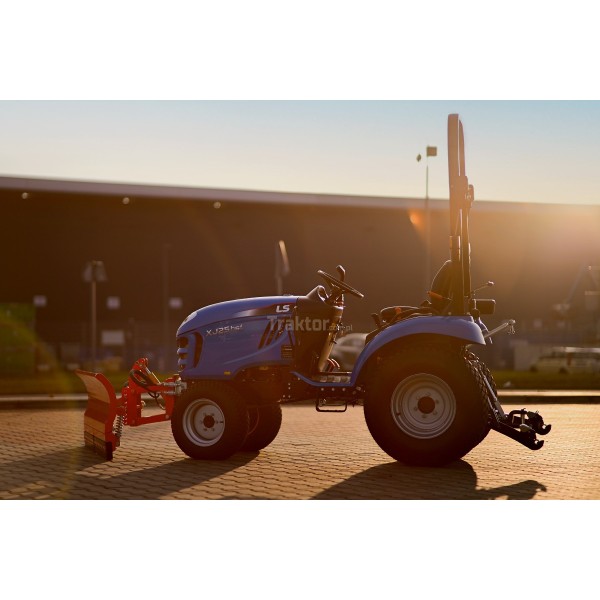

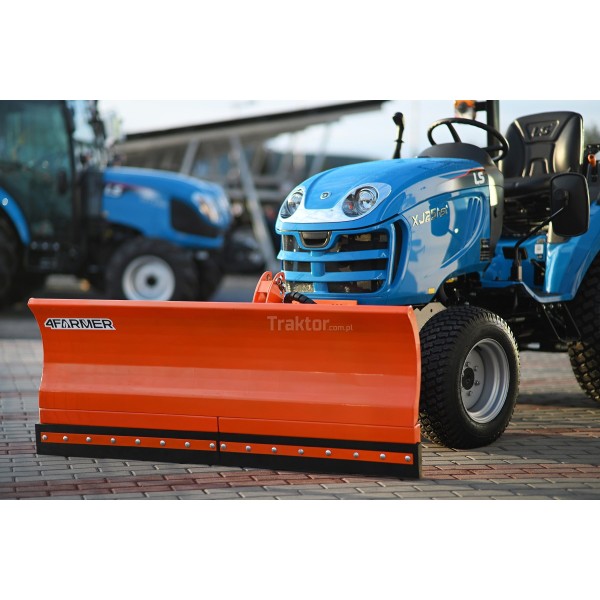

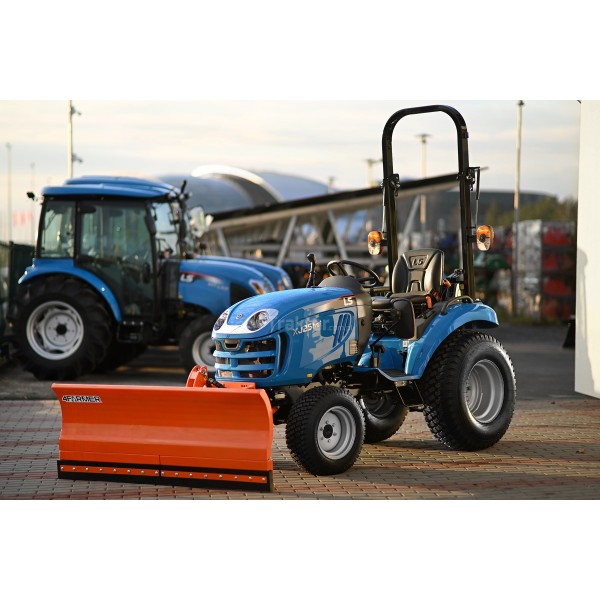

The plough is designed for tractors and mini tractors with a minimum power of about 18 HP. The plough is operated hydraulically using three hydraulic cylinders and requires a two-section distributor with a floating section.

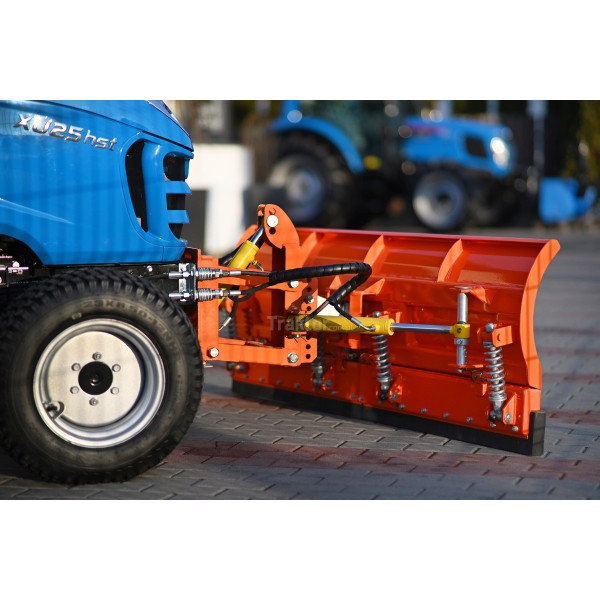

The plough blade has two parts, upper and lower. The lower movable part for safety of work and the device itself is equipped with a shock absorption system , which tilts back after encountering an obstacle. Strong springs absorb the work of the lower part of the blade, which is finished with a thick rubber 40 mm thick and 100 mm high. The rubber is used for protection of the snow-cleared surface.
The mounting plate is sold with the plough , and the spacing of the mounting screws is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from centre to centre of the mounting screw holes.
To fully utilize the capabilities of the plow , the tractor must have hydraulics at the front of the tractor .
By choosing the XJ25 model, you choose not only high quality of workmanship, but also comfort and safety.
Specification
Condition
New
Equipment
Snow plow
Engine
Diesel
Liquid-cooled 3-cylinder diesel
with direct fuel injection
Engine model
Mitsubishi S3L2-Z561GT
Power (HP/HP)
24,4
Engine capacity (cc/cc)
1318
Rated engine speed (rpm)
2700
Fuel tank capacity (L)
25
Drive
4x4 4WD
Transmission
Hydrostatic
Number of forward/reverse gears
2 / 2
Maximum forward speed (km/h)
20
Steering system
Hydrostatic
Power steering
YES
PTO / PTO
1 speed
540 (rpm)
Independent PTO / PTO with wet clutch activated by knob
PTO (central)
2000 rpm
NEXT DOOR
3 point
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
650
Hydraulic outputs (pcs (EA) / number of sections)
2/1 (rear)
Hydraulic leveling of the rear suspension
No
Cruise control
YES
Tire type(s)
grassy
Wheelbase (mm)
1500
Tire size front/rear
23x8.50-12 NHS / 33x12.50-16.5 NHS
turning radius (mm)
2200
Weight (kg)
890
Clutch
Dry, single disc
Brakes
Mechanical
Multi-disc
Wet
Overall width with tires (mm)
1270
Maximum rotation angle of the front wheel ( ° )
+ / - 47
Alternator (Amps)
50A
Air filter
Dry replaceable element
Basic equipment
Roll bar (ROPS)
Hydraulic pump capacity (l/min)
21.4~22.9
