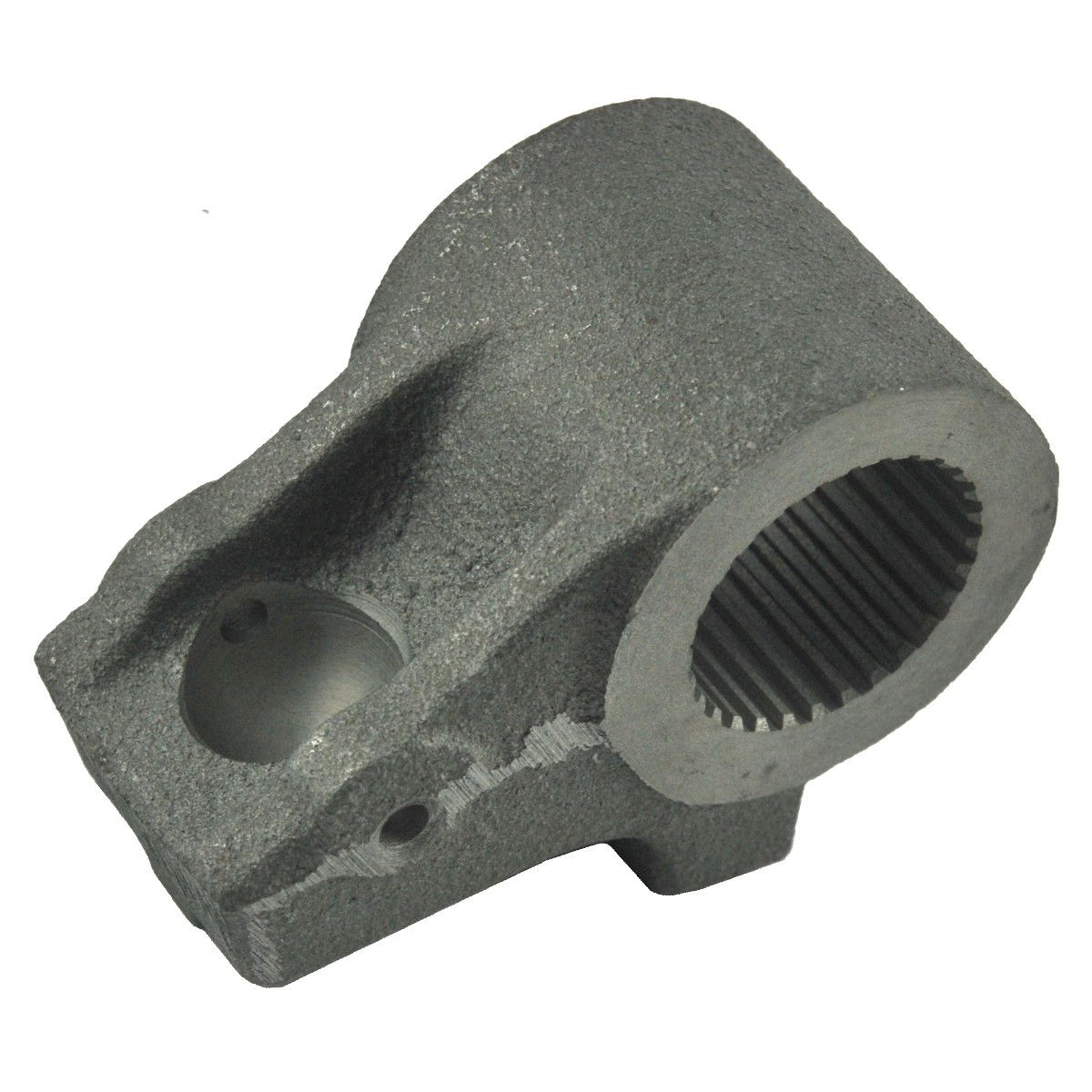

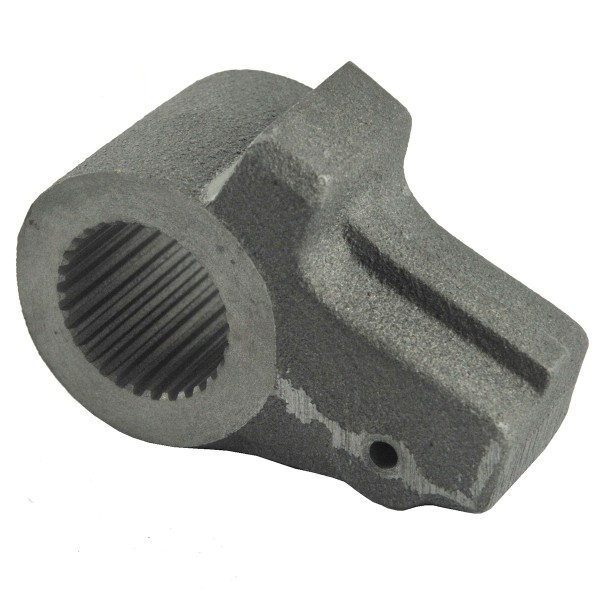

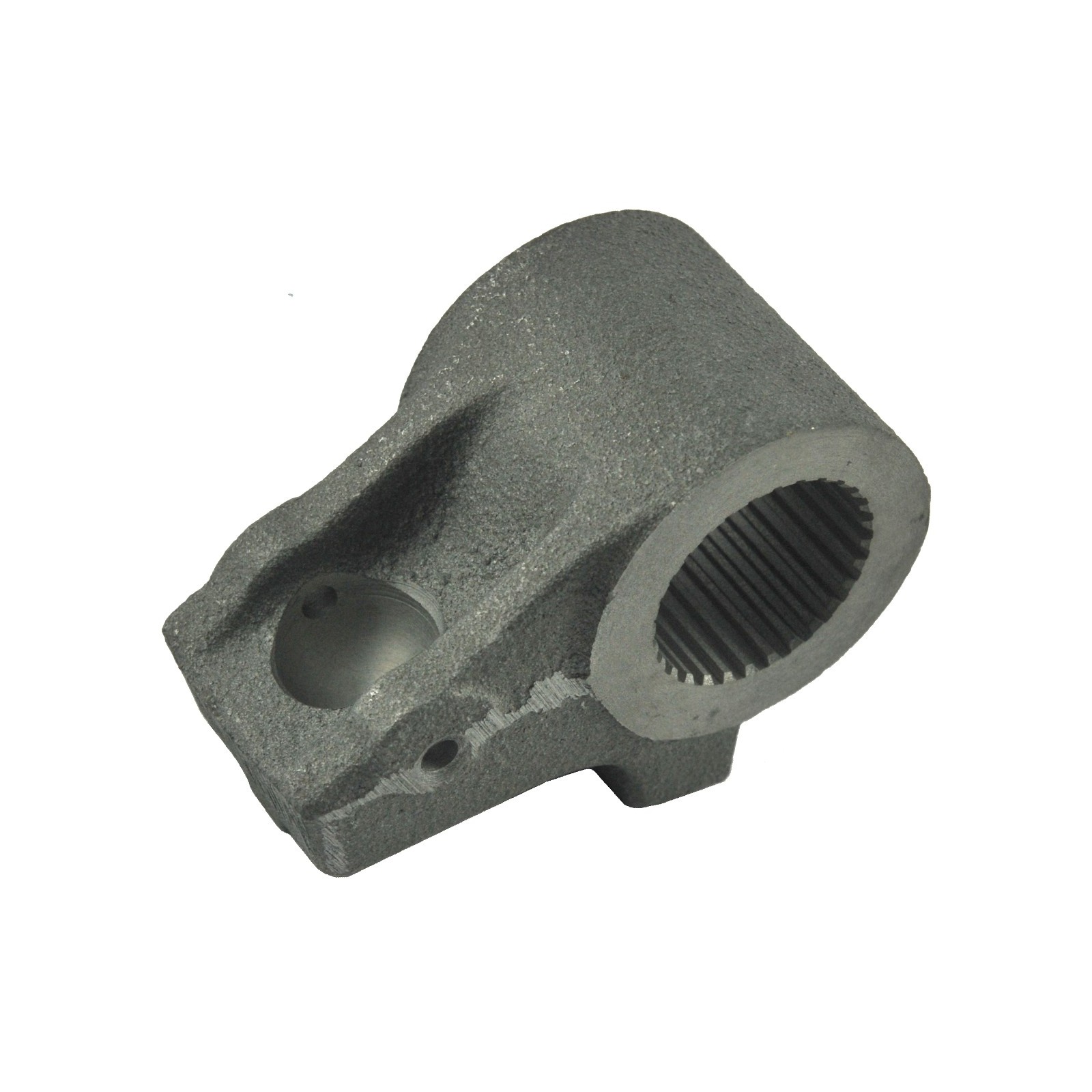

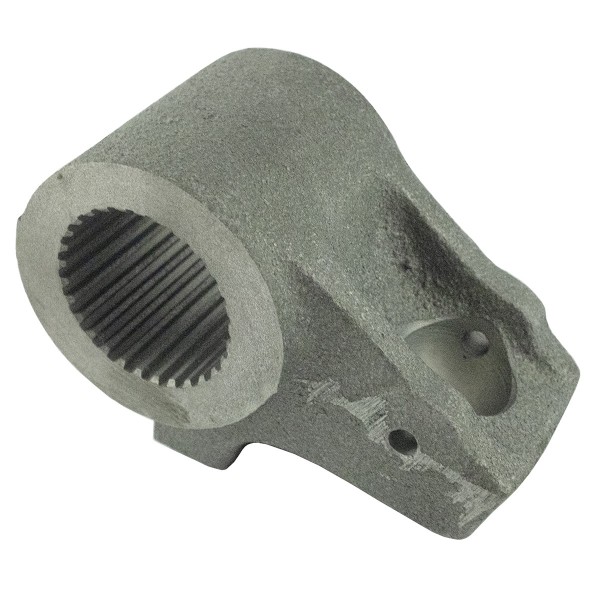

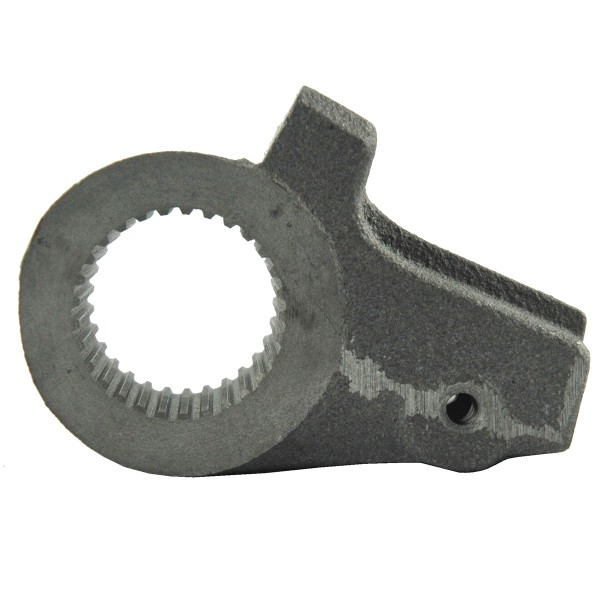

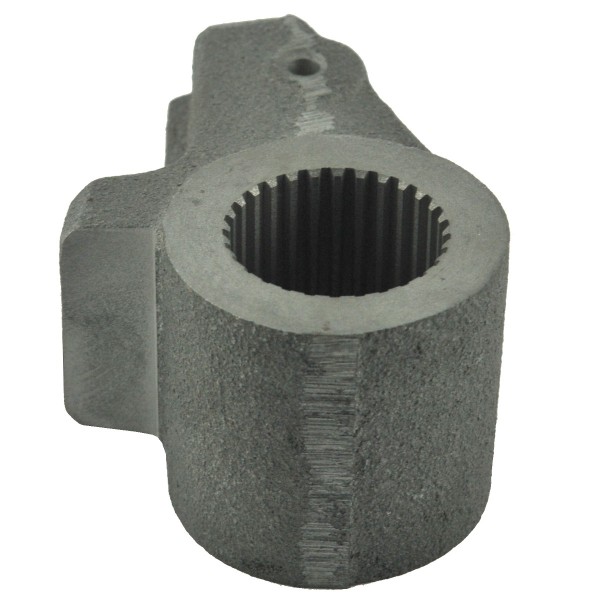

Inner arm of the three-point linkage / 29T / LS MT 1.25 / LS XJ 25 / no. 40194100

Product code: 40194100
Brand LS Tractor
View other model
zł409.31 netto
zł503.45
Includes VAT 23%

Lowest price from 30 days: zł503.45

Delivery options

Loading delivery options...

No delivery options available for this product.

Error loading delivery options. Please try again.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

Available
5 pieces
Delivery See details Leasing & financing for businesses See details

Product description

29T three-point linkage (three-point hitch) middle arm with an internal diameter of 38.80 mm (measured between the cutter teeth), 55 mm wide for LS Tractor tractors of the LS MT1.25, LS XJ25 series and others.

The inner linkage arm is a key element of the linkage system on LS MT 125 and LS XJ 25 tractors. Responsible for transferring the linkage's power to agricultural implements, it provides precise control during field work. Made of high-quality materials, it is durable and resistant to mechanical damage. This product is an original spare part, guaranteeing a perfect fit and long service life.

Dimensions :

  • length: 107 mm,
  • width: 55 mm,
  • outer diameter: 59 mm,
  • inner diameter: 38.80 mm (measured between cutter teeth), 35.50 mm (measured with cutter teeth),
  • part numbers: 40194100.

Tractor models :

  • LS MT1.25,
  • LS XJ25.

Magazine : L01:M25:S09

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Width (mm)
55
Overall length (mm)
107
Parts
3-point linkage
Inner Diameter (mm)
35.50, 38.80
Outer diameter (mm)
59
Tractor models
LS MT125, LS XJ25
Production
OEM
Part number
40194100

Podobne produkty

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
