Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Hydraulic system
Tractor models
- Kubota L2002
- Kubota L2050
- Kubota L2202
- Kubota L2500
- Kubota L2600
Kubota B1902
Kubota L1-20
Kubota L1802
Kubota L2350
Length (mm)
100
Height (mm)
100
Width (mm)
100
Go to full specification >

Hydraulic pump / Kubota B1902 / L1-20 / L1802 / L2002 / L2050 / L2202 / L2350 / L2500 / L2600 / ZCB-1619R/361-1

ZCB-1619R/361-1
zł800.00
Tax included PL 23%

650,41 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

Hydraulic pump / Kubota B1902 / L1-20 / L1802 / L2002 / L2050 / L2202 / L2350 / L2500 / L2600 / ZCB-1619R/361-1

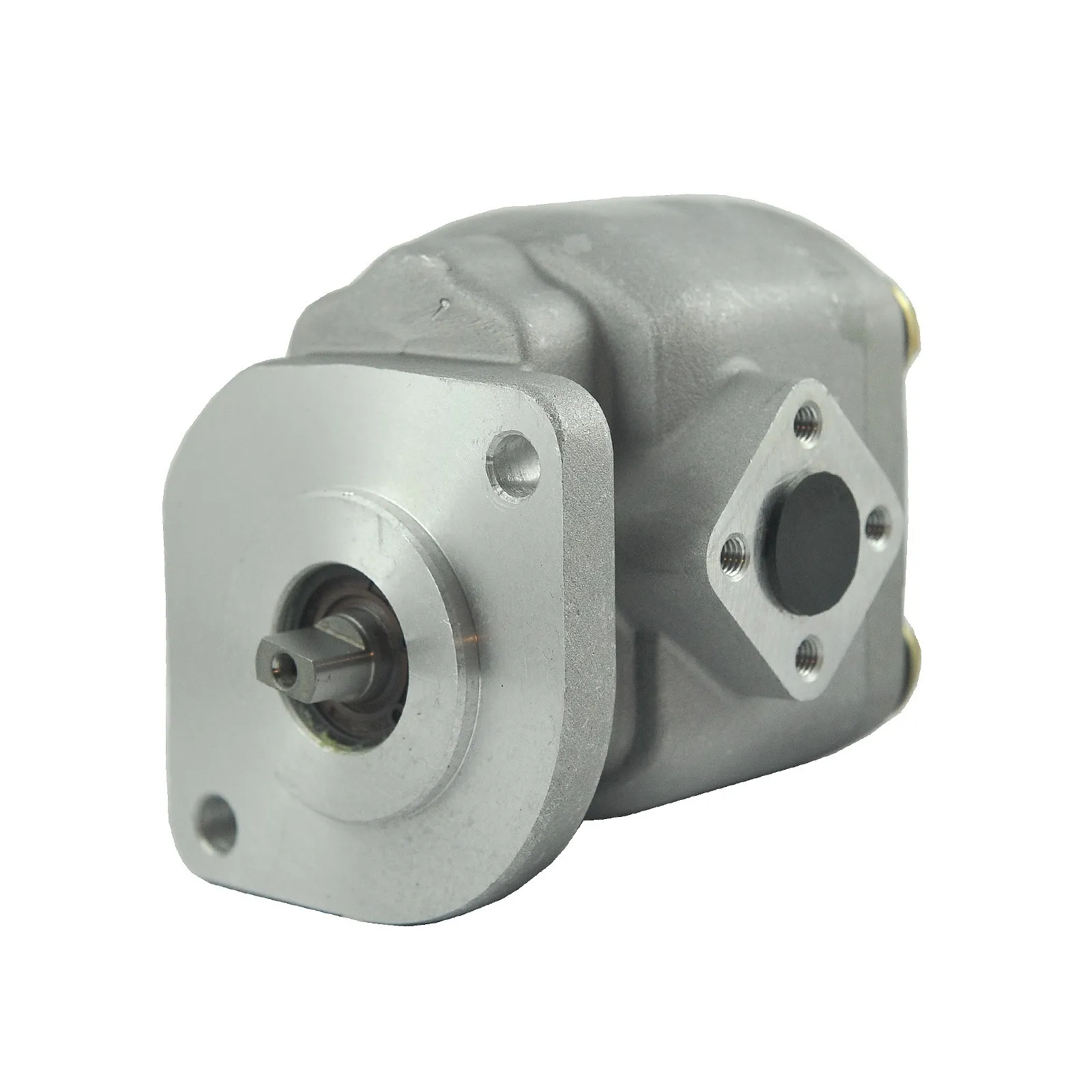

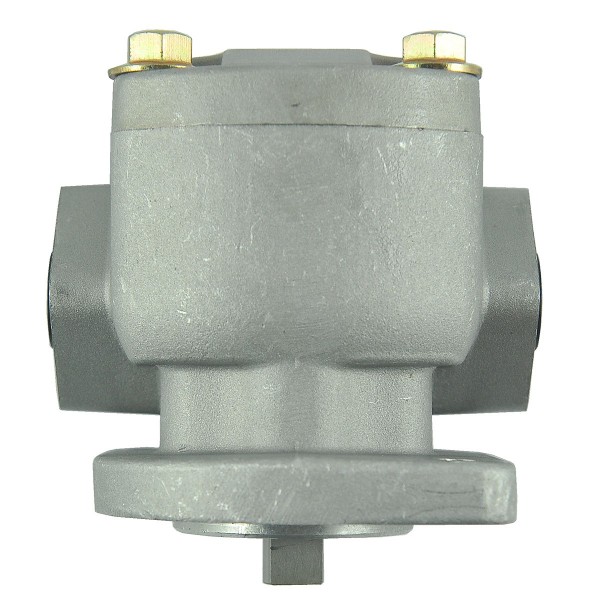

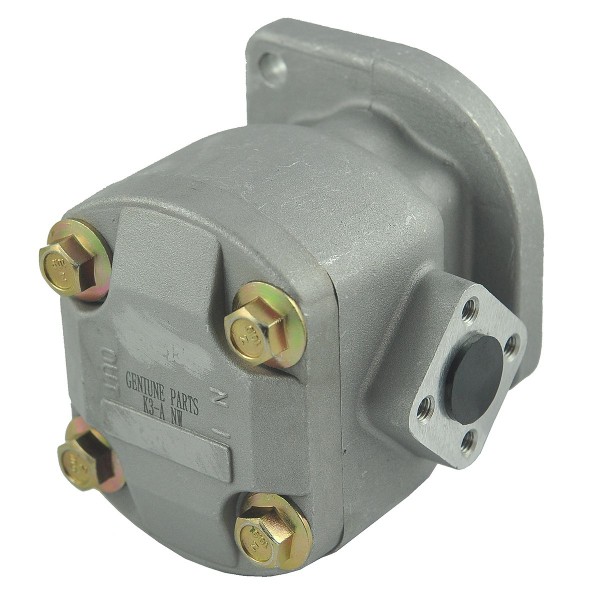

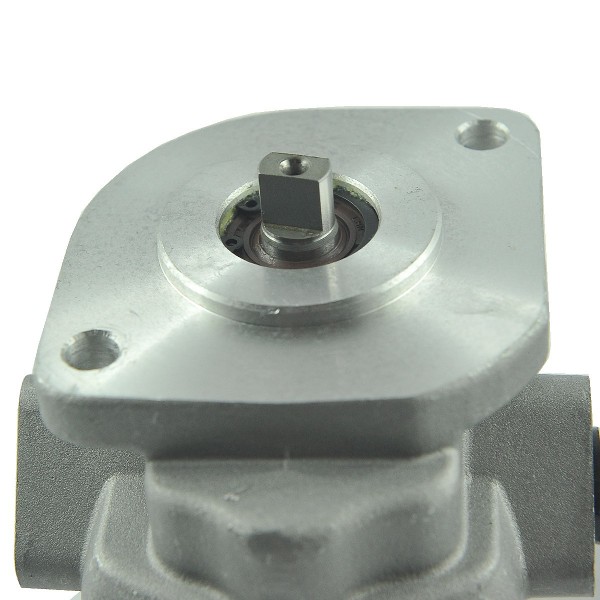

Hydraulic pump with a flat shaft (clockwise shaft rotation) with dimensions 100 x 100 x 100 mm for Kubota tractors of the Kubota B1902, Kubota L1-20, Kubota L1802, Kubota L2002, Kubota L2050, Kubota L2202, Kubota L2350, Kubota L2500, Kubota L2600 series and others.

A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.

Dimensions :

Tractor models :

  • Kubota B1902,
  • Kubota L1-20,
  • Kubota L1802,
  • Kubota L2002,
  • Kubota L2050,
  • Kubota L2202,
  • Kubota L2350,
  • Kubota L2500,
  • Kubota L2600.

The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.

Warehouse : K18 H19

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18 H19
Condition
New
Production
Substitute
Parts
Hydraulic system
Tractor models
- Kubota L2002
- Kubota L2050
- Kubota L2202
- Kubota L2500
- Kubota L2600
Kubota B1902
Kubota L1-20
Kubota L1802
Kubota L2350
Length (mm)
100
Height (mm)
100
Width (mm)
100
Shaft length (mm)
Shaft diameter (mm)
Bolt hole spacing (mm)
90
Comparison numbers
6-15-105-04
38180-76120
Pressure (Mpa/bar)
160
Hydraulic pump (rated oil flow l/min / CC)
19.0
Original Part Number (OEM)
38180-36100
38180-76100
Part number
ZCB-1619R/361-1
Rotation speed (rpm)

600-3200
Direction of rotation
Right
Spacing of mounting holes for hydraulic outlets (mm)
25
35
