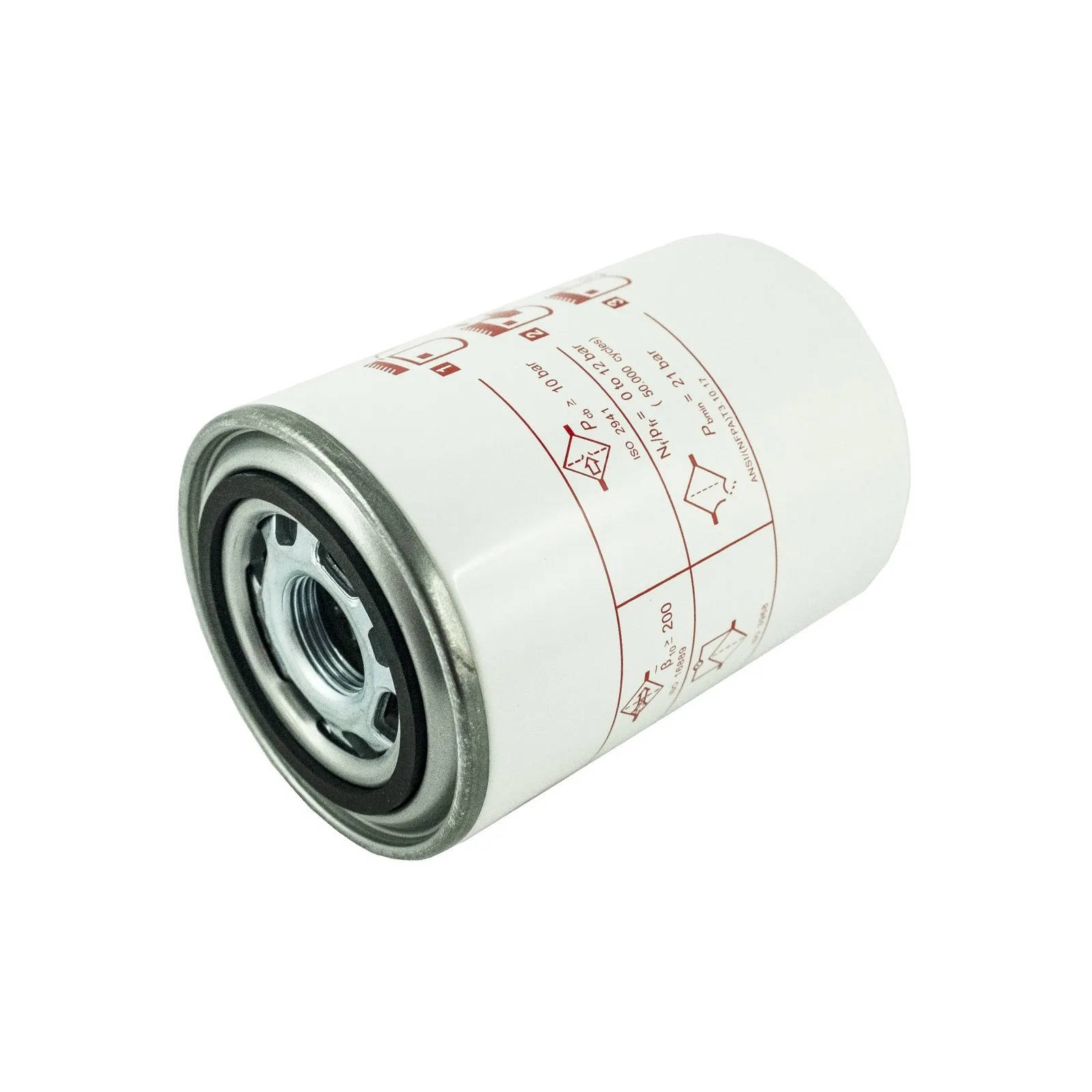

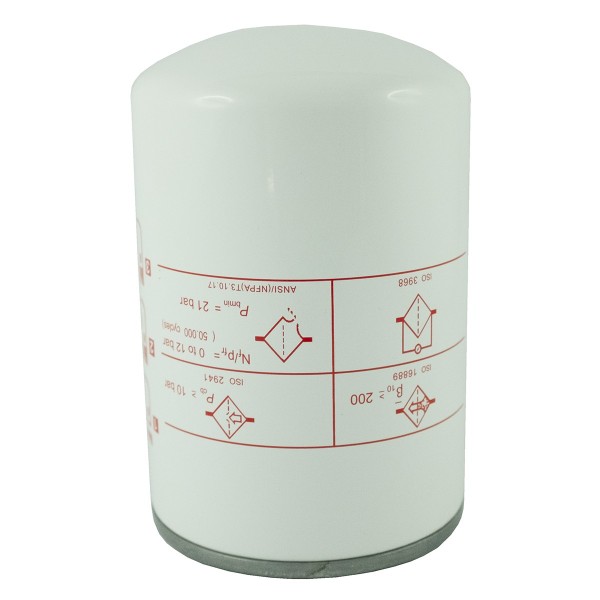

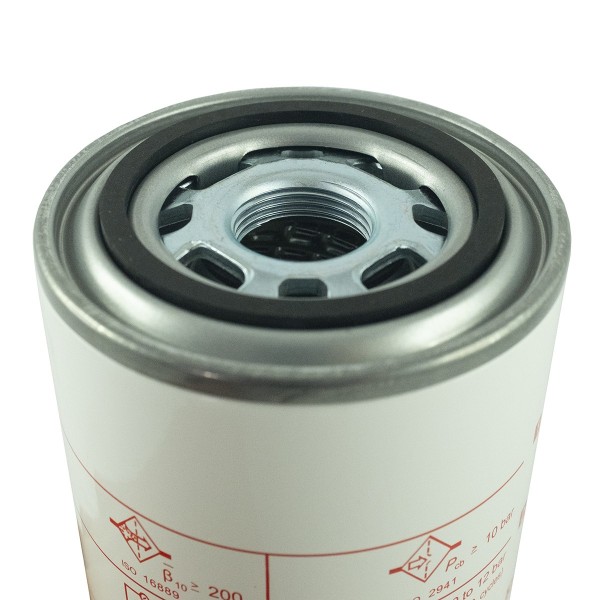

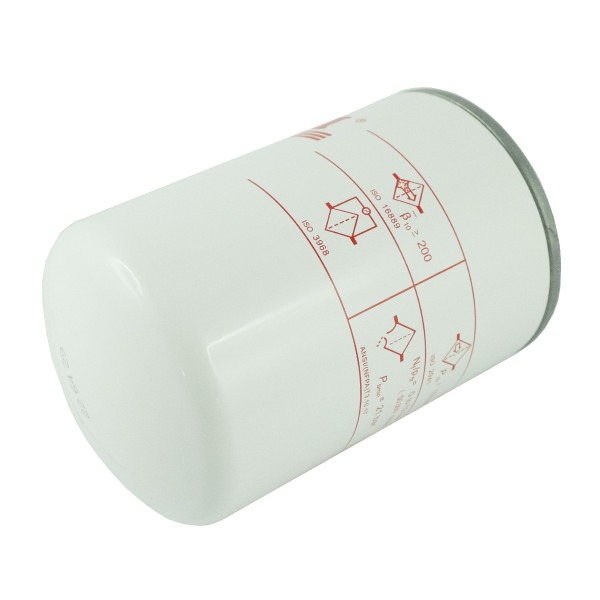

Massey Ferguson Hydraulic Oil Filter / 96 x 147 mm / 3/4"-BSP / SH 76855

Hydraulic oil filter with 3/4"-BSP (BSP - British Standard Pipe) thread, 147 mm high and 96 mm outer diameter, for Japanese tractors, mini tractors, Massey Ferguson tractors and other machines.

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that get into the hydraulic system or are generated during the use of the tractor, e.g. solid (mineral) particles that are generated during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, approximately every 100 hours for used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's manual and usually after the first 50 hours of operation (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted near the tractor box exactly in the oil flow of the hydraulic system , usually from the bottom of the box or under the floor of our tractor,

Dimensions :

• height: 147mm,
• diameter: 96mm,
• base diameter: 96 mm.
• gasket diameter: external: 71 mm, internal: 62 mm,
• thread: 3/4"-BSP,
• weight: 0.670 kg,
• comparative numbers: SPH 18049, SH 76855.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign objects in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.
