zł459.00
To order
Condition
New
Production
Substitute
Parts
Hydraulic system
Diameter (mm)
168
Overall length (mm)
345
Cutter(s) length (mm)
37
Diameter of Cutter(s) (mm)
39.50 mm (measured with the teeth), 36.80 mm (measured between the teeth)
Hub, rear axle 29T, Mitsubishi VST MT180 / MT224, BCA12C00220A0, 19981501001
BCA12C00220A0
Do you have any questions?

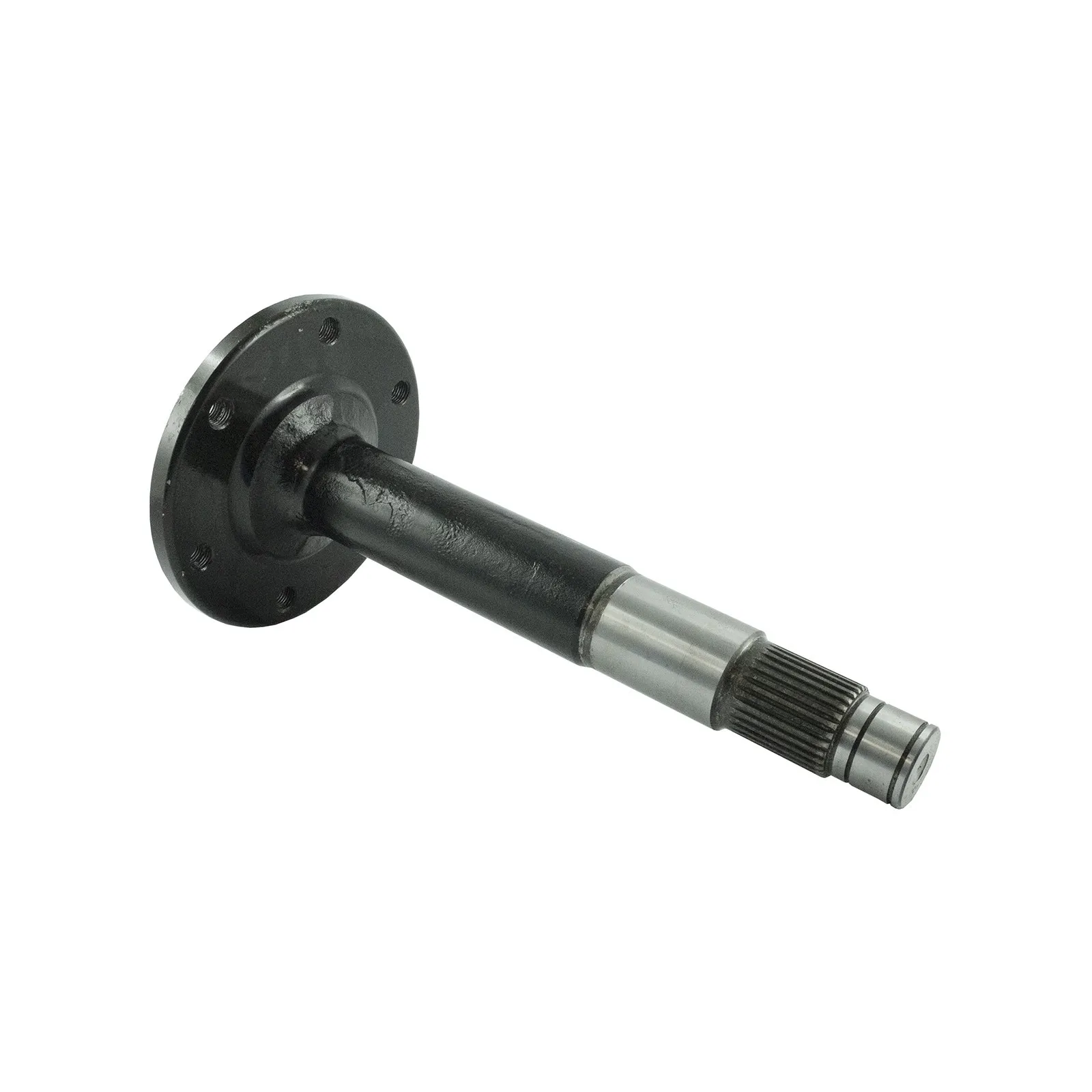

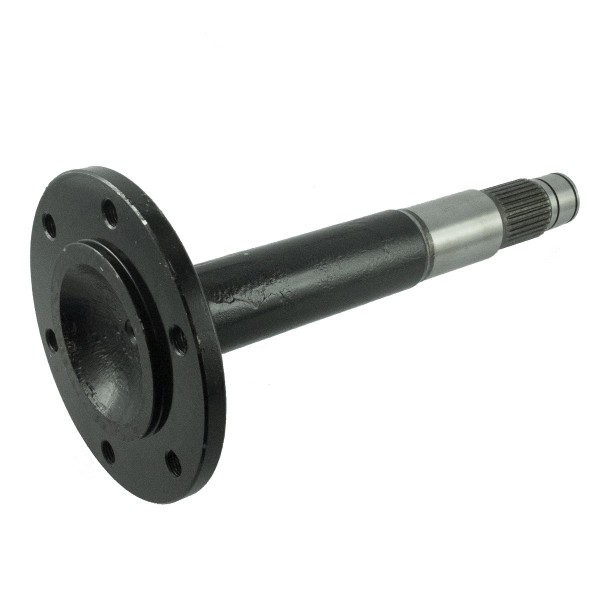

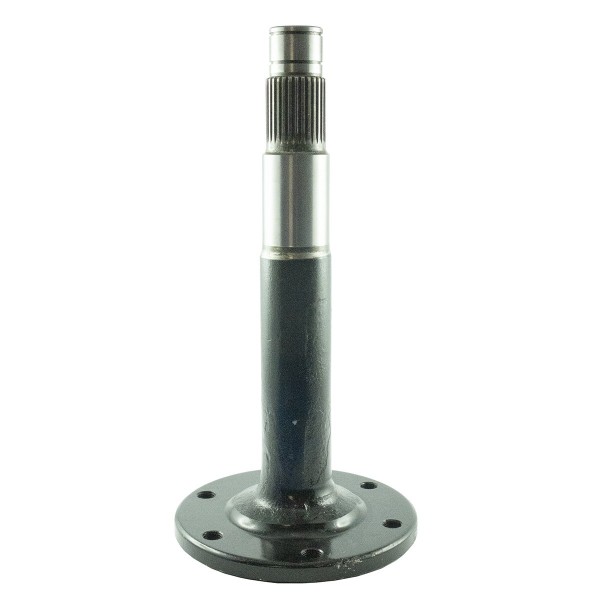

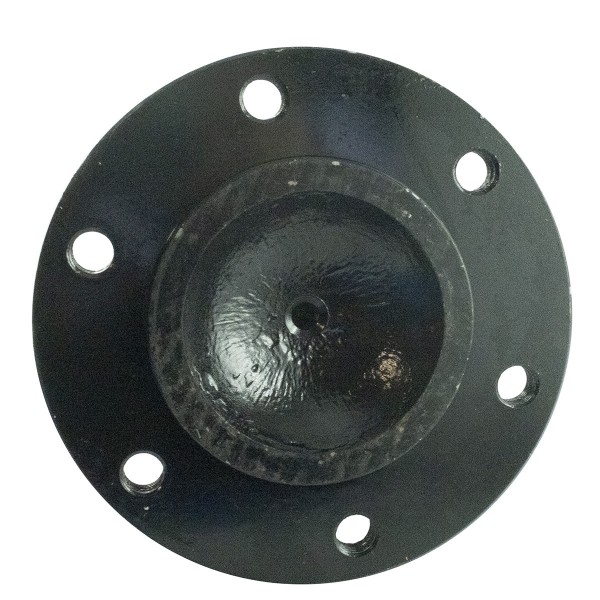

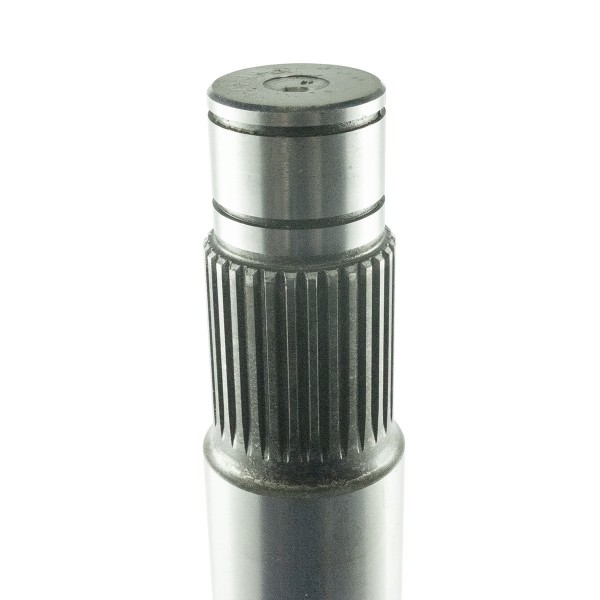

Hub, rear axle 29T, Mitsubishi VST MT180 / MT224, BCA12C00220A0, 19981501001
Hub , half-axle rear wheel on VST Fieldtrac and Shakti MT180 and MT224 tractors .
Dimensions :
- Overall length: 345 mm,
- Hub diameter: 168 mm,
- Cutter diameter: 39.50 mm (measured with the teeth), 36.80 mm (measured between the teeth),
- Cutter working length: 37 mm,
- Spacing of holes for fastening screws: 140 mm (measured diagonally), 70 mm (measured from each other),
- Diameter of holes for fastening screws (thread): 12.30 mm,
- Comparative Numbers: 19981501001.
Tractor models :
- VST MT180,
- VST MT224.

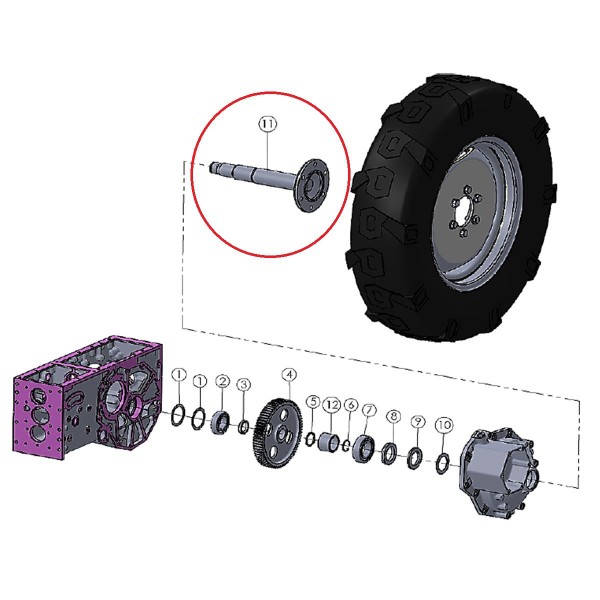

The number 11 is marked red in the graphic .
Warehouse :
M01: M23: S12
Specification
Magazyn: M01:C36, M23 S12
Condition
New
Production
Substitute
Parts
Hydraulic system
Diameter (mm)
168
Overall length (mm)
345
Cutter(s) length (mm)
37
Diameter of Cutter(s) (mm)
39.50 mm (measured with the teeth), 36.80 mm (measured between the teeth)
Mounting bolt(s) hole diameter (mm)
12,30
Bolt hole spacing (mm)
140 / 70
Comparison numbers
19981501001
VST Tillers Tractors is the number 1 company producing mini tractors and small tractors for the horticultural and agricultural industries in India. The company was established in 1911 and at the beginning of its activity it dealt with petroleum products and car sales.
In 1967, near the city of Bangalore, VST Tillers began production, producing small engines and small agricultural equipment, and in 1984, in cooperation with the Japanese company Mitsubishi Agricultural Machinery, it produced the first mini tractor. For over 50 years, VST Tillers tractors has been improving its products and introducing new agricultural solutions to meet the expectations of customers around the world.
VST is present in over 20 countries and is increasingly chosen as a manufacturer of machines in the compact tractor sector. At the beginning of their activity, VST Tillers products could be found under the trade name VST Mitsubishi, but for over a decade, VST products have had their own trade brands, including VST Shakti, Fieldtrac, VST Euro, and despite the passage of time and the company's global reach, VST mini tractors are still powered by their own engines. , which were built in cooperation with Mitsubishi (Mitsubishi Agricultural Machinery).
Thanks to the growing reputation and high quality of equipment production , VST Tilllers machines have successfully entered the Asian, European and American markets.
