Drawbar / 764 mm / Ø 22 mm / Cat II

Drawbar with a working length of 764 mm , width of 74 mm and thickness of 32 mm for tractors and mini tractors with a three-point linkage Cat II .

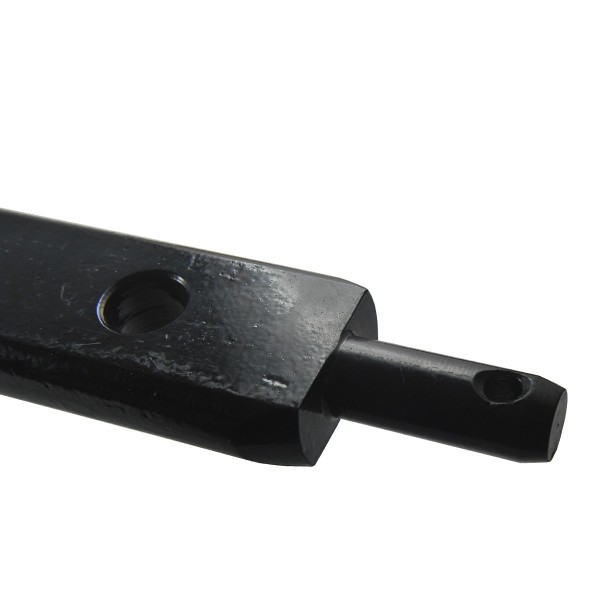

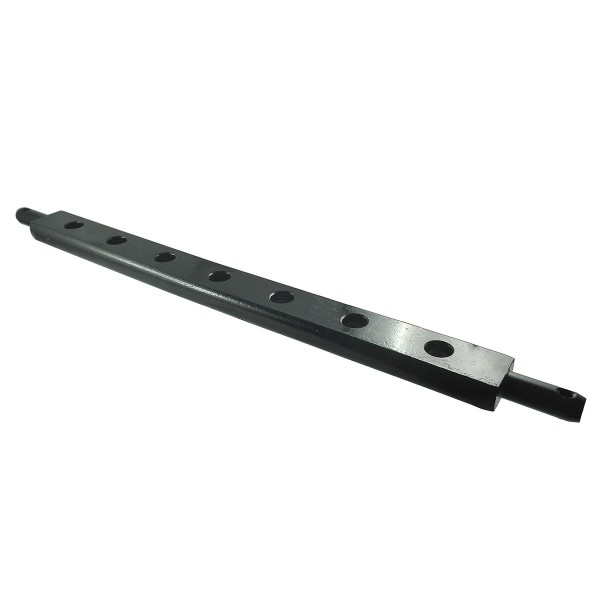

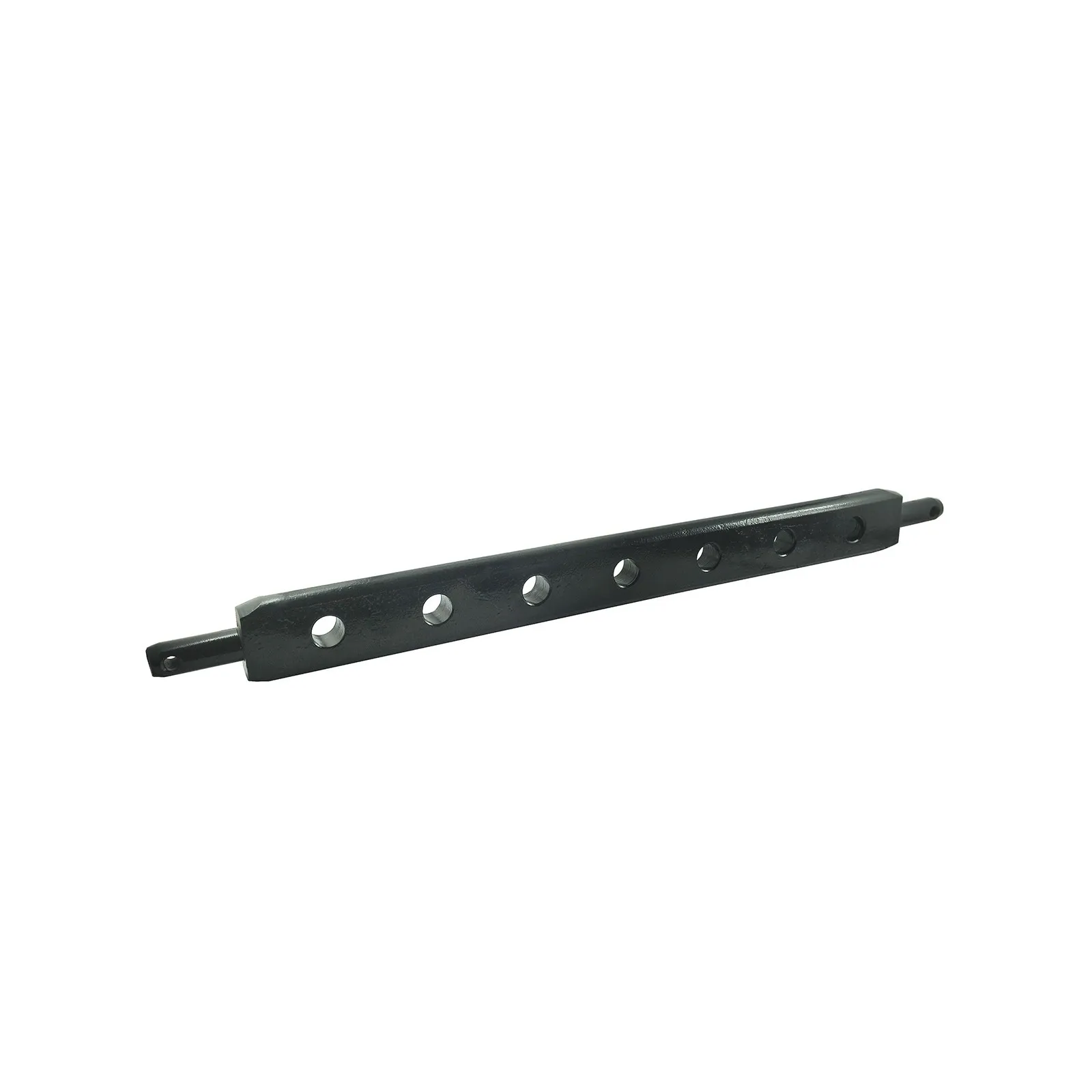

The drawbar for a tractor on a three-point linkage Cat II is a horizontal strip with holes made of metal or metal alloys, which is used to tow a trailer and other machines or to pull a load, e.g. a log of wood. The beam for the three-point linkage slings is finished with pins that are mounted to the lower slats of the rear three-point linkage. The holes in the drawbar are used to attach the hitch ball, shackle, chain or other towing system.

Drawbars come in various sizes :

• drawbar 400 mm,
• drawbar 510 mm ,
• drawbar 604 mm ,
• drawbar 661 mm ,
• drawbar 684 mm .

The drawbar for the tractor TUZ Cat II is attached using pins in the ball holes of the lower arms and locked with ring cotter pins . A properly selected beam is a beam that, after being installed and locked with cotter pins, holds the lower arms parallel to each other.

Dimensions :

• working length: 764 mm,
• total length: 900 mm,
• beam hole diameter: 28.50 mm,
• width: 74 mm,
• thickness: 32mm,
• number of holes: 7 pcs,
• diameter of hitch pins: 28 mm,
• hitch pin length: 74 mm,
• diameter of the hitch pin holes: 12 mm,
• weight: 14 kg.

Three-point linkage Cat II (second category) means that the pins and mounting holes are between 28 and 32 mm .
