zł87.00
To order
Condition
New
Parts
3-point linkage
NEXT DOOR
3 point
Thickness (mm)
25
Hole diameter (mm)
11,80 / 12,50
12 (pins)
26 (beam)
12 (pins)
26 (beam)
Overall length (mm)
660
Width (mm)
62
Drawbar 510 mm / Ø 22 mm / Cat I
BZ-KAT1/510/16-00-4
Do you have any questions?

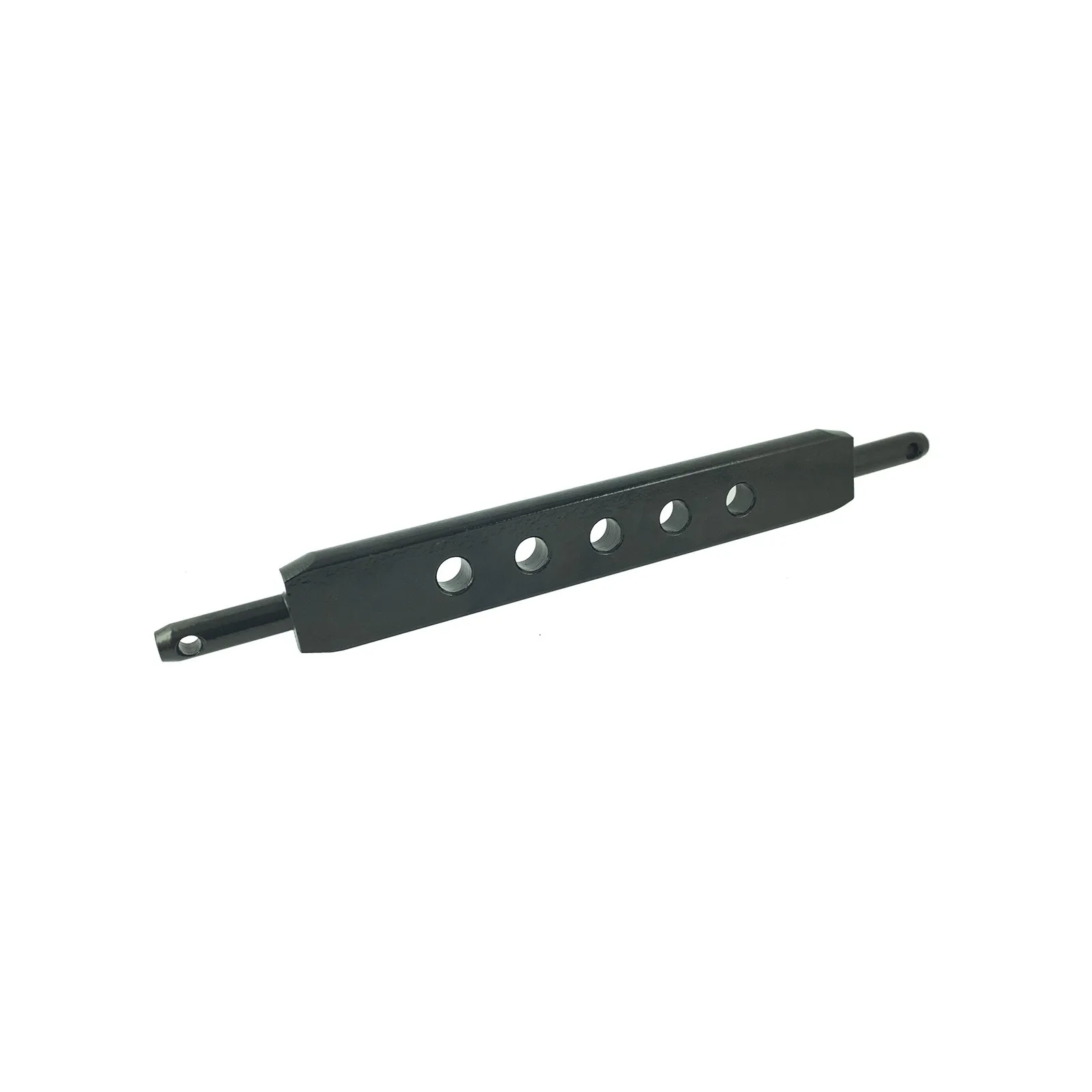

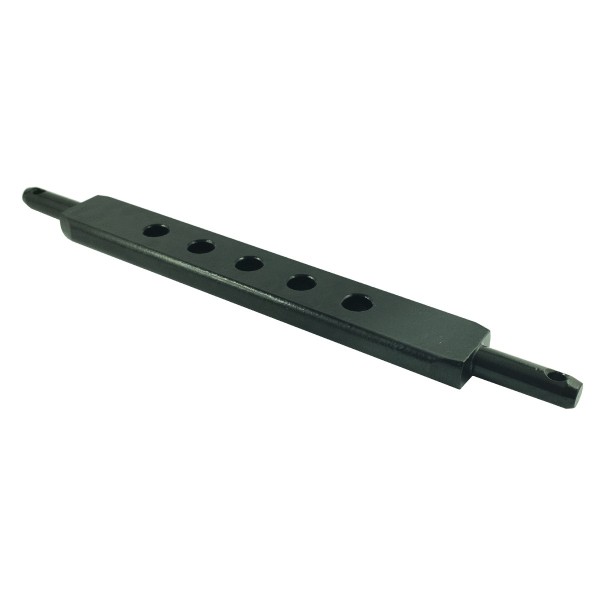

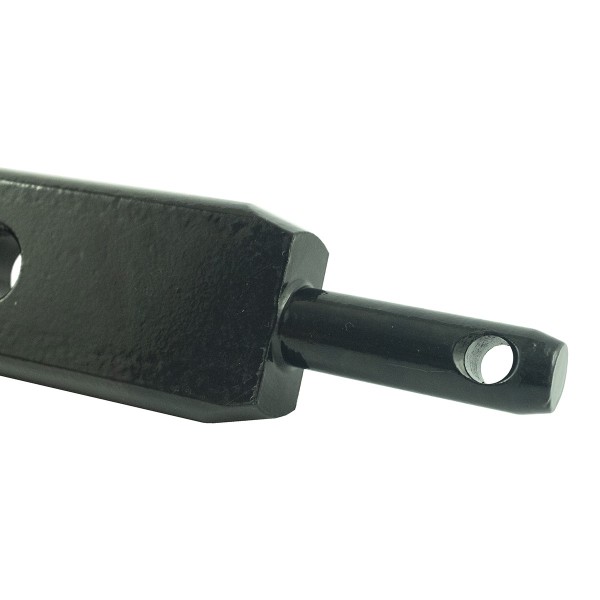

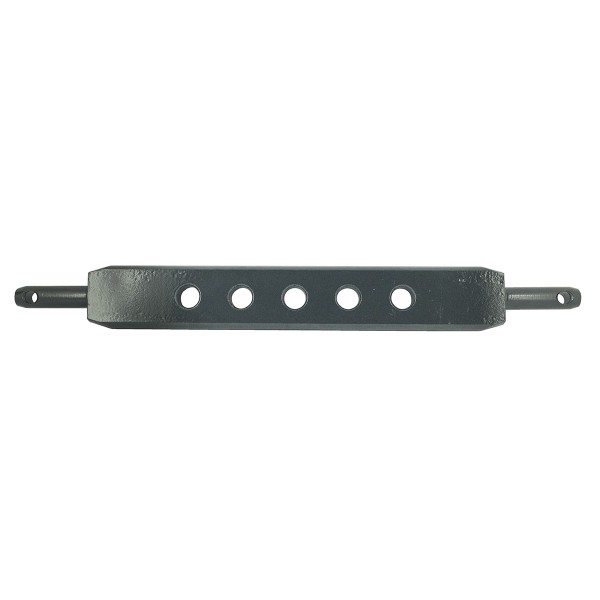

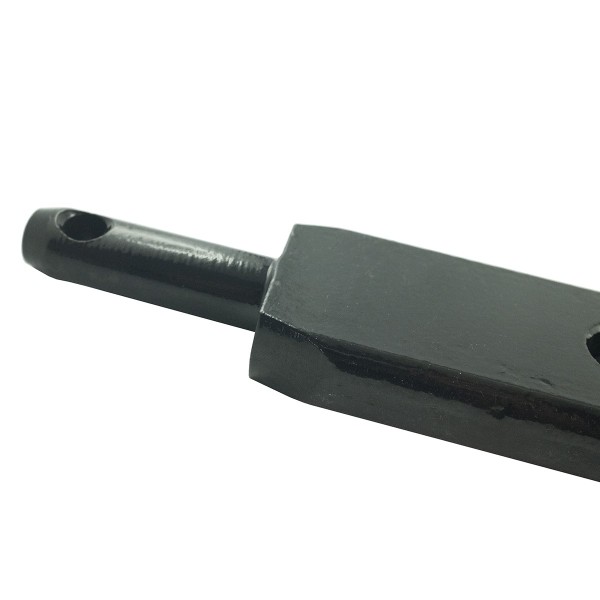

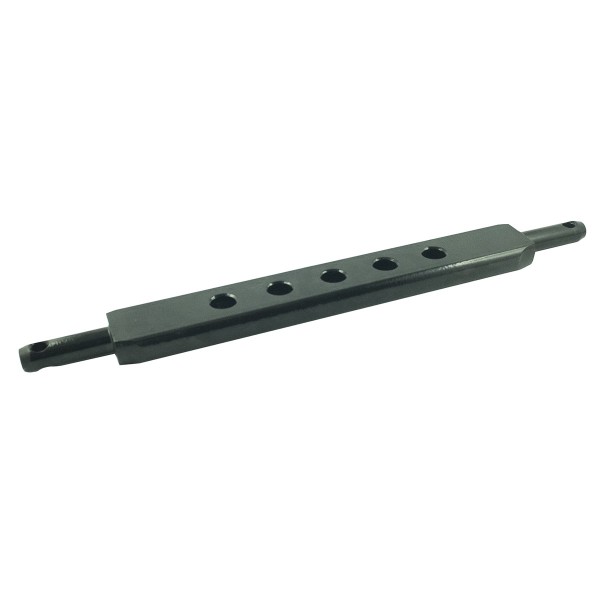

Drawbar 510 mm / Ø 22 mm / Cat I
The drawbar for a tractor on a three-point linkage Cat I is a horizontal strip with holes made of metal or metal alloys, which is used to tow a trailer and other machines or to pull a load, e.g. a log of wood. The beam for the three-point linkage slings is finished with pins that are mounted to the lower slats of the rear three-point linkage. The holes in the drawbar are used to attach the hitch ball , shackle, chain or other towing system.
Drawbars come in various sizes :
- drawbar 400 mm ,
- drawbar 510 mm ,
- drawbar 604 mm ,
- drawbar 661 mm ,
- drawbar 684 mm ,
- drawbar 764 mm .
The drawbar for the TUZ Cat 1 tractor is attached using pins in the ball holes of the lower arms and locked with ring cotter pins . A properly selected beam is a beam that, after being installed and locked with cotter pins, holds the lower arms parallel to each other.
Dimensions :
- working length: 510 mm,
- total length: 660 mm,
- beam hole diameter: 26 mm,
- width: 62 mm,
- thickness: 25mm,
- number of holes: 5 pcs,
- diameter of hitch pins: 22 mm,
- hitch pin length: 74 mm,
- diameter of the hitch pin holes: 12 mm,
- weight: 6 kg.
Three-point linkage Cat I (first category) means that the pins and mounting holes are in the range of 19 to 22 mm .
Location: M34
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M34
Condition
New
Parts
3-point linkage
NEXT DOOR
3 point
Thickness (mm)
25
Hole diameter (mm)
11,80 / 12,50
12 (pins)
26 (beam)
12 (pins)
26 (beam)
Overall length (mm)
660
Width (mm)
62
working length (mm)
510
Pin diameter (a) (mm)
22
Weight (kg)
6
Pin length (a) (mm)
74
Category
1
