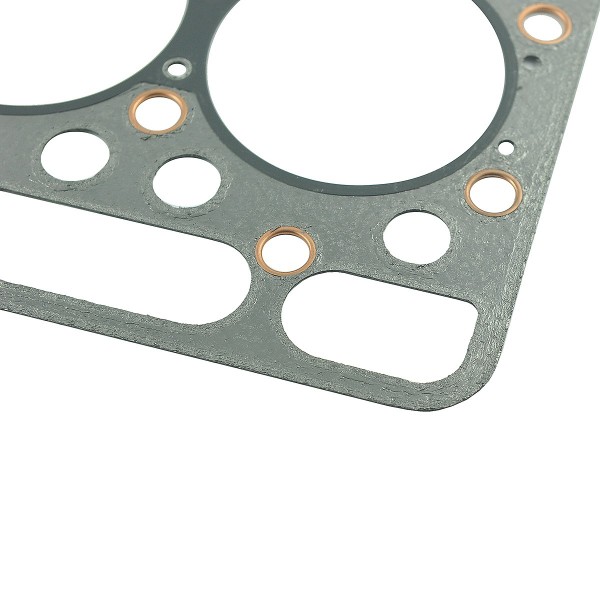

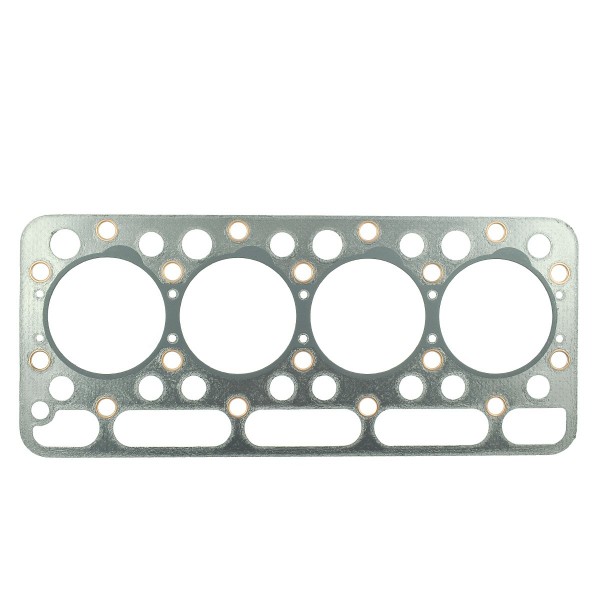

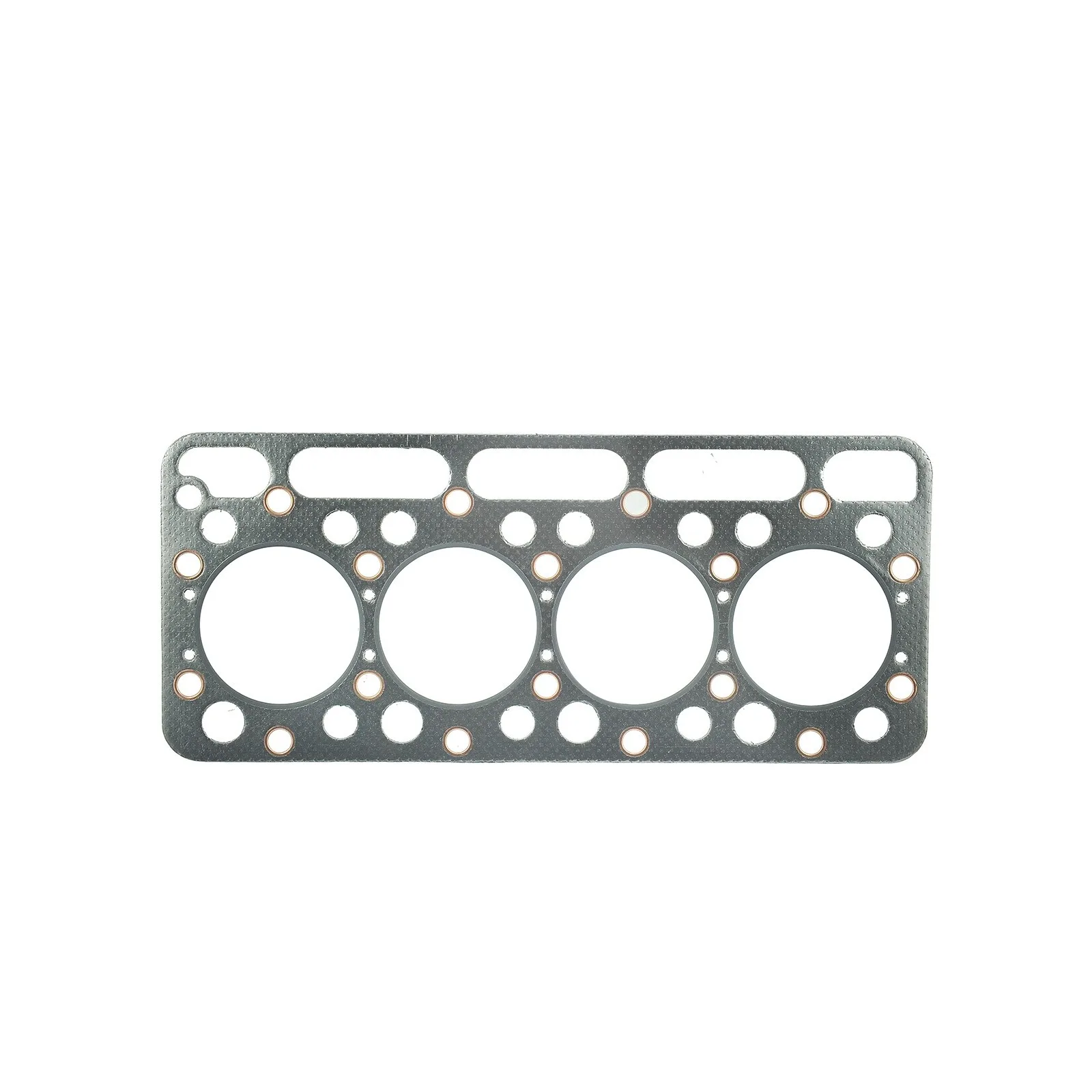

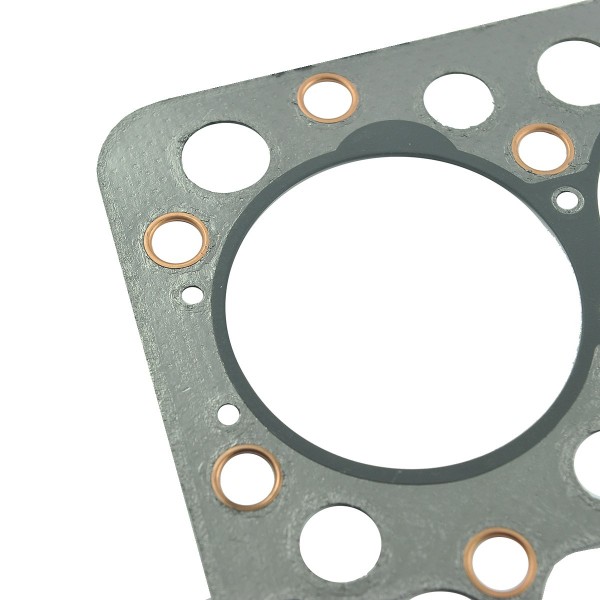

Cylinder head gasket / Ø84 mm / Kubota V1501 / V1702 / Kubota L2602 / L2850

Cylinder head gasket (head 15476-03040) for the engine with dimensions 408 x 175 mm , piston hole diameter 84.75 mm and thickness 1.50 mm for Kubota tractors of the Kubota L2602 , Kubota L2850 series with Kubota DV1501, Kubota V1702 and other engines.

The cylinder head gasket is a gasket installed at the junction between the cylinder head and the engine block. The connection between the block and the cylinder head must be airtight for the engine to function properly. The cylinder head gasket seals the cylinders, coolant passages, and lubrication channels, and prevents the two fluids from mixing. The gasket's second purpose is thermal insulation, as part of the engine block can heat up to 2000 degrees Celsius from the combustion chambers.

Dimensions :

• length: 408 mm,
• width: 175mm,
• thickness: 1.50 mm,
• piston hole diameter: 84.50 mm,
• original part numbers: 15401-03310, 15439-03310,
• part numbers: 6-15-100-07.

Engine models :

• Kubota V1501,
• Kubota V1702.

Tractor models :

• Kubota L2602,
• Kubota L2850.

The first signs of head gasket wear, gasket burnout, or gasket blowout are uneven operation of the warm engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank).

Magazine: K18:E09:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
