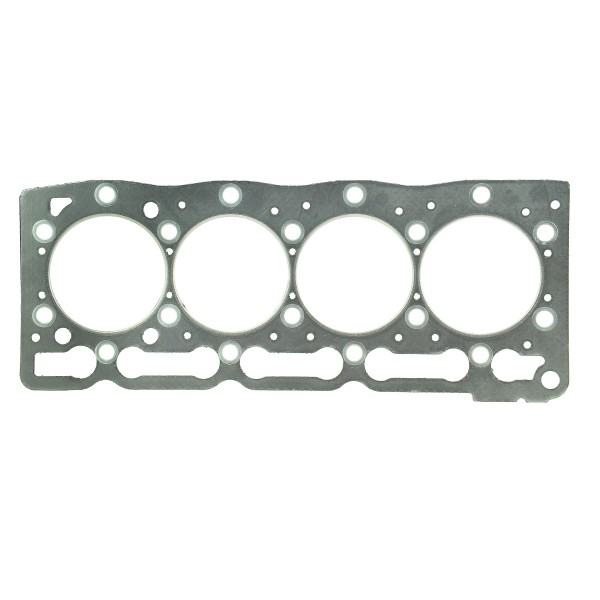

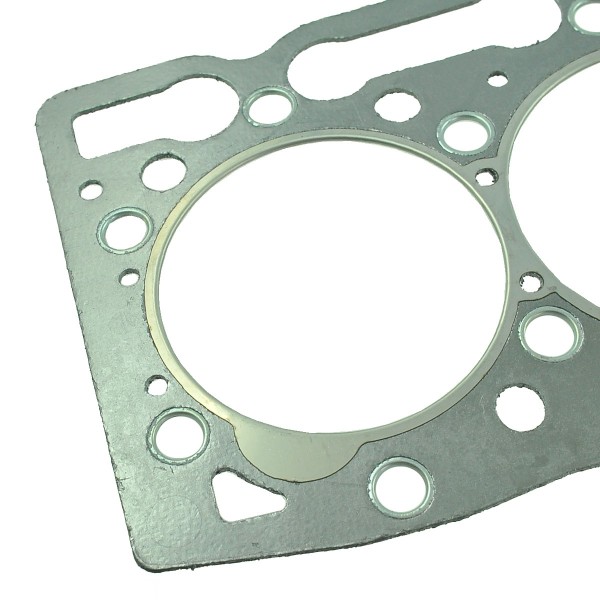

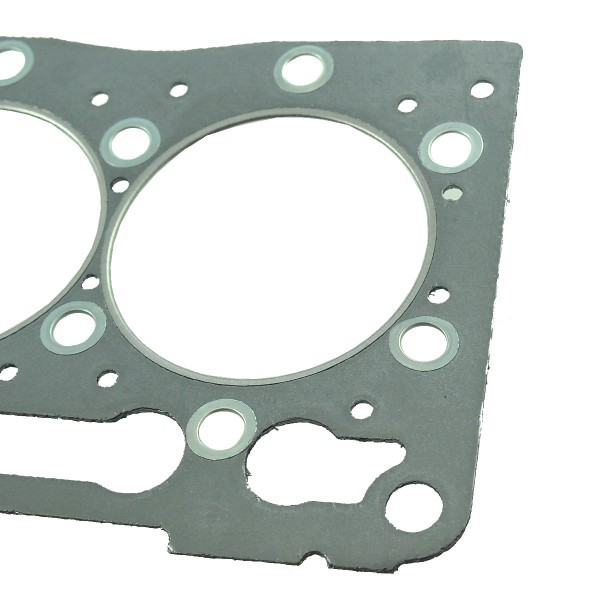

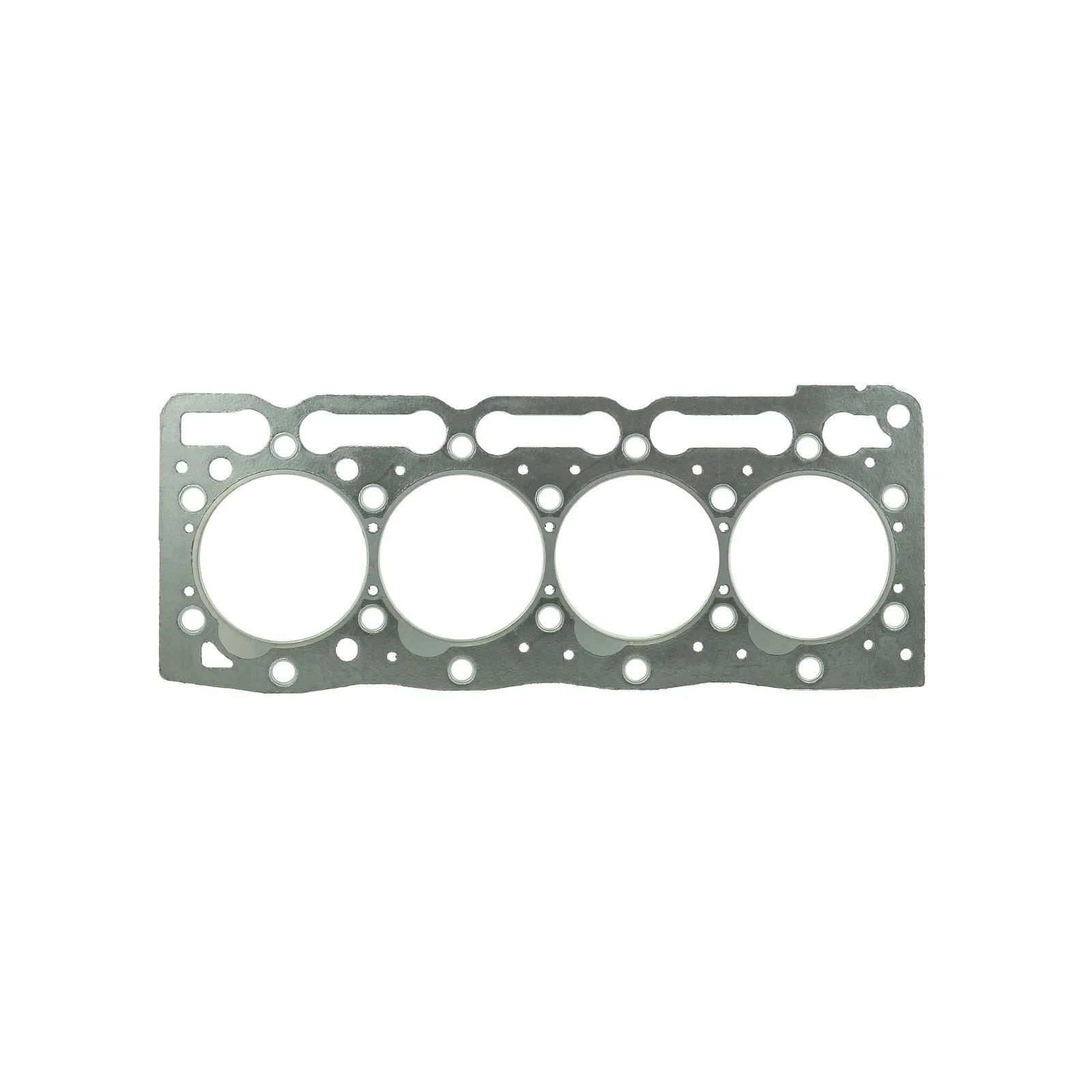

Head gasket / Ø78 mm / Kubota V1505 / Kubota B2910HSD/B7800HSD/F3680/KX71-H / 16394-03310

Engine head gasket with dimensions of 143 x 372 mm , piston hole diameter of 79.50 mm and thickness of 1.50 mm for Kubota tractors of the Kubota B2910HSD, Kubota B7800HSD, Kubota F3680, Kubota KX71-H series and other machines with Kubota V1505 and other engines .

The engine head gasket is a gasket that is installed where the engine head connects to the engine block. The place where the block connects to the head must be tight for proper engine operation. The head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels and to separate and prevent mixing of both fluids. The second task of the gasket is thermal insulation, because part of the engine block may heat up from the operating combustion chambers, up to 2000 degrees Celsius.

Dimensions :

• length: 372 mm,
• width: 143 mm,
• thickness: 1.50 mm,
• piston hole diameter: 79.50 mm,
• original part numbers: 16394-03310,
• comparison numbers: 16394-03310 (metal),
• part numbers: V1505_GRAPHITE.

Engine models :

Kubota :

• Kubota V1505.

Tractor models :

Kubota :

• Kubota B2910HSD,
• Kubota B7800HSD.

Lawn mower models :

Kubota :

• Kubota F3680.

Machine models :

Kubota :

• Kubota KX71-H.

The first signs of head gasket wear, gasket burnout, or gasket blowing are uneven operation of a hot engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank). ).
