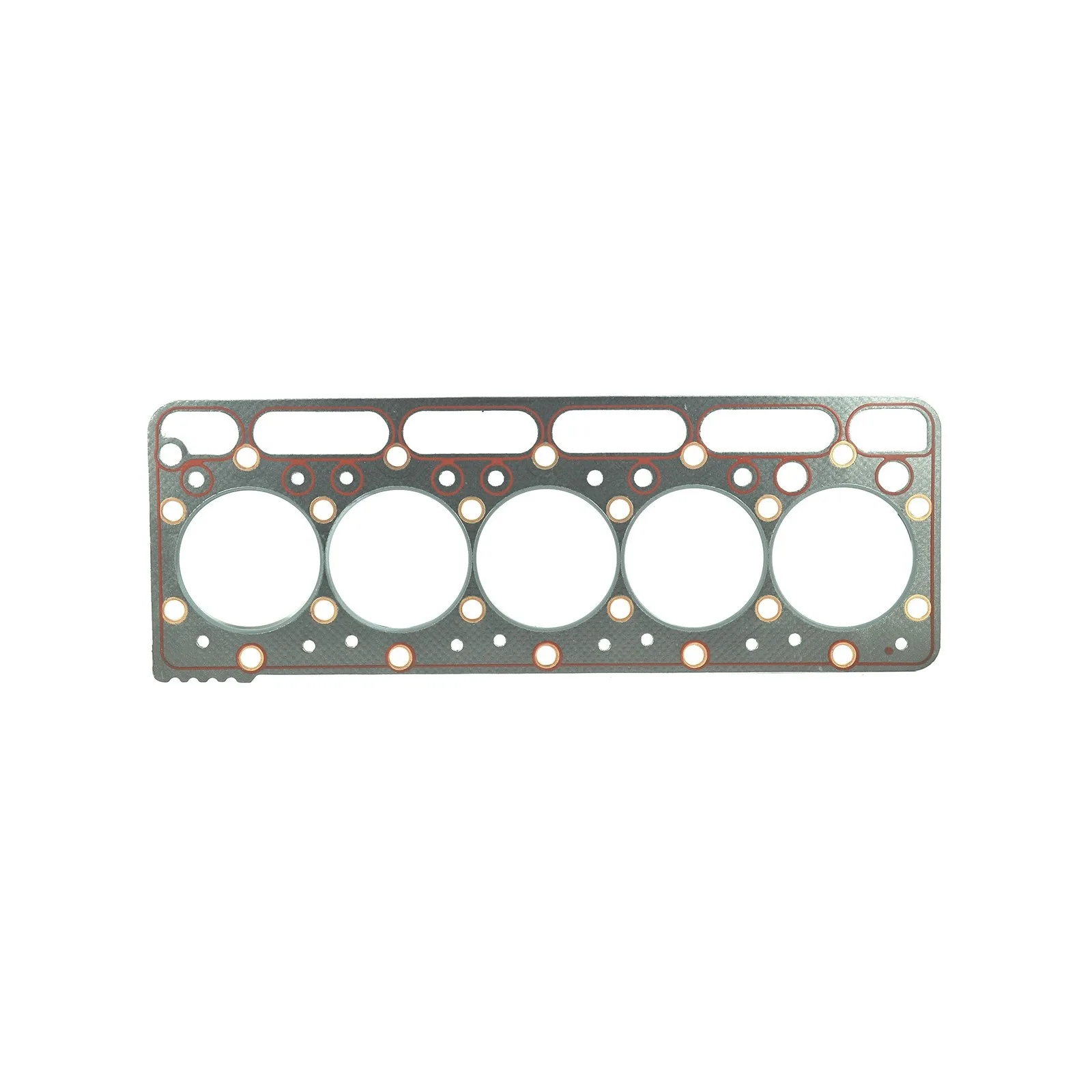

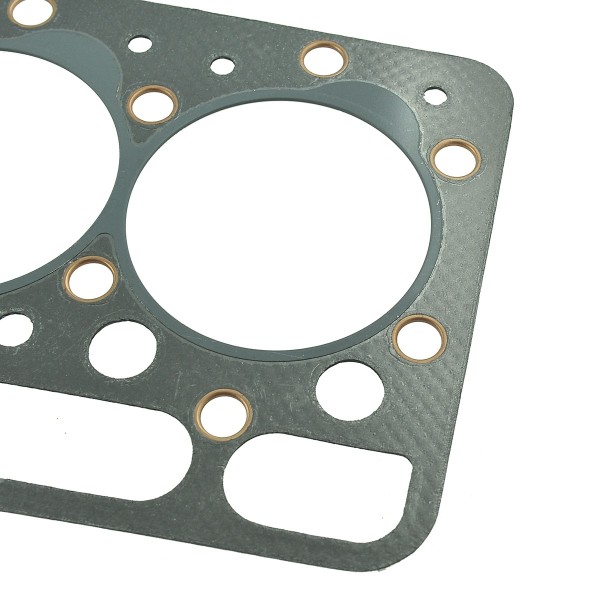

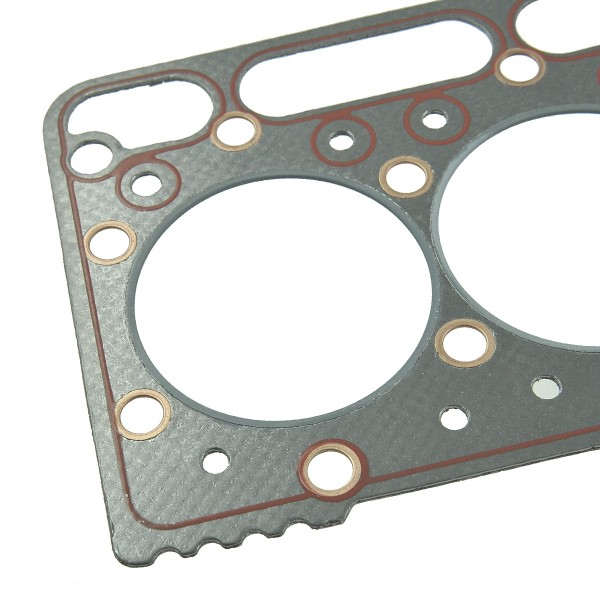

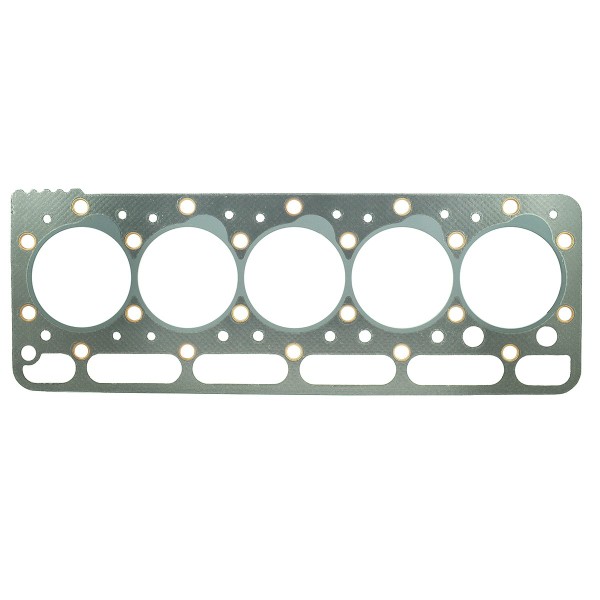

Head gasket / Ø87 mm / Kubota F2503/F2803-O / Kubota GL46/GL470/L4850 / 16484-03310 / GRAPHITE

Head gasket with dimensions 178 x 505 mm , piston hole diameter 89 mm and thickness 1.70 mm for Kubota series tractors Kubota GL46, Kubota GL470, Kubota L4508 with Kubota F2503, Kubota F2803-O engines.

The engine head gasket is a gasket that is installed where the engine head connects to the engine block. The place where the block connects to the head must be tight for proper engine operation. The head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels and to separate and prevent mixing of both fluids. The second task of the gasket is thermal insulation, because part of the engine block may heat up from the operating combustion chambers, up to 2000 degrees Celsius.

Dimensions :

• length: 505 mm.
• width: 178 mm.
• piston bore diameter: 89 mm,
• thickness: 1.70 mm,
• original part numbers: 16484-03310,
• Comparison part numbers:-,
• part numbers: F2803-O_GRAPHITE.

Engine models :

Kubota :

• Kubota F2503,
• Kubota F2803-O.

Tractor models :

Kubota :

• Kubota GL46,
• Kubota GL470,
• Kubota L4850.

The first signs of head gasket wear , gasket burnout, or gasket blowing are uneven operation of a hot engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank). ).
