Cylinder head gasket / Ø86 mm / Shibaura J843 / N843 / Shibaura D23
N8843/D23
Do you have any questions?
Cylinder head gasket / Ø86 mm / Shibaura J843 / N843 / Shibaura D23

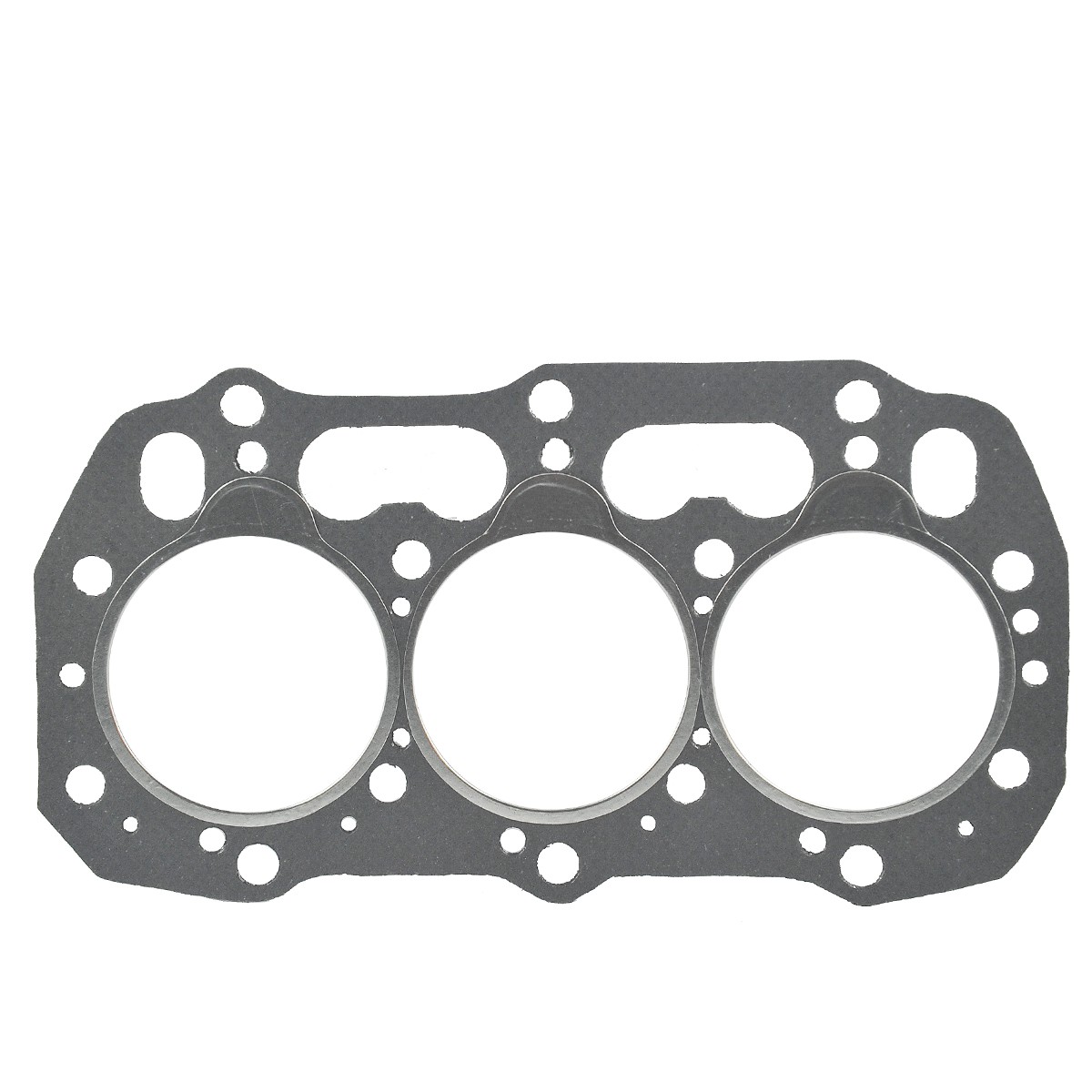

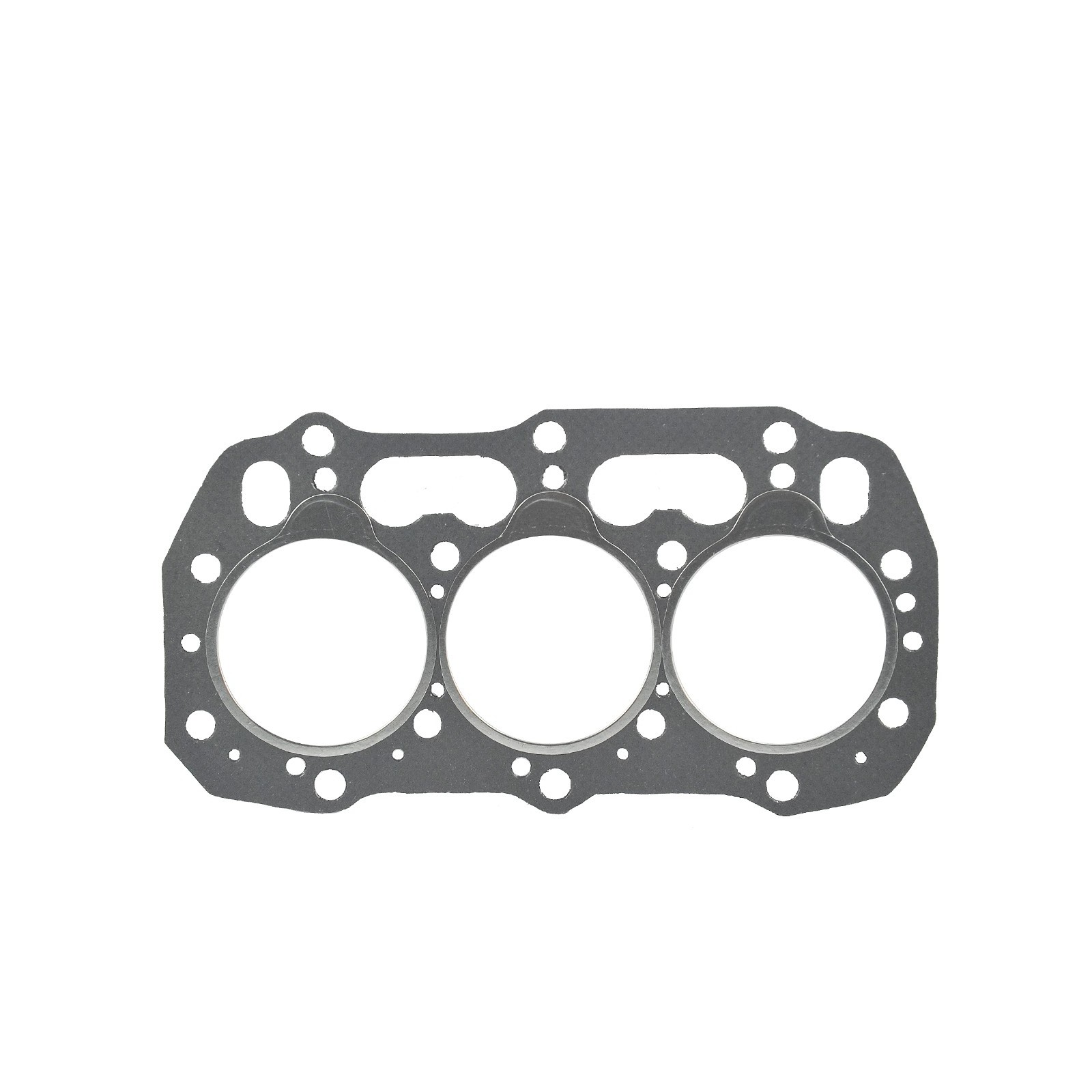

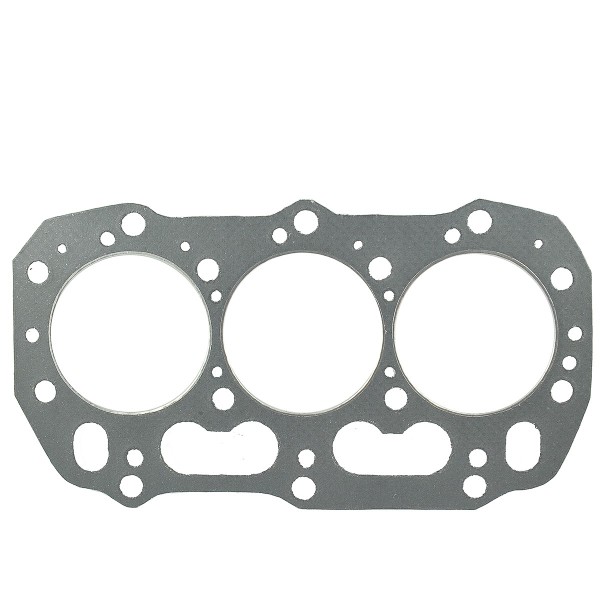

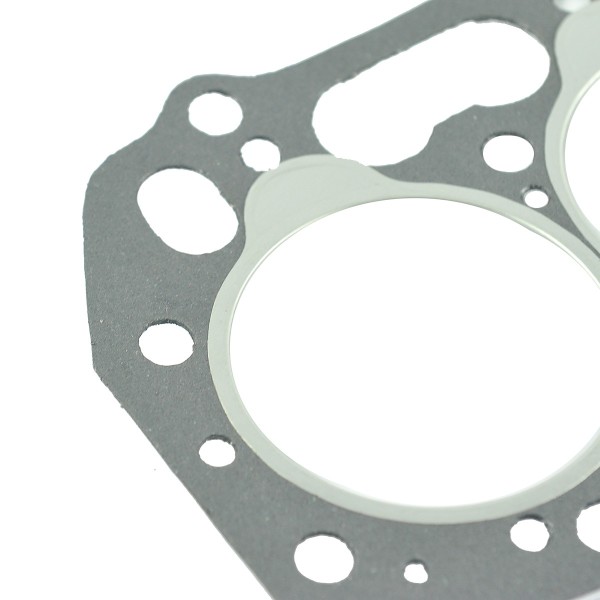

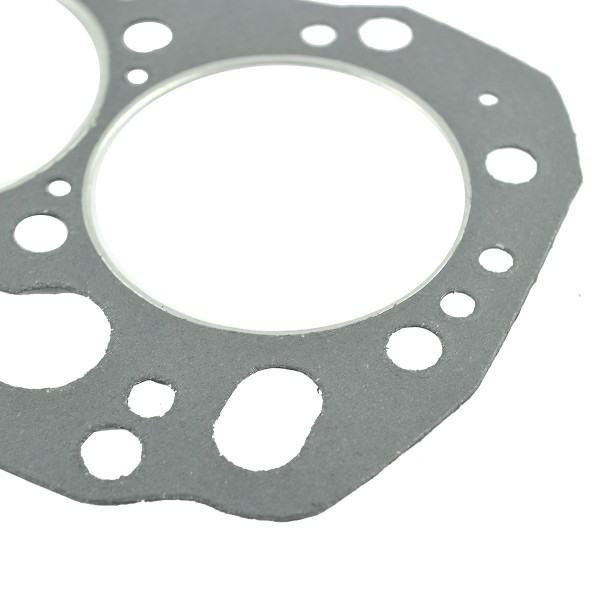

Engine head gasket with dimensions 168 x 317 mm , piston hole diameter 86 mm and thickness 1.50 mm for Shibaura tractors, Shibaura D23 series with Shibaura N843 engines and others.
The cylinder head gasket is a gasket that is installed at the point where the engine head connects to the engine block. The point where the block connects to the head must be tight for the engine to function properly. The cylinder head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels, and to separate and prevent the two fluids from mixing. The second task of the gasket is thermal insulation, because part of the engine block can heat up from the working combustion chambers, even up to 2000 degrees Celsius.
Dimensions :
- length: 317 mm,
- width: 168mm,
- thickness: 1.50 mm,
- piston hole diameter: 86 mm,
- original part numbers: -,
- comparative numbers: %C5% 9Bci-do-shibaura/30198-seal-under-g %C5% 82owice- %C3% B8-86-mm-shibaura-n843c-parkins-111147491.html">111147491 ,
- part numbers: -.
Engine models :
- Shibaura J843,
- Shibaura N843.
Tractor models :
- Shibaura D23.
The first signs of head gasket wear, gasket burnout, or gasket blowout are uneven operation of the warm engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank).
Magazine: K18 A14 S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: K18 A14 S01
Condition
New
Production
Substitute
Parts
Engine
Engine model
Shibaura J843
Shibaura N843
Shibaura N843
Tractor models
Shibaura D23
Length (mm)
317
Thickness (mm)
1.50
Width (mm)
168
Hole diameter (mm)
Seal type
Head gasket
