Fuel Injection / Kubota D905 / D1005 / D1105 / V1205 / V1305 / V1405 / V1505 / 16032-53900

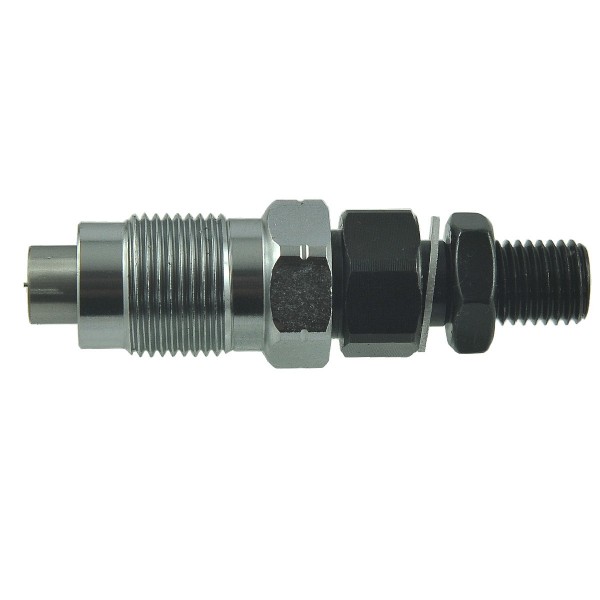

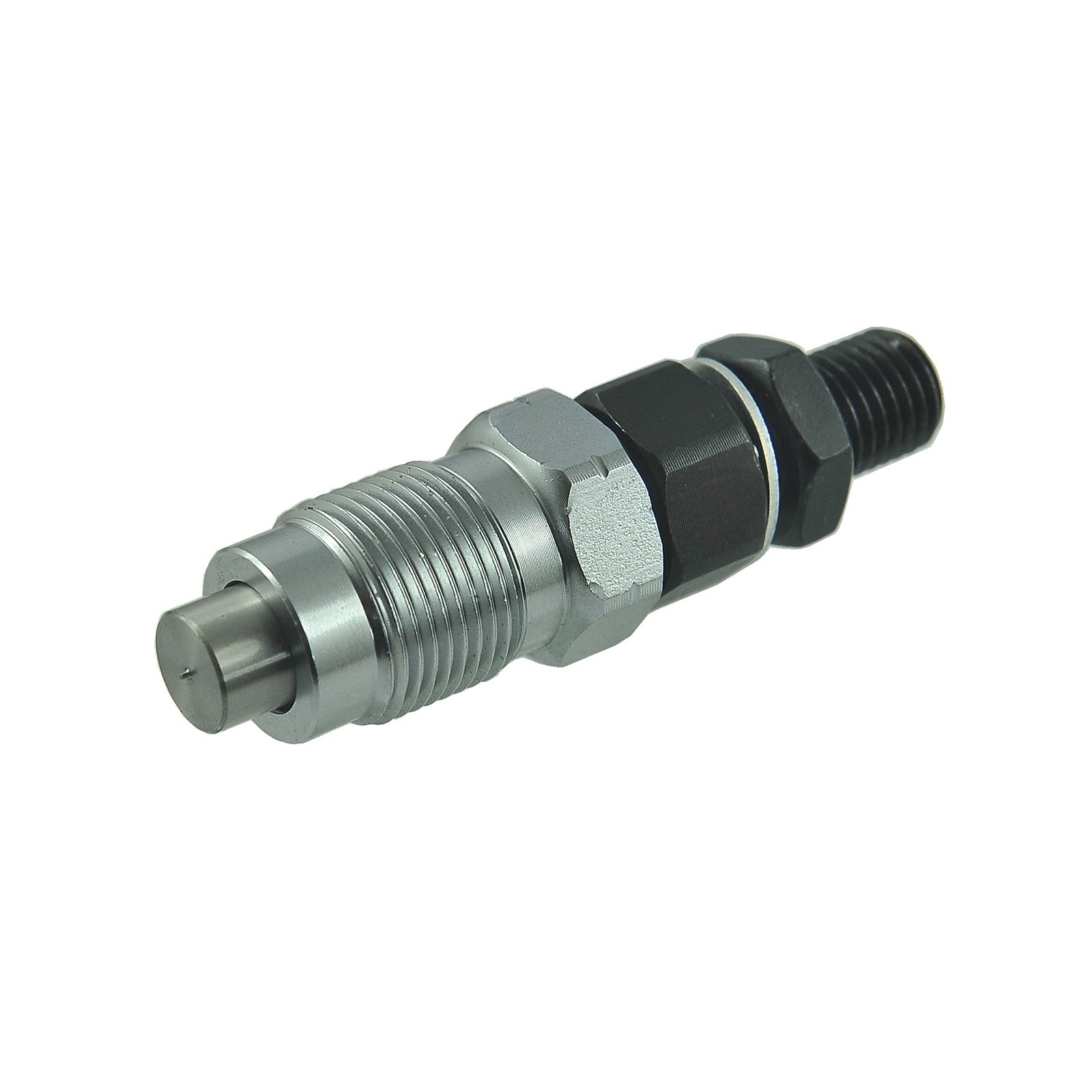

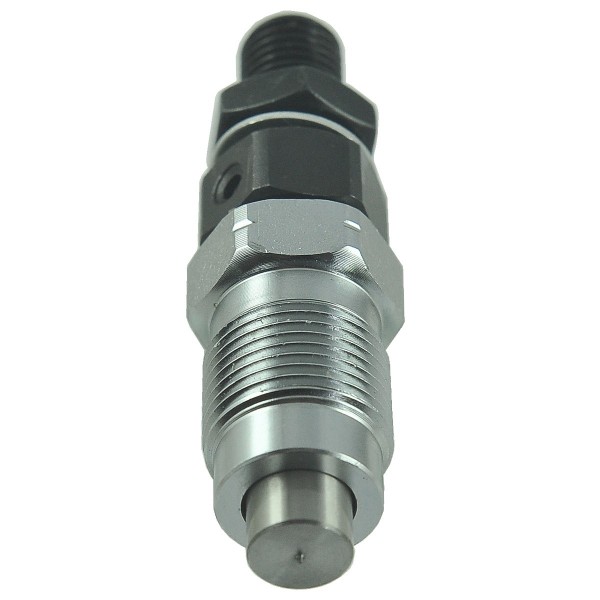

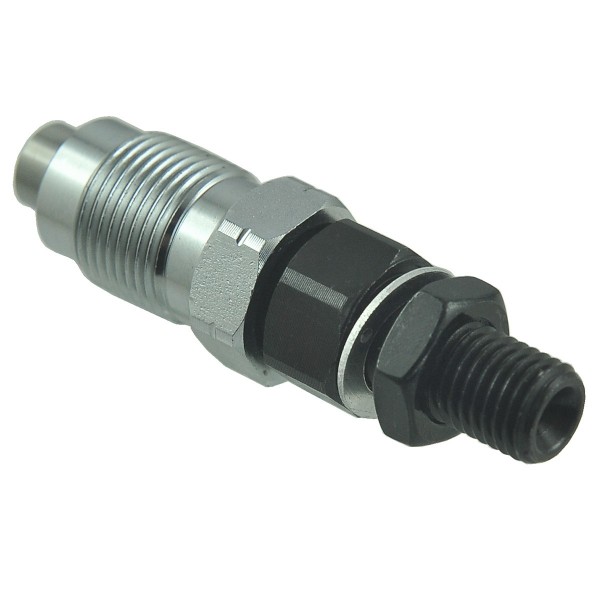

Fuel injector with a total length of 77 mm for Kubota tractors of the Kubota Aste A-15, Kubota Aste A-17, Kubota Aste A-19, Kubota Aste A-155, Kubota Aste A-175, Kubota Aste A-195, Kubota B1700, Kubota B2100, Kubota B2110, Kubota B2400, Kubota B2410, Kubota B2710, Kubota BX2200, Kubota F2400, Kubota F2560, Kubota F3060, Kubota F3560 series with Kubota D905, Kubota D1005, Kubota D1105, Kubota V1205, Kubota V1305, Kubota V1405, Kubota V1505 and other engines.

A fuel injector is a mechanism whose task is to precisely deliver fuel at the appropriate pressure to the cylinder head, near the intake valves (spark plugs) or to the intake manifold. Injectors are highly precise and fast-acting valves that open for a predetermined time, generating the appropriate fluid pressure. Fuel mixed with air in the intake system or cylinder, delivered via fuel injection, burns properly, directly contributing to optimal or improved engine performance. Properly functioning fuel injectors directly impact engine operation, fuel consumption, and reduced exhaust emissions.

Dimensions :

• Total length: 77 mm,
• Thread: M11 x 1.50 / M19 x 1.50,
• Key size: 19 / 21,
• Original part numbers: 16032-53900, 16032-53902,
• Reference numbers: H1601-53000.

Engine models :

• Kubota D905,
• Kubota D1005,
• Kubota D1105,
• Kubota V1205,
• Kubota V1305,
• Kubota V1405,
• Kubota V1505.

Tractor models :

• Kubota Aste A-15,
• Kubota Aste A-17,
• Kubota Aste A-19,
• Kubota Aste A-155,
• Kubota Aste A-175,
• Kubota Aste A-195,
• Kubota B1700,
• Kubota B2100,
• Kubota B2110,
• Kubota B2400,
• Kubota B2410,
• Kubota B2710,
• Kubota BX2200,
• Kubota F2400,
• Kubota F2560,
• Kubota F3060,
• Kubota F3560

Magazine : K18:F37:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
