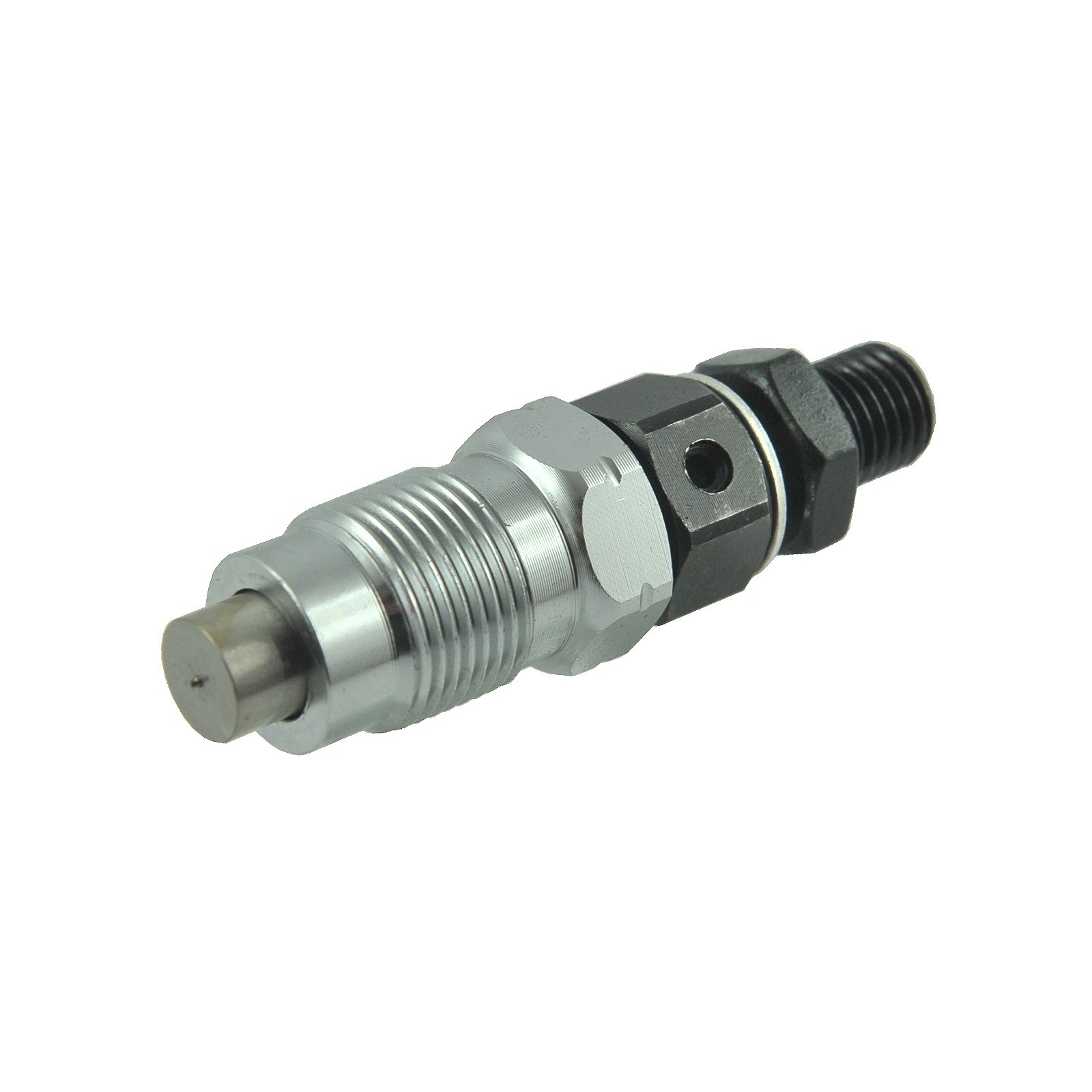

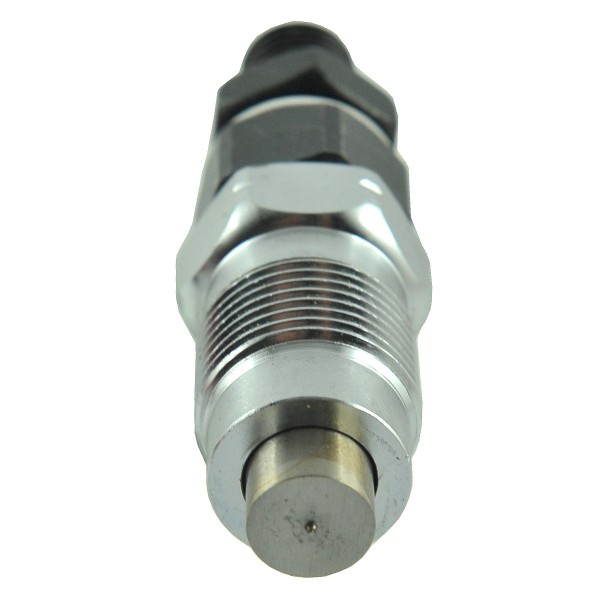

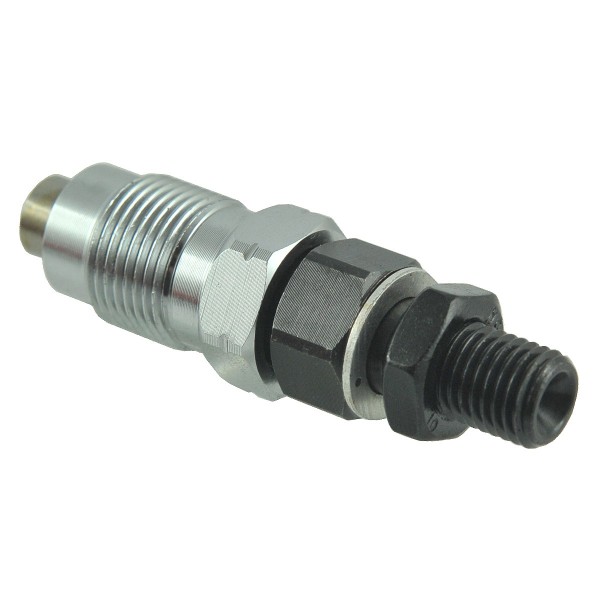

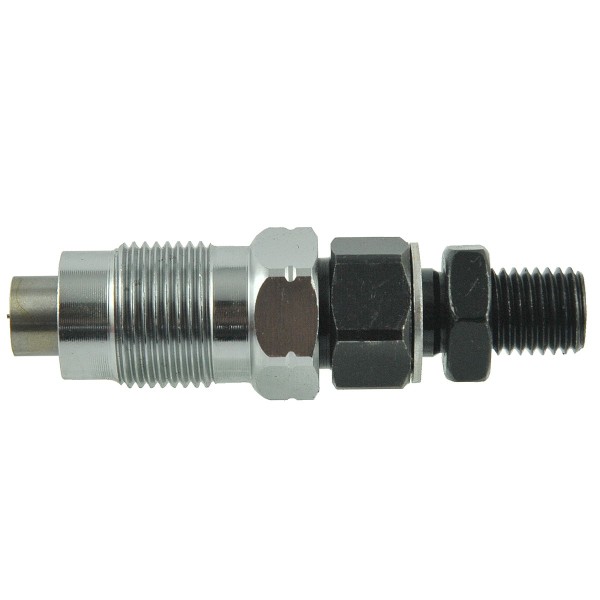

Fuel injection / Kubota D722 / Kubota B7300 / 16001-53000

This 76.60 mm long fuel injector features a 10.70 mm nozzle diameter and M20 x 1.5 and M12 x 1.5 threads for Kubota tractors and other models with Kubota D722 engines. A fuel injector is a mechanism whose task is to precisely deliver fuel at the appropriate pressure to the cylinder head near the intake valves (spark plugs) or to the intake manifold. Injectors are highly precise and fast-acting valves that open for a predetermined time, generating the appropriate fluid pressure. Fuel mixed with air in the intake system or cylinder, delivered via fuel injection, burns properly, directly contributing to optimal or improved engine performance. Properly functioning fuel injectors have a direct impact on engine operation, fuel consumption, and reduced exhaust emissions.

Dimensions :

• Total length: 76.60 mm,
• Thread: M12 x 1.50 / M20 x 1.50,
• Atomizer diameter: 10.70 mm,
• Key size: 18 / 21,
• Part numbers: 16001-53000.

Tractor models :

• Kubota B7300.

Engine models :

• Kubota D722.

Magazine : M01:C74

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
