Main fuel filter / EGQ125 / LS Tractor 40271228

Main fuel filter for LS Tractor LS XU, MT5 series tractors.

The fuel filter is one of the most important elements of the fuel system, which directly affects the proper operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and organic micro impurities. Fuel filters are divided into two main groups depending on their application - we will use a different type of filter for a gasoline engine than for a diesel engine. Regardless of the type of fuel, the filtering material is various types of paper based on polyester or cellulose fibers with the addition of synthetic fibers.

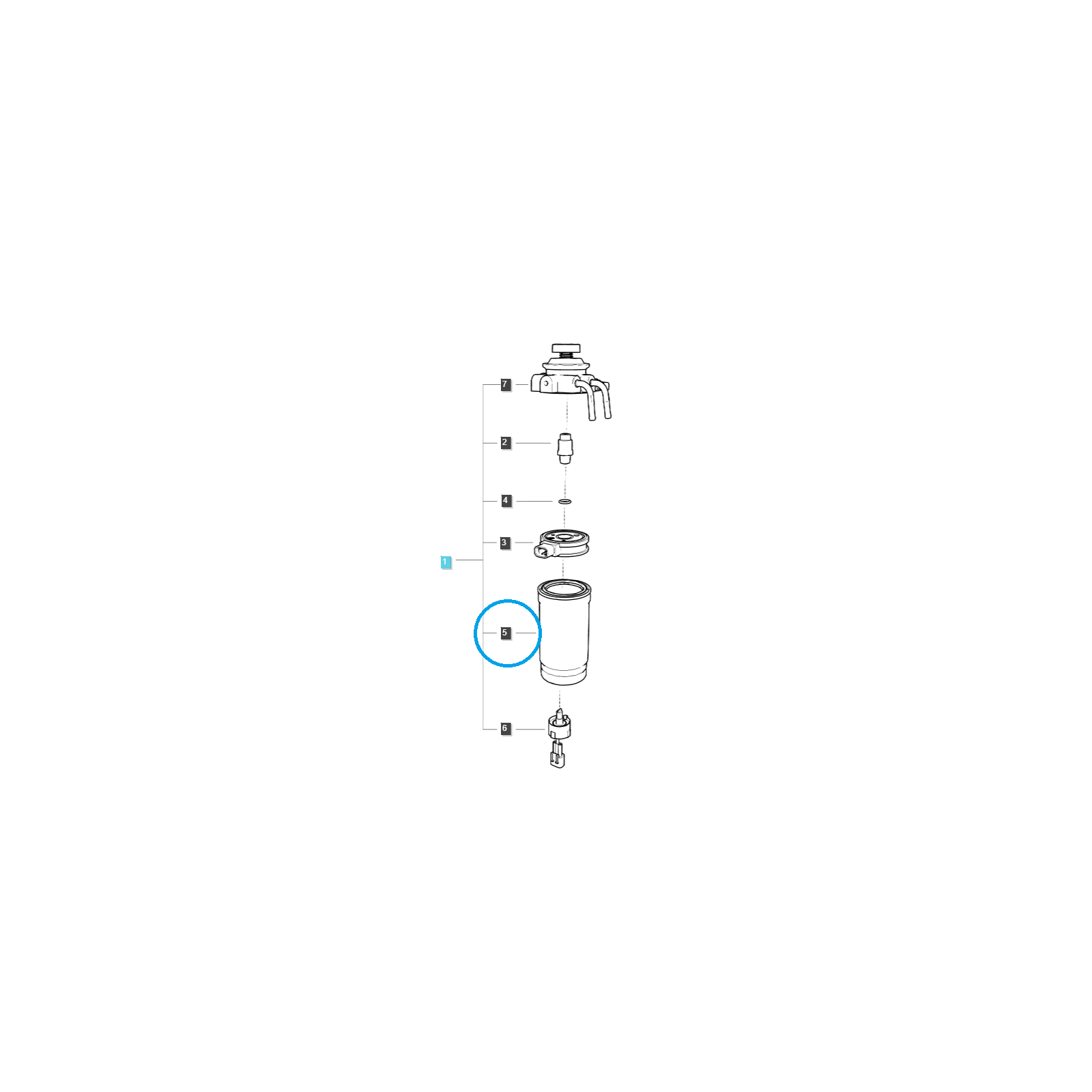

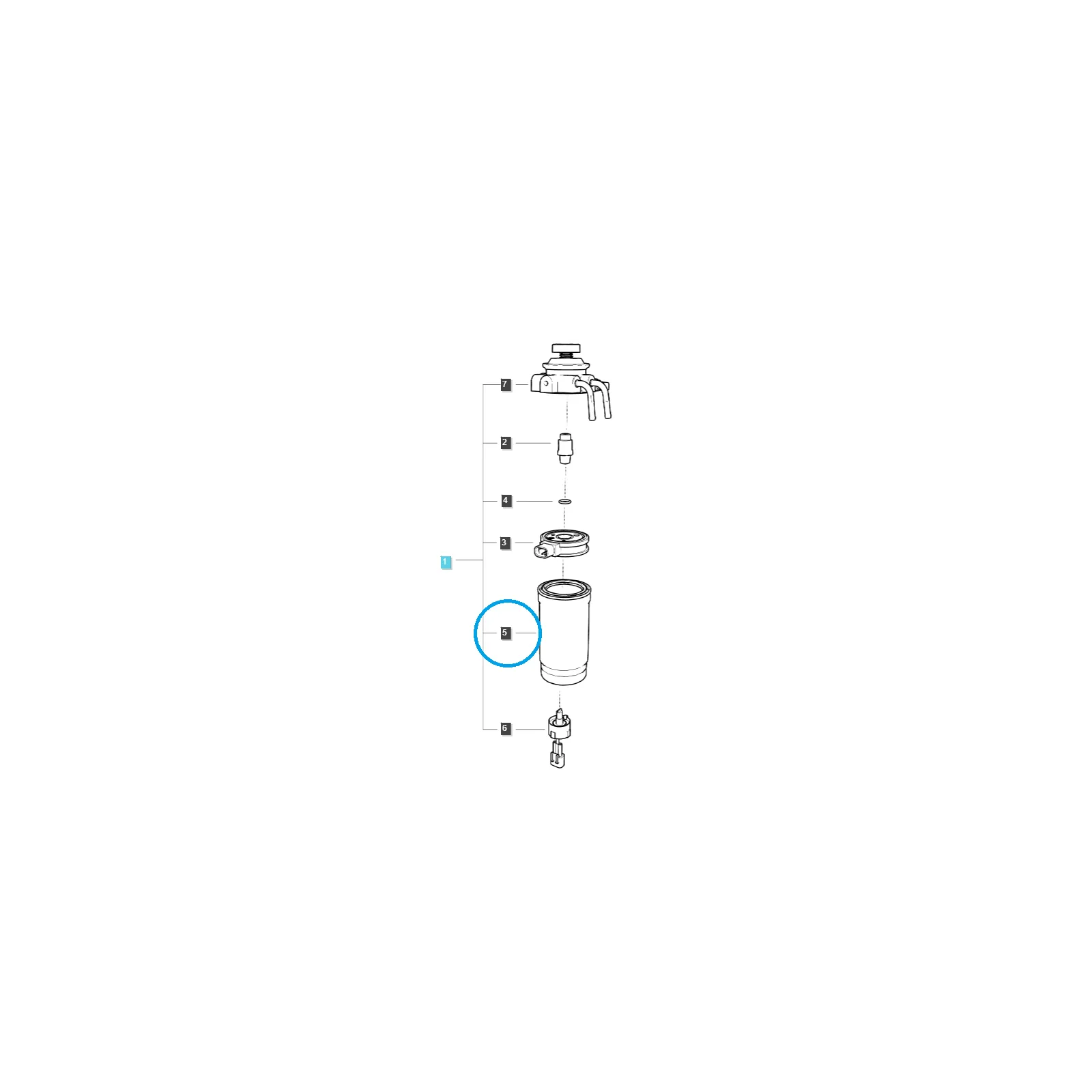

POSITION No. 5 MARKED IN BLUE ON THE GRAPHIC

Dimensions :

• Outer diameter: 80 mm,
• Base diameter: 85 mm,
• Total height: 165 mm,
• Thread: M16 x 1.5 / M10 x 1.25,
• Seal diameter: internal 62 mm, external 70 mm,
• Comparison numbers: 40271228, 40356524, SN25221, SK 48816, 5501661201

Tractor models:

LS Tractor:

• LS XU6158,
• LS XU6168,
• LS MT5.73

A dirty fuel filter restricts the free flow of fuel to the engine and may cause problems when starting the engine or may cause the engine to run erratically. Sometimes a clogged fuel filter causes a loss of nominal engine power or results in higher fuel consumption.
