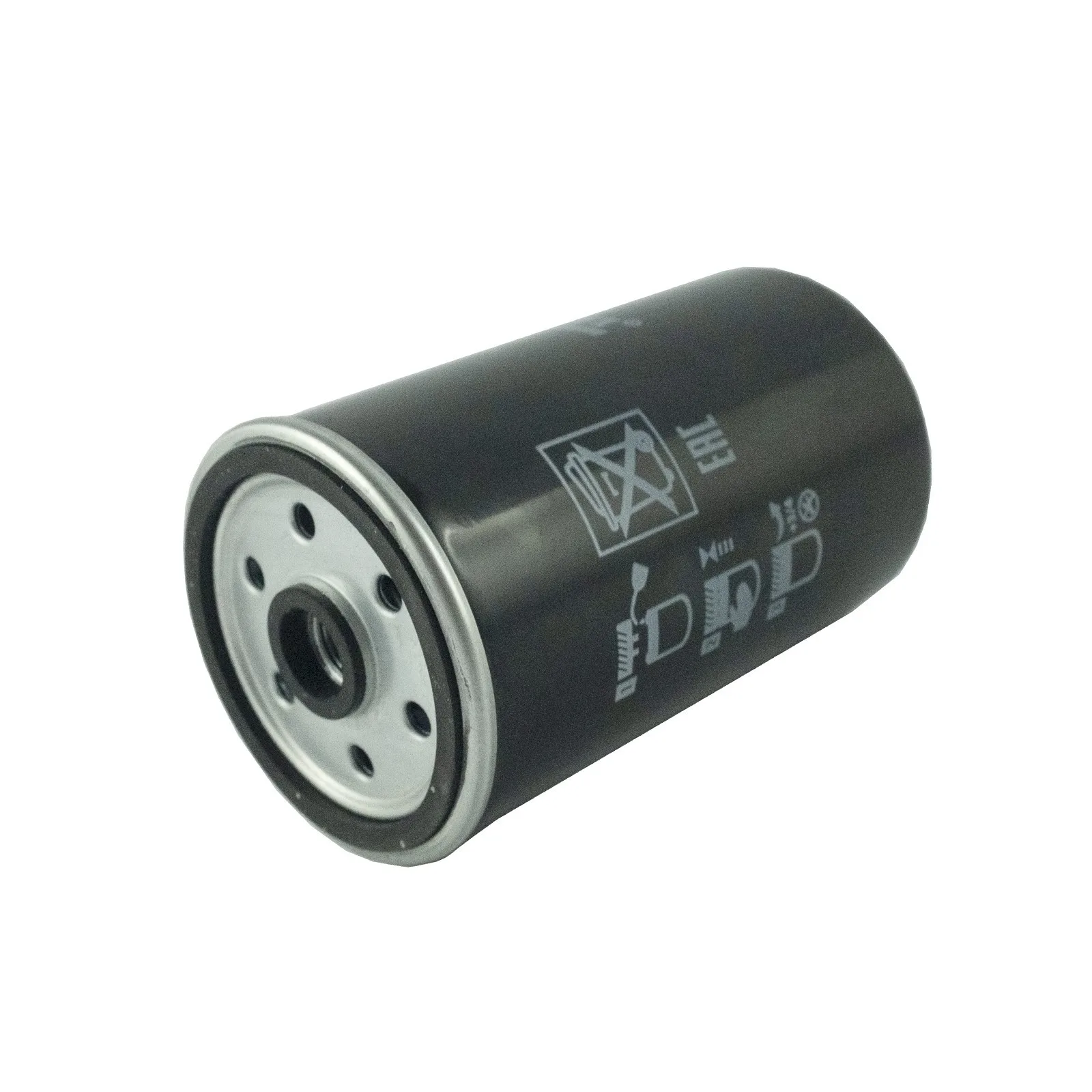

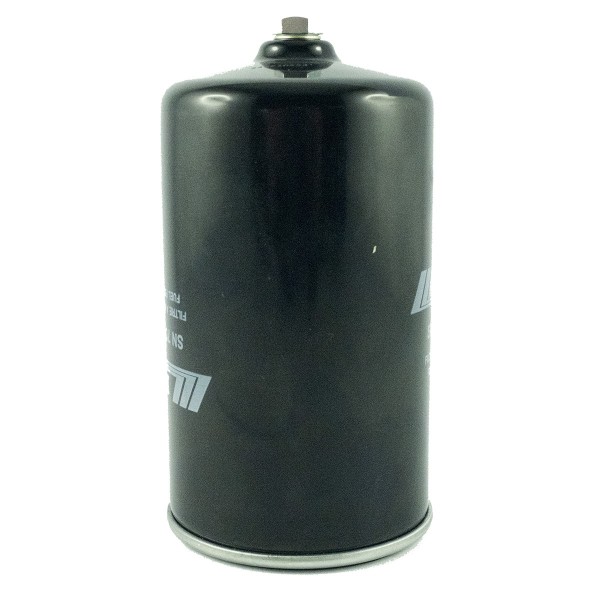

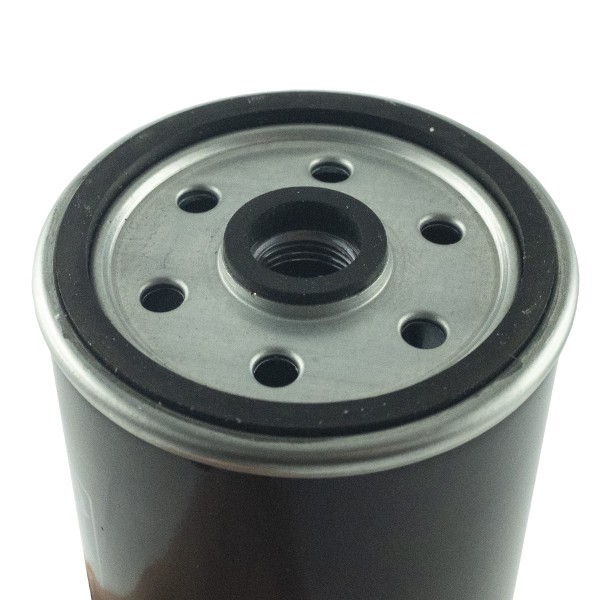

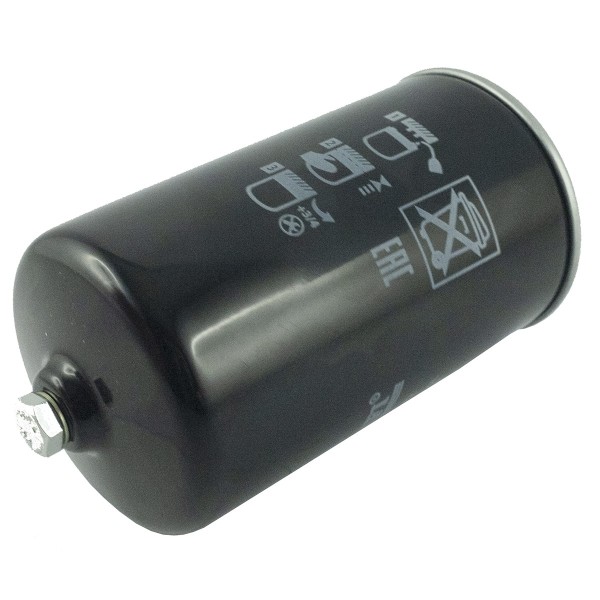

Fuel filter M16x1.5 / M8x1.25, metal, screw-on

Screw-in fuel filter with an outer diameter of 77 mm , a total height of 146 mm with a thread diameter of M16 x 1.5 and M8 x 1.25 for Fent tractors and others.

The fuel filter is one of the most important elements of the fuel system that directly affects the proper operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro-organic impurities. Fuel filters are divided into two main groups due to their application and so we will use a different type of filter for a gasoline engine than for a diesel engine. Regardless of the type of fuel, the filtering material is made of various types of tissue paper based on polyester or cellulose fibers with the addition of synthetic fibers.

Dimensions :

• Outer diameter: 77 m,
• Base diameter: 78 mm,
• Total height: 146 mm,
• Thread: M16 x 1.5 / M8 x 1.25,
• Seal diameter: inner 62 mm, outer 70 mm,
• Comparative numbers: F816200060010, 8.319.3121.610, 7382048 .

A dirty fuel filter restricts the free flow of fuel to the engine and can cause problems when starting the engine or cause the engine to run intermittently. Sometimes a clogged fuel filter will cause the engine to lose nominal power or result in higher fuel consumption.
