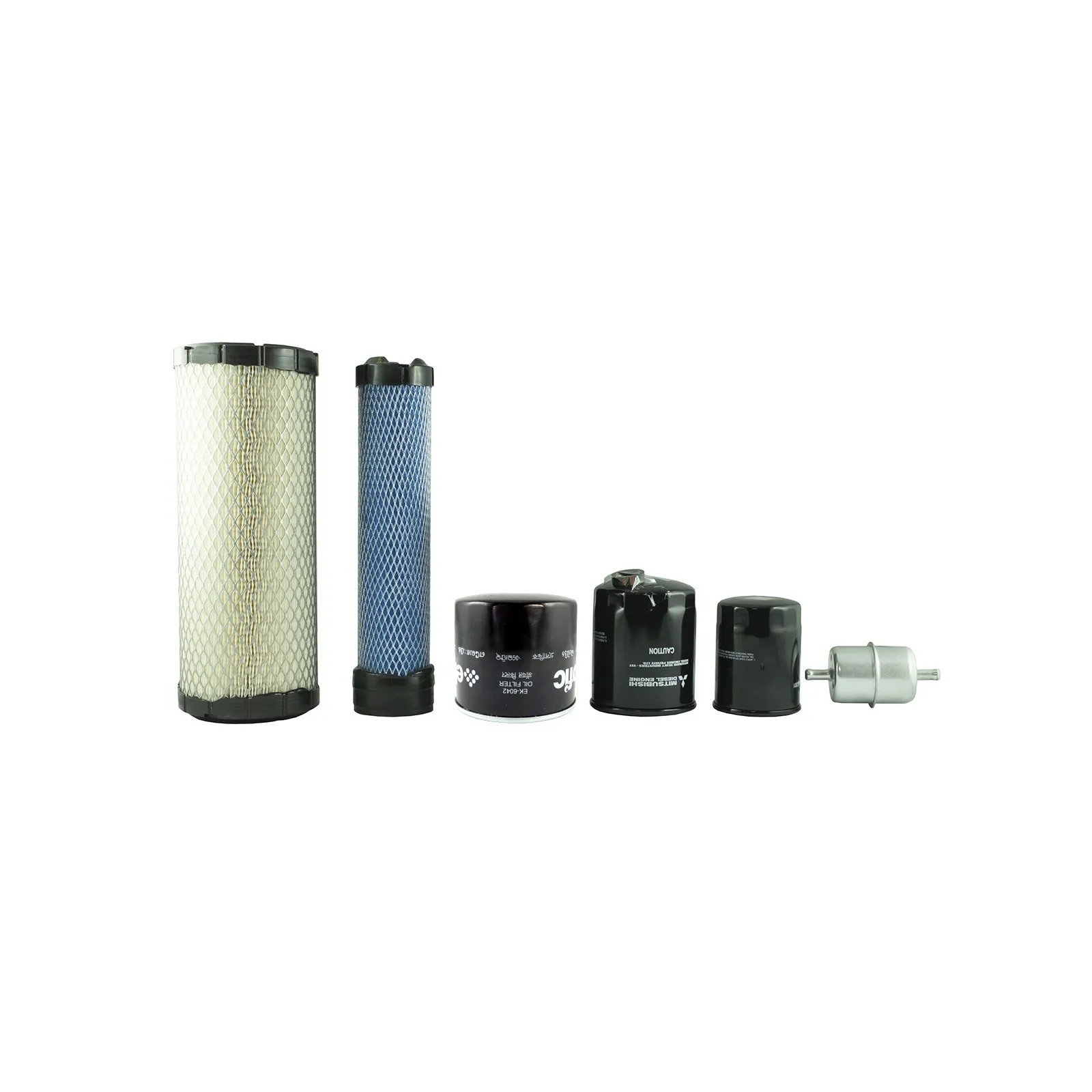

A set of filters for the Startrac 273 tractor, Mitsubishi S3L2 engine

A set of filters for the Startrac 273 tractor, Mitsubishi S3L2 engine.

The filter set is a comprehensive solution designed to ensure optimal operation of engines, hydraulic systems and filtration systems in various automotive and industrial applications. Filter kits are a key part of the maintenance and operation of vehicles and machinery, helping to maintain their efficiency and durability.

Main types of filters included:

Air filter:

• Function: Cleans the air entering the engine from dirt, dust and other particles, which is crucial for optimal engine operation and maintaining its efficiency.
• Properties: High particle retention capacity and resistance to low and high temperatures.

Oil filter:

• Function: Removes contaminants and deposits from engine oil, ensuring effective engine lubrication and protection against wear.
• Properties: High filtration efficiency, resistance to high temperatures and chemical properties of the oil.

Fuel filter:

• Function: Cleans fuel from impurities and water, which is crucial for the proper functioning of the fuel system and prevents damage to injectors.
• Properties: High dirt-holding capacity and resistance to fuel.

Hydraulic filter:

• Function: Filters hydraulic oil in hydraulic systems, eliminating contaminants that can affect the efficiency and durability of components.
• Properties: Resistance to high pressure and temperature fluctuations, high filtration efficiency.

Benefits:

• Maintaining Performance: Regularly replacing filters according to manufacturer recommendations maintains optimal performance of the engine, hydraulic systems and filtration systems.
• Component protection: Filters effectively protect key components from contamination, minimizing the risk of damage and extending the life of devices. Increase
• Efficiency: Good quality filters contribute to better fuel efficiency and reduced exhaust emissions, which affects the overall economy and ecology of vehicle and machine operation.
• Improved safety: Cabin air filtration ensures better air quality inside the vehicle, which increases passenger comfort and safety.

Selecting and purchasing filters:

When choosing a filter kit, it is important to match it to the specifications of your vehicle or machine. It is worth paying attention to:

• Manufacturer's Specifications: Use filters that meet the vehicle or machine manufacturer's recommendations to ensure proper operation.
• Filter Quality: Choose products from reputable manufacturers that ensure high quality filtration and long-term effectiveness.
• Regular Replacement: Following a filter replacement schedule is crucial to maintaining optimal performance and protecting components.

The set includes filters :

• Fuel filter (pre-filter): 39204421.
• Metal fuel filter : 30N62-10701.
• Engine oil filter : 30N40-00201.
• Hydraulic oil filter : 11201246 Elofic EK-6042.
• Internal air filter : 11403023.
• Main air filter : 11403300.

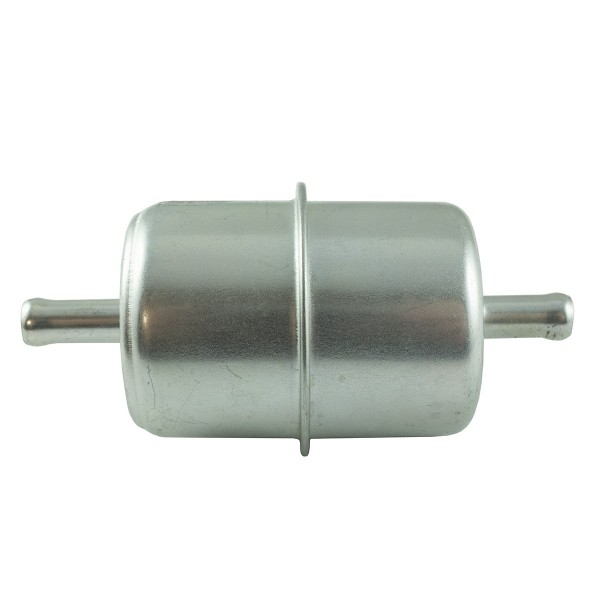

Fuel filter (prefilter) 39204421 :

• Diameter: 44 / 51 mm.
• Total length: 102 mm.
• Connection diameter: external: 8 mm, internal: 7 mm.

Metal fuel filter 30N62-10701 :

• Height: 102 mm.
• Diameter: 80 mm.
• Base diameter: 83 mm.
• Thread: 3/4"-16UNF, 17.50 mm.
• Seal diameter: external: 64 mm, internal: 52 mm.
• Weight: 0.400 kg.
• Reference numbers: SN 25146.
• Additional seal included.

Engine oil filter 30N40-00201 :

• Height: 85 mm.
• Diameter: 65 mm.
• Base diameter: 68 mm.
• Thread: M20X1.5, 18.40 mm.
• Seal diameter: external: 62 mm, internal: 54 mm.
• Weight: 0.240 kg.
• Reference numbers: T 8307.

Hydraulic oil filter 11201246 / Elofic EK-6042 :

• Height: 75 mm.
• Diameter: 80 mm.
• Base diameter: 83 mm.
• Thread: M18, 17.50 mm.
• Seal diameter: external: 65 mm, internal: 55 mm.
• Weight: 0.400 kg.

Internal air filter 11403023:

• Height: 262 / 257 mm.
• Outer diameter: 58 / 55 mm.
• Inner diameter: 44 mm.
• Weight: 0.140 mm.

Main air filter 11403023 :

• Height: 267 mm.
• Outer diameter: 105 mm.
• Inner diameter: 63 mm.

Tractor models :

• Startrac 273.

Engine models :

• Mitsubishi MVS3L2-Zb62CT.
