zł50.00
To order
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Kubota D1463
Kubota D1703
Kubota D1703
Tractor models
- Kubota L3200
Kubota L3408
Kubota L3408
Number of blades (pcs.)
7
Height (mm)
40
Cooling fan / Ø380 mm / Kubota D1463/D1703 / Kubota L3200/L3408 / 6-14-201-01
6-14-201-01
Do you have any questions?
Cooling fan / Ø380 mm / Kubota D1463/D1703 / Kubota L3200/L3408 / 6-14-201-01

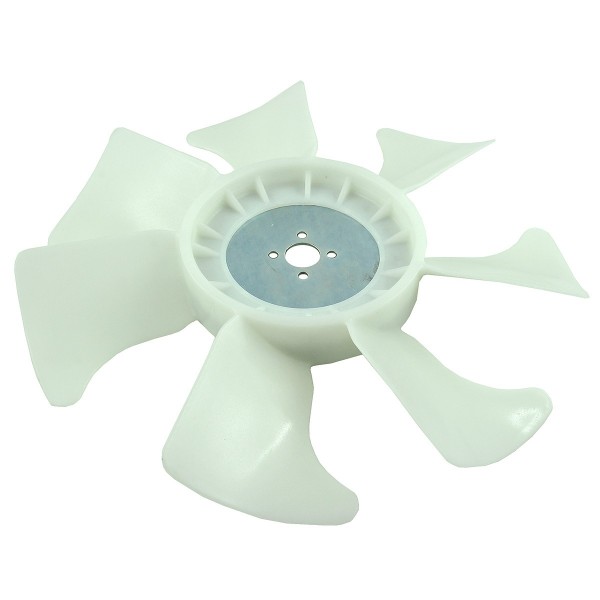

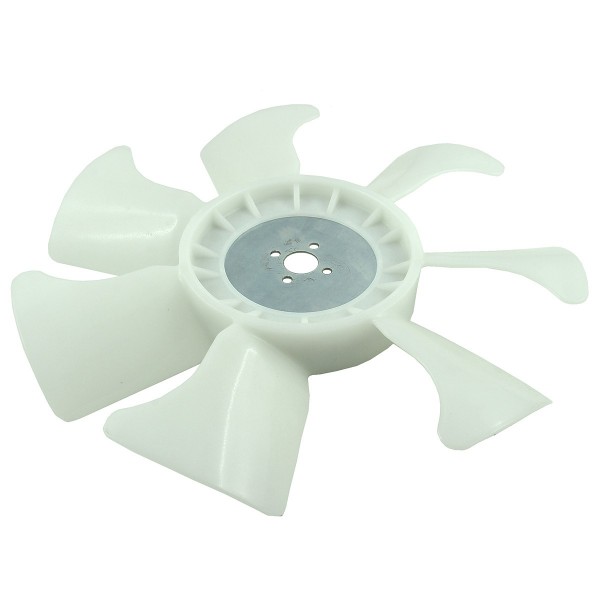

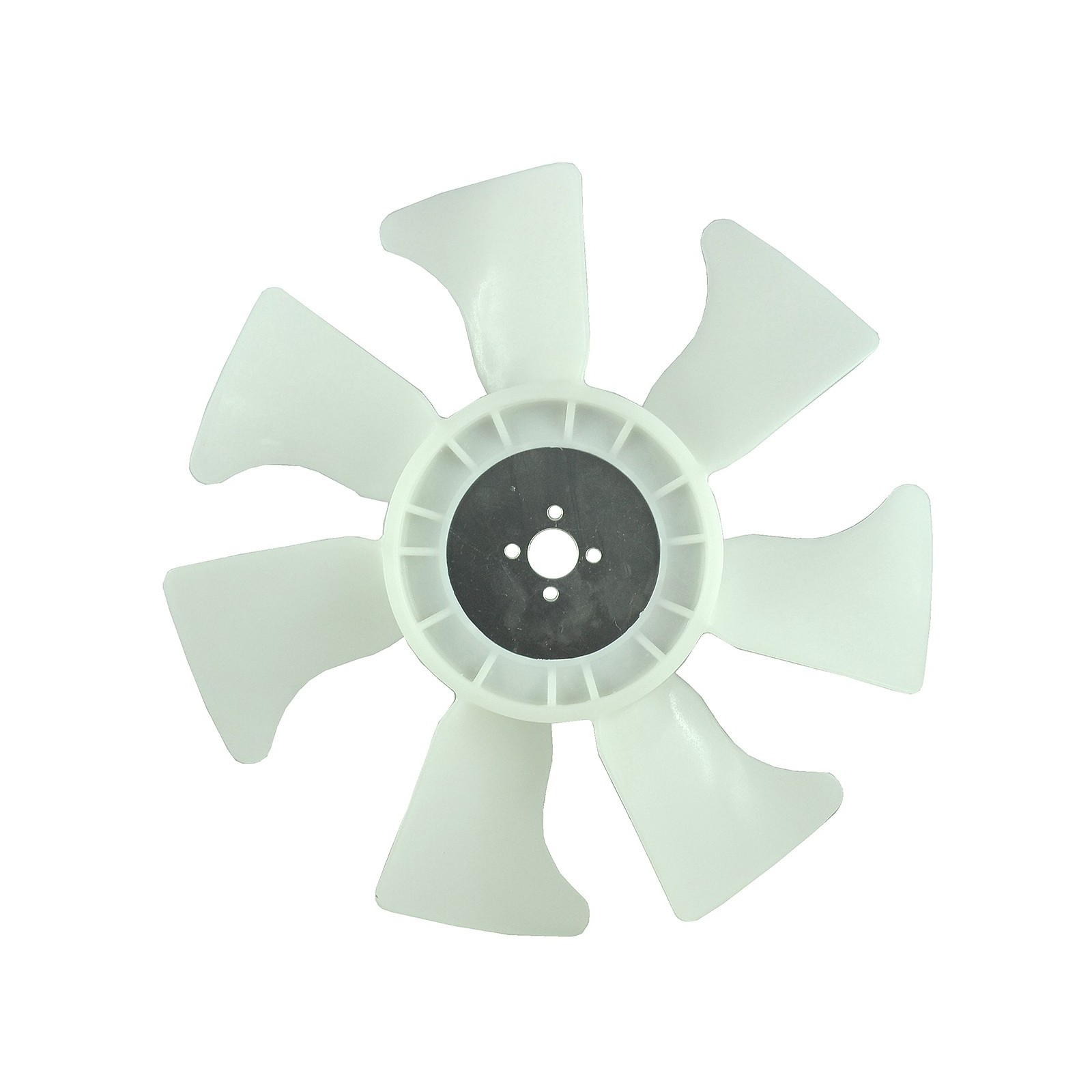

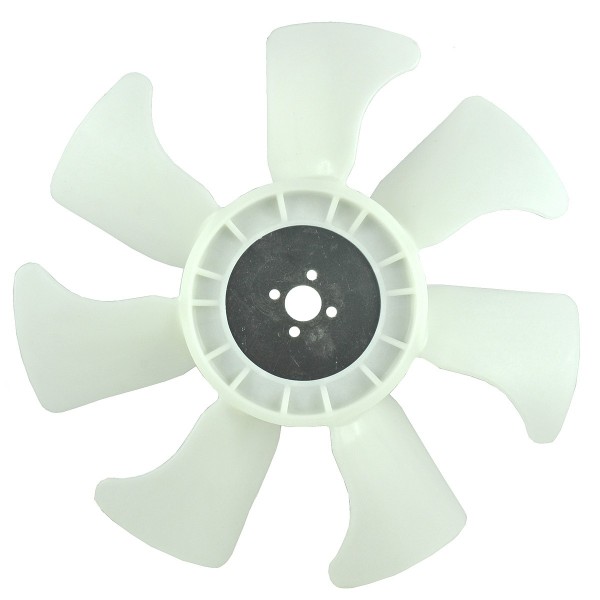

Fan impeller with an outer diameter of 380 mm for Kubota tractors of the Kubota L3200 , Kubota L3408 series with Kubota D1463 , Kubota D1703 and other engines.
The fan fan is a replacement part of the radiator fan, which naturally wears out or is often damaged as the device works. The main task of the fan fan is to accelerate the cooling process of the coolant in the radiator. Increased airflow is created during the operation of the fan, the fan of which is screwed to the flywheel of the water pump
Dimensions :
- outer diameter: 380 mm,
- central hole diameter: 24 mm,
- diameter of mounting screw holes: 6.50 mm,
- mounting screw hole spacing: 40 mm (measured diagonally), 28 mm (measured from each other),
- height: 40 mm,
- number of blades: 7 pcs.
- original part numbers: 34030-16210 , 34070-16210,
- part numbers: 6-14-201-01.
The most common damage to the fan impeller is mechanical damage resulting from collisions, but the fan also suffers damage while operating the machine in difficult road conditions, e.g. heavy dust, sandy ground, mud.
Magazine : M01:K13:K16
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: K13:K16
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
- Kubota D1463
Kubota D1703
Kubota D1703
Tractor models
- Kubota L3200
Kubota L3408
Kubota L3408
Number of blades (pcs.)
7
Height (mm)
40
Outer diameter (mm)
380
Center hole diameter (mm)
24
Mounting bolt(s) hole diameter (mm)
6.50
Comparison numbers
34070-12010
Original Part Number (OEM)
34030-16210
