Engine Valves / IN / EX / Mitsubishi K3C / VST MT180 / MT224

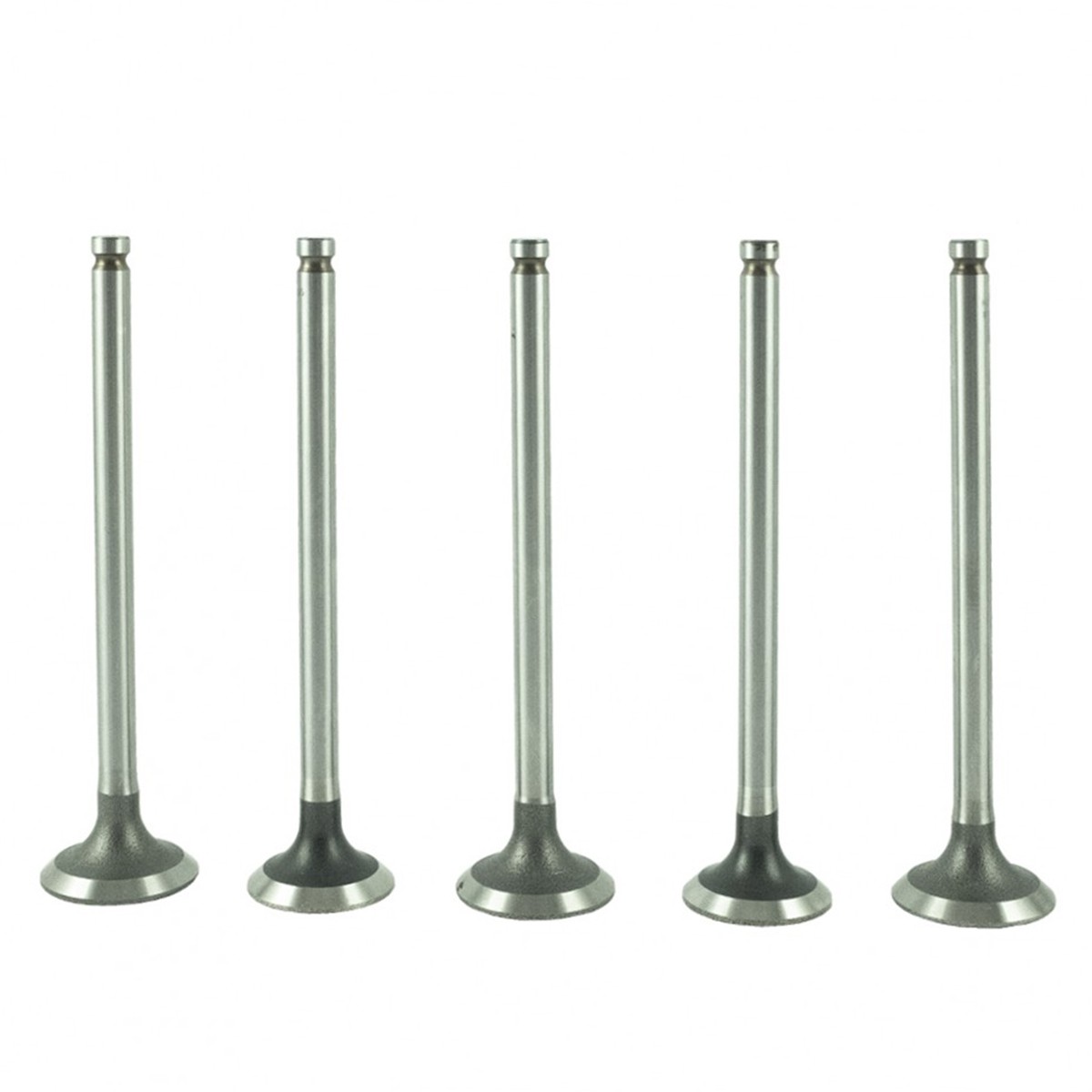

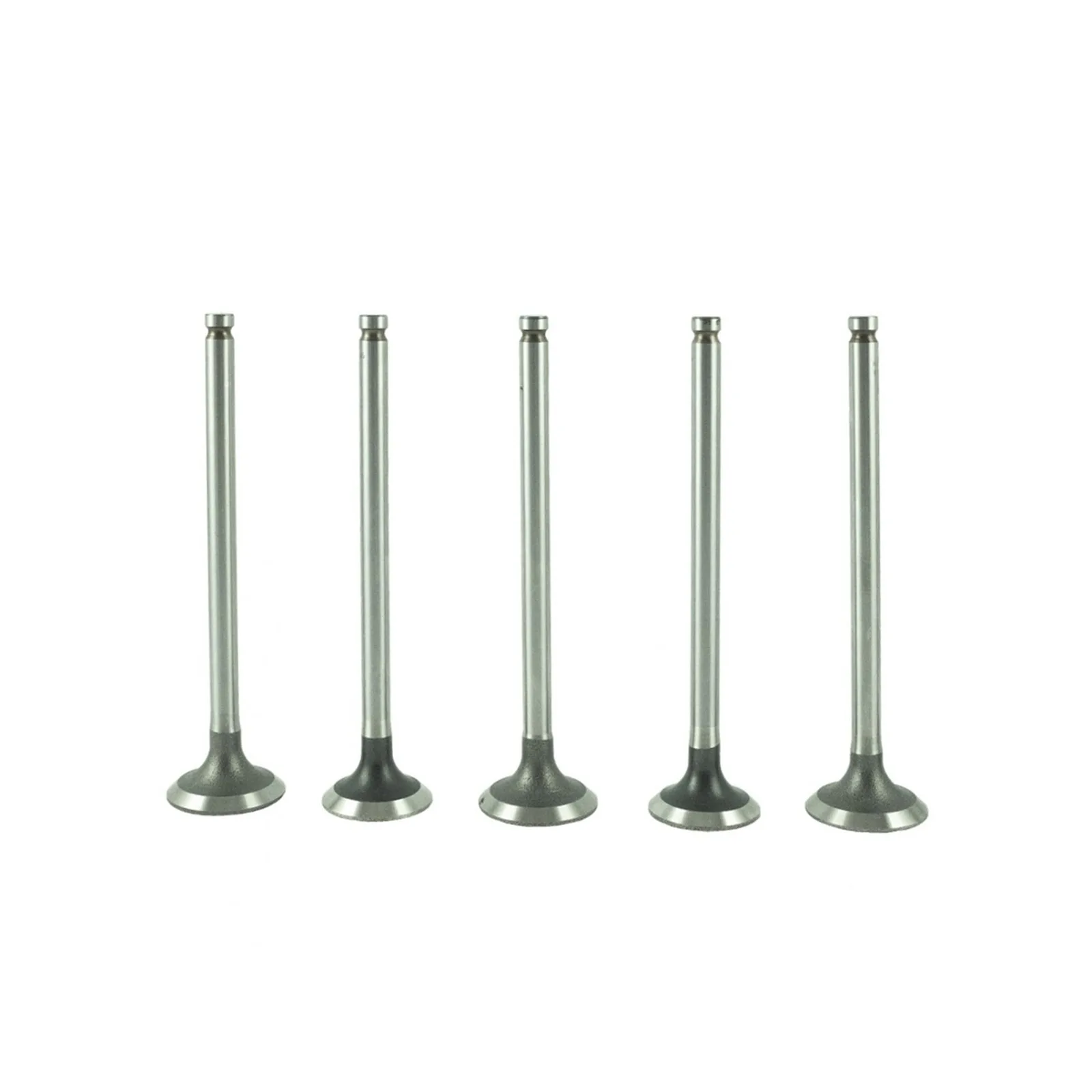

Set of 5 valves (3 inlet, 2 outlet) Mitsubishi VST K3C engine with a length of 114.50 mm and a piston diameter of 27.20 (IN) / 25.20 (EX) for VST tractors of the VST MT180 and VST MT224 series.

Engine valves are components that are located in the head (overhead valve engine) or engine block (bottom valve engine) and their main task is to properly control the flow of air, fuel-air mixture and exhaust gases. We distinguish two types of valves:

• intake valves are responsible for opening the chamber in order to draw in the appropriate amount of fuel mixture,
• exhaust valves, responsible for removing gases generated during engine operation from the chamber.

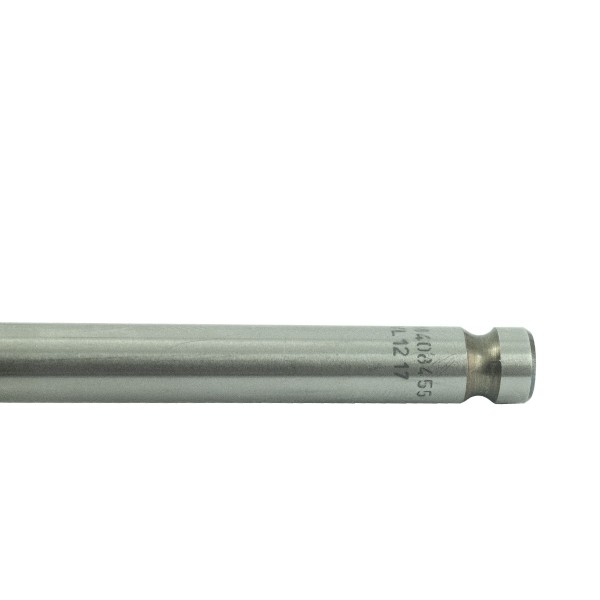

The valves consist of a rod with a plate at the end and are cast in one piece. The engine valves are made of special steel resistant to extremely high temperatures created during fuel combustion, so-called heat-resistant steel.

Dimensions :

• height: 114.50 mm,
• shaft diameter: 6.50 mm,

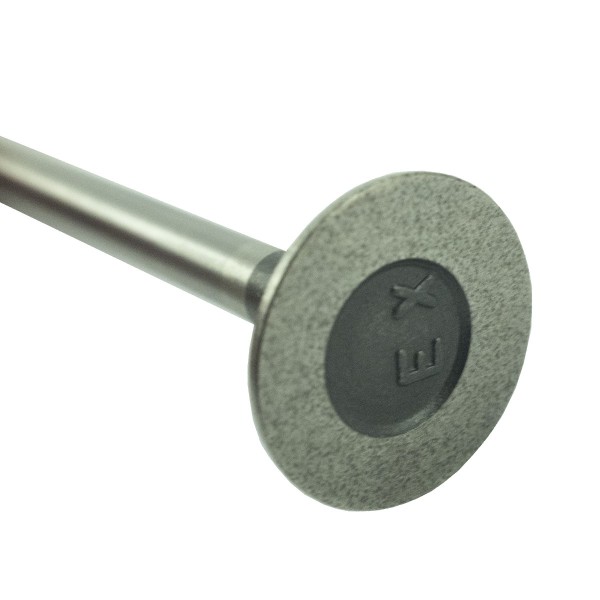

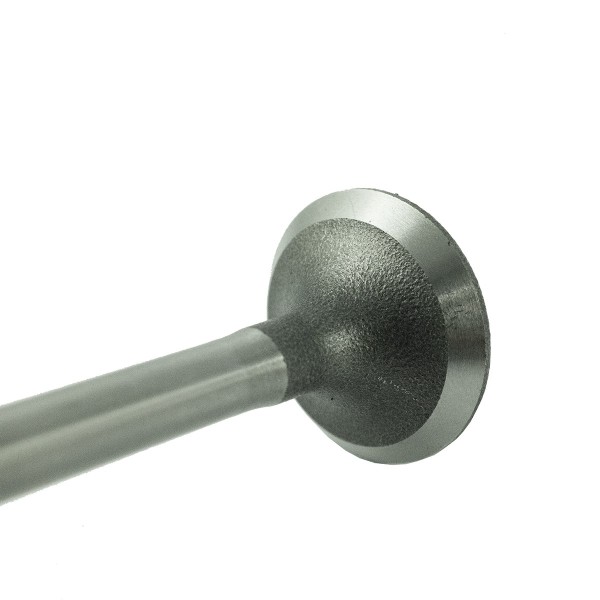

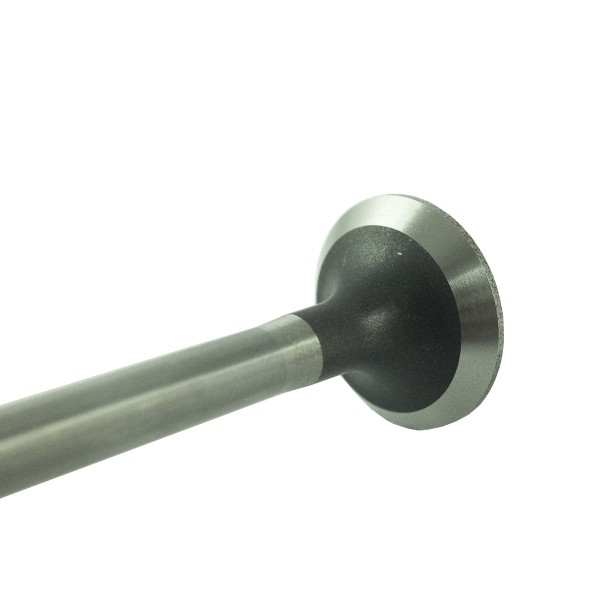

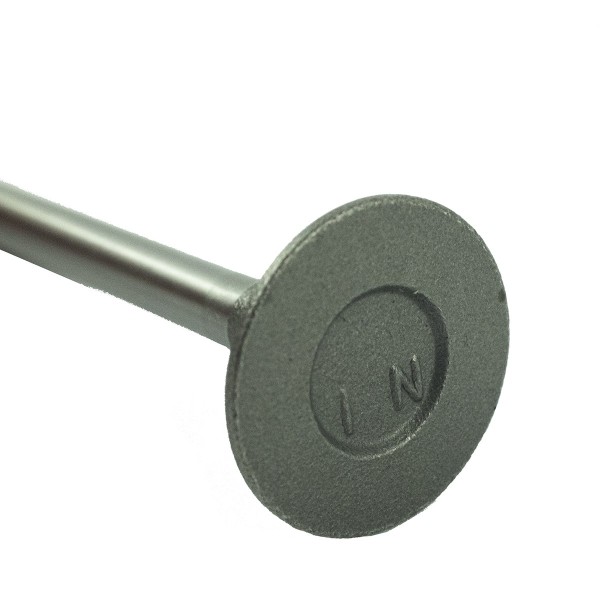

• mushroom diameter: 27.20 mm (IN), 25.20 mm (EX).
• part number: BEF97C00000A1.

Tractor models :

VST :

• VSTMT180 ,
• VSTMT224 .

Engine models :

VST:

• VST K3C.

Engine valves are components that wear out when working in difficult conditions and under the influence of high temperatures. The most common valve damage is valve stem abrasion and carbon deposits. Valve deposits are the result of using low-quality oil, and valve head wear causes leaks in the system and loss of engine power.

Magazine: M01:C34:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
