Engine oil filter 75 x 80 mm, M20x1.5 Mitsubishi D, Satoh D, Yanmar YM, Ke

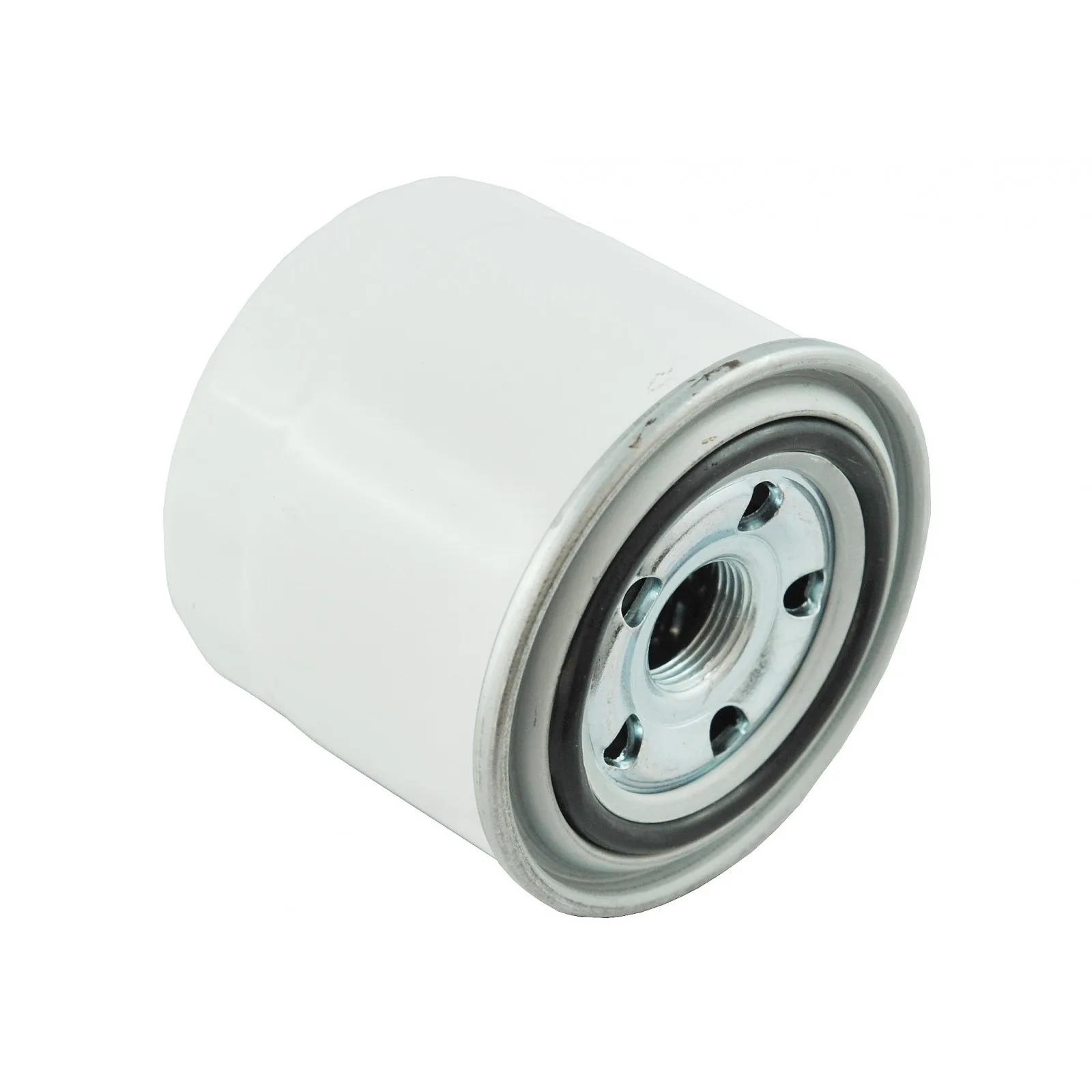

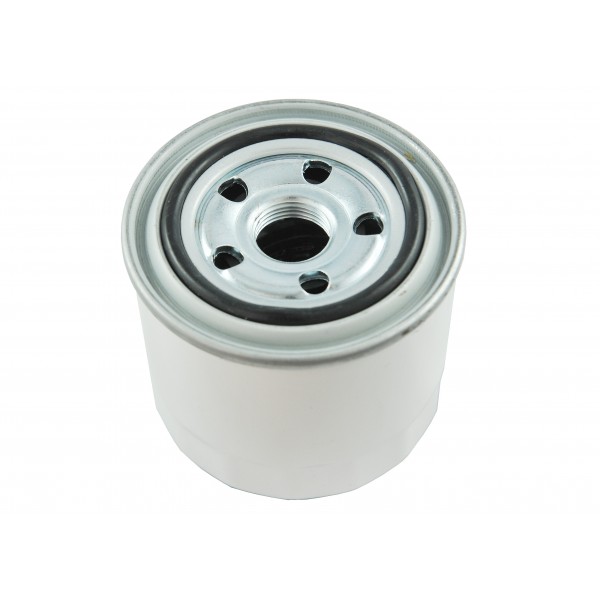

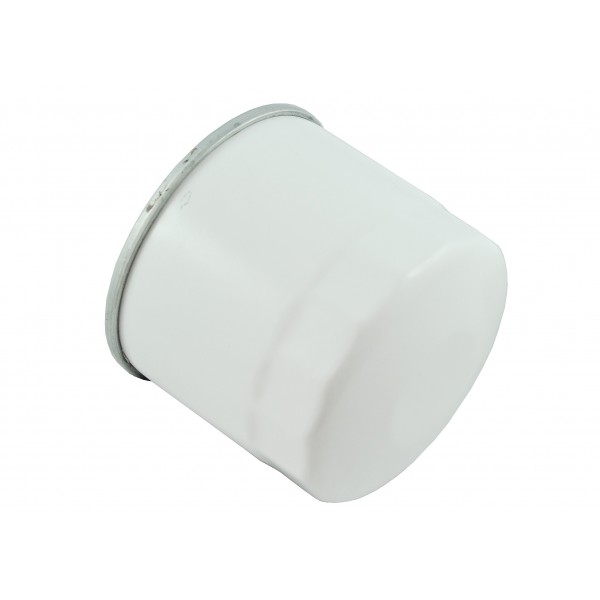

Engine oil filter , dimensions 80x75 mm, with M20x1.5 thread for Japanese tractors and mini tractors of Mitsubishi D series, Satoh D series, Yanmar Ke series, YM and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Dimensions :

• Height: 75 mm,
• Diameter: 80 mm,
• Base diameter: 84 mm,
• Seal diameter: external 63 mm, internal 55 mm,
• Thread: M20x1.5, 18.30 mm,
• Comparison numbers: MD001-445, T7311 ,

Tractor models :

Mitsubish and:

• Mitsubishi D 2650,
• Mitsubishi D 2650FD,

Yanmar:

• Yanmar YM2000,
• Yanmar Ke140,

Warehouse :
M01:F53
