Bearing / 32 x 1.50 mm / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / LS MTLS XJ25 / S443080013 / nr 40029131

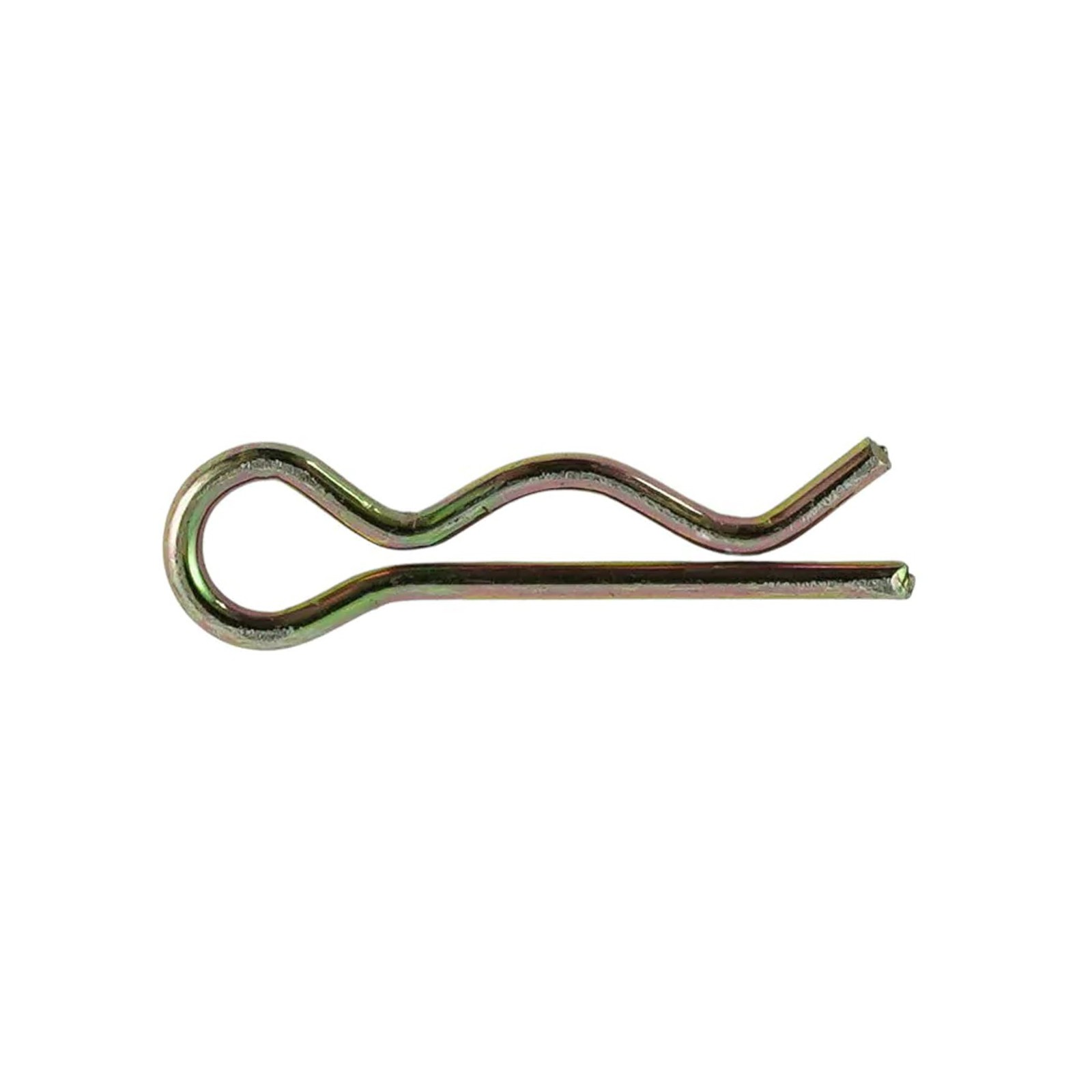

32 mm long, 1.50 mm diameter cotter pin for LS Tractors LS XJ25 series and others. For locking:

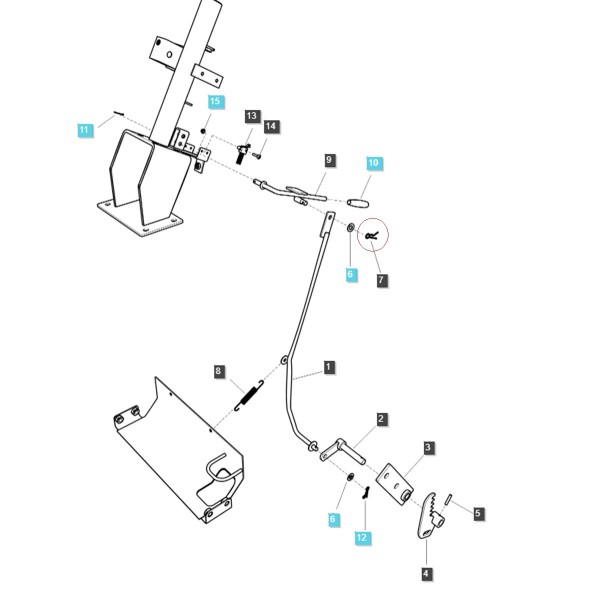

• HST pedal lever pin,

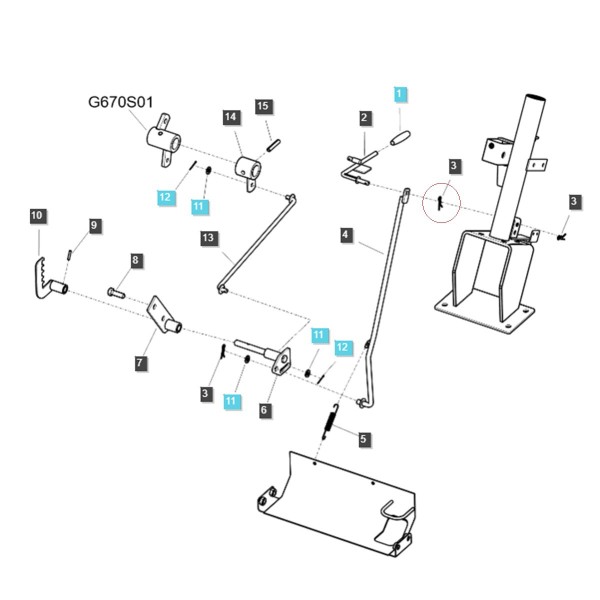

• parking brake lever,

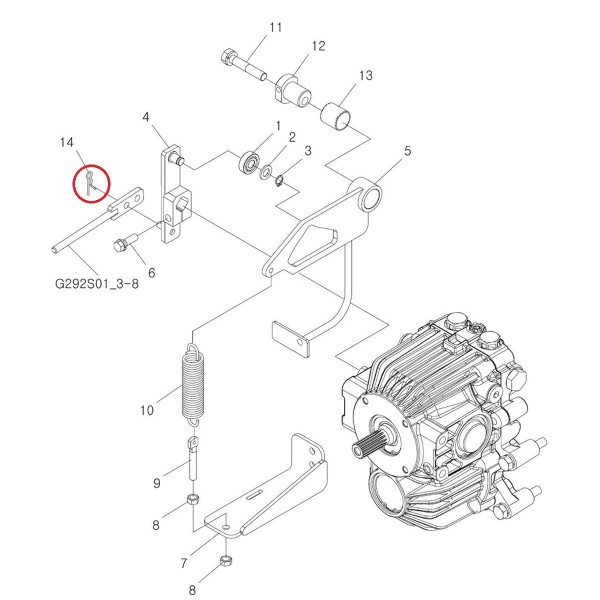

• three-point linkage lift lever,

A locking cotter pin is a component that prevents slipping, sliding, or displacement of components connected by pins or other elements placed on shafts, shaft axes, or other components. Locking cotter pins are also used to secure nuts against self-loosening. A locking cotter pin is most often made of wire with a semicircular cross-section. A locking cotter pin almost always has an eyelet, and the ends of the cotter pin are always beveled in opposite directions. Cotter pins are used only in components that are not subjected to significant pressure or rotational forces.

Dimensions :

• length: 32 mm,
• diameter: 1.50 mm,
• part numbers: S443080013, 40029131.

Tractor models :

• LS MT1.25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,
• LS XJ25.

Warehouse : L01:B343

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
