Tractor models
Kubota L3608
Overall length (mm)
1070
Armor length (mm)
1020
Cable length (mm)
1070
Go to full specification >

Tachometer cable 1070 mm - Kubota L3608

OBMT14
5907500957801
zł49.00
Tax included PL 23%

39,84 netto

  • Dostępność (5 Quantity): stock

Do you have any questions?

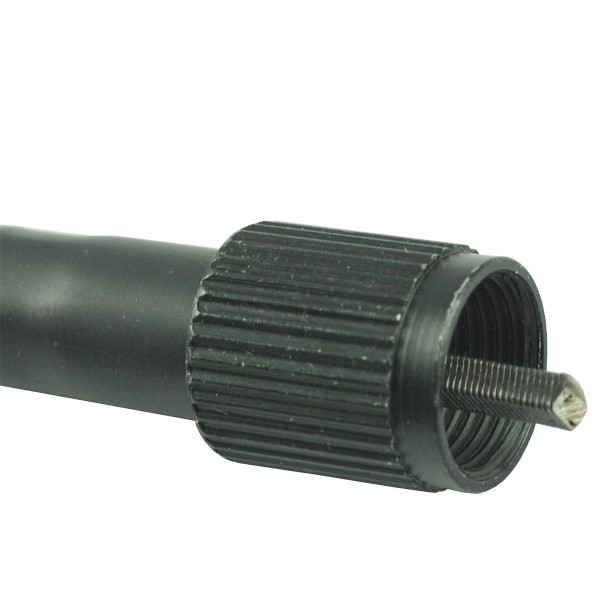

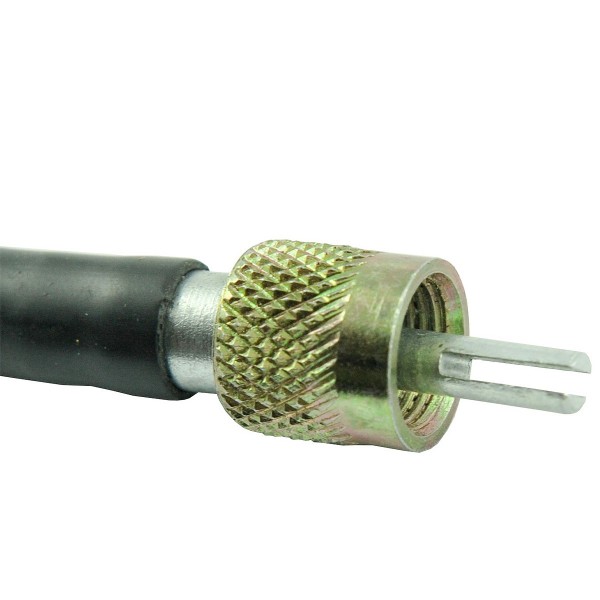

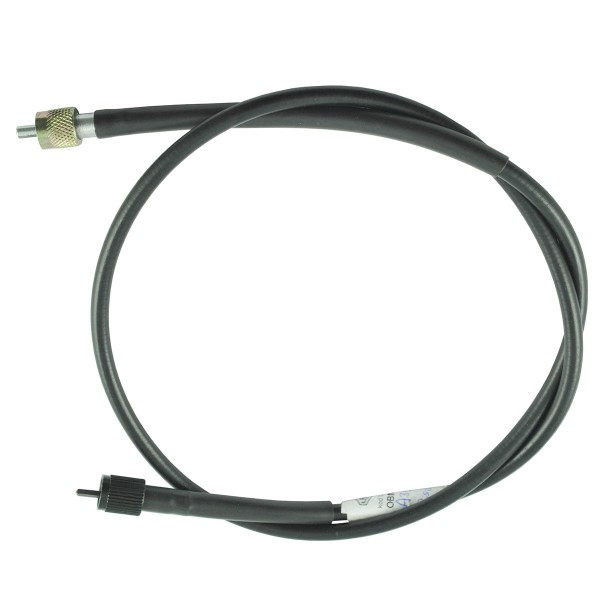

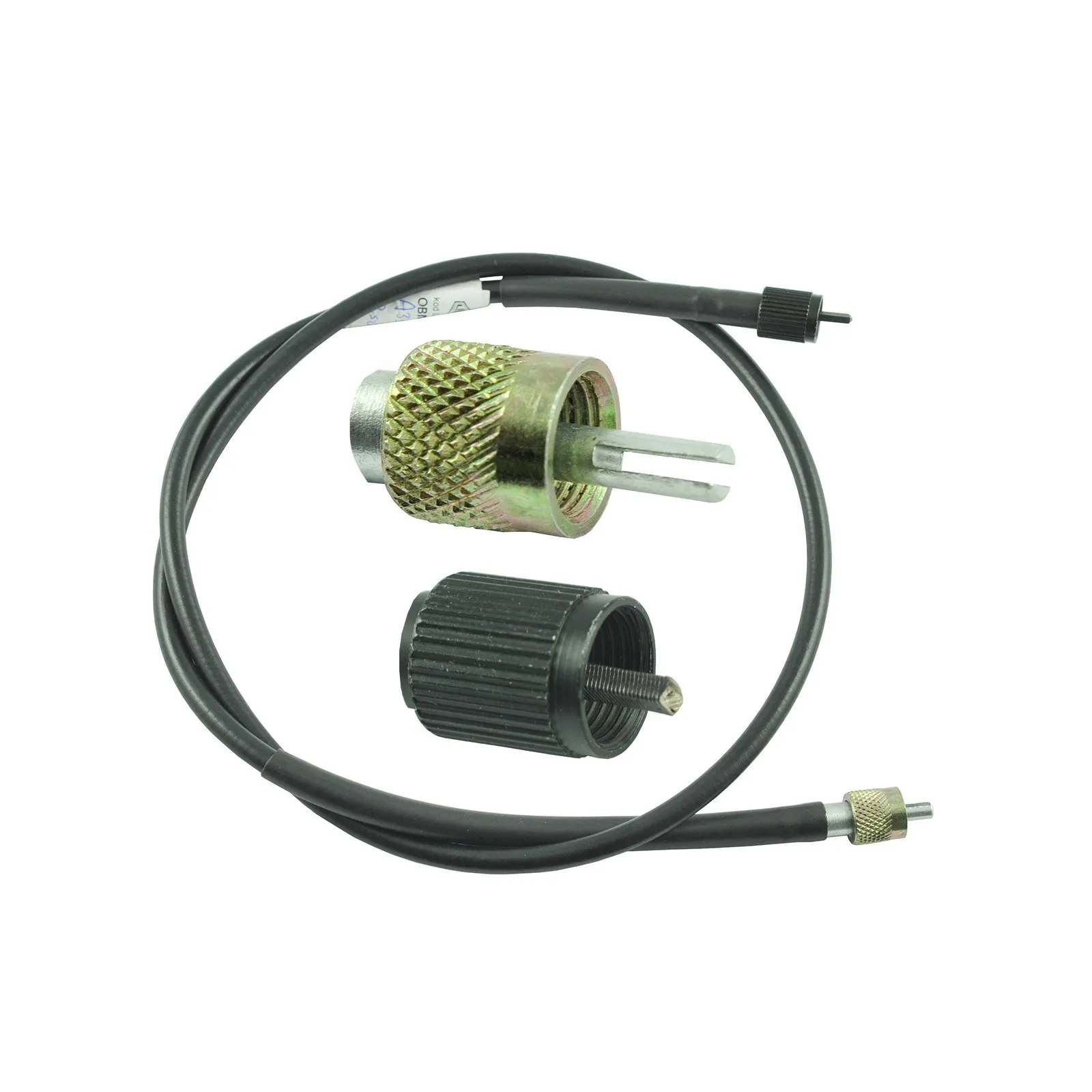

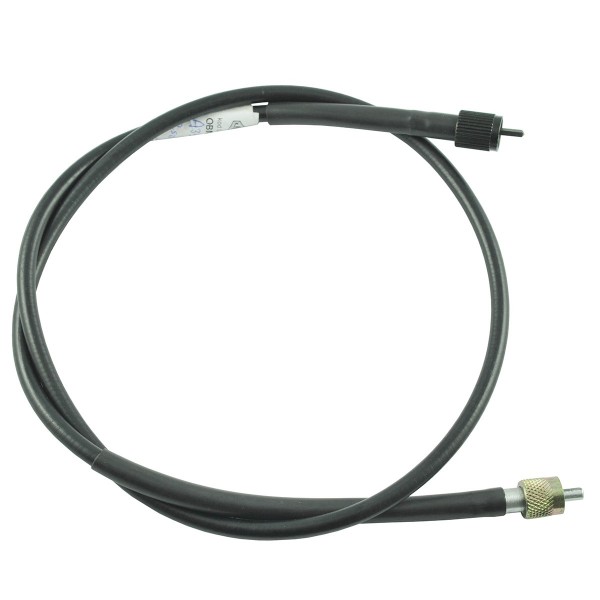

Tachometer cable 1070 mm - Kubota L3608

Counter cable with a total length of 1020 mm for Kubota tractors of the Kubota L3608 series and others.

The tachometer cable is designed to indicate the current value of the engine speed, tractor speed and the operating hours. This is possible thanks to the counter cable, which connects a special mini gearbox with the counter on the tractor's dashboard. The flexible rotating cable placed in the casing transfers the revolutions to the counter magnet, which also rotates. The rotating magnet generates a magnetic field that rotates the drum with an attached pointer indicating the current rotation speed and the number of operating hours.

Dimensions:

  • length of the armour with rivets: 1020 mm,
  • rope length: 1070 mm,
  • total length: 1070 mm,
  • armor diameter: 7 mm,
  • rope diameter: 3 mm,
  • cylindrical tip diameter: 4.30 mm,
  • square tip: 2.50 x 2.50 mm,
  • thread: M10 / M12,
  • original part numbers: TC422-34653,
  • comparison numbers: 5-25-123-18 ,
  • part numbers: OBMT14,

Tractor models :

Kubota :

  • Kubota L3608.

The counter cable rotates in the casing at a relatively low speed and therefore the speed indication may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is a lack of response, vibrations of the pointer while the engine is running.

Warehouse :
M01:A36:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years

Specification

Magazyn: K18:B24:S04
Condition
New
Production
Substitute
Parts
Links
Tractor models
Kubota L3608
Overall length (mm)
1070
Armor length (mm)
1020
Cable length (mm)
1070
Armor diameter (mm)
7
Cable diameter (mm)
3.00
Comparison numbers
5-25-123-18
Original Part Number (OEM)
TC422-34653
Part number
OBMT14
Type of rope
Tachometer cable
Thread 1
M10
Thread 2
M12
Cylindrical tip diameter (mm)
4.30
Square tip diameter (mm)
2.50
