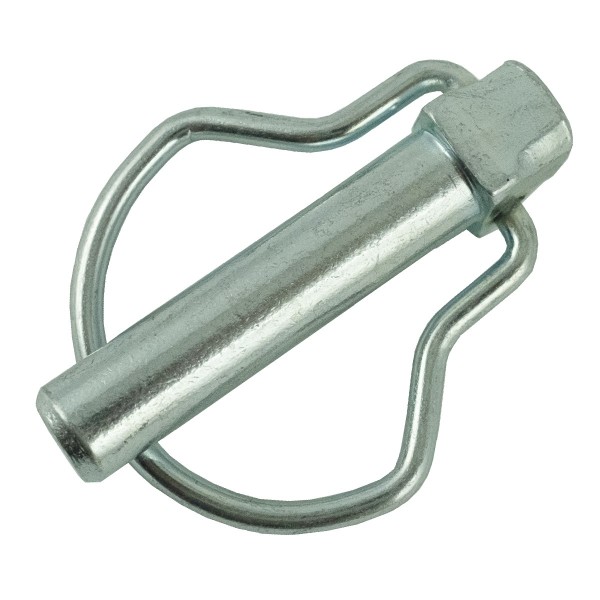

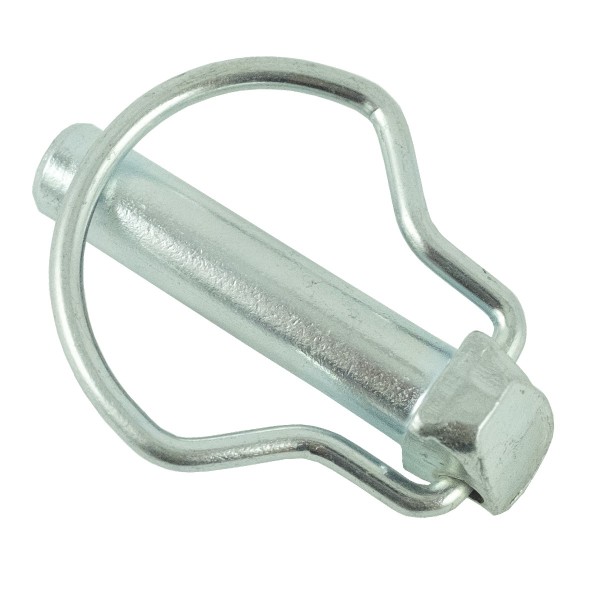

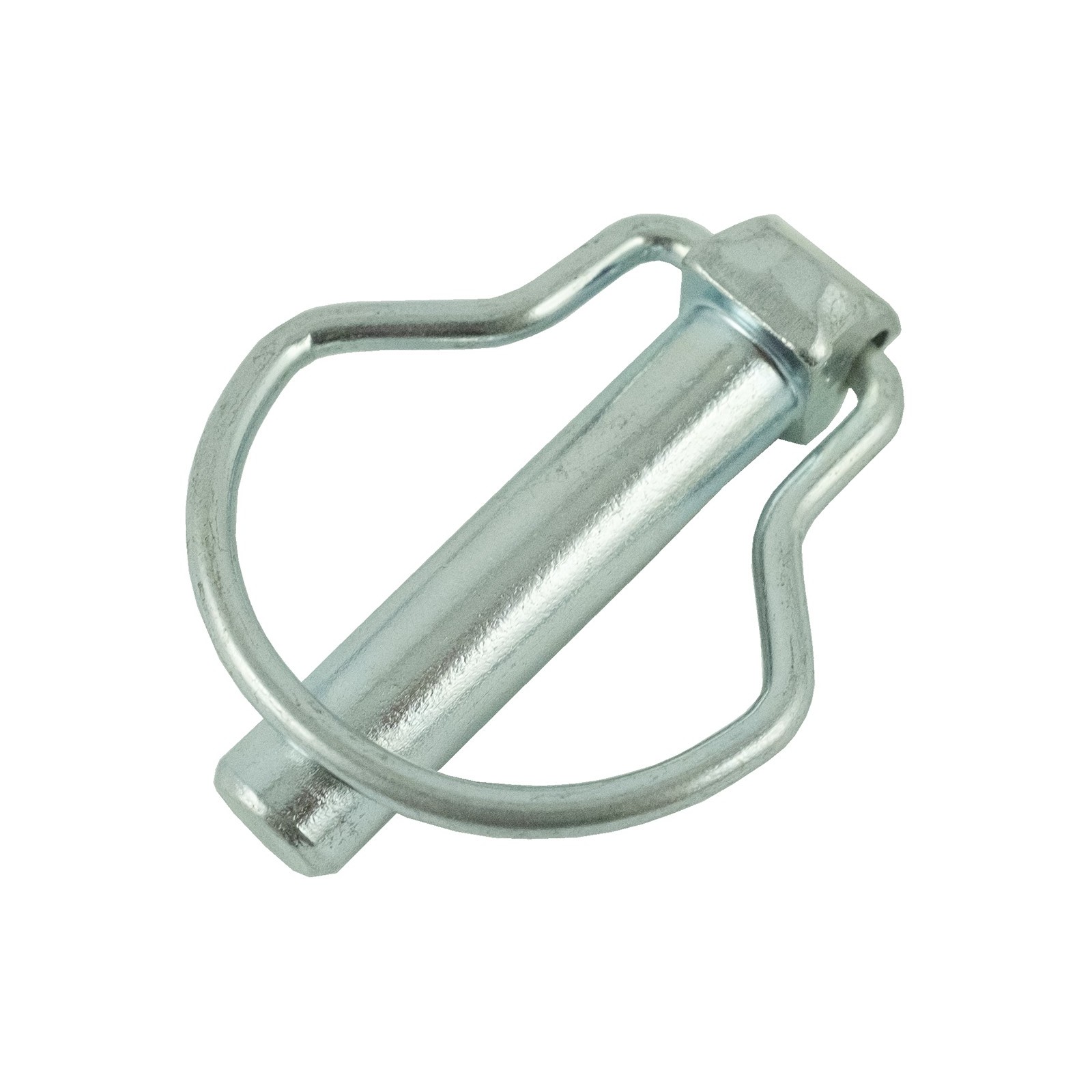

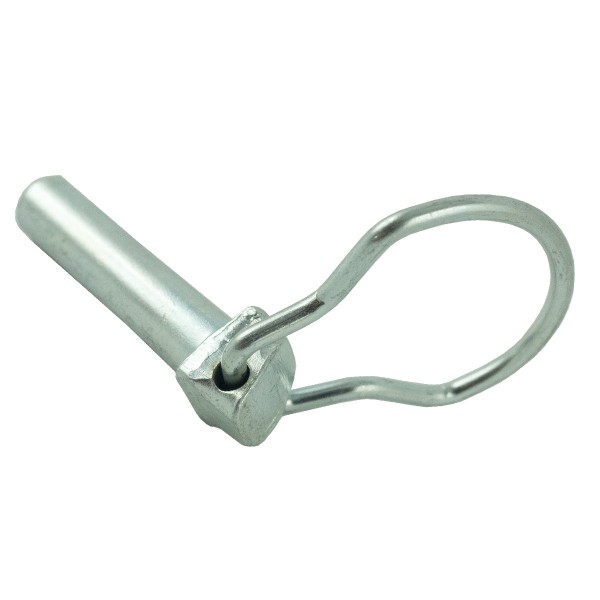

Cotter pin / CAT I / 56.50x10.50 mm

CAT I cotter pin with locking ring, working length 44.50 mm , diameter 10.50 mm.

A locking pin with a safety catch is an element that prevents slipping, sliding or moving of elements connected by means of pins or other elements placed on shafts or shaft axes and others.

The 10.50 x 36.5/65.0 mm pear-shaped ring cotter pin is a reliable element of the PTO mechanism, used in agricultural machinery. Thanks to its durability and precise workmanship, it ensures a safe connection in drive systems. The diameter of 10.5 mm and the length of 36.5/65 mm make it a universal choice for many machine models. Made of high-quality materials, it ensures long-term operation and resistance to loads. The pear-shaped cotter pin is an ideal solution for drive systems that require reliable connections and easy assembly and disassembly.

Dimensions :

• total length: 56.50 mm,
• length without head: 45.50 mm,
• working length: 36 mm,
• diameter: 10.50 mm,
• part numbers: S.89.

Safety pins with ring, a safety pin is a smaller diameter shaft with a locking ring, the purpose of which is to protect the pin from spontaneously falling out during machine operation.

Magazine : M01:C16

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
