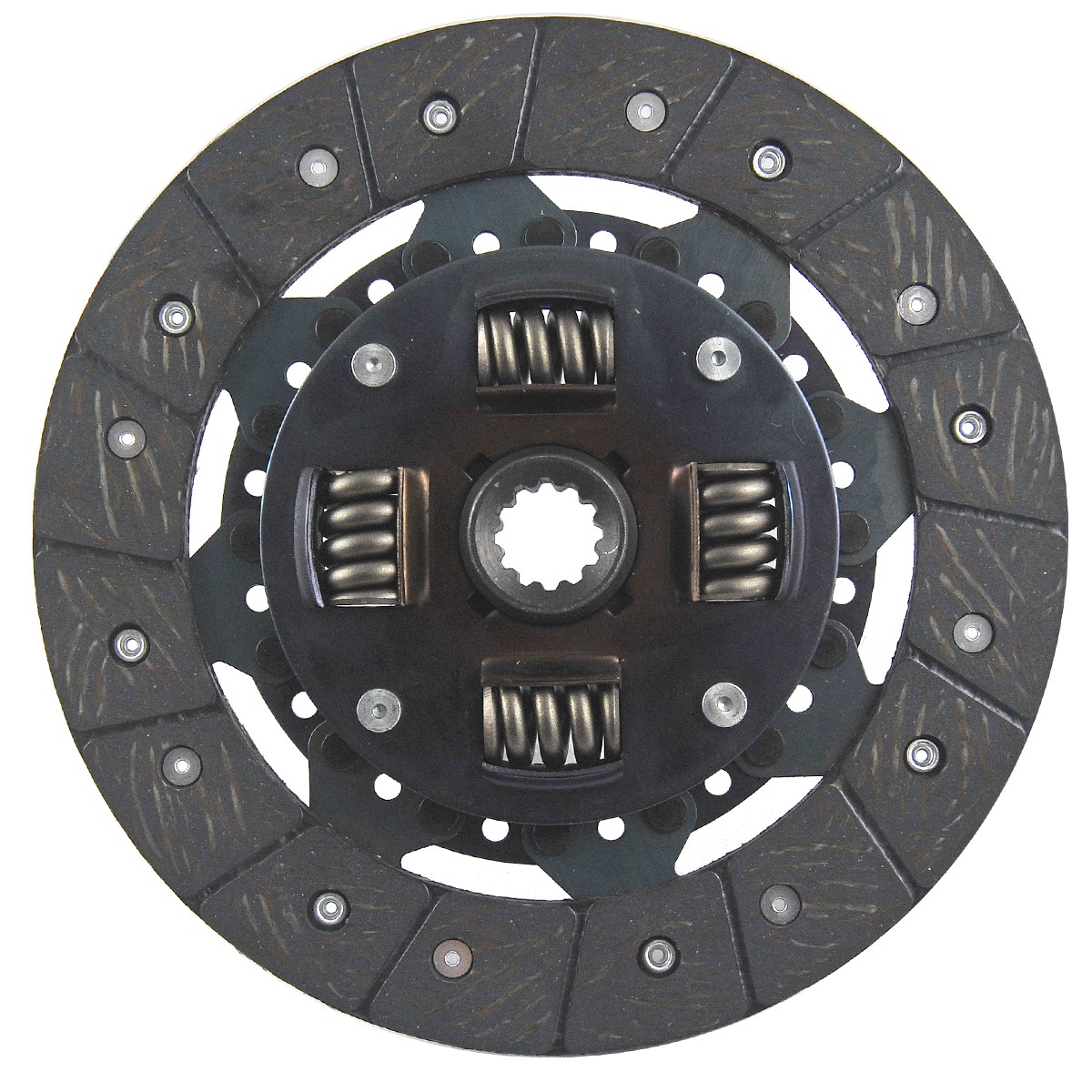

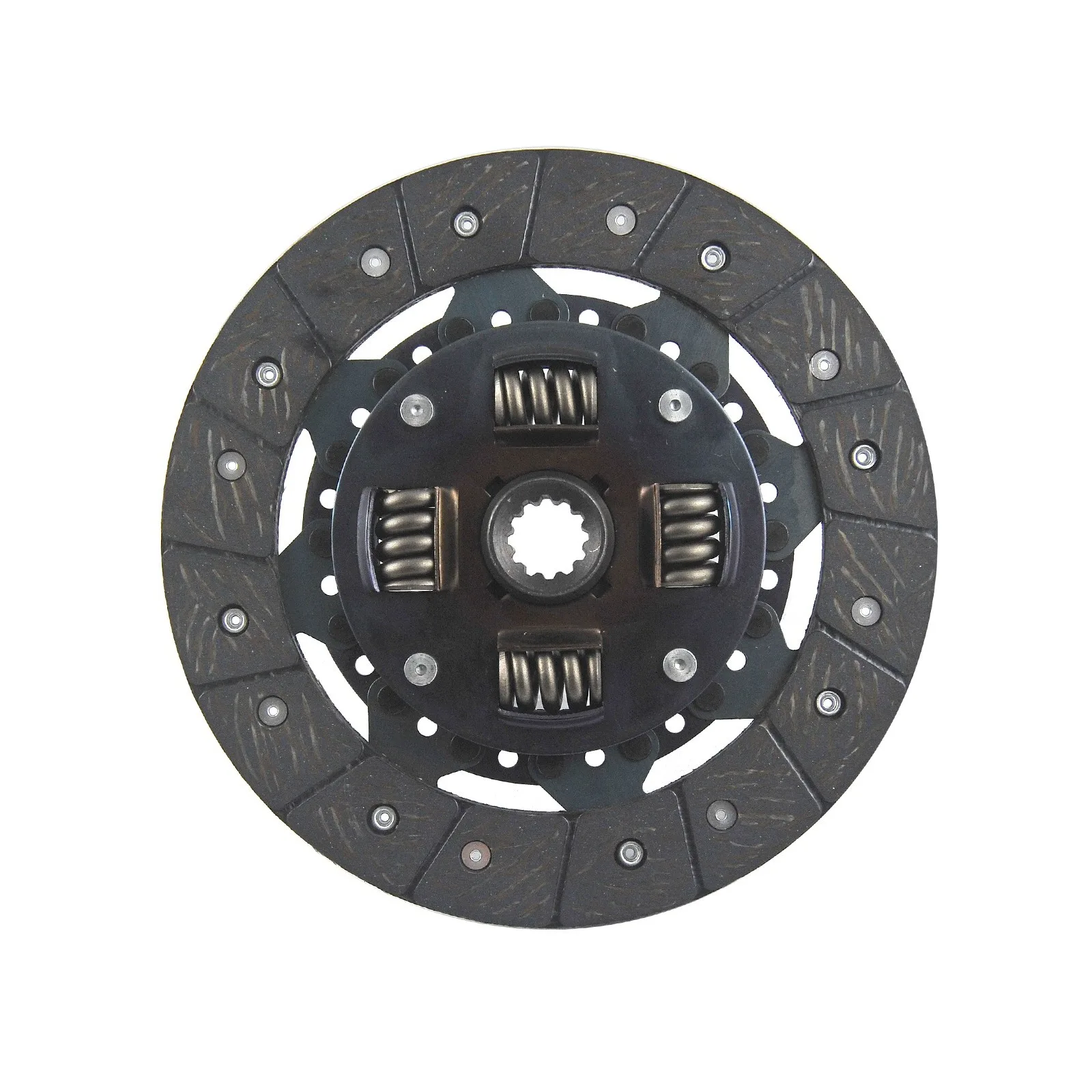

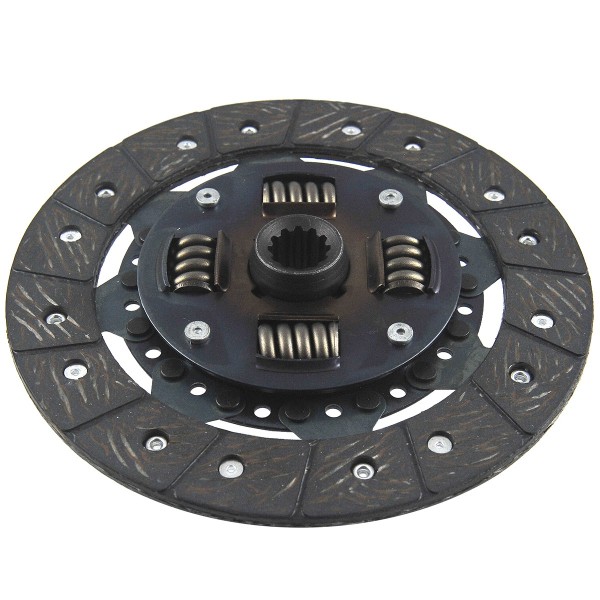

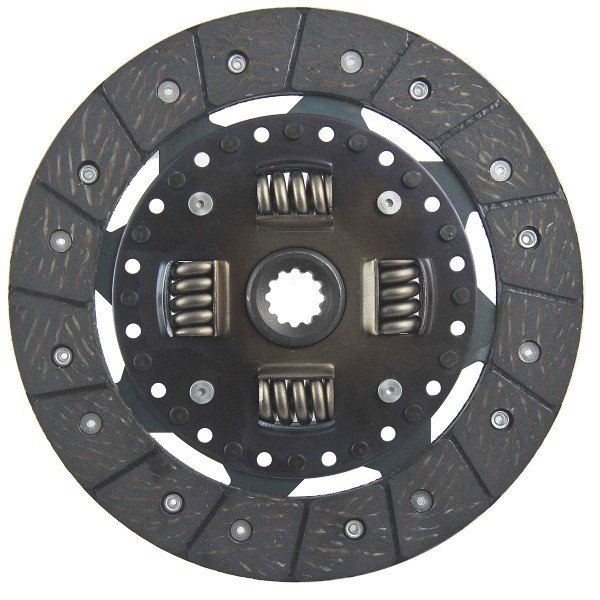

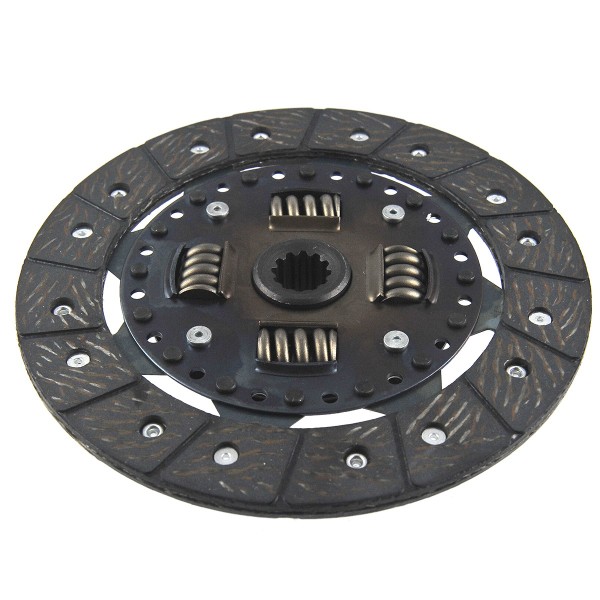

Clutch Disc / 12T / 8" / 200 mm / Mitsubishi / Hinomoto / Yanmar / SAT747

Clutch disc 12T (pressure %C5% 82a-8-mitsubishi-old-type-mitsubishi-mt18-mt20-mt250-mt1801-mt2001-mte2000.html">OKSZ01 ) with a diameter of 200 mm , hub height 27 mm , inner diameter 21 mm (measured between teeth) and 18.30 mm (measured together with spline teeth) for tractors of the brands Hinomoto , Iseki, Kubota, Mitsubishi (Old Type) series Hinomoto E1804, Hinomoto E2002, Hinomoto E2004, Hinomoto E2302, Hinomoto E2304 , Mitsubishi MT18, Mitsubishi MT20, Mitsubishi MT250, Mitsubishi MT1801, Mitsubishi MT2001, Mitsubishi MTE2000, Yanmar YM2001 and others.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• Outer diameter: 200 mm,
• Inner diameter: 21 mm (measured between cutter teeth), 18.30 mm (measured together with cutter),
• Hub height: 27 mm,
• Thickness: 7.50 mm,
• Number of cutters: 12T,
• Original part numbers: 1983-1120-000,
• Comparison numbers: %C5% 82a-8-12t-1980x200-mm-mitsubishi-mt1801-case-244-cub-cadet-7000.html">1021-1120-000 ,
• Part numbers: SAT747.

Tractor models :

Hinomoto :

• Hinomoto E1804,
• Hinomoto E2002,
• Hinomoto E2004,
• Hinomoto E2302,
• Hinomoto E2304.

Mitsubishi :

• Mitsubishi MT18,
• Mitsubishi MT20,
• Mitsubishi MT250,
• Mitsubishi MT1801,
• Mitsubishi MT2001,
• Mitsubishi MTE2000.

Yanmar :

• Yanmar YM2001.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine : K18:A27

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
