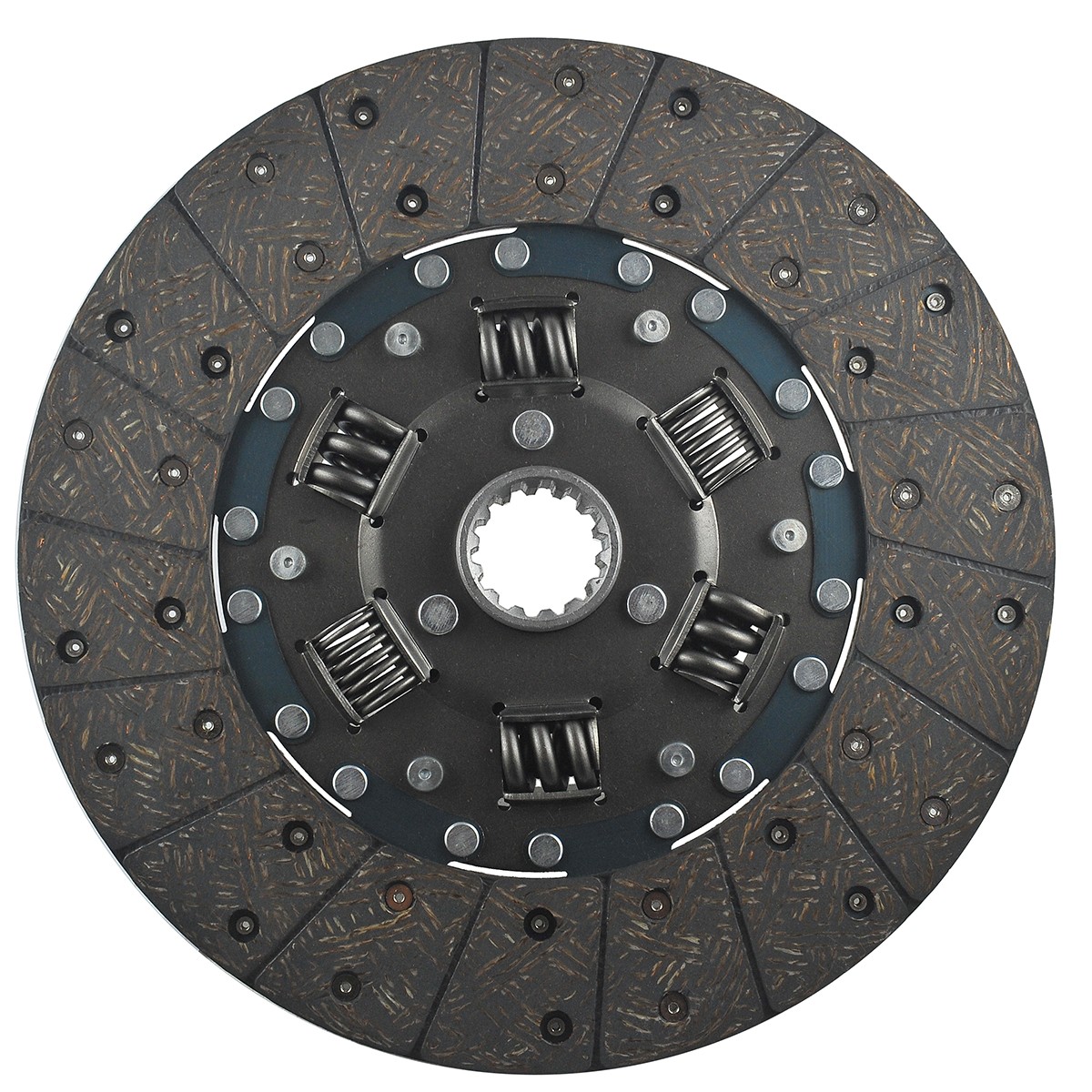

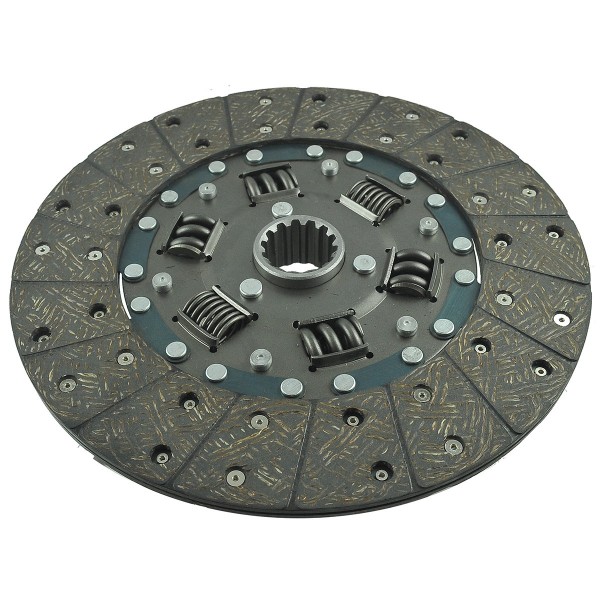

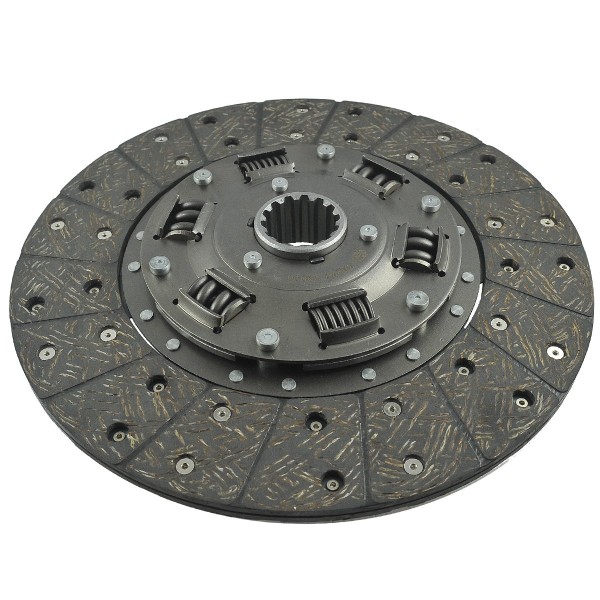

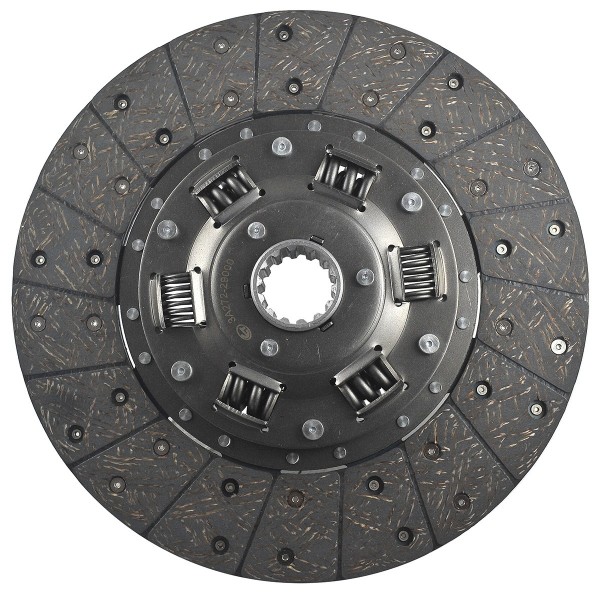

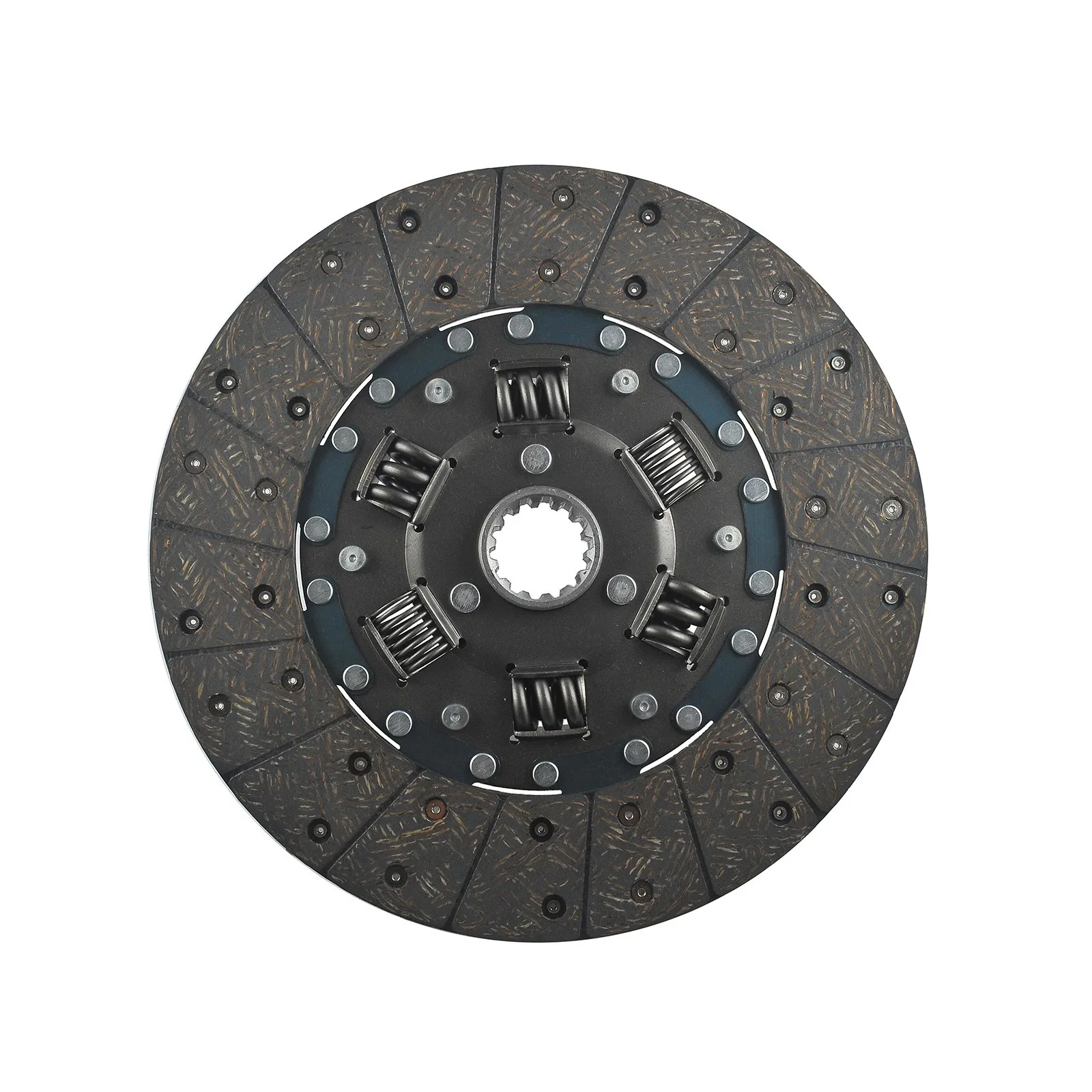

Clutch disc / 14T / 12" / 300 mm / Kubota M8200 / M9000 / 6-05-100-10

14T clutch disc (pressure %C5% 82a-297-x-165-mm-117-kubota-m8200-m9000.html">6-26-102-08 , 3A151-25110, 3A161-25130) with a diameter of 300 mm , hub height 34 mm , inner diameter 40 mm (measured between the teeth) and 35.50 mm (measured together with the spline teeth) for Kubota tractors of the Kubota M8200, Kubota M9000 series and others.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• Outer diameter: 300 mm,
• Inner diameter: 40 mm (measured between cutter teeth), 35.50 mm (measured together with cutter),
• Hub height: 34 mm,
• Thickness: 9.50 mm,
• Number of cutters: 14T,
• Original part numbers: W9501-82021,
• Reference numbers: 3A272-29000,
• Part numbers: 6-05-100-10.

Tractor models :

• Kubota M8200,
• Kubota M9000.

Magazine : K18:A27

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
