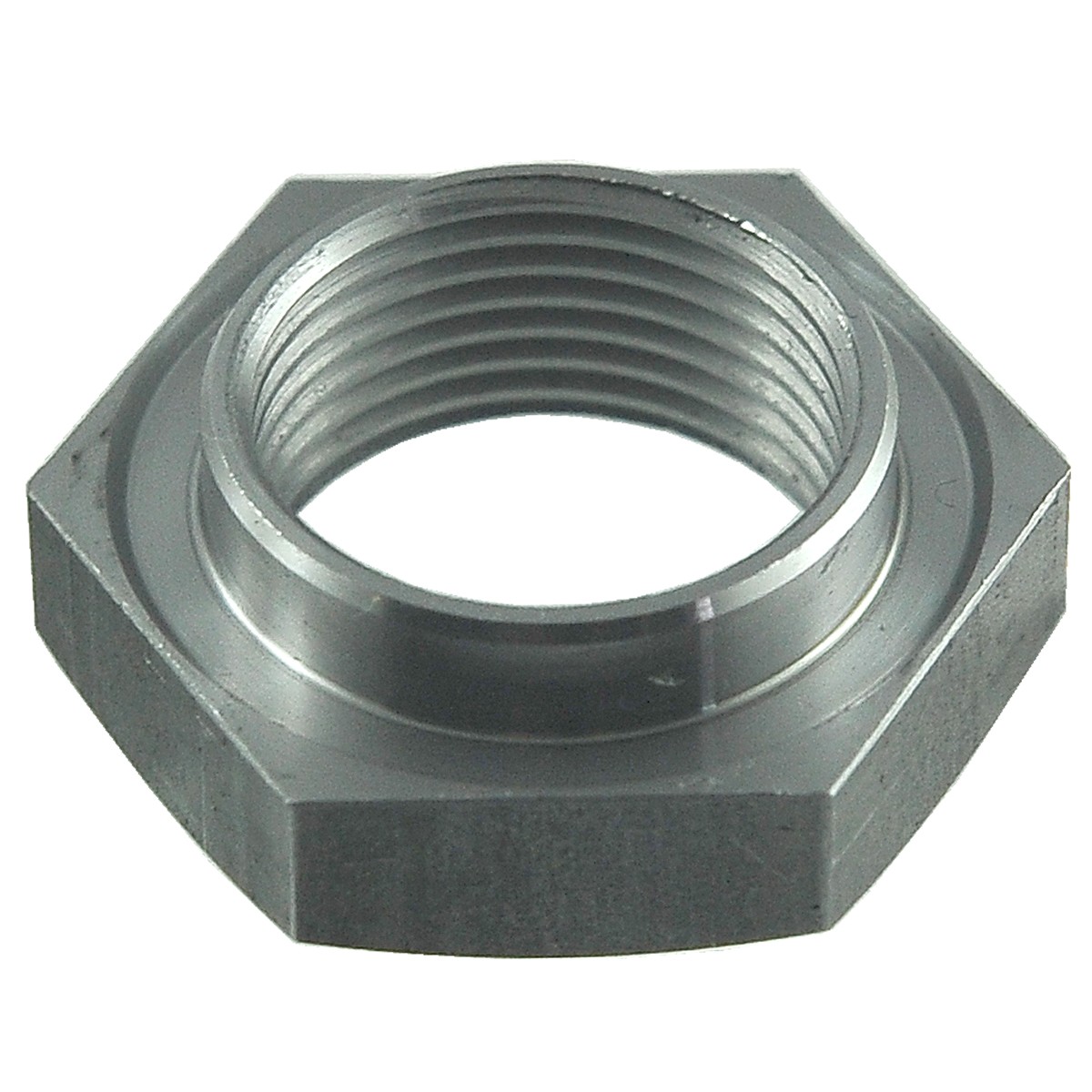

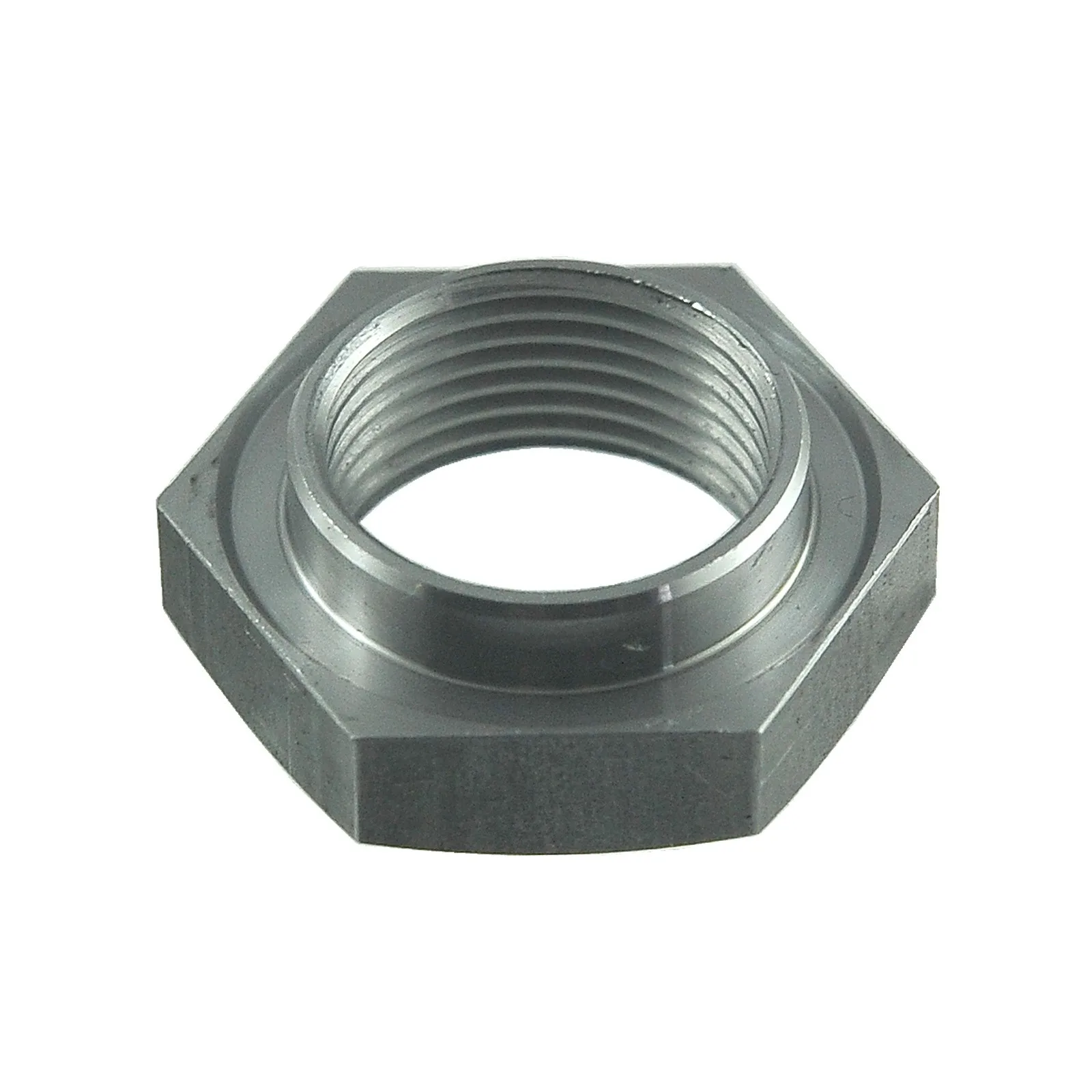

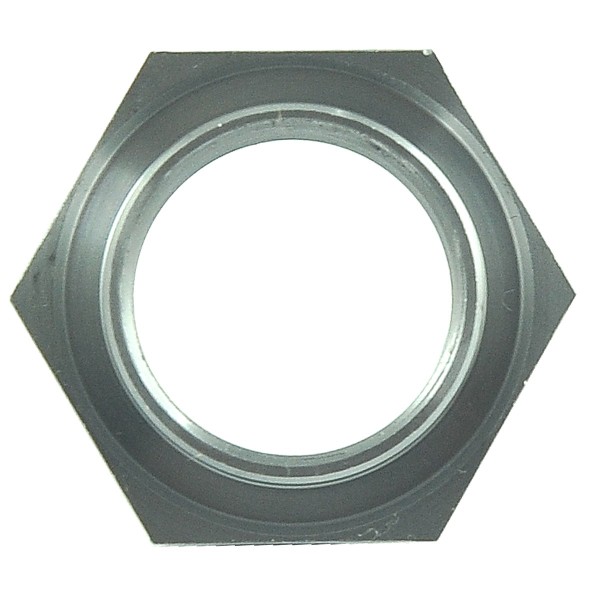

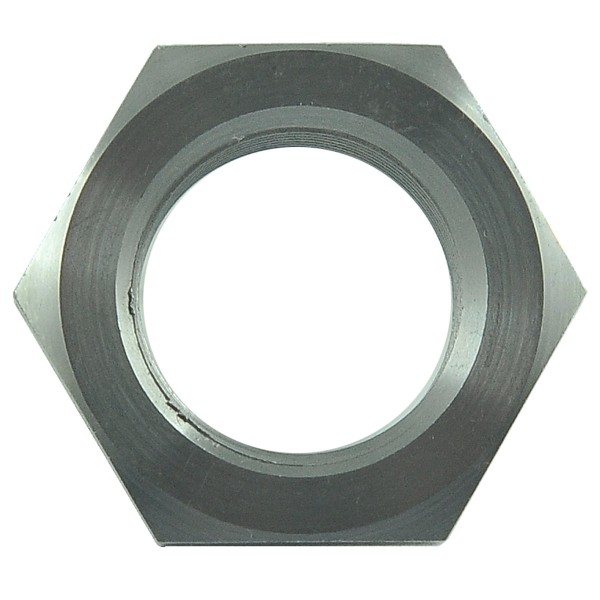

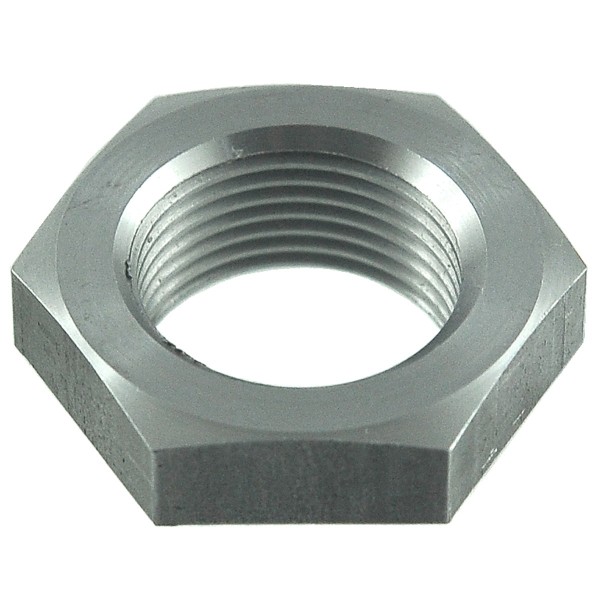

Nut / M20 x 1.5 / Kubota L3408 / L3608 / L3901 / L4508 / L4600 / L4708 / L5018 / 5-13-103-12

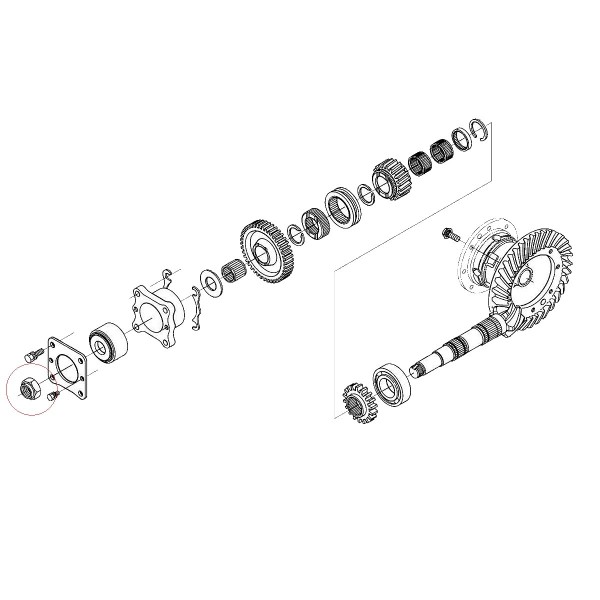

Hexagonal locking nut, rear drive differential shaft (TC620-99840 shaft) with a thread diameter of M20 with a thread of 1.5 for Kubota tractors of the Kubota L3408, Kubota L3608, Kubota L3901, Kubota L4508, Kubota L4600, Kubota L4708, Kubota L5018 series and others.

A nut is a connector in screw connections and there are several basic types such as hexagonal nuts, high nuts, low nuts, with a conical collar or square nuts , self-locking and many others. When choosing the right nut, first of all we pay attention to the shape and thread pitch. Secondly, we determine the purpose of the nut in order to choose the right type and hardness.

Dimensions :

• height: 12 mm,
• outer diameter: 24 mm,
• thread: M20 x 1.5, (20.65 mm),
• key size: 32,
• original part numbers: TC402-23250,
• comparative numbers: ,
• part number: 5-13-103-12.

Tractor models :

Kubota :

• Kubota L3408,
• Kubota L3608,
• Kubota L3901,
• Kubota L4508,
• Kubota L4600,
• Kubota L4708,
• Kubota L5018.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.

Warehouse:
K18:F16:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
