Spacer / 26T / 35 x 3 mm / VST Fieldtrac MT180/MT224 / BBC12C00100A0

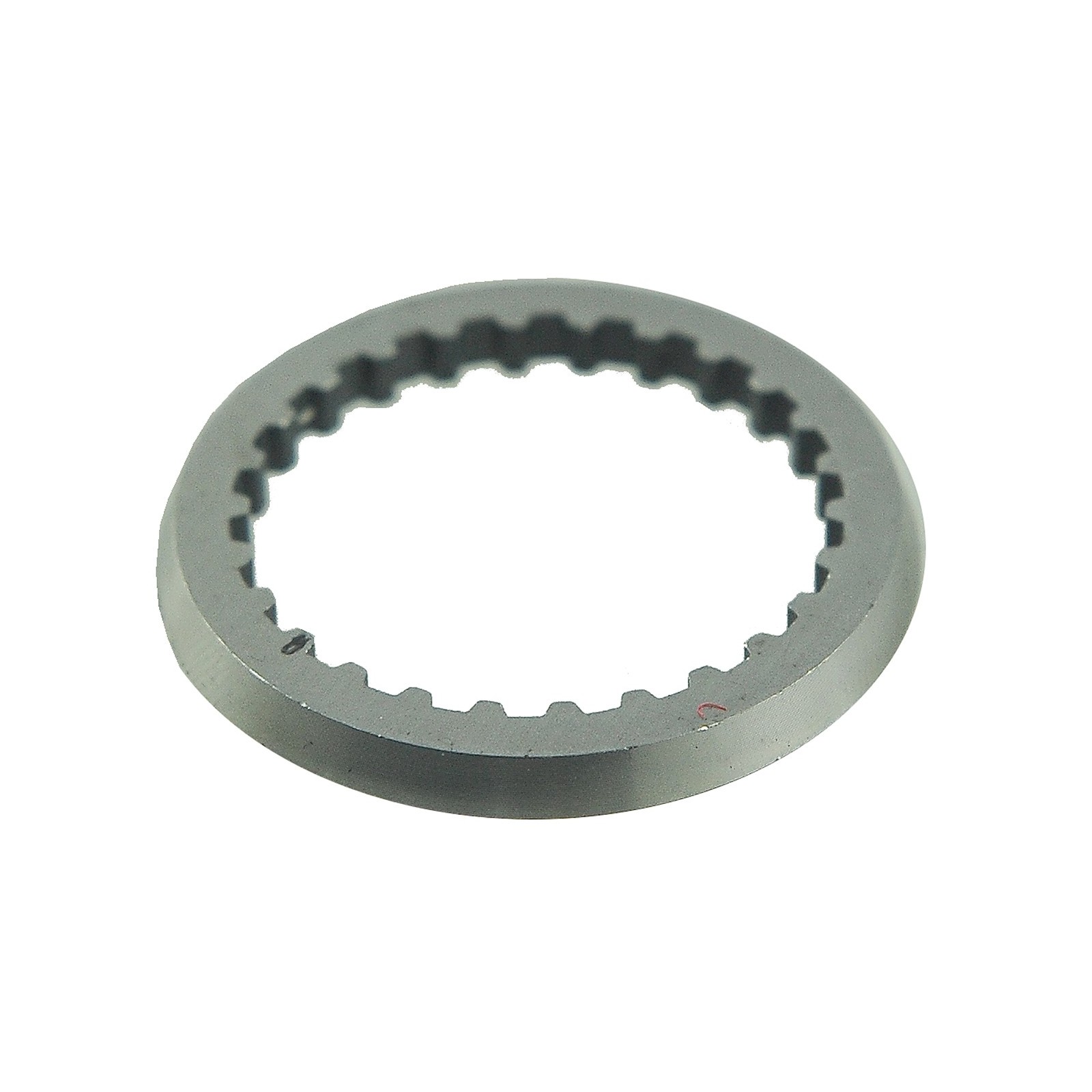

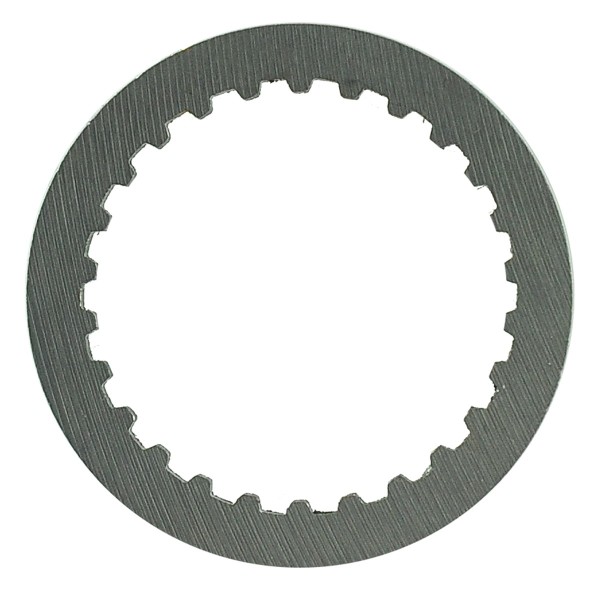

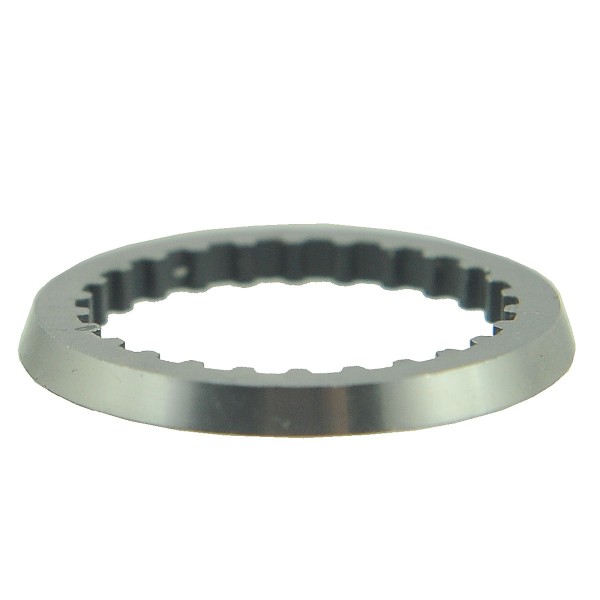

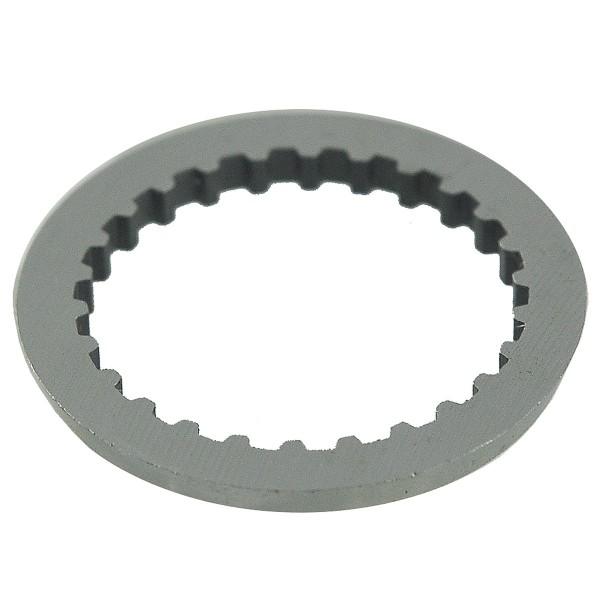

Spacer with teeth (26T) with an internal diameter of 27.75 mm (measured between the teeth), 25.75 mm (measured together with the teeth), an external diameter of 35 mm and a thickness of 3.00 mm for VST tractors of the VST Fieldtrac MT180 , VST Fieldtrac MT224 and other series.

The spacer is a very small thickness washer and is found in all parts of the engine, transmission and in the front and rear axle. The main task of the spacer is to minimize the clearance between the elements and to level adjacent, seemingly perfectly smooth surfaces. We divide the washers into three groups:

• ordinary (protective, increasing the pressure surface of the screw),
• securing against unscrewing (spring),
• spacers , leveling, copper (for leveling when the joined elements are not perfectly smooth),
• special sealing.

Dimensions :

• inner diameter: 27.75 mm (measured between the teeth), 25.75 mm (measured together with the teeth),
• outer diameter; 35mm,
• thickness: 3.00 mm,
• comparison numbers: MZCV2JBV2JC000135,
• part numbers: BBC12C00100A0.

Tractor models :

VST :

• VST Fieldtrac MT180 ,
• VST Fieldtrac MT224 .

Warehouse:
M01:M23:S03
