Connecting rod bearings / STD / Iseki E3112B / Iseki TM3200

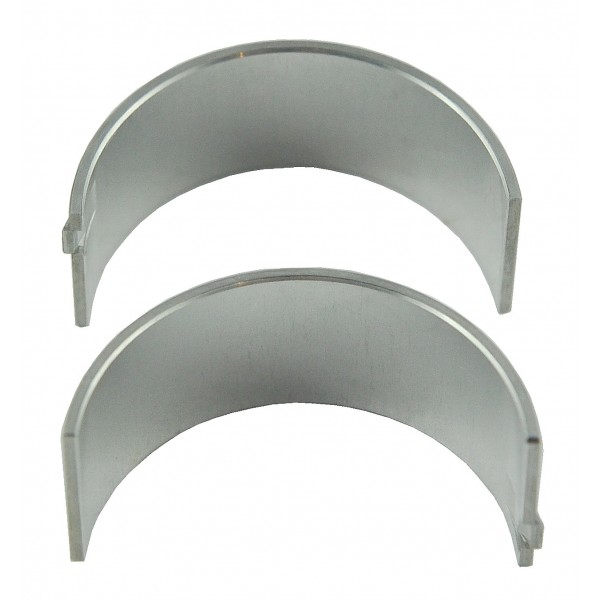

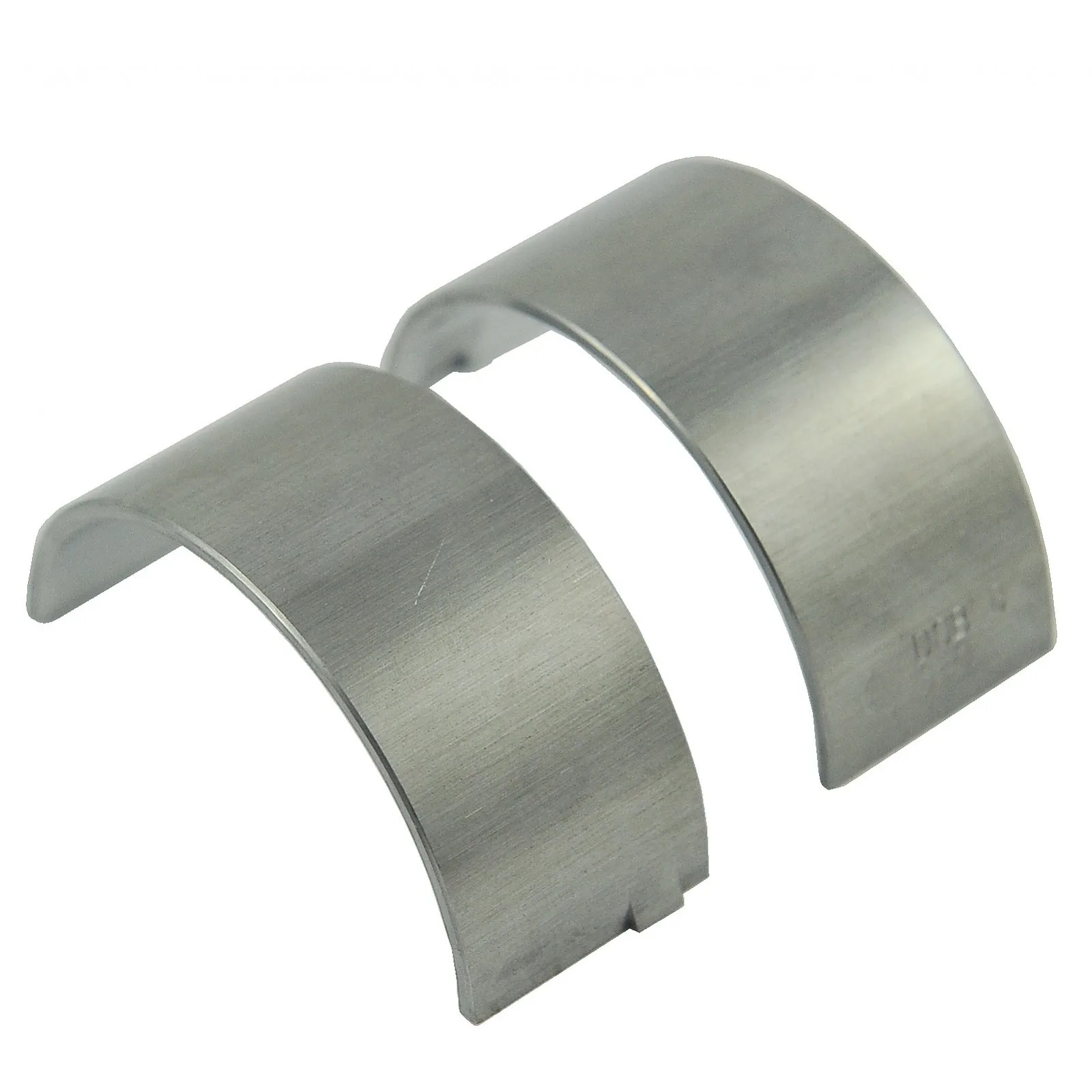

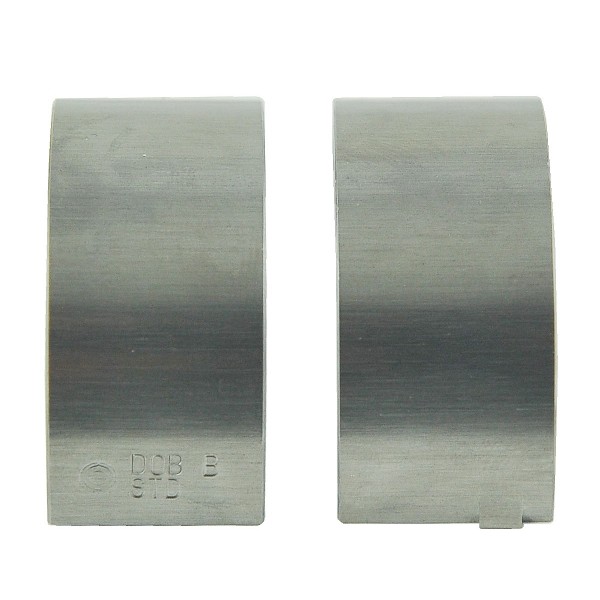

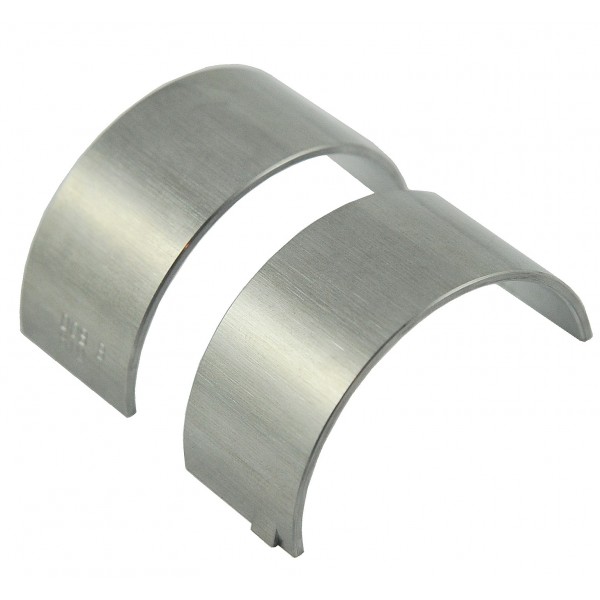

Connecting rod bearings (connecting rod 6212-230-004-10) with a standard size (STD), width 18.80 mm , thickness 1.40 mm and diameter of about 44.50 mm , for tractors and Iseki brand Iseki TM3200, Iseki TM3215, Iseki TM3240, Iseki TXG23, Iseki TXG237 series, with Iseki E3112B engines and others..

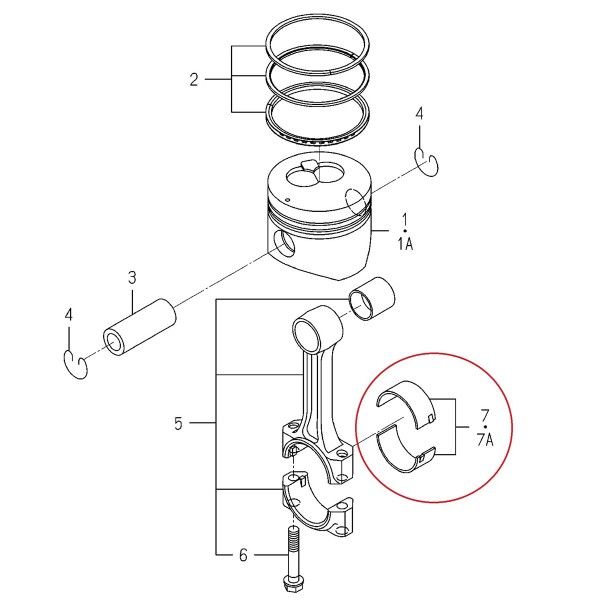

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. Bearings are two separable, semicircular elements that, when installed, create a circle. Bearings (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

Dimensions ;

• outer diameter; 44.50 mm.
• width; 18.80 mm.
• thickness: 1.40 mm,
• reference numbers: 6212-261-006-00,
• part numbers: 6212-271-016-00.

Engine models :

Iseki: :

• Iseki E3112B,

Tractor models :

Iseki :

• Iseki TM3200,
• Iseki TM3215,
• Iseki TM3240,
• Iseki TXG23,
• Iseki TXG237.

The first signs of wear of the main bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : M01:A25:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
