Main bearings / STD + 0.25 / Iseki E3CE / E3CD-W / E4CG-W / Iseki TG6G / TG6405 / TG6495 / TH4260 / TH4295 / TH4365

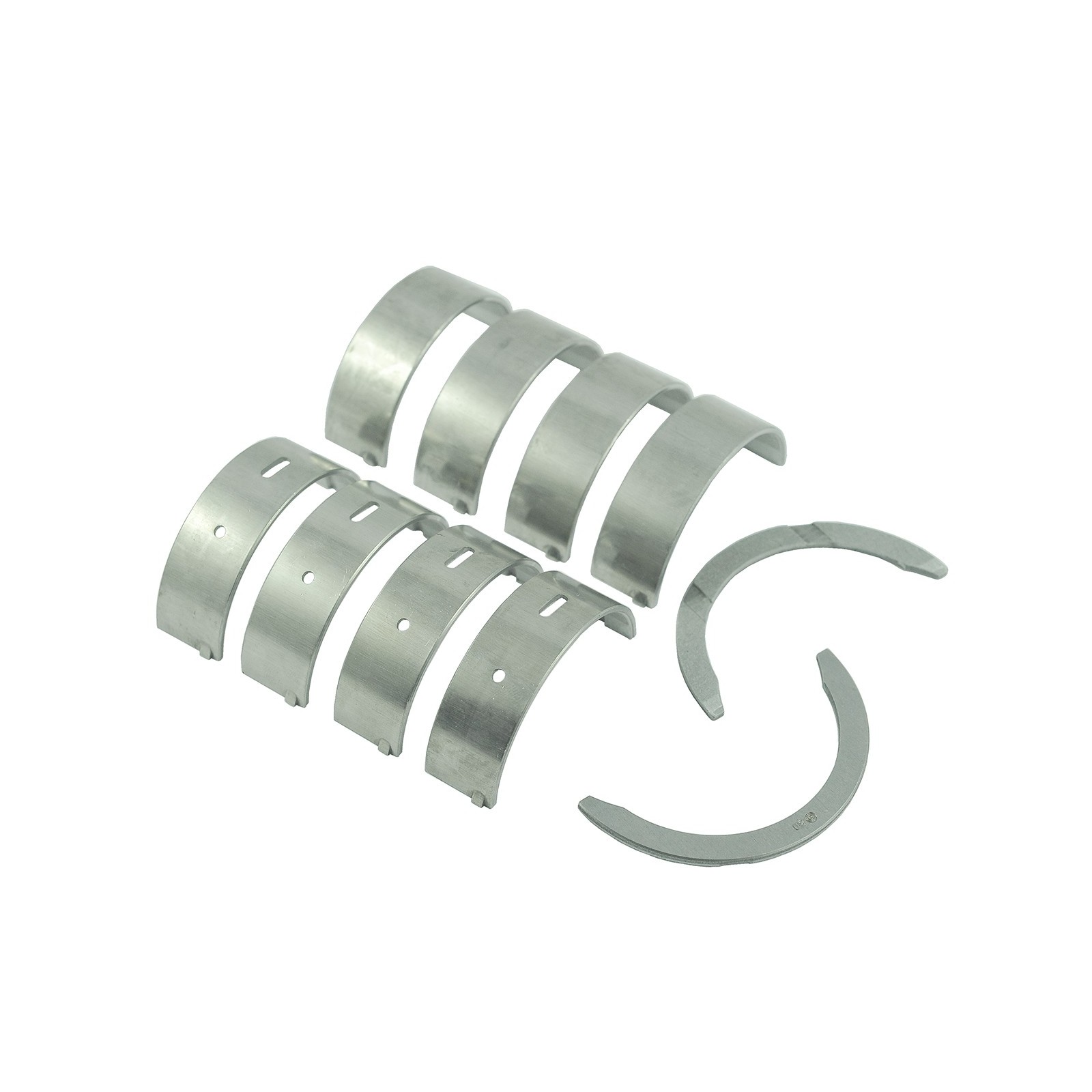

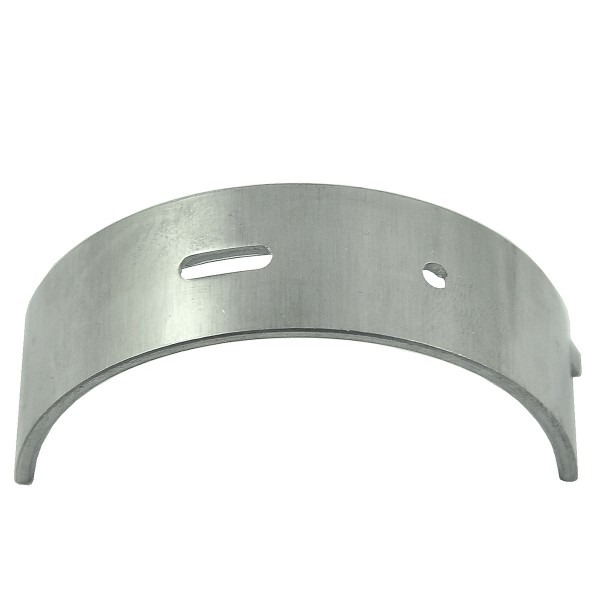

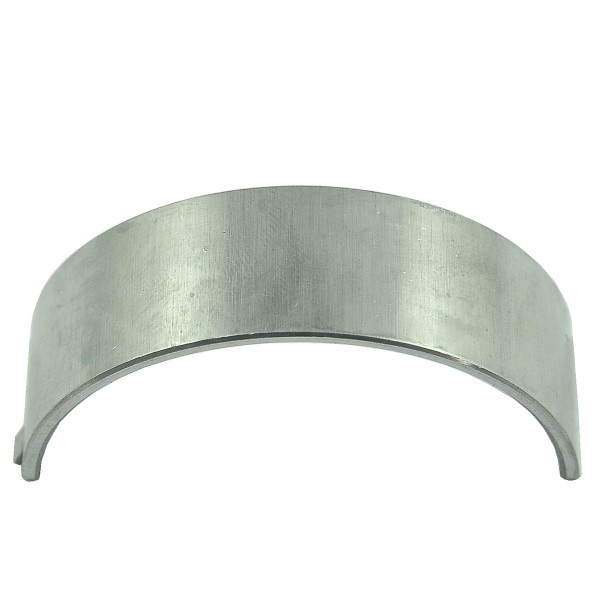

Main bearings with a standard size +0.25 mm (STD + 0.25 bearings of the so-called first grind 010), a width of 19 mm , a thickness of 2.05 mm and an inner diameter of 56.50 mm for Iseki TG6G, Iseki TG6405, Iseki TG6495, Iseki TH4260, Iseki TH4295, Iseki TH4365 tractors with Iseki E3CE, Iseki E3CD-W, Iseki E4CG-W engines and others.

Main engine bearings are semicircular rings that are mounted in special grooves (holders) in the engine block, between the crankshaft (main shaft) and the engine block (applies to the central shaft journals) in order to eliminate play that occurs during engine operation. Main bearings, bearing the shaft, ensuring the proper position of the shaft relative to the engine block so that the generated power is transmitted as smoothly as possible.

Dimensions (main bearings 8 pcs.):

• width: 19mm,
• thickness: 2.05 mm,
• inner diameter: 56.50 mm,
• part numbers: 6211-530-008-00.

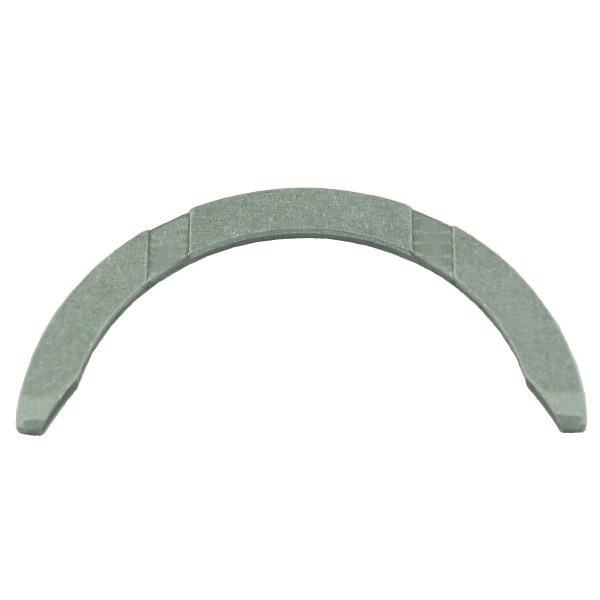

Dimensions (spacer bushes 2 pcs.):

• width: 6.75 mm,
• thickness: 2.30 mm,
• inner diameter: 67 mm,
• part numbers: 6211-530-008-00.

Tractor models :

Iseki :

• Iseki TG6G,
• Iseki TG6405,
• Iseki TG6495,
• Iseki TH4260,
• Iseki TH4295,
• Iseki TH4365.

Engine models:

Iseki :

• Iseki E3CE-V,
• Iseki E3CD-W,
• Iseki E4CG-W.

The first signs of wear of the main bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine: M01:C62:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
