Available
Others in the offer of this manufacturer >
Condition
New
Production
OEM
Parts
WOM
Overall length (mm)
1000
Recommended tractor power (hp)
up to 200
Type
Milling
Universal joint
48 x 127
Go to full specification >
wishlist

WOM shaft 200A - 100cm

200A-100
zł640.00
Tax included PL 23%

520,33 netto

  • Dostępność (3 Quantity): stock
wishlist

Do you have any questions?

WOM shaft 200A - 100cm

What is a PTO and how does the PTO work?

The power transmission shaft is the shaft that transmits the drive. Rotary movement from the tractor to the connected machine and is designed to work at an angle to the tractor. The power transmission shaft consists of 2 crosses, 2 pairs of forks and a telescopic triangular tube. PTO shaft is the common name for three types of shaft:

  • tractor power take-off shaft (PTO),
  • power transmission shaft, e.g. tubular or telescopic,
  • power input shaft in the machine (WPM).

How to choose the right PTO shaft?

The cross-shaped articulated and telescopic shaft comes in several types and is divided according to the length and the value of the transferred torque. The minimum torque value is a parameter that is the main parameter that we must follow when choosing a shaft. The nominal Nm value is the torque transmission value which decreases as the shaft extends beyond the value specified by the manufacturer. The next step when purchasing a roller is to choose the appropriate length. To select the appropriate shaft, measure the distance from the tractor's PTO shaft to the machine's PTO shaft and then measure the PTO shaft from the center to the center of the joints.

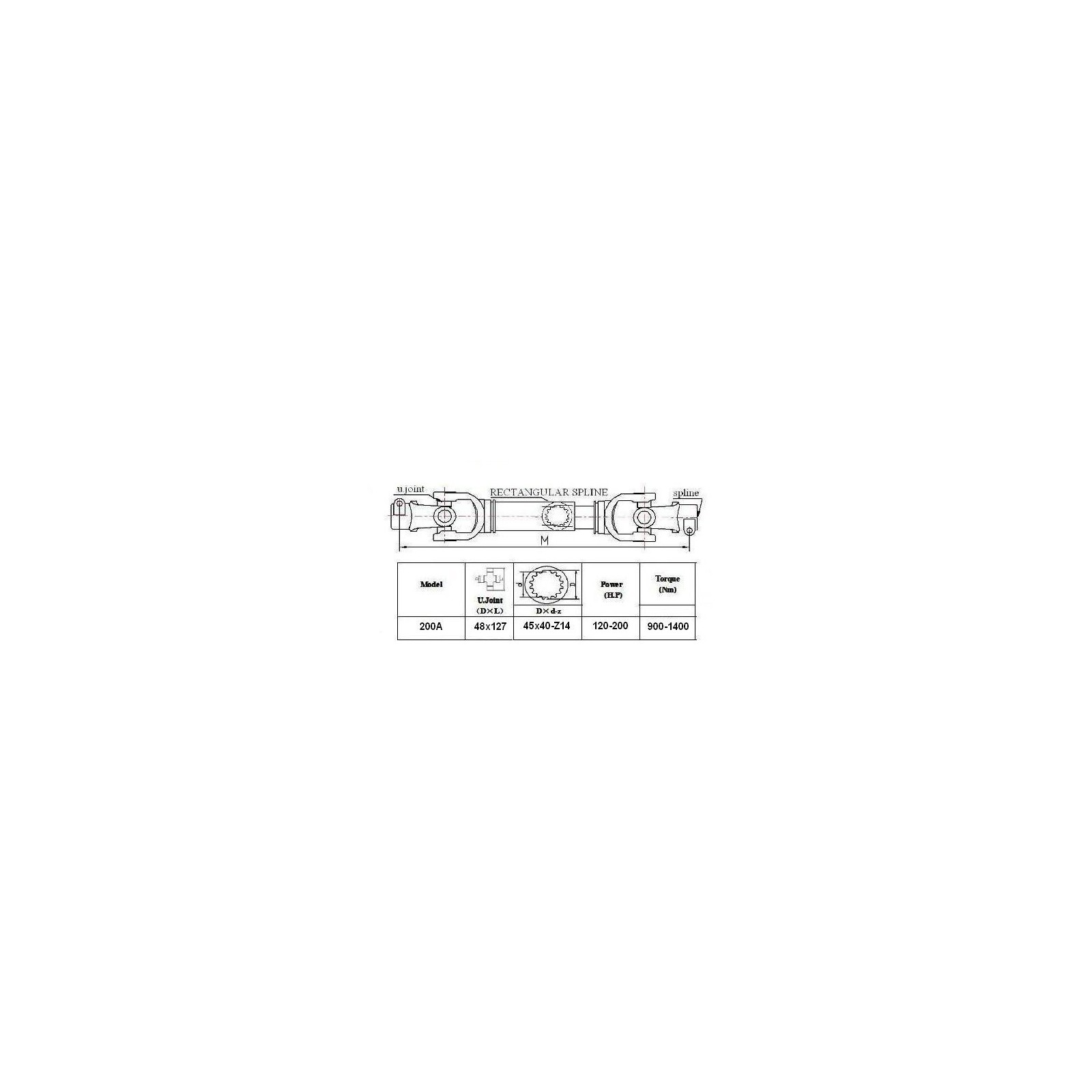

PTO shafts - type 200A - milling, 100 cm long (measured from end to end when folded).

TYPE 200A - Power transmitted up to 200 HP, torque up to 1400 Nm

- standard spline, 6/6 - 1 3/8
- universal joints (48x127) with grease nipples,
- plastic cover,

Specification

Magazyn: K15
Condition
New
Production
OEM
Parts
WOM
Overall length (mm)
1000
Recommended tractor power (hp)
up to 200
Type
Milling
Universal joint
48 x 127
Torque (Nm)
1400
