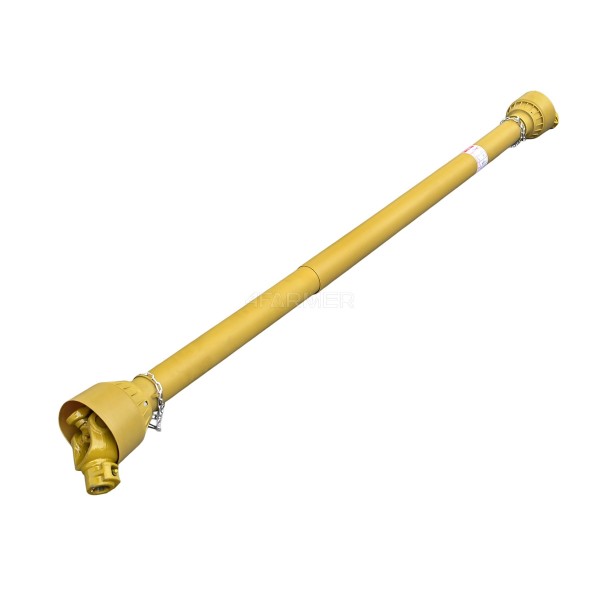

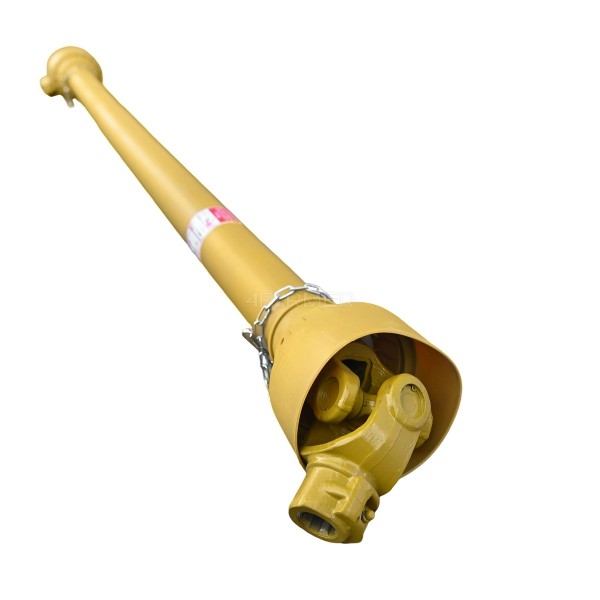

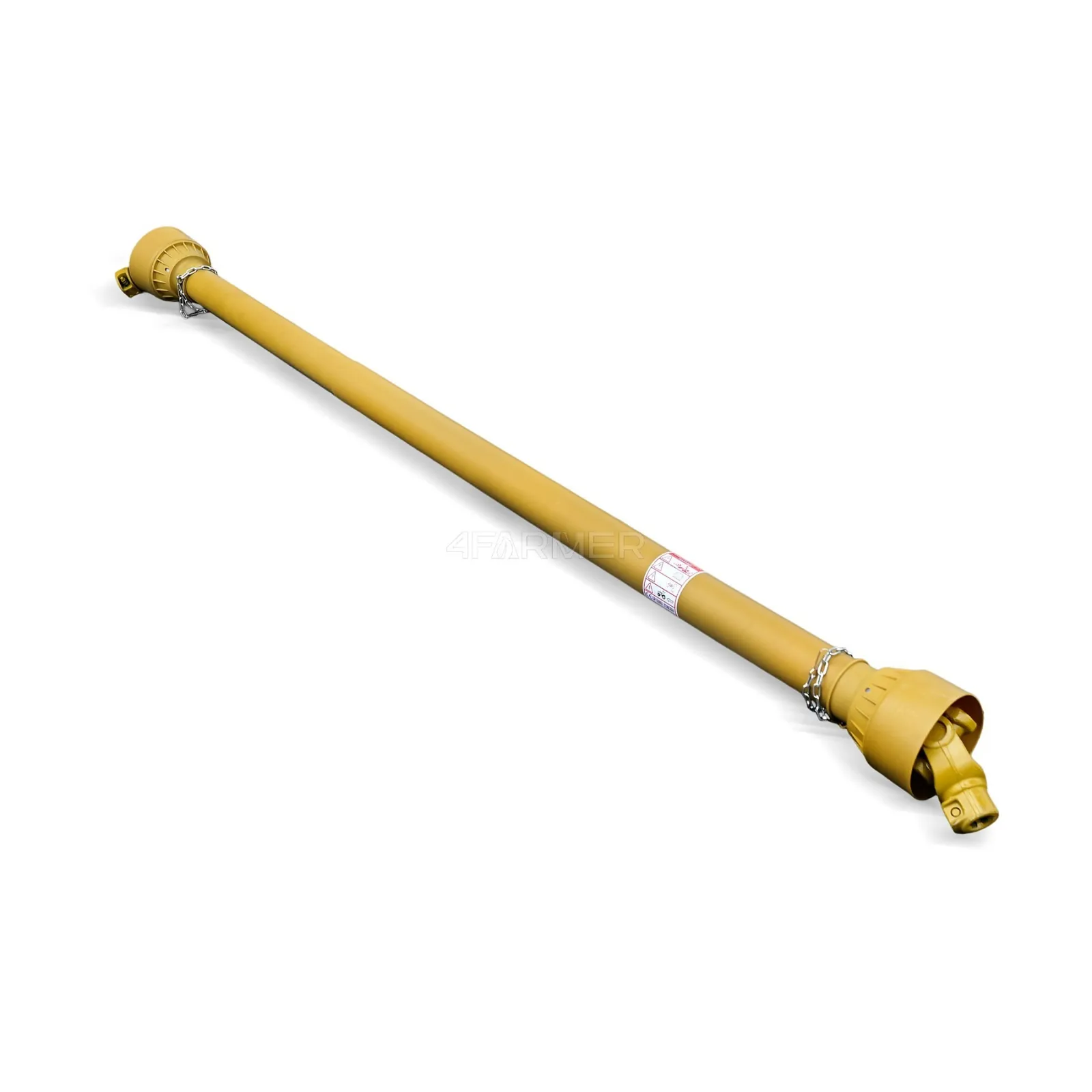

PTO shaft 05B - 180 cm / up to 55 HP

The power take-off shaft is a shaft that transmits power. Rotational movement from the tractor to the attached machine and is designed to work at an angle to the tractor. The power take-off shaft consists of 2 crosses, 2 pairs of forks and a telescopic triangular tube. The PTO shaft is the common name for three types of shaft:

• tractor power take-off shaft (PTO),
• power transmission shaft, e.g. tubular or telescopic,
• power take-off shaft in the machine (WPM).

The cross-joint telescopic shaft comes in several types. They are divided according to the length and the value of the transmitted torque. The minimum torque value is an important parameter that we must consider when choosing a shaft. The nominal Nm value is the value of the transmitted torque, which decreases with the extension of the shaft above the value specified by the manufacturer.

The next step when buying a shaft is to choose the right length. To choose the right shaft, measure the distance from the tractor's PTO to the machine's PTO shaft and then measure the PTO shaft from center to center of the joints.

PTO shaft without protection, total length 1800 mm (minimum) for 4FARMER tillers and flail mowers.

Technical data :

• total length: 1800 mm (measured from end to end when folded),
• length from cross to cross: 1600 mm,

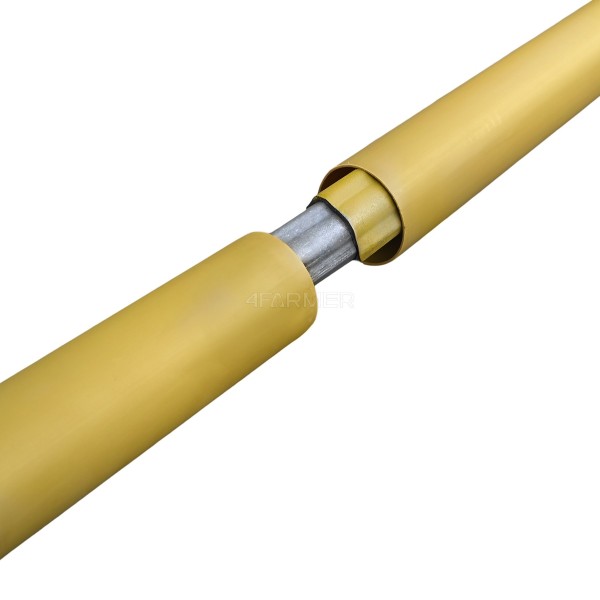

• pipe diameter: 44.70 x 4 / 51.30 x 2.90 (triangular cross-section),
• cross dimensions: Ø 27 / 74.60 x 74.60 mm (width),

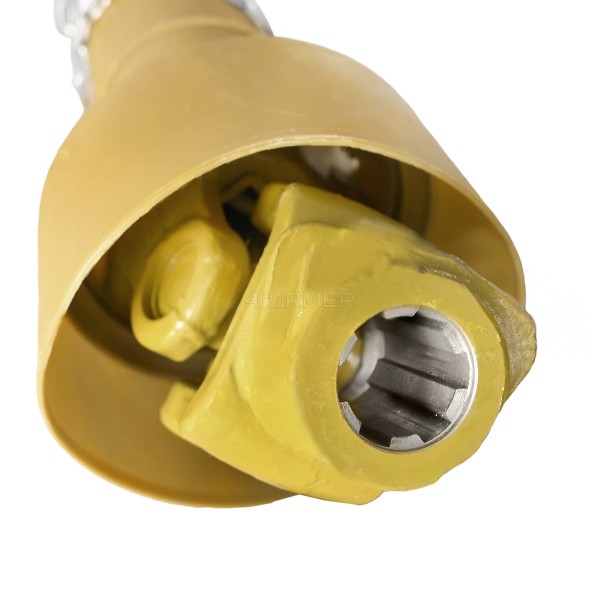

• cutter diameter: 35 mm (measured between cutter teeth), 30 mm (measured together with cutter teeth), 1-1/8 inch,
• number of teeth: 6T / 6T,
• torque: 360-460 Nm,
• recommended tractor power: 35 to 55 HP,
• plastic cover included.
