Sprocket / 19T/20T / Iseki TS2510 / 1431-301-006-00 / 9-19-106-04

Product code: 9-19-106-04
Brand Iseki
Country of production Iseki
View other model
zł170.00
Includes VAT 23%

Lowest price from 30 days: zł170.00

Product description

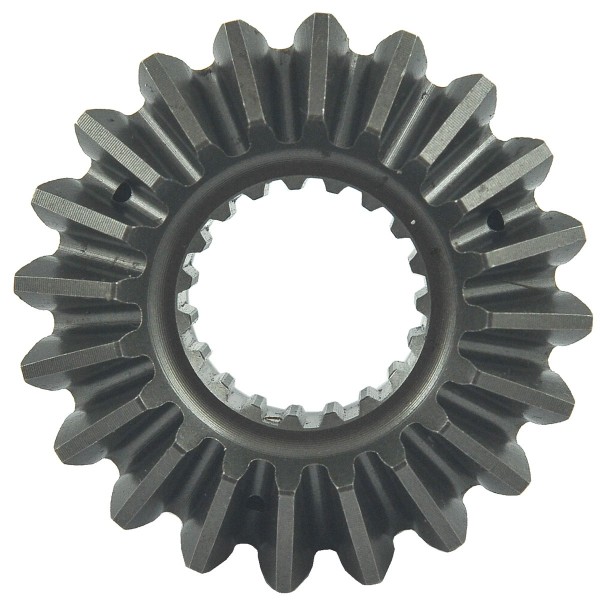

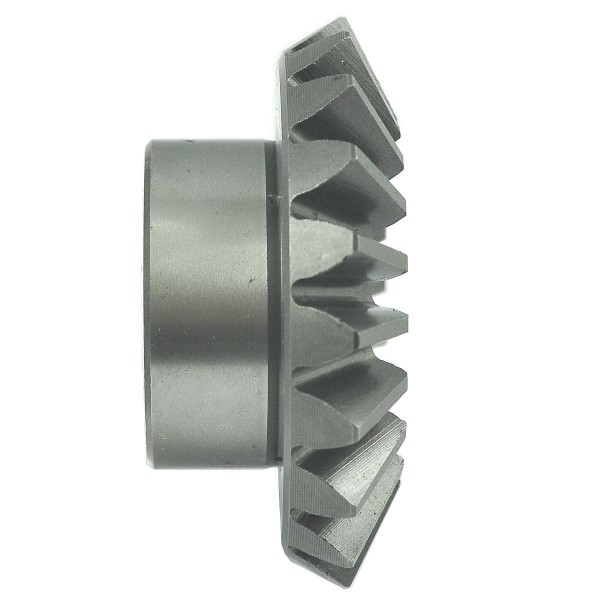

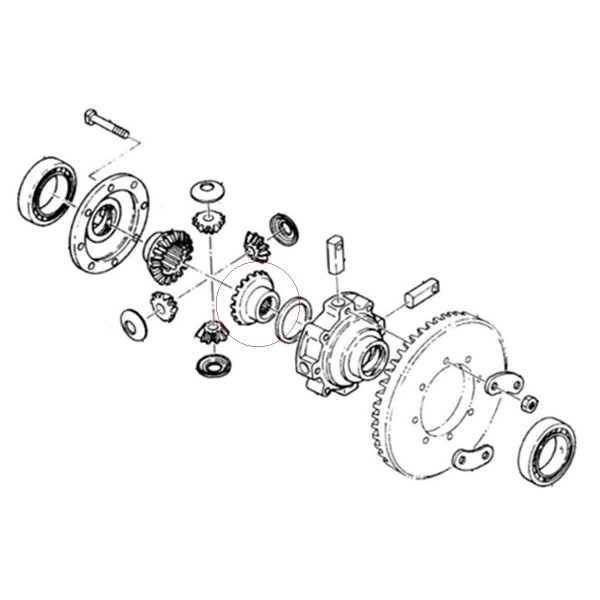

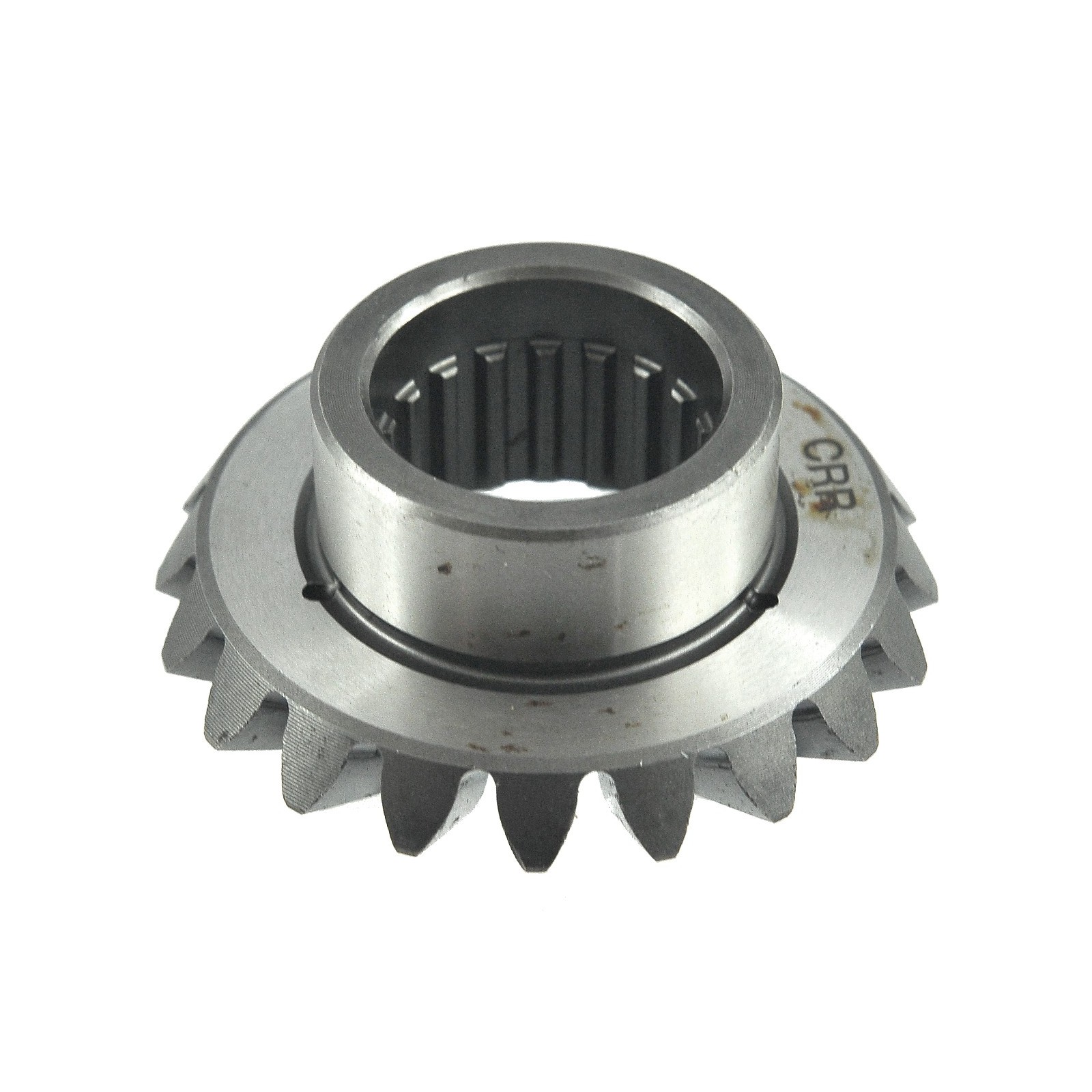

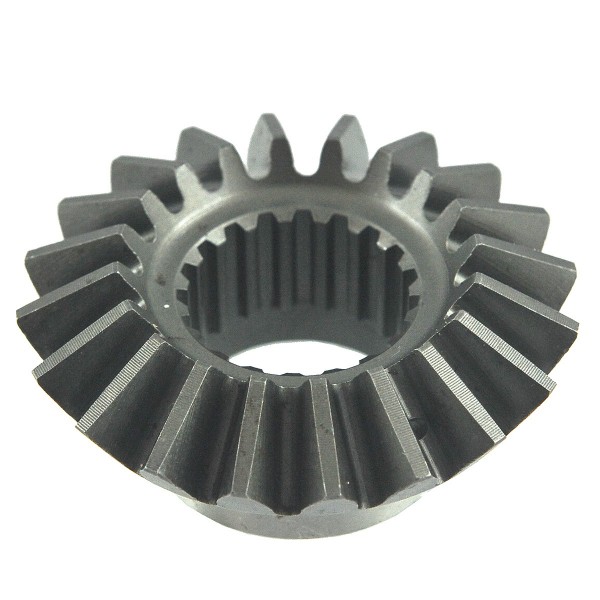

19T/20T rear differential gear (sprocket (A) 9-19-106-03 , 1431-301-006-00, washer 9-26-107-02 , 1656-304-003-00, LH shaft 9-19 -103-03 , 1426-301-005-00, RH shaft 9-19-103-04 , 1426-301-006-00, flange 9-15-125-10 , 1426-301-0070-0) diameter internal diameter 33 / 35 mm , external diameter 81 mm and height 35 mm for Iseki tractors of the Iseki TS2510 series and others.

Dimensions :

  • inner diameter: 35 mm (measured between the cutter teeth), 33 mm (measured together with the cutter), mm,
  • outer diameter: 81 mm,
  • height: 35 mm,
  • number of teeth: 19T (IN), 20T (OUT),
  • original part numbers: 1431-301-006-00,
  • part numbers: 9-19-106-04.

Tractor models :

Iseki :

  • Iseki TS2510.

Warehouse:
M01:F74:S03
