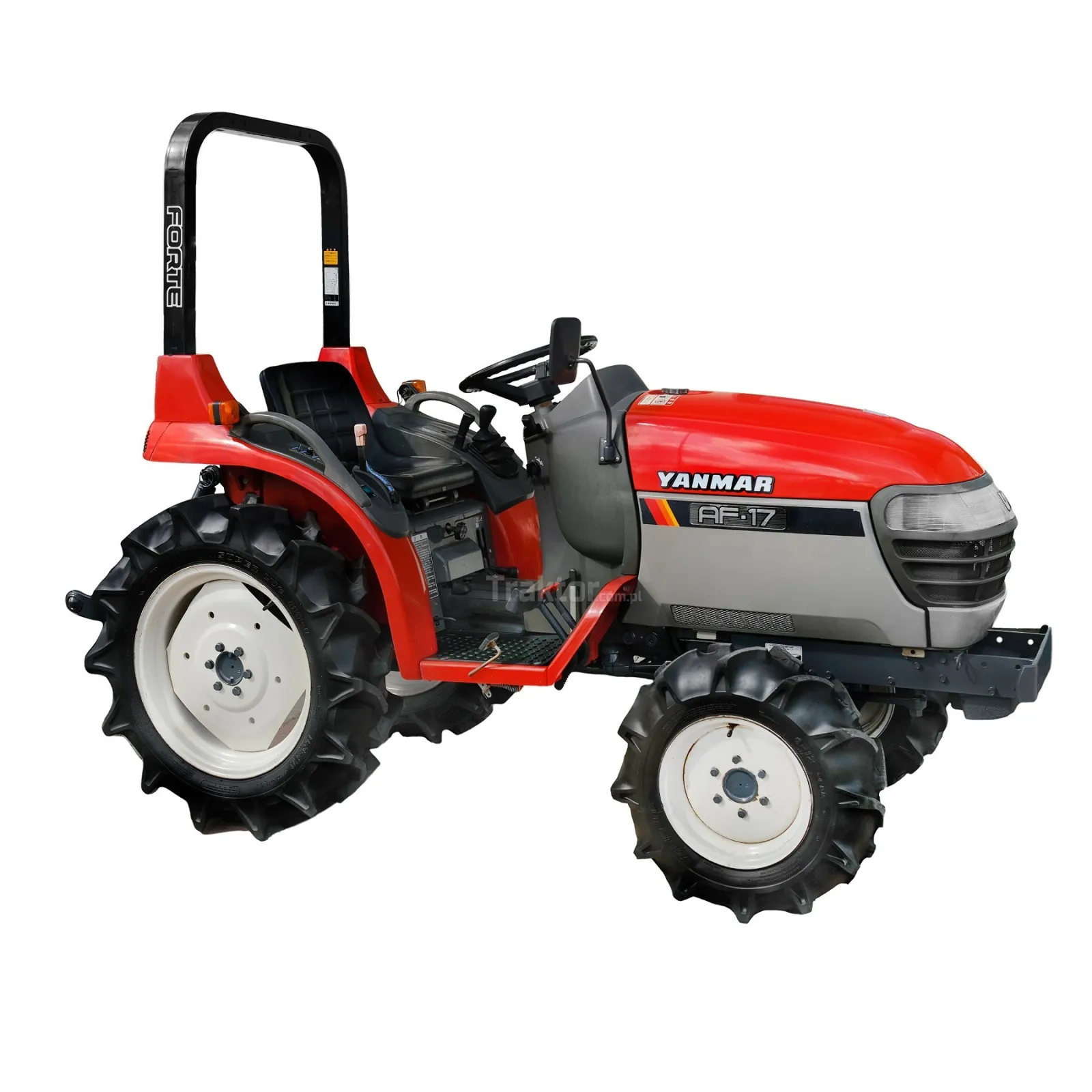

Yanmar AF-17 4 x 4 17 HP

Japanese 16.8 HP 4x4 tractor - Yanmar AF17 .

Yanmar AF series tractors with two digits are a series of tractors produced from 1992 to 1996 and were available with 14.8 HP (AF15), 15.8 HP (AF16), 16.8 HP (AF17) and 17.8 HP (AF18) engines. The Yanmar AF17 tractor is characterized by very compact dimensions (length 238 x width 1050 mm x height 1250 mm) which, combined with a reliable 3-cylinder Yanmar 3TNE74 engine, makes the AF17 tractor very versatile and efficient even when working in difficult conditions and in places difficult to access.

Highlights of the Yanmar AF-17 tractor.

The Yanmar AF17 tractor is a compact mini tractor weighing 740 kg with a 3-point rear linkage and a mechanical gearbox with reverse. Reverse is a mechanism that allows you to change the direction of travel with just one movement of the lever without having to change the position of the gear lever. The tractor has a 4WD all-wheel drive and a rollover protection structure (ROPS).

Technical data and specification:

• engine: 3 cylinder DIESEL Yanmar 3TNE74 ,
• 3-point linkage system,
• hydraulic three-point linkage leveling,
• drive: 4 x 4, 4WD,
• dimensions: length 2380 mm, width 1050 mm, height 1250 mm,
• 3 PTO / PTO speeds: 558 (@ 2500), 805 (@ 2500), 1228 (@ 2500), 745 (@ 2500) / 540 (@ 1375),
• agricultural tires: 6-12 / 8.3-20,

The tractor has electronic control of the rear three-point linkage, leveling of the rear beam and a system for remembering the height / depth of work of machines and devices suspended on the three-point linkage.

All parts, filters and operating fluids are available in our stationary or online store. Before sale, the tractor undergoes a thorough technical inspection. Filters and operating fluids are changed in the tractor, the condition of the engine, the operation of the hoist, bridge seals and the operation of the hydraulic box are checked.
