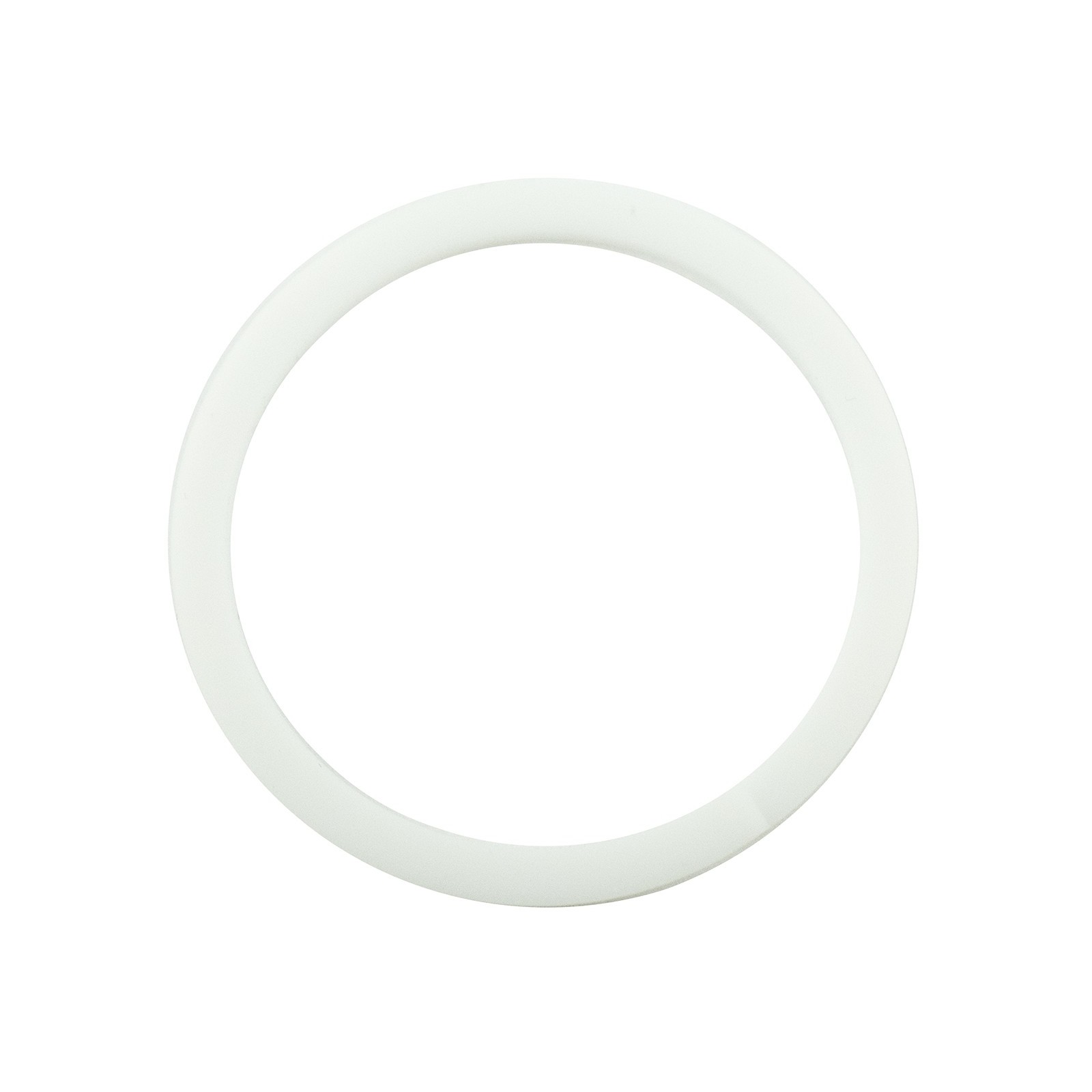

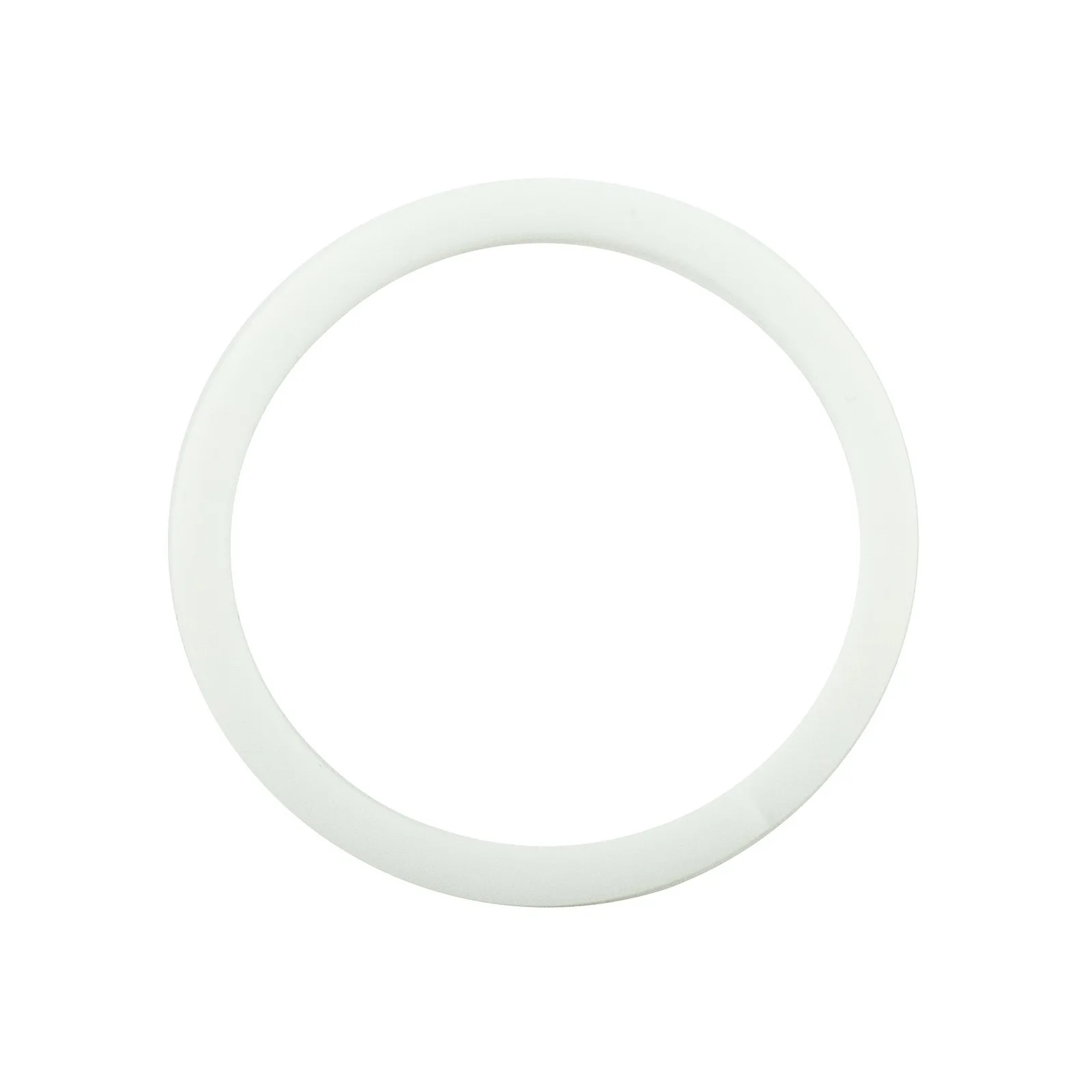

Thrust ring / LS XJ25 / LS MT1.25 / TRG630 / A0653129 / No. 40249473

O -ring number 40116556 and dimensions 34.50 x 40 x 1.00 mm for LS Tractor series LS XJ25, LS MT1.25 and others for:

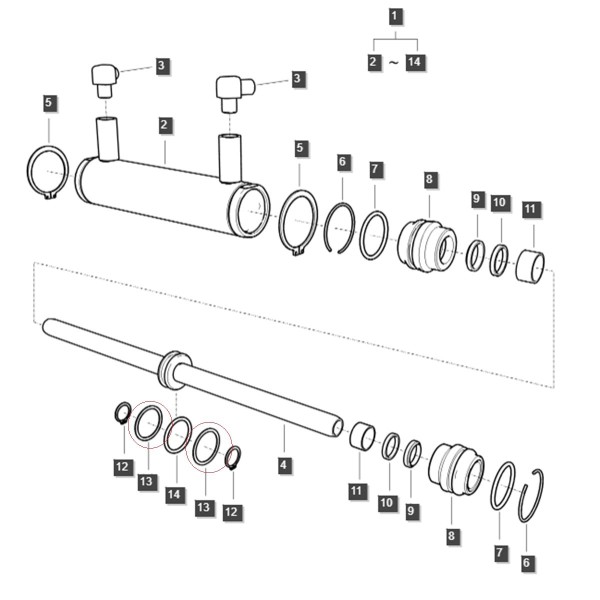

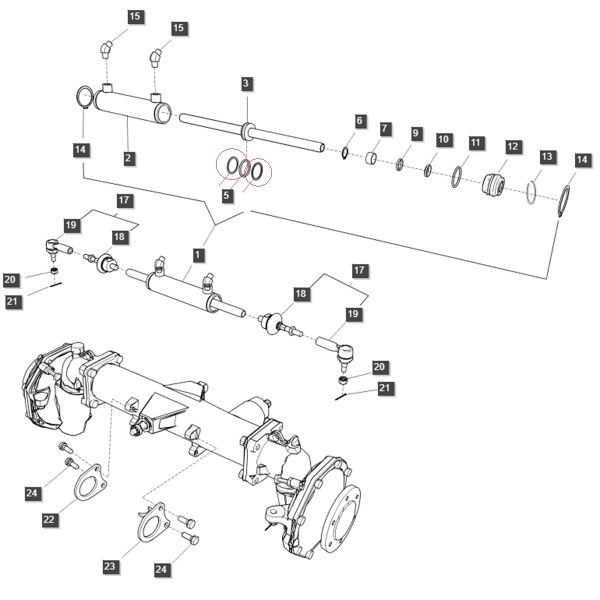

• power steering actuator seals,

A back-up ring is a rigid ring, usually made of plastic, that protects O-rings from damage caused by the high pressure and temperature inside a hydraulic system during operation. A back-up ring (also known as a backup ring) is a ring whose primary function is to prevent the O-ring from being forced into the gap between the sealing surfaces and to protect the seal from deformation, which can occur when the seal is subjected to high pressure and temperature. When pressure acts on the O-ring from two directions, a back-up ring is used on both sides of the O-ring.

Dimensions :

• outer diameter: 40 mm,
• inner diameter: 34.50 mm,
• thickness: 1.00 mm,
• reference numbers: A0653129.

Tractor models:

• LS XJ25,
  LS MT1.25.

Magazine : L01:C241

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
