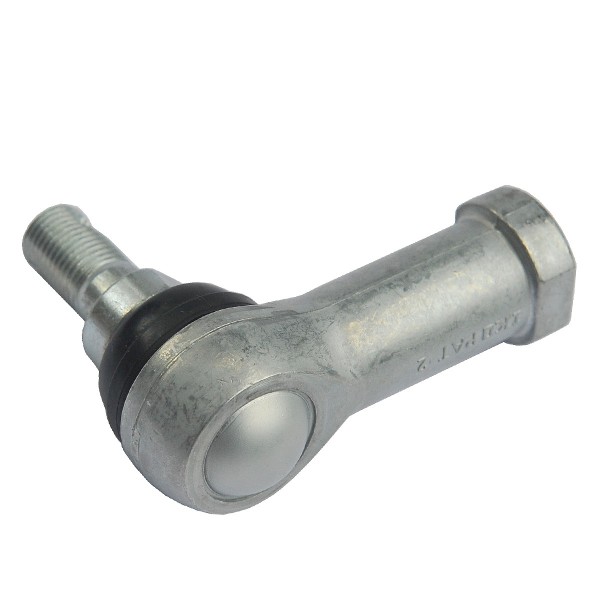

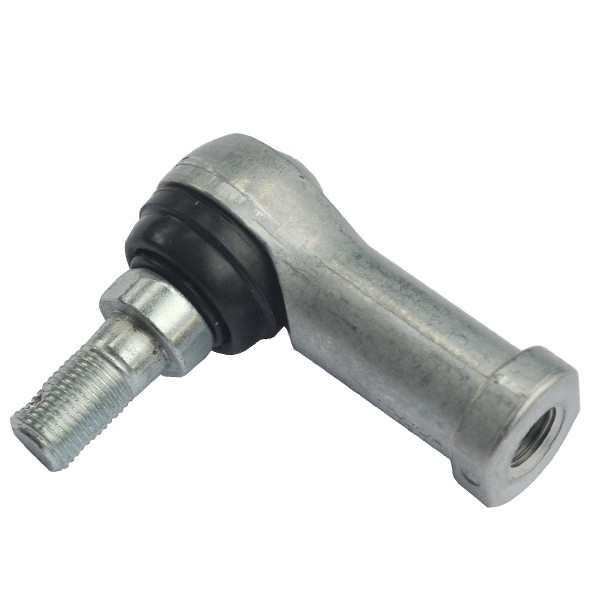

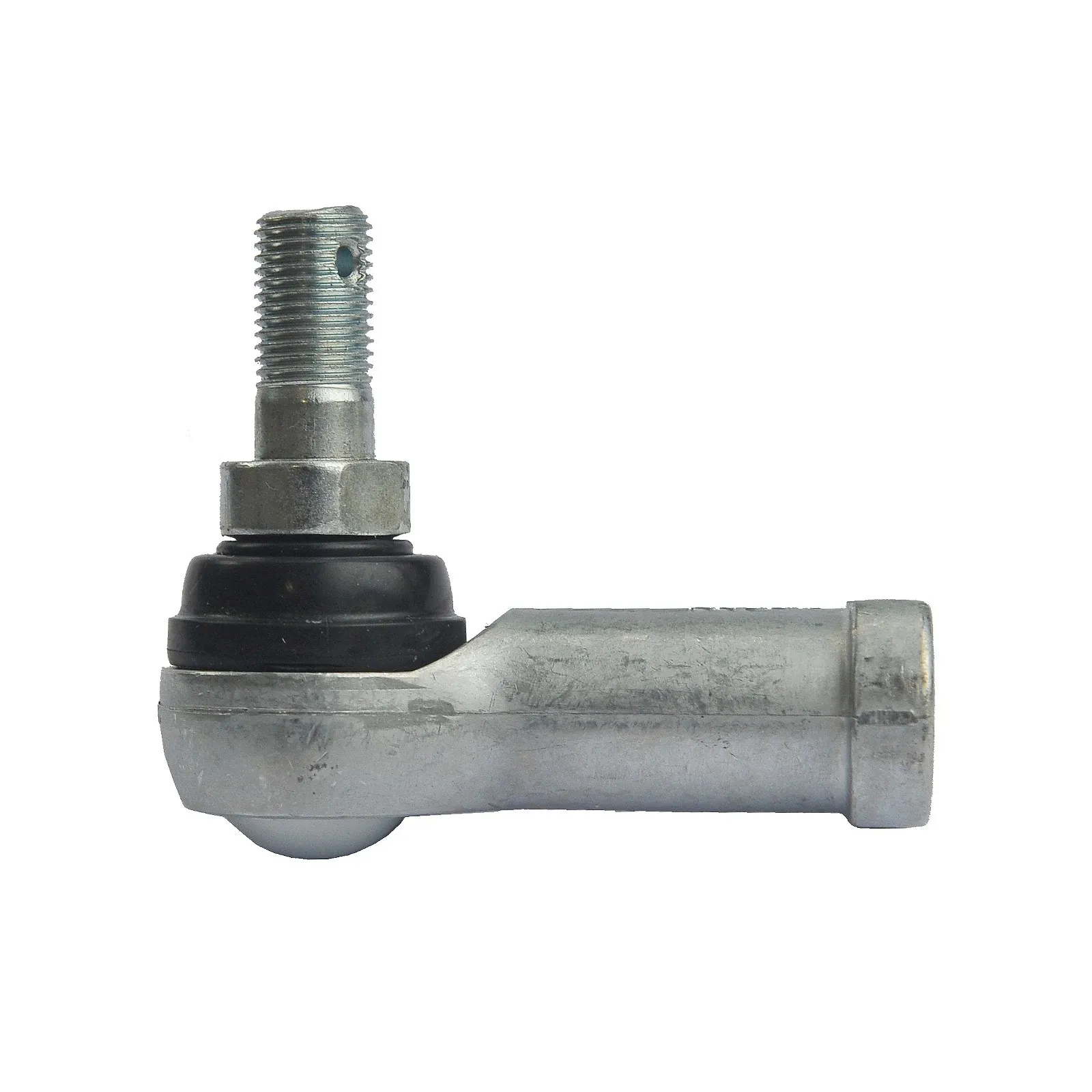

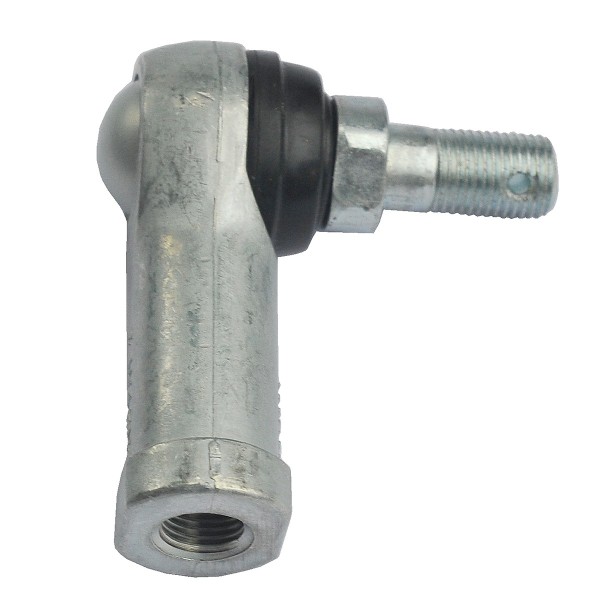

Rod End / Iseki SG13 / SG17 / SG153 / SG173 / SXG326 / 1593-403-005-00

RIGHT rod end (nut %C5% 84c %C3% B3wki-dr %C4% 85 %C5% BCka-iseki-sxg326-v328-262-112-00.html?adtoken=c716cd19c30c210f9bfee01f7b6c9fcc&ad=id_product&id_employee=13&preview=1">V328-262-112-00 ) with a total length of 80 mm and a total head height of 63.50 mm for Iseki brand lawn tractors of the Iseki SXG19, Ieki SXG323, Iseki SXG326, Iseki SXG327 series and others.

The tie rod end is a component of the steering system that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are loose steering or visible abnormal tire wear. Good condition of the tie rod ends improves driving safety and extends tire life.

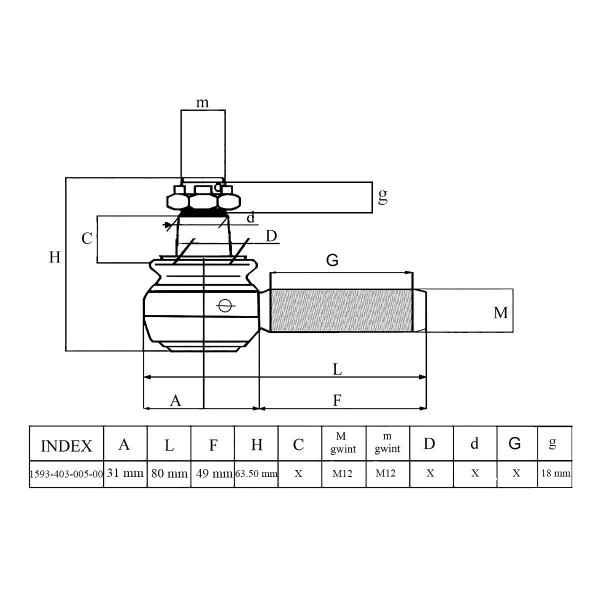

Dimensions :

• total length: 80 mm.
• height: 63.50 mm.
• head diameter: 31 mm.
• thread length: 18 mm.
• cone height: 36 mm,
• thread: M12 x 1.25 / M12 x 1.25,
• part numbers; 1593-403-005-00.

Lawnmower models :

• Iseki SXG19,
• Iseki SXG323,
• Iseki SXG326,
• Iseki SXG327.

The first signs of tie rod end wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : M01:C62:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
