zł40.00
To order
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Yanmar EF352T
Cone Height(mm)
40 / 24
Overall length (mm)
105
Thread(s) length (mm)
18 / 48

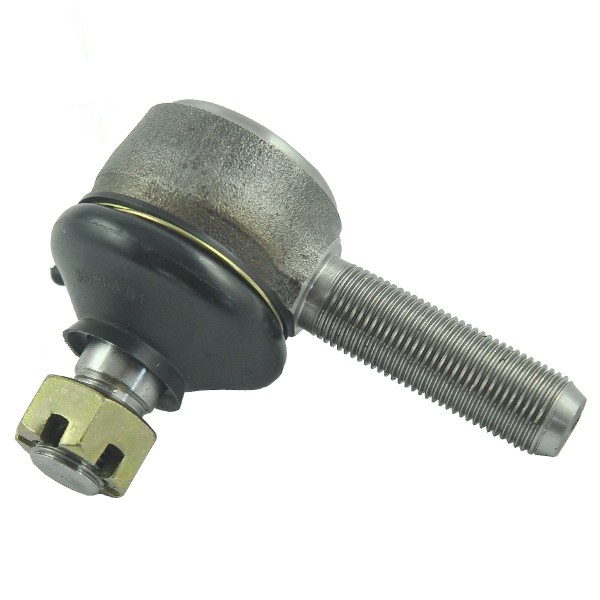

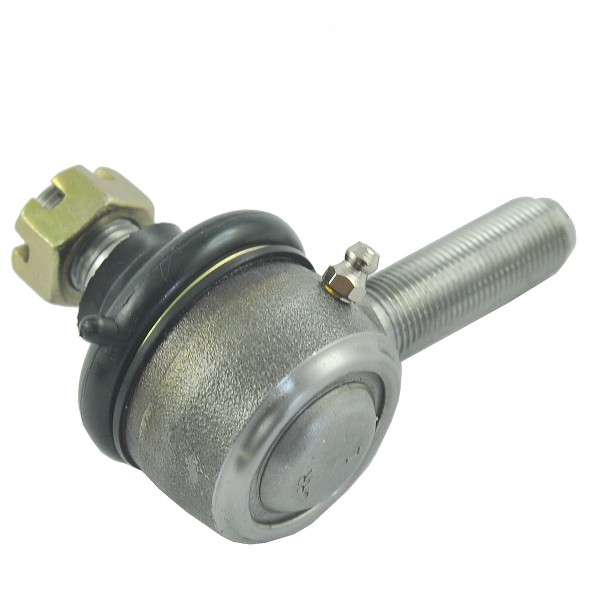

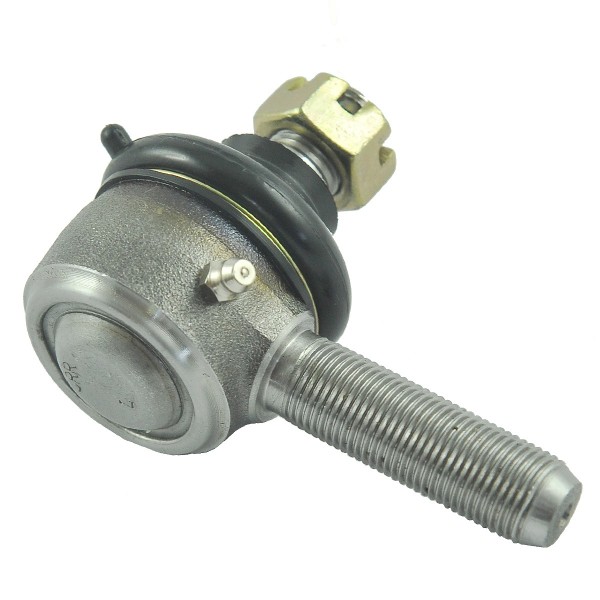

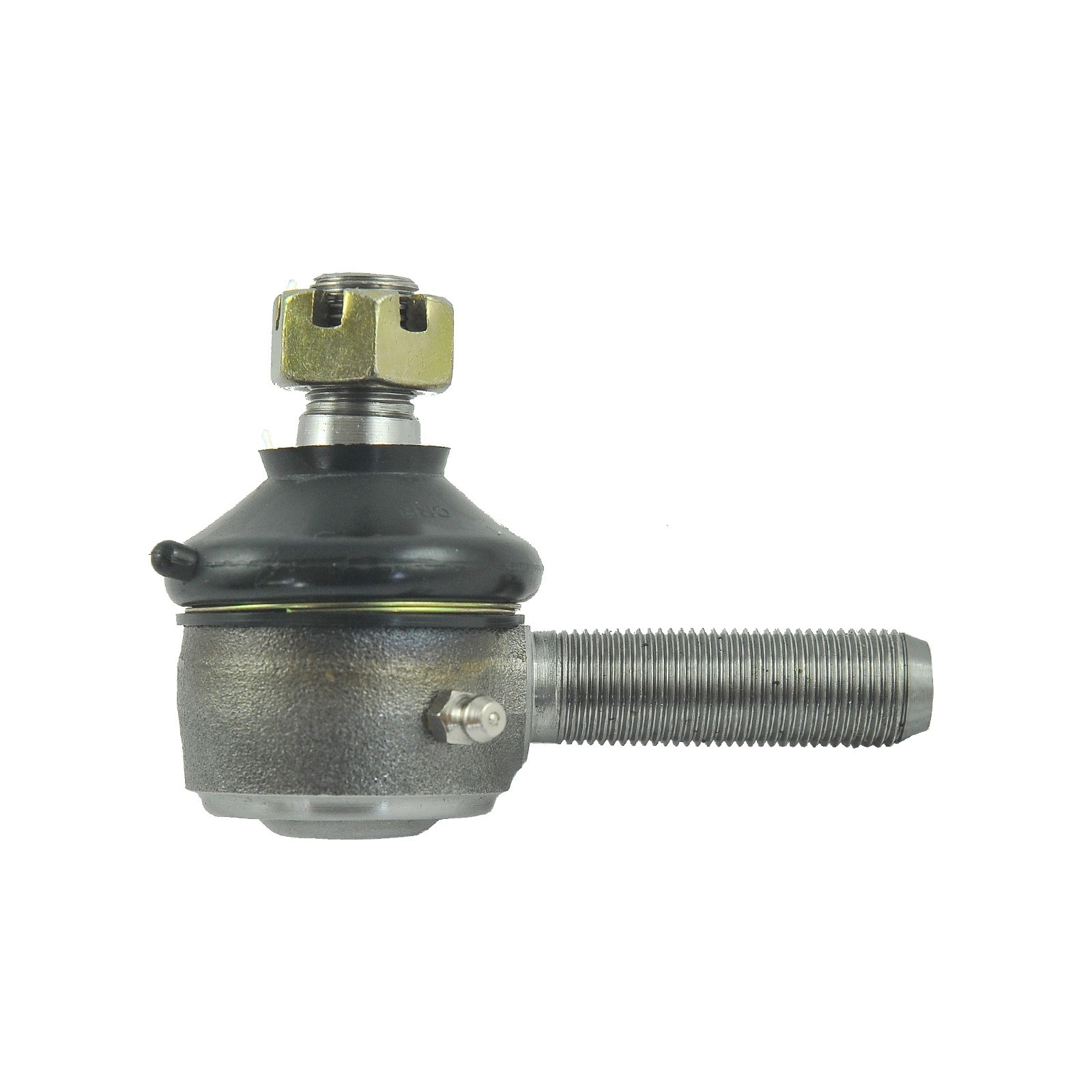

Tie rod end 78 x 105 mm / RIGHT / Yanmar EF352T / 198283-12550 /5-23-101-65
5-23-101-65
Do you have any questions?
Tie rod end 78 x 105 mm / RIGHT / Yanmar EF352T / 198283-12550 /5-23-101-65
Steering rod end (rubber cover 5-21-116-07 , 194550-12551) with a total length of 105 mm and a height of 78 mm for tractors Yanmar brand Yanmar EF352T series and others
The rod end, the steering rod with ends is a steering element connecting the wheels to the steering gear. Correct installation of this element directly affects the driving angle of the wheels and, consequently, the driving characteristics of the vehicle itself. The most common visible signal and the need to replace the steering rod are play in the steering system or visible unnatural tire abrasion. Remember that the good condition of the steering rod ends affects driving safety and extends the durability of the tires.

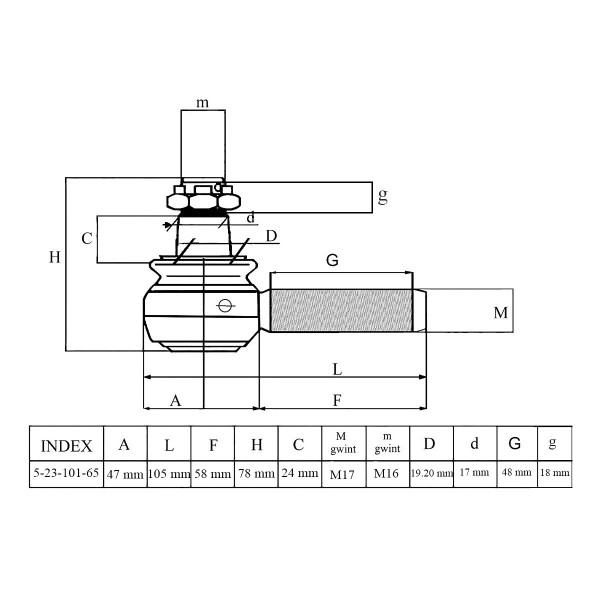

Dimensions :
- total length: 105 mm,
- head diameter: 47 mm,
- thread length: 18 / 48 mm,
- head height (see picture): 74 mm,
- cone height: 40 / 24 mm,
- cone diameter (see drawing): 19.20 / 17 mm,
- thread: M16 x 1.5 / M17 x 1.50,
- original part numbers: 198283-12550,
- part numbers: 5-23-101-65.
Tractor models :
Yanmar :
- Yanmar EF352T.
The first signs of wear of the steering rod are play on the steering wheel, vibration of the steering wheel, delayed reaction of the steering wheels to slight movements of the steering wheel. The wear or damage of the tie rod ends is often caused by other malfunctioning components or improper driving and operation of the tractor.
Warehouse :
M01:D91:D83
Specification
Magazyn: M01:D91
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
Yanmar EF352T
Cone Height(mm)
40 / 24
Overall length (mm)
105
Thread(s) length (mm)
18 / 48
Head diameter (mm)
47
Cone diameter (mm)
19.20 / 17
Thread
M16 x 1.5 / M17 x 1.50
Original Part Number (OEM)
198283-12550
Part number
5-23-101-66
