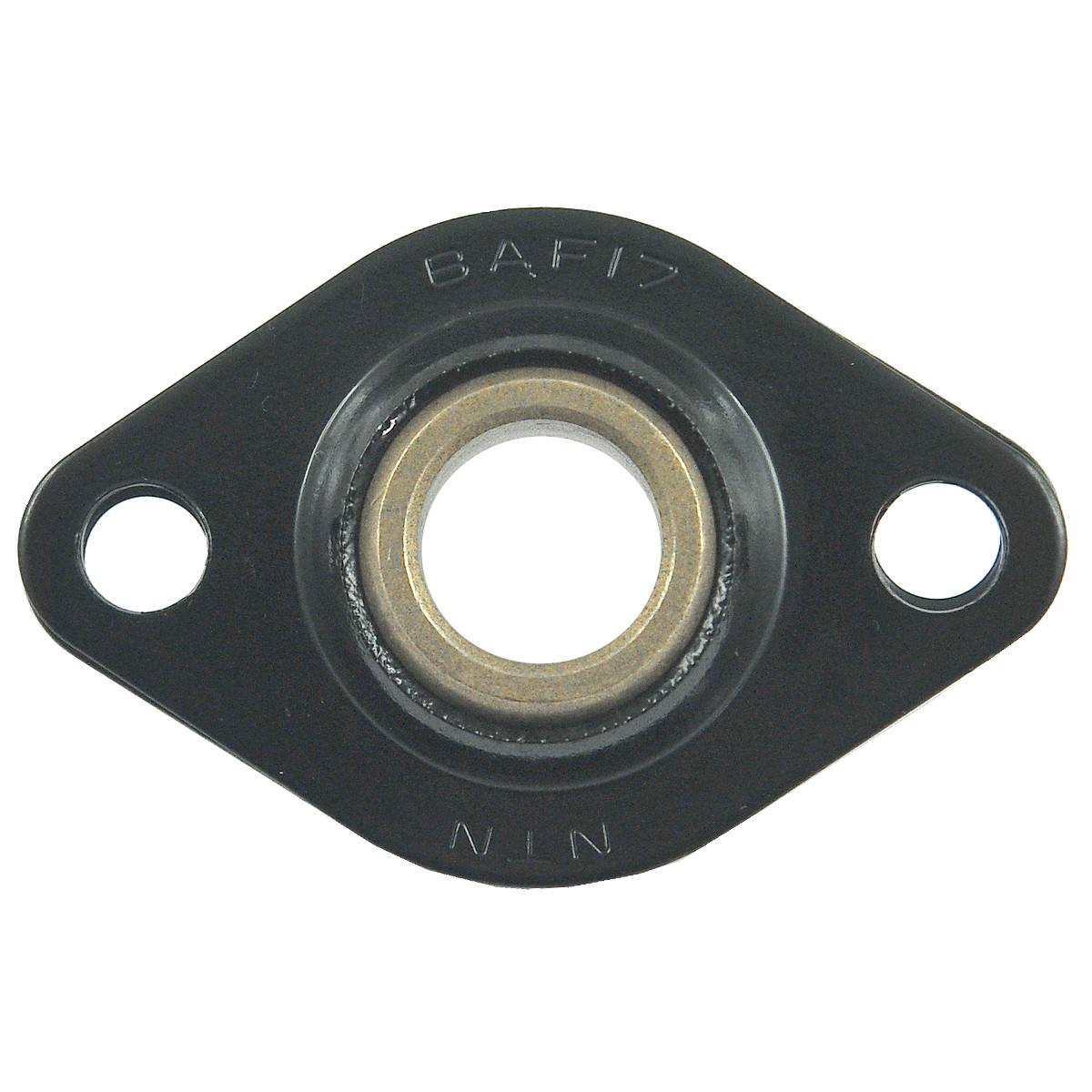

Bearing / Ø17 mm / Kubota L2501 / L2800 / L3408 / L4060 / L5040

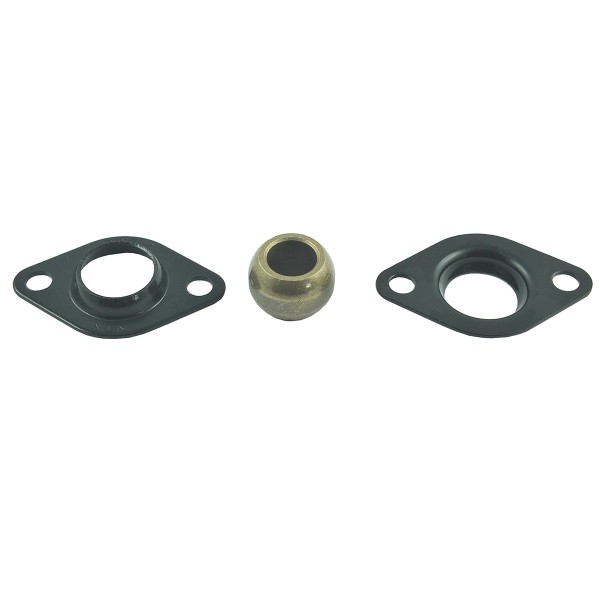

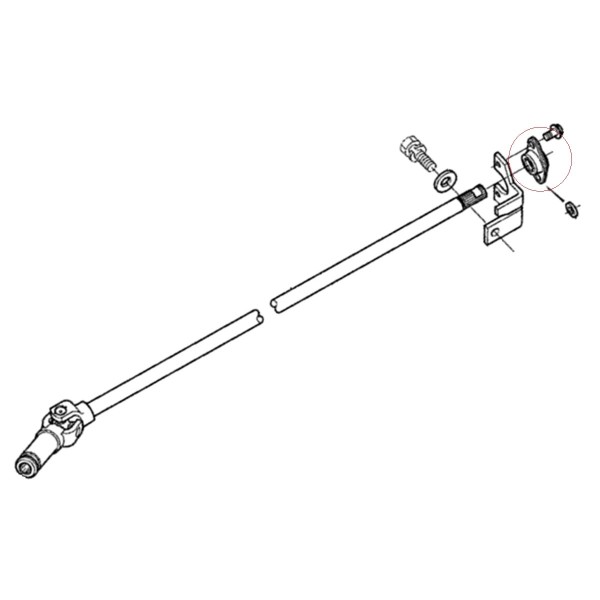

Cardan shaft oscillating bearing (joint 6-07-102-03 , TC222-18263-1) with an inner diameter of 17 mm for Kubota tractors of the Kubota L2501, Kubota L2800, Kubota L3408, Kubota L4060, Kubota L5040 series and others

A spacer sleeve (or sleeve) is a component whose primary function is to maintain a specific, predetermined distance between individual parts, components, or assemblies of parts in a mechanical structure. In addition to maintaining a given part in a specific position , a spacer sleeve is responsible for heat transfer (absorption) in engines and mechanical devices, as well as providing resistance to high temperatures and chemicals. There are several types of spacer sleeves available on the market, but most often they are cylindrical metal elements (sometimes hexagonal) made of a resistant metal, copper, or other metal alloy, with a milling cutter (breakaway sleeves) or grooves or holes that allow for better access of the lubricant to the contact surfaces of the components.

Dimensions :

• total length: 74 mm,
• width: 48 mm,
• inner diameter: 17 mm,
• spacing of mounting screw holes: 56 mm,
• comparative numbers: ANT-104546 ,

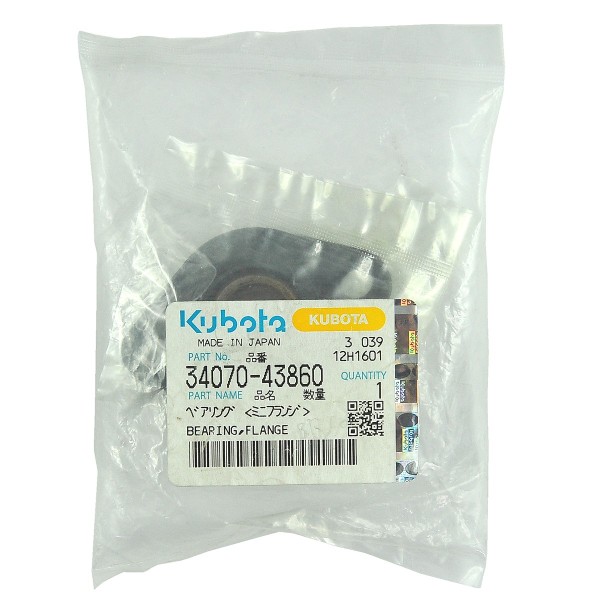

• part numbers: 34070-43860.

Tractor models :

• Kubota L2501,
• Kubota L2800,
• Kubota L3408,
• Kubota L4060,
• Kubota L5040.

Magazine : K18:B18:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
