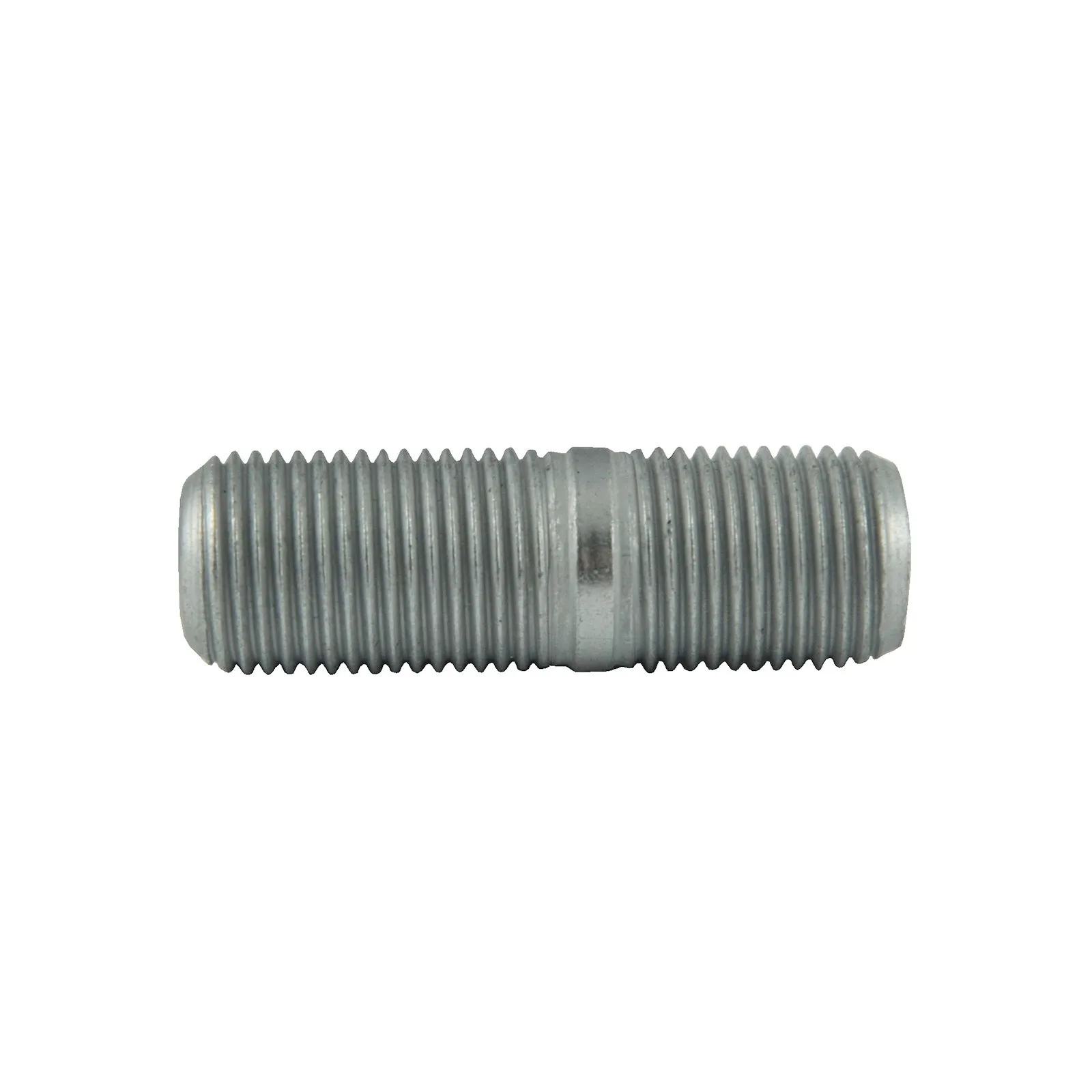

Pin Screw M16 x 1.5 x 30 mm / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S167163027 / 40404641

M16 stud with 1.5 thread, total length 51 mm . Bolt for LS Tractors series LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

• rear wheel,
• front wheel.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw precision, i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9, where the first digit indicates the tensile strength limit and the second the yield strength relative to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 51 mm,
• thread length: 18 / 25 mm,
• thread: M16 x 1.5,
• reference numbers: S167163027, 40404641.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Warehouse :
L01:B312
